Rectorseal SS3 User Manual

75M

1

(

)

2

3

File #: E209344

1-1/2 “

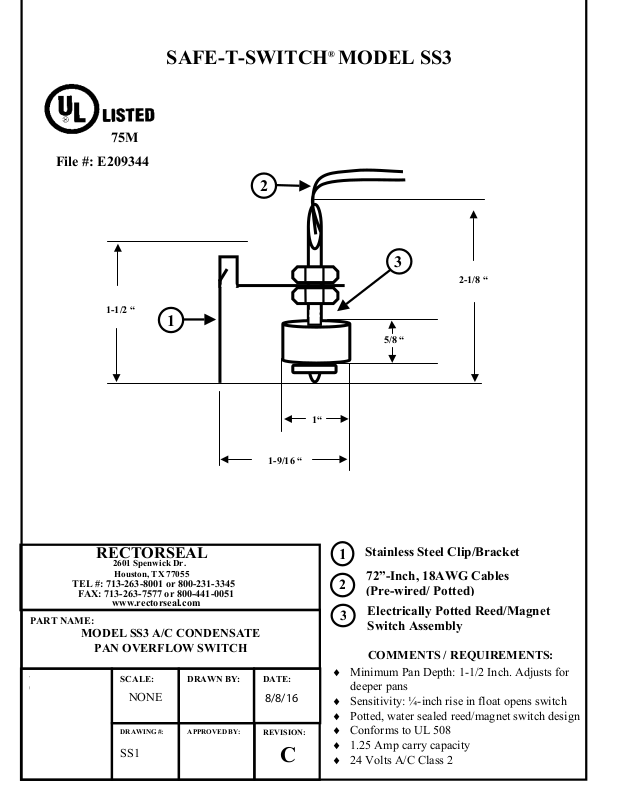

SAFE-T-SWITCH®MODEL SS3

2

3

2-1/8 “

1

5/8 “

TEL #: [phone] or 800-231-3345

FAX: [phone] or 800-441-0051

PART NAME:

MODEL SS3 A/C CONDENSATE

PAN OVERFLOW SWITCH

TOLERANCES:

(EXCEPT WHERE NOTED)

.XX ± .020

.XXX ± .005

.XXXX ± .0005

ANG. ± ½ °

RECTORSEAL

2601 Spenwick Dr.

Houston, TX 77055

www.rectorseal.com

SCALE:

NONE

DRAWING #:

DRAWN BY:

MTB

APPROVED BY:

SS1

SPO

1-9/16 “

DATE:

12/4/06

8/8/16

REVISION:

C

1“

Stainless Steel Clip/Bracket

72”-Inch, 18AWG Cables

Pre-wired/ Potted

Electrically Potted Reed/Magnet
Switch Assembly

COMMENTS / REQUIREMENTS:

♦ Minimum Pan Depth: 1-1/2 Inch. Adjusts for

deeper pans

♦ Sensitivity: ¼-inch rise in float opens switch
♦ Potted, water sealed reed/magnet switch design
♦ Conforms to UL 508
♦ 1.25 Amp carry capacity
♦ 24 Volts A/C Class 2
