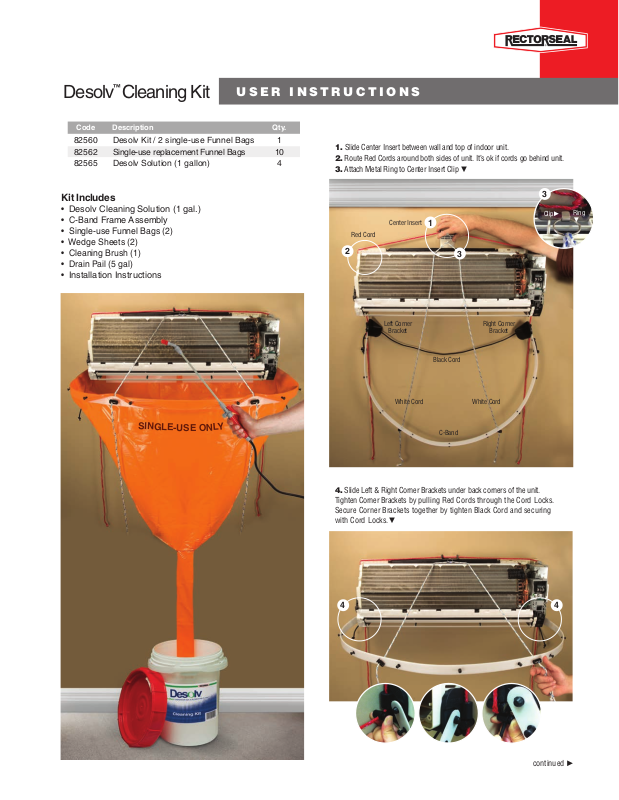

Desolv™ Cleaning Kit
Code Description Qty.
82560 Desolv Kit / 2 single-use Funnel Bags 1
82562 Single-use replacement Funnel Bags 10
82565 Desolv Solution (1 gallon) 4
USER INSTRUCTIONS
1. Slide Center Insert between wall and top of indoor unit.
2. Route Red Cords around both sides of unit. It’s ok if cords go behind unit.
3. Attach Metal Ring to Center Insert Clip ▼
Kit Includes
•
Desolv Cleaning Solution (1 gal.)
• C-Band
• Single-use Funnel Bags (2)
• Wedge Sheets (2)
• Cleaning Brush (1)
• Drain Pail (5 gal)
•
Frame Assembly
Installation Instructions
S
I
N
G
L
E
-
U
3
Ring
Clip►
Center Insert
Red Cord
2
Y
L
N
S
O
E
Left Corner
Bracket
White Cord White Cord
1
Black Cord
C-Band
3
Right Corner
Bracket
▼
4. Slide Left & Right Corner Brackets under back corners of the unit.
Tighten Corner Brackets by pulling Red Cords through the Cord Locks.
Secure Corner Brackets together by tighten Black Cord and securing
with Cord Locks.▼
4 4
continued ►
5. Lift the C-Band up into position by pulling White Cords
through the Cord Locks. ▼
9. Cut the drain tube of the single-use Funnel Bag to the proper length
and drop it into bottom of Drain Pail. ▼
5
6. Attach the single-use Funnel Bag to the frame by rolling it over the
C-Band from the inside. Secure the mounting holes in the bag to the
mounting studs along the C-Band. ▼
Sngle-use Funnel Bag
5
6
7. Raise and pull Rear Flap of the single-use Funnel Bag up and over
the Black Cord. Spread flap along Black Cord to cover full length of unit.
8. Use the Wedge Sheets to wedge the Flap of the single-use Funnel
Bag up behind the unit, between the unit and wall. ▼
→
→
Rear Flap
8
Wedge Sheets
10. Apply Desolv Cleaner per instructions. If necessary use cleaning
brush (included with kit) ▼
S
I
N
G
L
E
-
U
U.S. Patent No. 6,863,116
Under license from Crossford International LLC
S
Y
L
N
E
O
After cleaning, unhook C-Band
with the single-use Funnel Bag
attached. Roll entire assembly
into Drain Pail. Remove Drain
Pail outdoors and separate the
bag from the frame.
Keep reusable frame and brush.
Replacement Funnel Bags are for
single use only. Properly dispose
of diluted solution in accordance
with local, state and federal
regulations.
Single-use Funnel Bags can be
purchased separately.
Contact: RectorSeal® 2601 Spenwick Drive, Houston, TX 713-263-8001 800-231-3345 713-263-7577 800-441-0051 www.rectorseal.com
© 2015 RectorSeal® Inst/D-D-15
