For PS4™ | PS3™
AMPLIFIED GAMING HEADSET
USER GUIDE
EAR FORCE® RECON 60P
AMPLIFIED GAMING HEADSET
Congratulations on your purchase of the Ear Force Recon 60P Gaming
headset from Turtle Beach. Turtle Beach brings over 45 years of expertise to
transforming your listening experience.
Table of Contents
About the Ear Force Recon 60P P4
In the Box P5
Parts and Control P6
PS4 Setup P7
PS3 Setup P8
Xbox One Setup P9
PC/Mac Setup P10
Mobile Setup P11
Adjusting Sound P12
Specifications P13
Troubleshooting Tips P14
Important Safety Information P15
Regulatory Compliance P16
Declaration Conformity P17
Warranty Information P18
About the Ear Force Recon 60P
The Ear Force® Recon 60P delivers long-lasting comfort, game-changing features and Turtle Beach
quality to PlayStation® gaming, with booming 40mm Neodymium stereo speakers and an In-line
Remote that puts Master Volume and Mic Mute controls at your fingertips. The Recon 60P connects
directly to the console as well as PS Vita™, PCs, tablets, mobile gaming devices and the newest
Xbox One controllers*.
Comfortable & Quiet
Large 40mm stereo speakers produce crisp highs and thundering lows.
Volume Control
In-line Remote puts Master Volume Control and Mic Mute at
your fingertips.
PS4™ and PS3™ Connect
Quickly and easily connect directly to both PS4™ and PS3™ Consoles.
Mobile Gaming Versatility
Use the Recon 60P for PC gaming and mobile gaming devices
including PS Vita™.
*Works with Xbox One controllers with a 3.5mm stereo headset jack.
Other controllers require the Xbox One Headset Audio Controller (sold separately).
Go to Table of Contents
4
In the Box
For our Knowledgebase and Technical Support please visit
turtlebeach.com/support
A
B
Ear Force Recon 60P AmplifierEar Force Recon 60P Headset
C
D
Removable Mic Boom RCA Splitter Cable
Go to Table of Contents
5
Parts and Controls
Mic Mute Switch
Switch to to mute
the microphone.
Master Volume
Adjust the master volume of the
incoming game/chat/mic monitor audio
Go to Table of Contents
6
PS4™ setup
The Ear Force Recon 60P headset is designed for use with PS4™ consoles.
A
B
1. Go to Settings >> Devices >> Audio Devices
2. Select USB Device for Input & Output Device
3. Set Output to Headphones to All Audio
4. Set Volume Control (Headphones) level to maximum
5. Select Adjust Microphone Level and follow the on-screen instructions to calibrate your microphone
Audio Devices
Input Device Recon 60P
Output Device
Adjust Microphone Level
Volume Control (Headphones)
Output to Headphones
Recon 60P
All Audio
USB
x
Enter Back
User 1
Go to Table of Contents
7

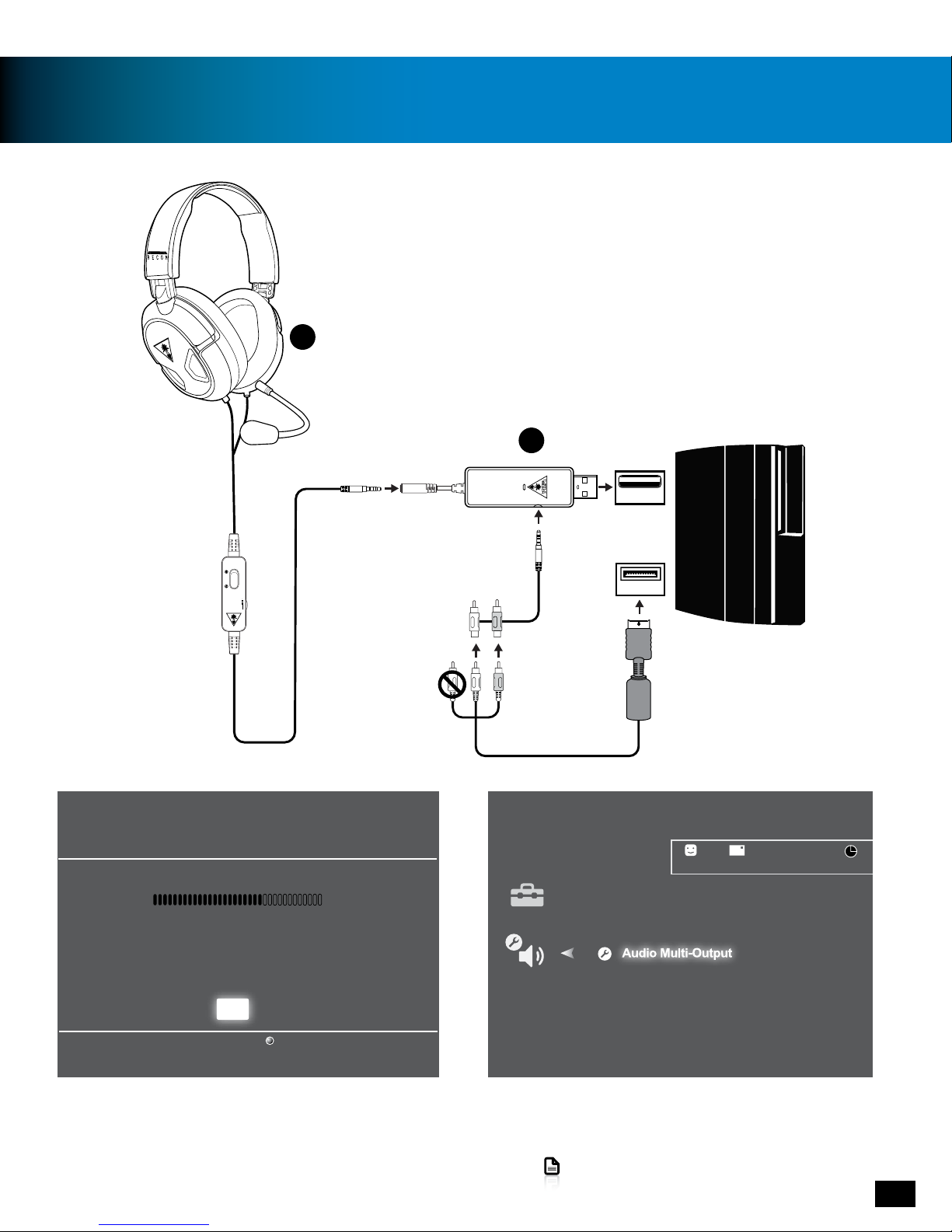

PS3™ Setup
A
B
USB
Audio Device Settings
Microphone Level 3
Input Device TURTLE BEACH RECON 60P
Output Device TURTLE BEACH RECON 60P
OK
yellow
white
red
PS3 AV Cable
*Included with PS3 Console
VA
0
Audio Output Settings
Sets to output audio through multiple connectors
simultaneously. Audio output to connectors that are
not selected in [Audio Output Settings] is downscaled
to 2 Ch.
12/14 12:15 PM
On
X Enter
Back
1. Settings > Accessory Settings >Audio Device Settings
2. Settings > Sound Settings > Audio Multi-Output On
Go to Table of Contents
8
Xbox One Setup
A
NOTES
The Recon 60P requires the NEW Xbox One Controller (with 3.5mm
headset jack). Purchase the Ear Force Headset Audio Controller
from turtlebeach.com for use with the original Xbox One Controller.
Go to Table of Contents
9
PC/Mac Setup
A
If your PC uses separate Green/Pink connectors for audio you will need a PC
Splitter Cable. This adapter is available online at turtlebeach.com
NOTES
Go to Table of Contents
10
Mobile Setup
A
Go to Table of Contents
11
Adjusting sound
If you want to… Then...
On the PS4 Console:
1. Go to Settings >> Audio Devices
2. Adjust Volume Control
Adjust PS4 Console Audio Volume
On the In-Line Control:
1. Turn the Volume Control
On the PS4 Console:
Adjust PS4 Console Mic Level
Adjust Xbox One Console
Audio Volume
1. Go to Settings >> Audio Devices
2. Adjust Microphone Level
When using the Xbox One Controller with 3.5mm jack:
On the Xbox One Console:
1. Go to Settings >> Devices and Accessories >> Xbox One
Wireless Controller >> Volume
2. Adjust Volume
When using a Headset Audio Controller:
1. Adjust the levels right on the Headset Audio Controller
connected to your Xbox One Controller
Turn the microphone on and off 1. Slide the Mic Mute switch on the In-Line Controls
Adjust Mic Monitor
Mic Monitor will increase/decrease along with your master
volume as controlled by the In-Line Volume Control.
Go to Table of Contents
12
Specifications
Headset
· Speakers 50mm with Neodymium Magnets
· Frequency Response 20Hz - 20kHz
· Earpad Material Fabric (Blue) with Foam Cushion
· Earcup Design Over-Ear (Closed)
· Microphone Design Removable Omni-Directional Microphone
Amplifier
· Game/Chat Input/Output PS4 USB
· Game Input PS3 RCA - 3.5mm
· Chat Input/Output PS3 USB
Go to Table of Contents
13
Troubleshooting Tips
