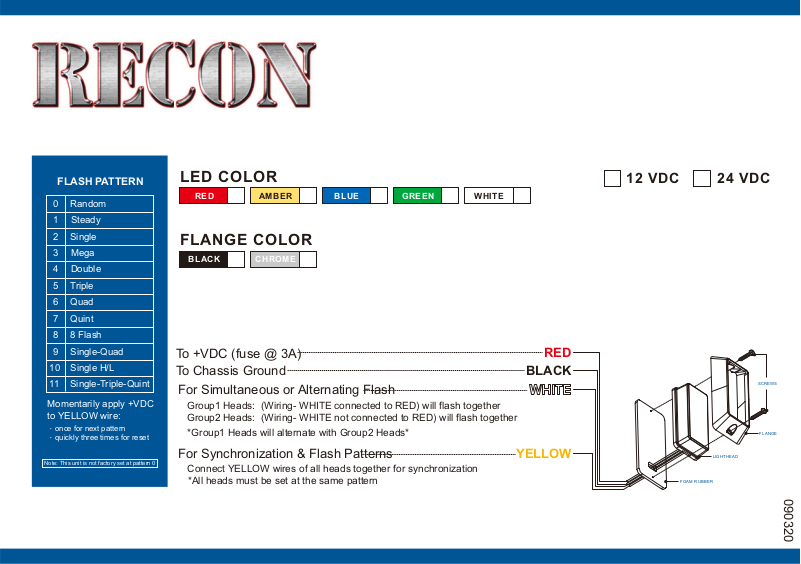

RECON 26421 User Manual

FLASH PATTERN

0 Random

1 Steady

2 Single

3 Mega

4 Double

5 Triple

6 Quad

7 Quint

8 8 Flash

9 Single-Quad

10 Single H/L

11 Single-Triple-Quint

Momentarily apply +VDC
to YELLOW wire:

ȅonce for next pattern
ȅquickly three times for reset

Note: This unit is not factory set at pattern 0

LED COLOR

RED

AMBER

BLUE

GREEN

WHITE

FLANGE COLOR

CHROMEBLACK

To +VDC (fuse @ 3A)

To Chassis Ground

For Simultaneous or Alternating Flash

Group1 Heads: (Wiring- WHITE connected to RED) will flash together
Group2 Heads: (Wiring- WHITE not connected to RED) will flash together

*Group1 Heads will alternate with Group2 Heads*

For Synchronization & Flash Patterns

Connect YELLOW wires of all heads together for synchronization

*All heads must be set at the same pattern

RED

BLACK

YELLOW

24 VDC12 VDC

SCREWS

FLANGE

LIGHTHEAD

FOAM RUBBER

090320
