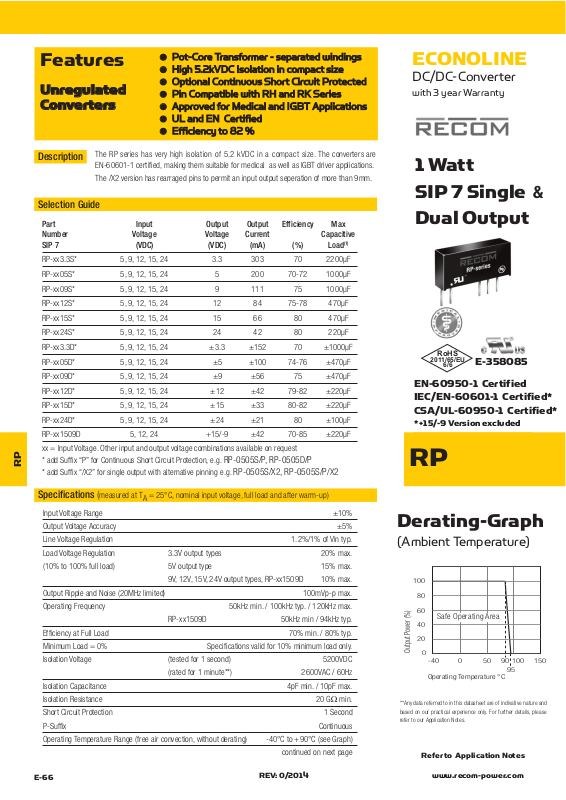

Page 1
E-66
Refer to Application Notes
ECONOLINE
DC/DC-Converter
with 3 year Warranty
EN-60950-1 Certified
IEC/EN-60601-1 Certified*
CSA/UL-60950-1 Certified*
* +15/-9 Version excluded
Selection Guide
Part Input Output Output Efficiency Max
Number Voltage Voltage Current Capacitive
SIP 7 (VDC) (VDC) (mA) (%) Load
(1)
RP-xx3.3S* 5, 9, 12, 15, 24 3.3 303 70 2200µF
RP-xx05S* 5, 9, 12, 15, 24 5 200 70-72 1000µF
RP-xx09S* 5, 9, 12, 15, 24 9 111 75 1000µF
RP-xx12S* 5, 9, 12, 15, 24 12 84 75-78 470µF
RP-xx15S* 5, 9, 12, 15, 24 15 66 80 470µF
RP-xx24S* 5, 9, 12, 15, 24 24 42 80 220µF
RP-xx3.3D* 5, 9, 12, 15, 24 ±3.3 ±152 70 ±1000µF
RP-xx05D* 5, 9, 12, 15, 24 ±5 ±100 74-76 ±470µF
RP-xx09D* 5, 9, 12, 15, 24 ±9 ±56 75 ±470µF
RP-xx12D* 5, 9, 12, 15, 24 ±12 ±42 79-82 ±220µF
RP-xx15D* 5, 9, 12, 15, 24 ±15 ±33 80-82 ±220µF
RP-xx24D* 5, 9, 12, 15, 24 ±24 ±21 80 ±100µF
RP-xx1509D 5, 12, 24 +15/-9 ±42 70-85 ±220µF
xx = Input Voltage. Other input and output voltage combinations available on request
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RP-0505S/P, RP-0505D/P
* add Suffix “/X2” for single output with alternative pinning e.g. RP-0505S/X2, RP-0505S/P/X2
Output Power (%)
100
60
20
40
100500-40
90
150
Operating Temperature °C
0
80
Safe Operating Area
95
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range ±10%
Output Voltage Accuracy ±5%
Line Voltage Regulation 1.2%/1% of Vin typ.
Load Voltage Regulation 3.3V output types 20% max.
(10% to 100% full load) 5V output type 15% max.
9V, 12V, 15V, 24V output types, RP-xx1509D 10% max.
Output Ripple and Noise (20MHz limited) 100mVp-p max.
Operating Frequency 50kHz min. / 100kHz typ. / 120kHz max.
RP-xx1509D 50kHz min / 94kHz typ.
Efficiency at Full Load 70% min. / 80% typ.
Minimum Load = 0% Specifications valid for 10% minimum load only.
Isolation Voltage (tested for 1 second) 5200VDC
(rated for 1 minute**) 2600VAC / 60Hz
Isolation Capacitance 4pF min. / 10pF max.
Isolation Resistance 20 GΩ min.
Short Circuit Protection 1 Second
P-Suffix Continuous
Operating Temperature Range (free air convection, without derating) -40°C to +90°C (see Graph)
continued on next page
1 Watt
SIP 7 Single
&
Dual Output
Derating-Graph
(Ambient Temperature)
●
Pot-Core Transformer - separated windings
●
High 5.2kVDC Isolation in compact size
●
Optional Continuous Short Circuit Protected
●
Pin Compatible with RH and RK Series
●
Approved for Medical and IGBT Applications
●
UL and EN Certified
●
Efficiency to 82 %
Features
Unregulated
Converters
Description
The RP series has very high isolation of 5.2 kVDC in a compact size. The converters are
EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.
The /X2 version has rearraged pins to permit an input output seperation of more than 9mm.
RP
RP
REV: 0/2014
www.recom-power.com
RoHS
2011/65/EU
6/6
E-358085
**Any data referred to in this datasheet are of indivative nature and
based on our practical experience only. For further details, please
refer to our Application Notes.
Page 2
Storage Temperature Range -55°C to +125°C
Relative Humidity 95% RH
Package Weight 2.4g
Packing Quantity 25 pcs per Tube
MTBF (+25°C) using MIL-HDBK 217F 928 x 10
3
hours
(+85°C) using MIL-HDBK 217F 150 x 103 hours
Certifications
CSA General Safety Report: E358085 CSA C22.2 No. 60950-1-03
UL General Safety Report: E358085 UL 60950-1 2nd Ed.
EN General Safety Report: SPCLVD1109103 EN60950-1:2006 + A12:2011
EN Medical safety Report: SPCMDD1205098-4 IEC/EN60601-1:2006, 3rd Edition
E-67
Typical Characteristics
RP
Series
ECONOLINE
DC/DC-Converter
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1205
0505
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1212
0512
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0505
0.000
5.000
10.000
15.000
20.000
25.000
1205
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0512
0.000
5.000
10.000
15.000
20.000
25.000
1212
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1205
0505
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1212
0512
RP-xx05S
RP-xx12S
RP-xx05D
RP-xx12D
REV: 0/2014www.recom-international.com
RP
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
}
Detailed Information see
Application Notes chapter "MTBF"
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1215
0515
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0515
0.000
5.000
10.000
15.000
20.000
25.000
1215
RP-xx15S
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1215
0515
RP-xx15D
continued on next page
Notes
Note 1 Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
Page 3
E-68
0.51 typ.
2.54
1.00ø+0.15/0
2.54
Top View /X2 Version
Bottom View /X2
2.54
Top View Standard Version
Bottom View
2.54
7.05
RECOM
RP-xxxxS
****
12
5
7
0.51 typ.
4.10
10.20
19.65
1.27
0.25
9.65
pin clearance
2.0
RECOM
RP-xxxxD
****
Single Output
RECOM
RP-xxxxD
****
12
5
7
6
Dual Output
RECOM
RP-xxxxS/X2
****
12
7
6
Single Output/X2
19.65
1.27
0.25
7.11
pin clearance
2.0
RECOM
RP-xx1509D
****
12
5
7
6
Dual Output
www.recom-electronic.com
REV: 0/2014
RP
Package Style and Pinning (mm)
RP
Series
ECONOLINE
DC/DC-Converter
7 PIN SIP Package
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
Pin Connections
Pin # Single Dual /X2
1 +Vin +Vin +Vin
2 –Vin –Vin -Vin
5 –Vout –Vout No Pin
6 No Pin Com -Vout
7 +Vout +Vout +Vout
Recommended Footprint Details
Isolated
DC/DC
Converter
IGBT
Driver
IGBT
Rg
+Vout
-Vout
Control Signal
-Vin
C1
C2
C3
+
+
+
1
2
7
6
5
IGBT Application
Circuit
Application
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0505
0.000
5.000
10.000
15.000
20.000
25.000
1205
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0512
0.000
5.000
10.000
15.000
20.000
25.000
1212
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0515
0.000
5.000
10.000
15.000
20.000
25.000
1215
RP-xx05D
RP-xx12D
RP-xx15D
Typical Characteristics
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
