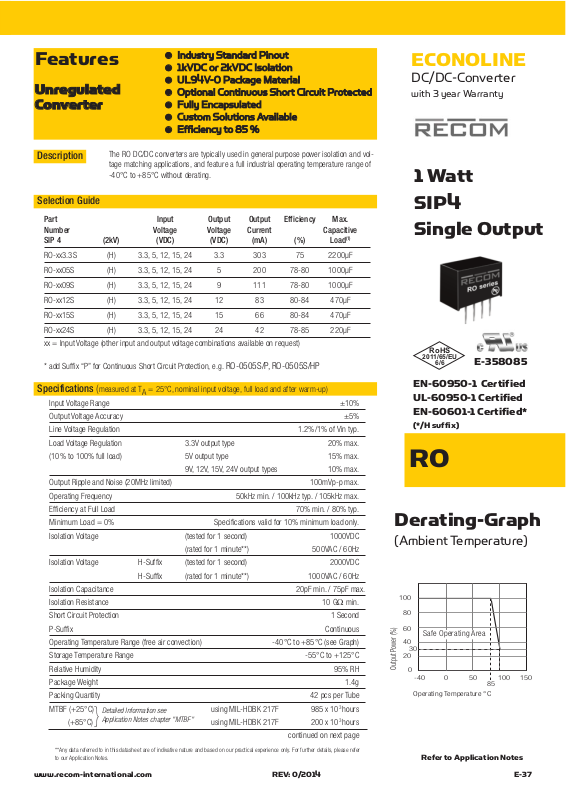

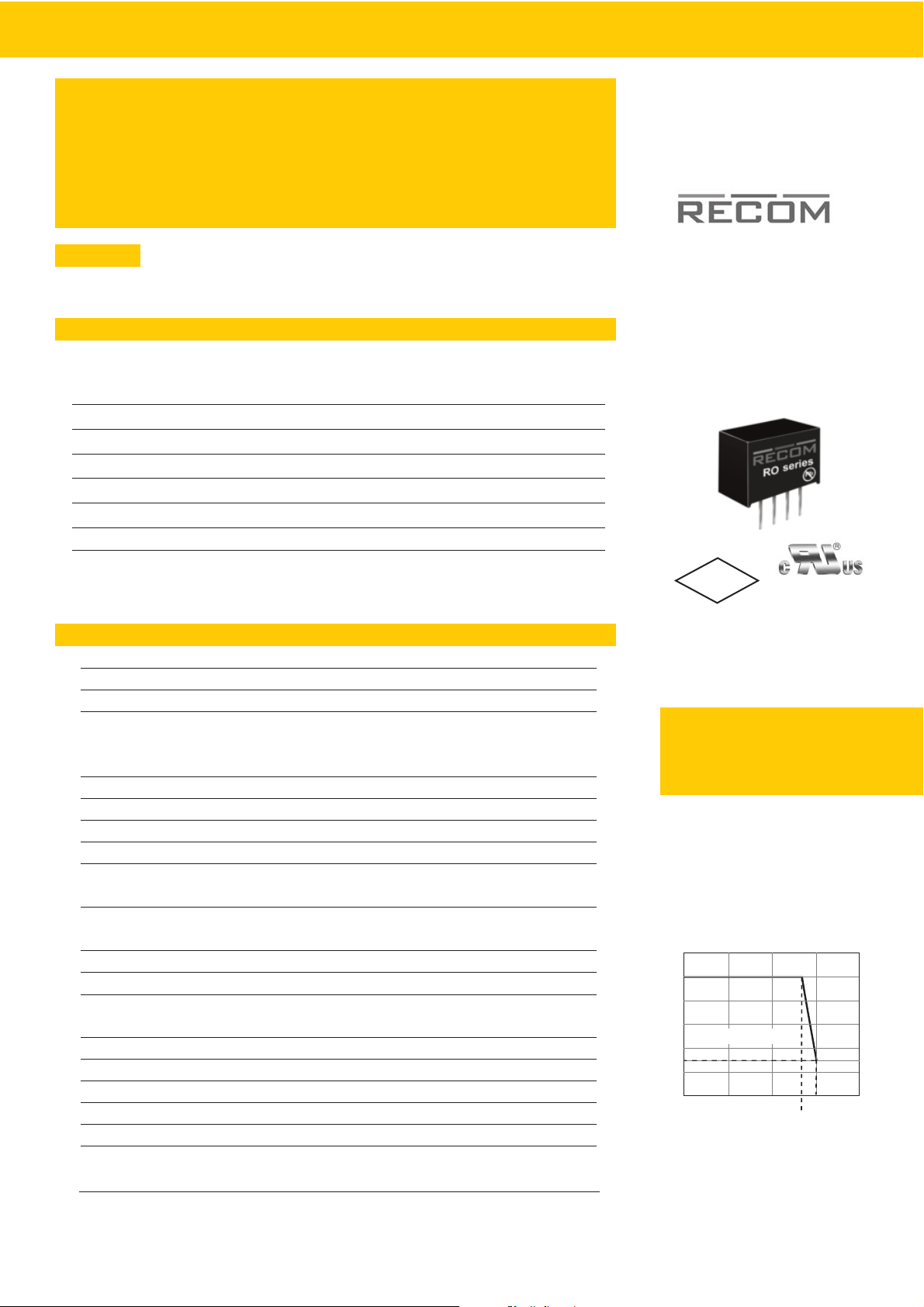

Page 1
ECONOLINE
DC/DC-Converter
with 3 year Warranty
RO
www.recom-international.com E-37REV: 0/2014
EN-60950-1 Certified
UL-60950-1 Certified
EN-60601-1 Certified*
(*/H suffix)
Selection Guide
Output Power (%)
100
60
20
40
100500-40
85
150
Operating Temperature °C
0
80
Safe Operating Area
30
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
1 Watt
SIP4
Single Output
Derating-Graph
(Ambient Temperature)
●
Industry Standard Pinout
●
1kVDC or 2kVDC Isolation
●
UL94V-0 Package Material
●
Optional Continuous Short Circuit Protected
●
Fully Encapsulated
●
Custom Solutions Available
●
Efficiency to 85 %
Features
Unregulated
Converter
}
Detailed Information see
Application Notes chapter "MTBF"
Description
The RO DC/DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of
-40°C to +85°C without derating.
Part Input Output Output Efficiency Max.
Number Voltage Voltage Current Capacitive
SIP 4 (2kV) (VDC) (VDC) (mA) (%) Load
(1)
RO-xx3.3S (H) 3.3, 5, 12, 15, 24 3.3 303 75 2200µF
RO-xx05S (H) 3.3, 5, 12, 15, 24 5 200 78-80 1000µF
RO-xx09S (H) 3.3, 5, 12, 15, 24 9 111 78-80 1000µF
RO-xx12S (H) 3.3, 5, 12, 15, 24 12 83 80-84 470µF
RO-xx15S (H) 3.3, 5, 12, 15, 24 15 66 80-84 470µF
RO-xx24S (H) 3.3, 5, 12, 15, 24 24 42 78-85 220µF
xx = Input Voltage (other input and output voltage combinations available on request)
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RO-0505S/P, RO-0505S/HP
Input Voltage Range ±10%
Output Voltage Accuracy ±5%
Line Voltage Regulation 1.2%/1% of Vin typ.
Load Voltage Regulation 3.3V output type 20% max.
(10% to 100% full load) 5V output type 15% max.
9V, 12V, 15V, 24V output types 10% max.
Output Ripple and Noise (20MHz limited) 100mVp-p max.
Operating Frequency 50kHz min. / 100kHz typ. / 105kHz max.
Efficiency at Full Load 70% min. / 80% typ.
Minimum Load = 0% Specifications valid for 10% minimum load only.
Isolation Voltage (tested for 1 second) 1000VDC
(rated for 1 minute**) 500VAC / 60Hz
Isolation Voltage H-Suffix (tested for 1 second) 2000VDC
H-Suffix (rated for 1 minute**) 1000VAC / 60Hz
Isolation Capacitance 20pF min. / 75pF max.
Isolation Resistance 10 GΩ min.
Short Circuit Protection 1 Second
P-Suffix Continuous
Operating Temperature Range (free air convection) -40°C to +85°C (see Graph)
Storage Temperature Range -55°C to +125°C
Relative Humidity 95% RH
Package Weight 1.4g
Packing Quantity 42 pcs per Tube
MTBF (+25°C) using MIL-HDBK 217F 985 x 10
3
hours
(+85°C) using MIL-HDBK 217F 200 x 10
3
hours
continued on next page
Refer to Application Notes
E-358085
RoHS
2011/65/EU
6/6
**Any data referred to in this datasheet are of indivative nature and based on our practical experience only. For further details, please refer
to our Application Notes.

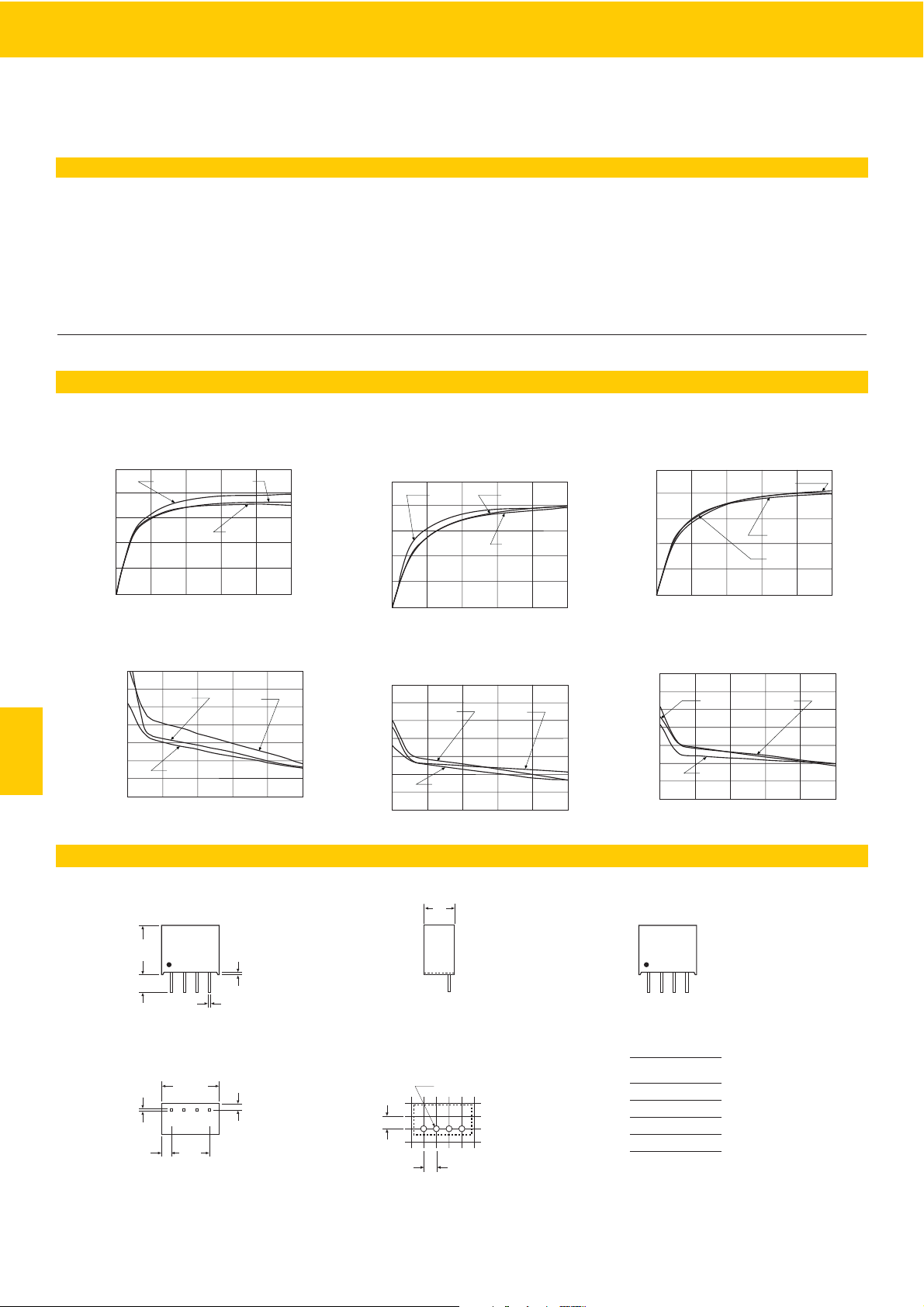

Page 2
RO
Series
E-38 www.recom-power.comREV: 0/2014
RO
Package Style and Pinning (mm)
2.54
2.54
Top View
Bottom View
6.00
1.27
0.25
7.62
1.9
2134
4.10
0.51 typ.
0.51 typ.
10.00
RECOM
RO-0505S
****
1.00ø+0.15/0
11.50
RECOM
RO-0505S
****
Recommended Footprint Details
4 PIN SIP Package
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
RO Pin Connections
Pin # Single
1 –Vin
2 +Vin
3 –Vout
4 +Vout
Typical Characteristics
ECONOLINE
DC/DC-Converter
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.305
0505
1205
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0505
0.000
5.000
10.000
15.000
20.000
25.000
3.305
1205
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
3.312
0512
1212
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.315
1215
0515
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
0512
0.000
5.000
10.000
15.000
20.000
25.000
3.312
1212
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0515
0.000
5.000
10.000
15.000
20.000
25.000
3.315
1215
RO-xx05S
RO-xx12S
RO-xx15S
Notes
Note 1 Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
Certifications
CB Test Report Report: US/15348/UL IEC 60950-1:2005 2nd Ed.
UL General Safety Report: E358085 UL 60950-1 2nd Ed.
EN General Safety Report: SPCLVD1109103 EN60950-1:2006 + A12:2011
EN Medical Safety Report: MDD1112018 + RM1112018 IEC/EN 60601-1 3rd Edition Medical Report + ISO14971 Risk Assessment
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
