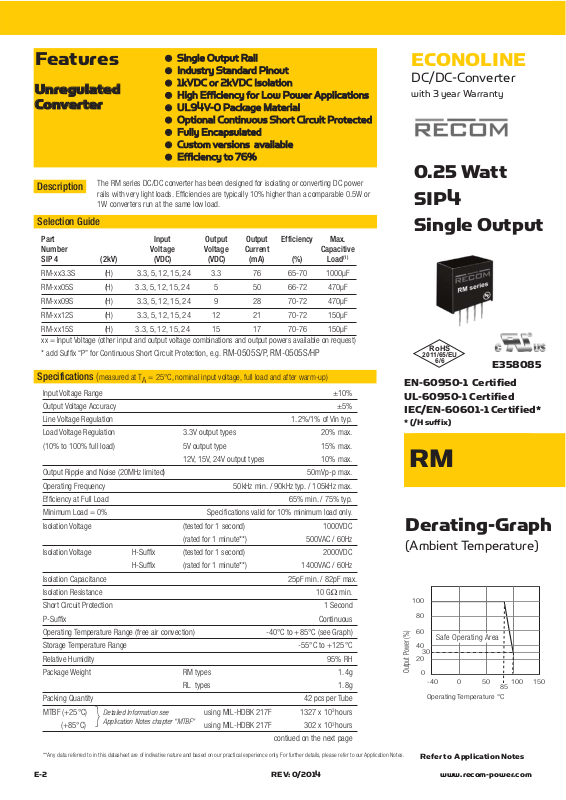

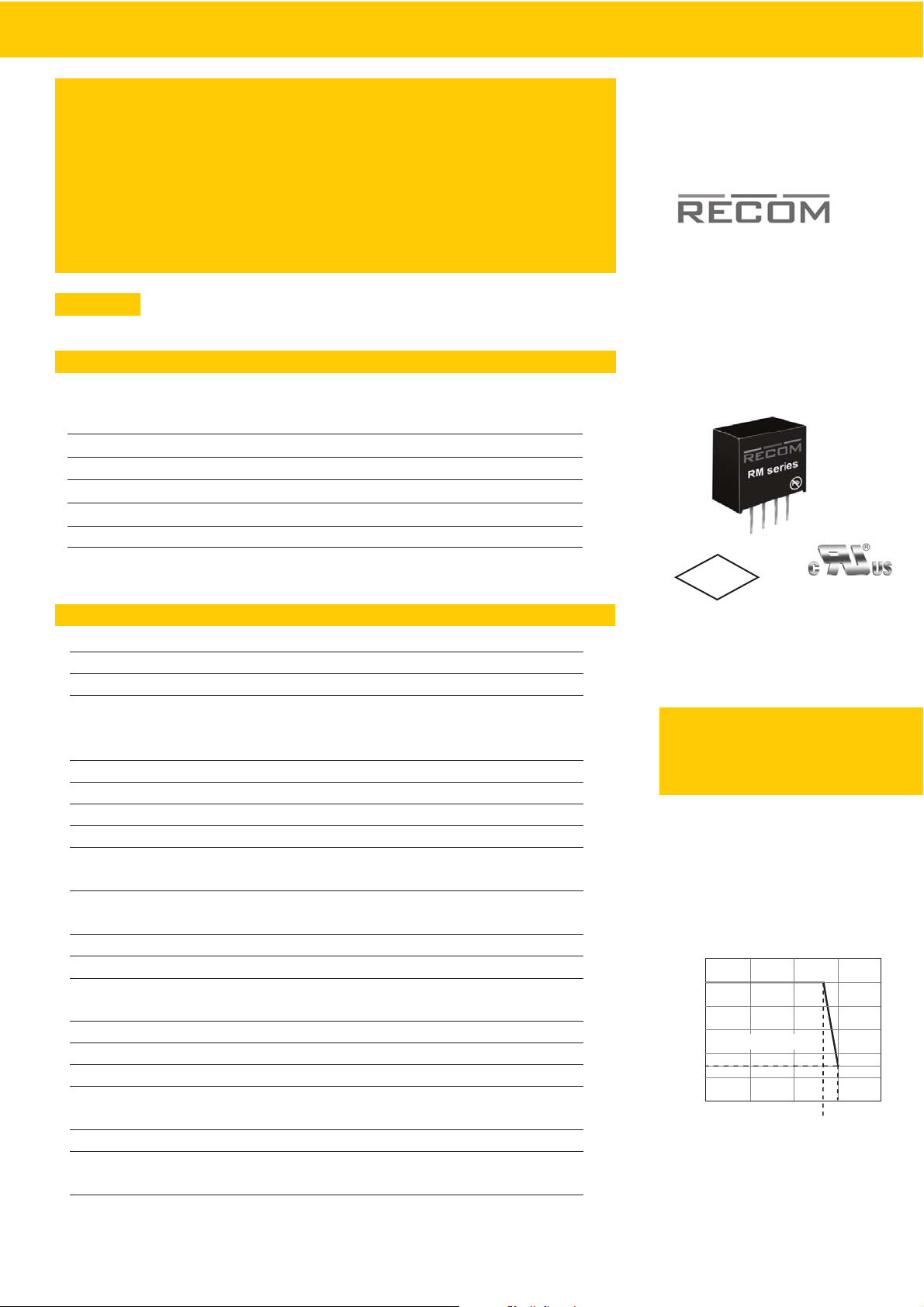

Page 1
Detailed Information see
Application Notes chapter "MTBF"
Input Voltage Range ±10%
Output Voltage Accuracy ±5%
Line Voltage Regulation 1.2%/1% of Vin typ.
Load Voltage Regulation 3.3V output types 20% max.
(10% to 100% full load) 5V output type 15% max.
12V, 15V, 24V output types 10% max.
Output Ripple and Noise (20MHz limited) 50mVp-p max.
Operating Frequency 50kHz min. / 90kHz typ. / 105kHz max.
Efficiency at Full Load 65% min. / 75% typ.
Minimum Load = 0% Specifications valid for 10% minimum load only.
Isolation Voltage (tested for 1 second) 1000VDC
(rated for 1 minute**) 500VAC / 60Hz
Isolation Voltage H-Suffix (tested for 1 second) 2000VDC
H-Suffix (rated for 1 minute**) 1400VAC / 60Hz
Isolation Capacitance 25pF min. / 82pF max.
Isolation Resistance 10 GΩ min.
Short Circuit Protection 1 Second
P-Suffix Continuous
Operating Temperature Range (free air convection) -40°C to +85°C (see Graph)
Storage Temperature Range -55°C to +125°C
Relative Humidity 95% RH
Package Weight RM types 1.4g
RL types 1.8g
Packing Quantity 42 pcs per Tube
MTBF (+25°C) using MIL-HDBK 217F 1327 x 10
3
hours
(+85°C) using MIL-HDBK 217F 302 x 103 hours
contiued on the next page
Refer to Application Notes
0.25 Watt
SIP4
Single Output
●
Single Output Rail
●
Industry Standard Pinout
● 1kVDC or 2kVDC Isolation
●
High Efficiency for Low Power Applications
●
UL94V-0 Package Material
●
Optional Continuous Short Circuit Protected
●
Fully Encapsulated
● Custom versions available
●
Efficiency to 76%
Features
Unregulated
Converter
Selection Guide
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
}
Derating-Graph
(Ambient Temperature)
Output Power (%)
100
60
20
40
100500-40
85
150
Operating Temperature °C
0
80
Safe Operating Area
30
Description
The RM series DC/DC converter has been designed for isolating or converting DC power
rails with very light loads. Efficiencies are typically 10% higher than a comparable 0.5W or
1W converters run at the same low load.
Part Input Output Output Efficiency Max.
Number Voltage Voltage Current Capacitive
SIP 4 (2kV) (VDC) (VDC) (mA) (%) Load
(1)
RM-xx3.3S (H) 3.3, 5, 12, 15, 24 3.3 76 65-70 1000µF
RM-xx05S (H) 3.3, 5, 12, 15, 24 5 50 66-72 470µF
RM-xx09S (H) 3.3, 5, 12, 15, 24 9 28 70-72 470µF
RM-xx12S (H) 3.3, 5, 12, 15, 24 12 21 70-72 150µF
RM-xx15S (H) 3.3, 5, 12, 15, 24 15 17 70-76 150µF
xx = Input Voltage (other input and output voltage combinations and output powers available on request)
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RM-0505S/P, RM-0505S/HP
EN-60950-1 Certified
UL-60950-1 Certified
IEC/EN-60601-1 Certified*
* (/H suffix)
RM
ECONOLINE
DC/DC-Converter
with 3 year Warranty
REV: 0/2014 www.recom-power.comE-2
RoHS
2011/65/EU
6/6
E358085
**Any data referred to in this datasheet are of indivative nature and based on our practical experience only. For further details, please refer to our Application Notes.
Page 2

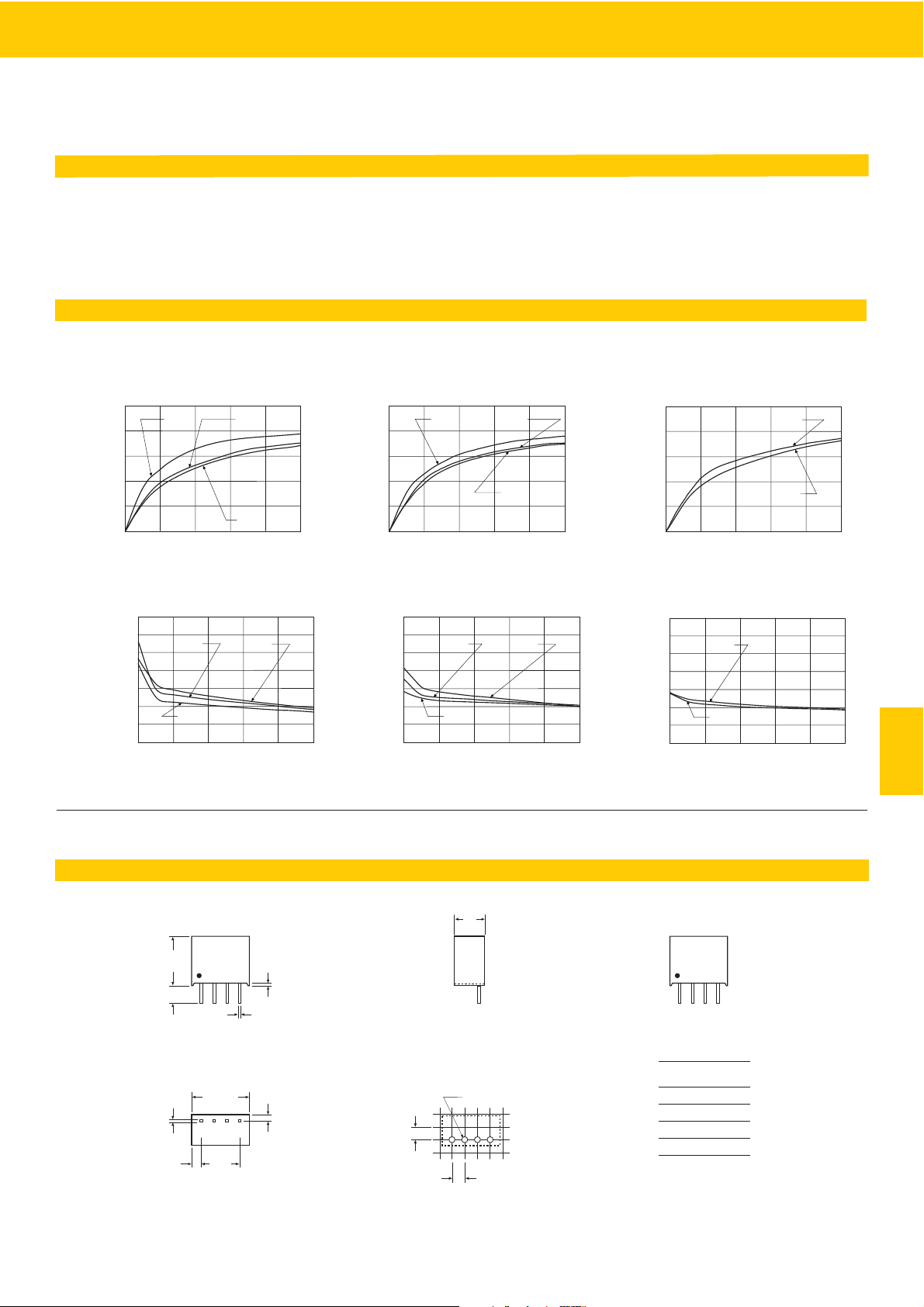

Typical Characteristics
RM Series
ECONOLINE
DC/DC-Converter
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0505
0.000
5.000
10.000
15.000
20.000
25.000
3.305
1205
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0512
0.000
5.000
10.000
15.000
20.000
25.000
3.312
1212
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0515
0.000
5.000
10.000
15.000
20.000
25.000
1215
RM-xx05S
RM-xx12S
RM-xx15S
Package Style and Pinning (mm)
2.54
2.54
Top View
Bottom View
1.25
0.25
7.62
1.9
2134
4.10
0.51
0.51
10.00
RECOM
RM-0505S
****
1.00ø+0.15/0
6.00
11.50
RECOM
RM-0505S
****
Recommended Footprint Details
4 PIN SIP Package
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
RM Pin Connections
Pin # Single
1 –Vin
2 +Vin
3 –Vout
4 +Vout
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.305
1205
0505
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.312
1212
0512
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1215
0515
REV: 0/2014 E-3www.recom-international.com
RM
Specifications (
measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
Notes
Note 1 Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
Certifications
UL General Safety Report: E358085 UL 60950-1, 2nd Edition
EN General Safety Report: SPCLVD1109103 EN 60950-1:2006 + A12:2011
EN Medical Safety Report: MDD1112018 + RM1112018 IEC/EN 60601-1 3rd Edition Medical Report + ISO14971 Risk Assessment
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
