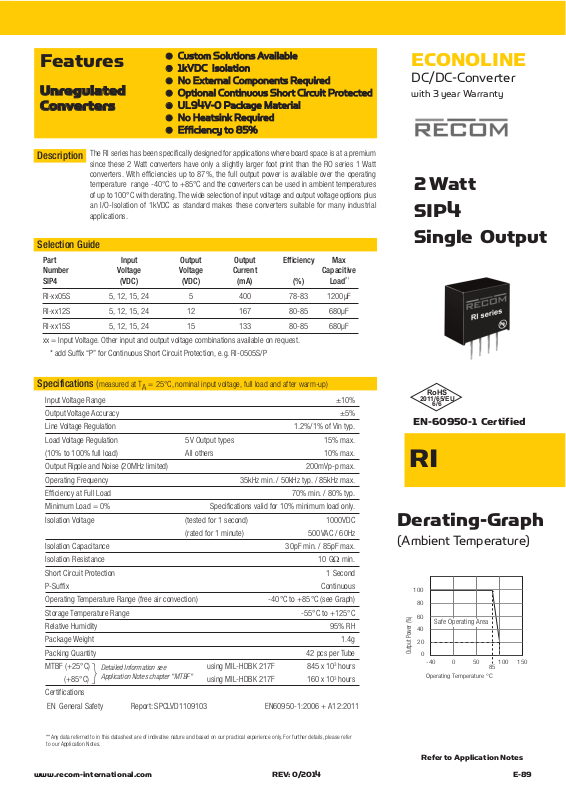

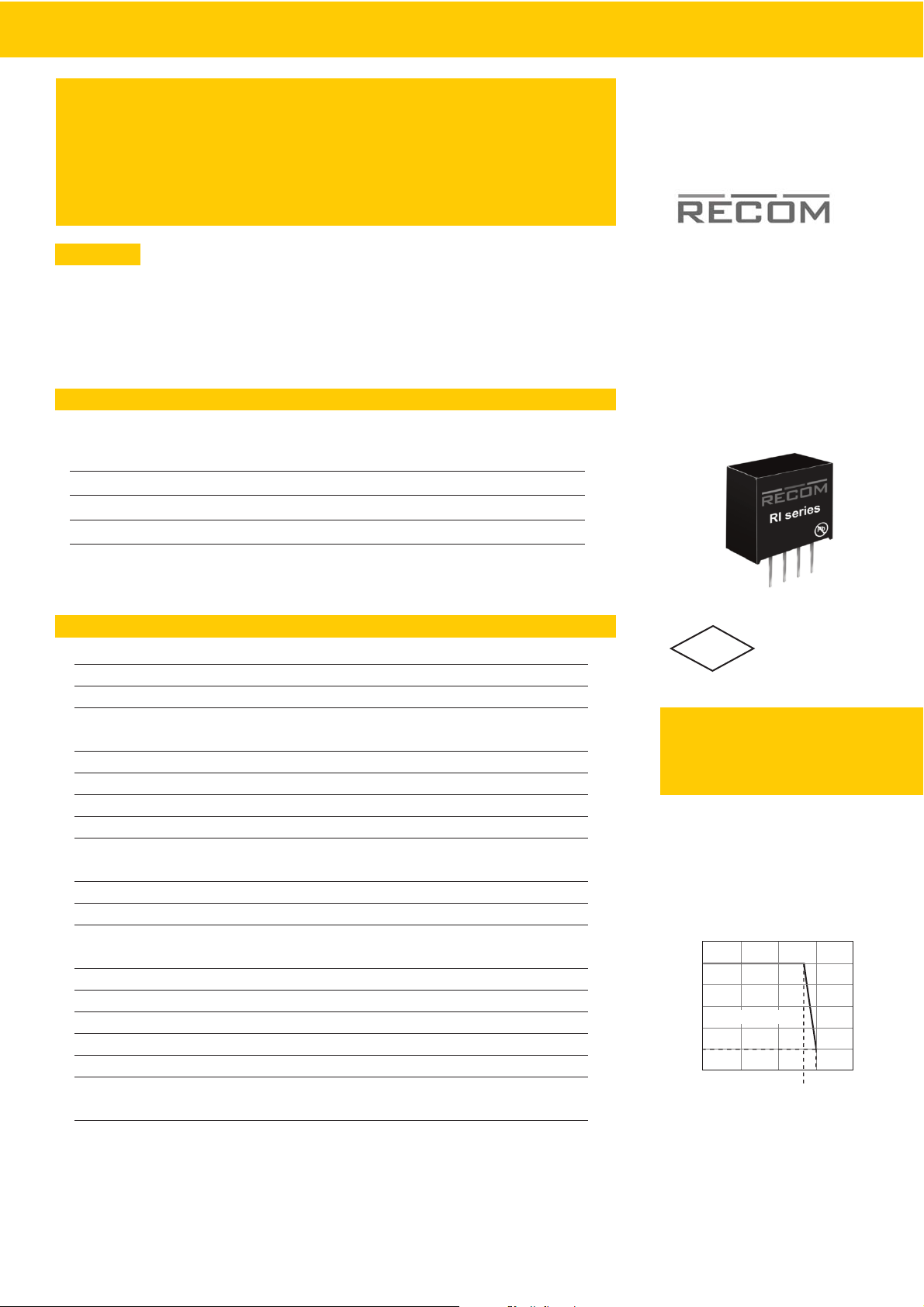

Page 1
ECONOLINE
DC/DC-Converter
with 3 year Warranty
RI
www.recom-international.com E-89REV: 0/2014
EN-60950-1 Certified
Selection Guide
Part Input Output Output Efficiency Max
Number Voltage Voltage Current Capacitive
SIP4 (VDC) (VDC) (mA) (%) Load
(1)
RI-xx05S 5, 12, 15, 24 5 400 78-83 1200µF
RI-xx12S 5, 12, 15, 24 12 167 80-85 680µF
RI-xx15S 5, 12, 15, 24 15 133 80-85 680µF
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g. RI-0505S/P
Output Power (%)
100
60
20
40
100500-40
85
150
Operating Temperature °C
0
80
Safe Operating Area
Input Voltage Range ±10%
Output Voltage Accuracy ±5%
Line Voltage Regulation 1.2%/1% of Vin typ.
Load Voltage Regulation 5V Output types 15% max.
(10% to 100% full load) All others 10% max.
Output Ripple and Noise (20MHz limited) 200mVp-p max.
Operating Frequency 35kHz min. / 50kHz typ. / 85kHz max.
Efficiency at Full Load 70% min. / 80% typ.
Minimum Load = 0% Specifications valid for 10% minimum load only.
Isolation Voltage (tested for 1 second) 1000VDC
(rated for 1 minute) 500VAC / 60Hz
Isolation Capacitance 30pF min. / 85pF max.
Isolation Resistance 10 GΩ min.
Short Circuit Protection 1 Second
P-Suffix Continuous
Operating Temperature Range (free air convection) -40°C to +85°C (see Graph)
Storage Temperature Range -55°C to +125°C
Relative Humidity 95% RH
Package Weight 1.4g
Packing Quantity 42 pcs per Tube
MTBF (+25°C) using MIL-HDBK 217F 845 x 10
3
hours
(+85°C) using MIL-HDBK 217F 160 x 103 hours
Certifications
EN General Safety Report: SPCLVD1109103 EN60950-1:2006 + A12:2011
2 Watt
SIP4
Single Output
Derating-Graph
(Ambient Temperature)
●
Custom Solutions Available
●
1kVDC Isolation
●
No External Components Required
●
Optional Continuous Short Circuit Protected
● UL94V-0 Package Material
●
No Heatsink Required
●
Efficiency to 85%
Features
Unregulated
Converters
}
Detailed Information see
Application Notes chapter "MTBF"
The RI series has been specifically designed for applications where board space is at a premium
since these 2 Watt converters have only a slightly larger foot print than the RO series 1 Watt
converters. With efficiencies up to 87%, the full output power is available over the operating
temperature range -40°C to +85°C and the converters can be used in ambient temperatures
of up to 100°C with derating. The wide selection of input voltage and output voltage options plus
an I/O-Isolation of 1kVDC as standard makes these converters suitable for many industrial
applications.
Description
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
Refer to Application Notes
RoHS
2011/65/EU
6/6
**Any data referred to in this datasheet are of indivative nature and based on our practical experience only. For further details, please refer
to our Application Notes.

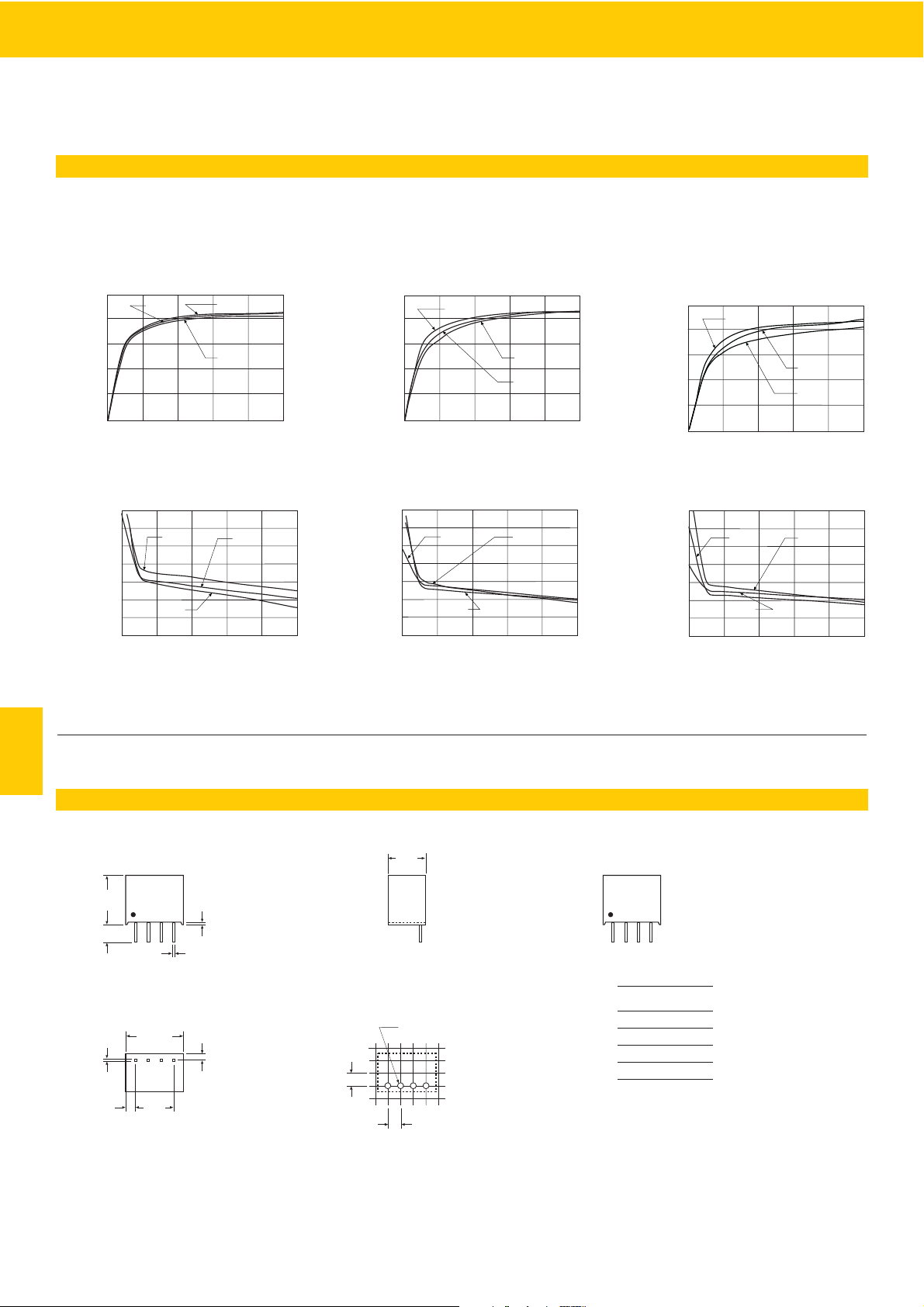

Page 2
E-90 www.recom-power.comREV: 0/2014
RI
Typical Characteristics
RI
Series
ECONOLINE
DC/DC-Converter
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
2412
1212
0512
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
1215
0515
2415
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
2405
0.000
5.000
10.000
15.000
20.000
25.000
1205
0505
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
2412
0.000
5.000
10.000
15.000
20.000
25.000
0512
1212
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
2415
0.000
5.000
10.000
15.000
20.000
25.000
1215
0515
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
2405
0505
1205
RI-xx05S RI-xx12S RI-xx15S
Package Style and Pinning (mm)
4 PIN SIP Package
2.54
2.54
Top View
7.55
1.27
0.25
7.62
2.03
2134
4.10
0.51 typ.
0.51 typ.
10.20
RECOM
RI-0505S
****
1.00ø+0.15/0
11.50
RECOM
RI-0505S
****
Bottom
View
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
Pin Connections
Pin # Dual
1 -Vin
2 +Vin
3 –Vout
4 +Vout
Recommended Footprint Details
Notes
Note 1 Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
