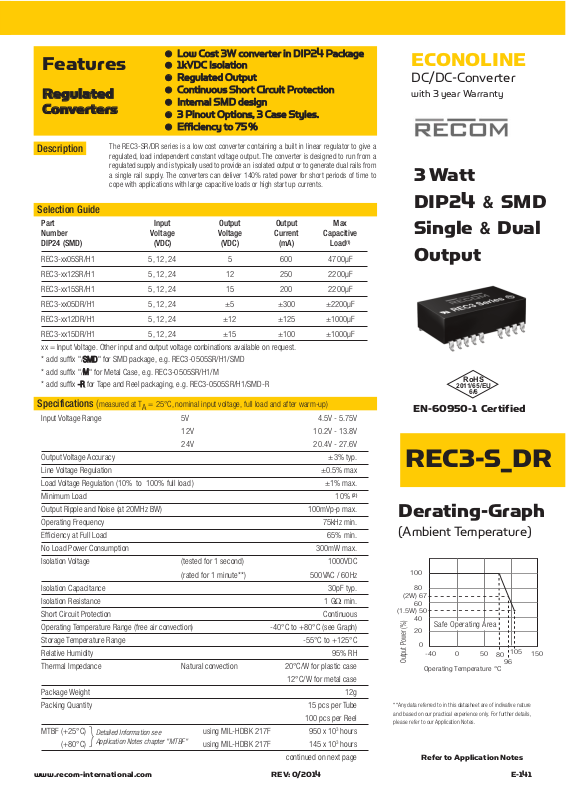

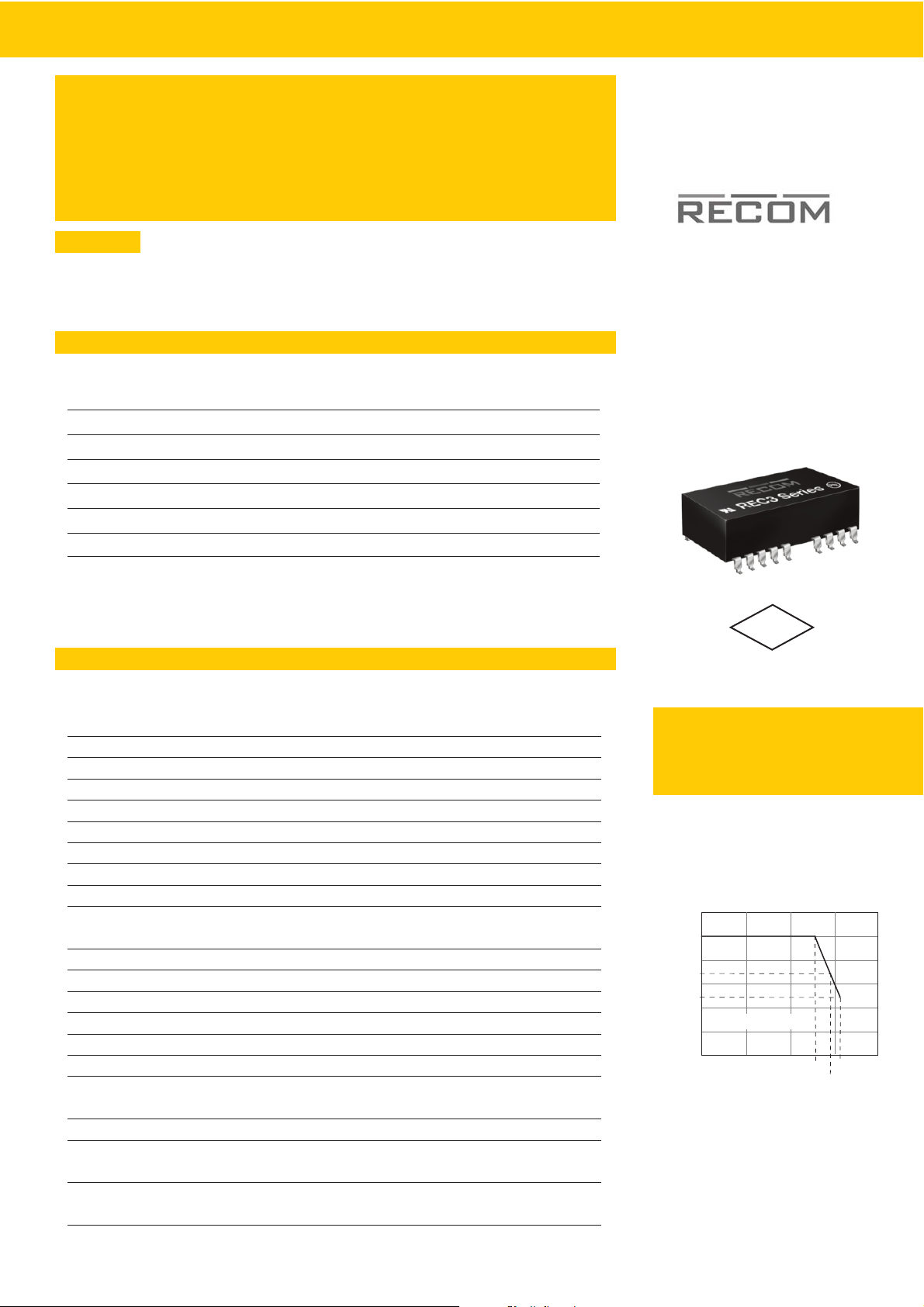

Page 1
ECONOLINE
DC/DC-Converter
with 3 year Warranty
REC3-S_DR
www.recom-international.com E-141REV: 0/2014
EN-60950-1 Certified
Features
Regulated
Converters
● Low Cost 3W converter in DIP24 Package
● 1kVDC Isolation
● Regulated Output
● Continuous Short Circuit Protection
● Internal SMD design
● 3 Pinout Options, 3 Case Styles.
● Efficiency to 75%
3 Watt
DIP24
& SMD
Single
& Dual
Output
Output Power (%)
100
60
20
40
500-40
80
150
Operating Temperature °C
0
80
Safe Operating Area
105
(1.5W) 50
(2W) 67
96
Derating-Graph
(Ambient Temperature)
Selection Guide
Part Input Output Output Max
Number Voltage Voltage Current Capacitive
DIP24 (SMD) (VDC) (VDC) (mA) Load
(1)
REC3-xx05SR/H1 5, 12, 24 5 600 4700µF
REC3-xx12SR/H1 5, 12, 24 12 250 2200µF
REC3-xx15SR/H1 5, 12, 24 15 200 2200µF
REC3-xx05DR/H1 5, 12, 24 ±5 ±300 ±2200µF
REC3-xx12DR/H1 5, 12, 24 ±12 ±125 ±1000µF
REC3-xx15DR/H1 5, 12, 24 ±15 ±100 ±1000µF
xx = Input Voltage. Other input and output voltage conbinations available on request.
* add suffix "/SMD" for SMD package, e.g. REC3-0505SR/H1/SMD
* add suffix "/M" for Metal Case, e.g. REC3-0505SR/H1/M
* add suffix -R for Tape and Reel packaging, e.g. REC3-0505SR/H1/SMD-R
Input Voltage Range 5V 4.5V - 5.75V
12V 10.2V - 13.8V
24V 20.4V - 27.6V
Output Voltage Accuracy ±3% typ.
Line Voltage Regulation ±0.5% max
Load Voltage Regulation (10% to 100% full load ) ±1% max.
Minimum Load 10%
(2)
Output Ripple and Noise (at 20MHz BW) 100mVp-p max.
Operating Frequency 75kHz min.
Efficiency at Full Load 65% min.
No Load Power Consumption 300mW max.
Isolation Voltage (tested for 1 second) 1000VDC
(rated for 1 minute**) 500VAC / 60Hz
Isolation Capacitance 30pF typ.
Isolation Resistance 1 GΩ min.
Short Circuit Protection Continuous
Operating Temperature Range (free air convection) -40°C to +80°C (see Graph)
Storage Temperature Range -55°C to +125°C
Relative Humidity 95% RH
Thermal Impedance Natural convection 20°C/W for plastic case
12°C/W for metal case
Package Weight 12g
Packing Quantity 15 pcs per Tube
100 pcs per Reel
MTBF (+25°C) using MIL-HDBK 217F 950 x 10
3
hours
(+80°C) using MIL-HDBK 217F 145 x 103 hours
continued on next page
The REC3-SR/DR series is a low cost converter containing a built in linear regulator to give a
regulated, load independent constant voltage output. The converter is designed to run from a
regulated supply and is typically used to provide an isolated output or to generate dual rails from
a single rail supply. The converters can deliver 140% rated power for short periods of time to
cope with applications with large capacitive loads or high start up currents.
Description
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
Refer to Application Notes
}
Detailed Information see
Application Notes chapter "MTBF"
RoHS
2011/65/EU
6/6
**Any data referred to in this datasheet are of indivative nature
and based on our practical experience only. For further details,
please refer to our Application Notes.
Page 2
E-142 www.recom-power.comREV: 0/2014
REC3-R
Pin Connections
Pin # Single Dual
1 +Vin +Vin
2 No Pin –Vout
3 No Pin Com
10 –Vout Com
11 +Vout +Vout
12 –Vin –Vin
13 –Vin –Vin
14 +Vout +Vout
15 –Vout Com
22 No Pin Com
23 No Pin –Vout
24 +Vin +Vin
NC = No Connection

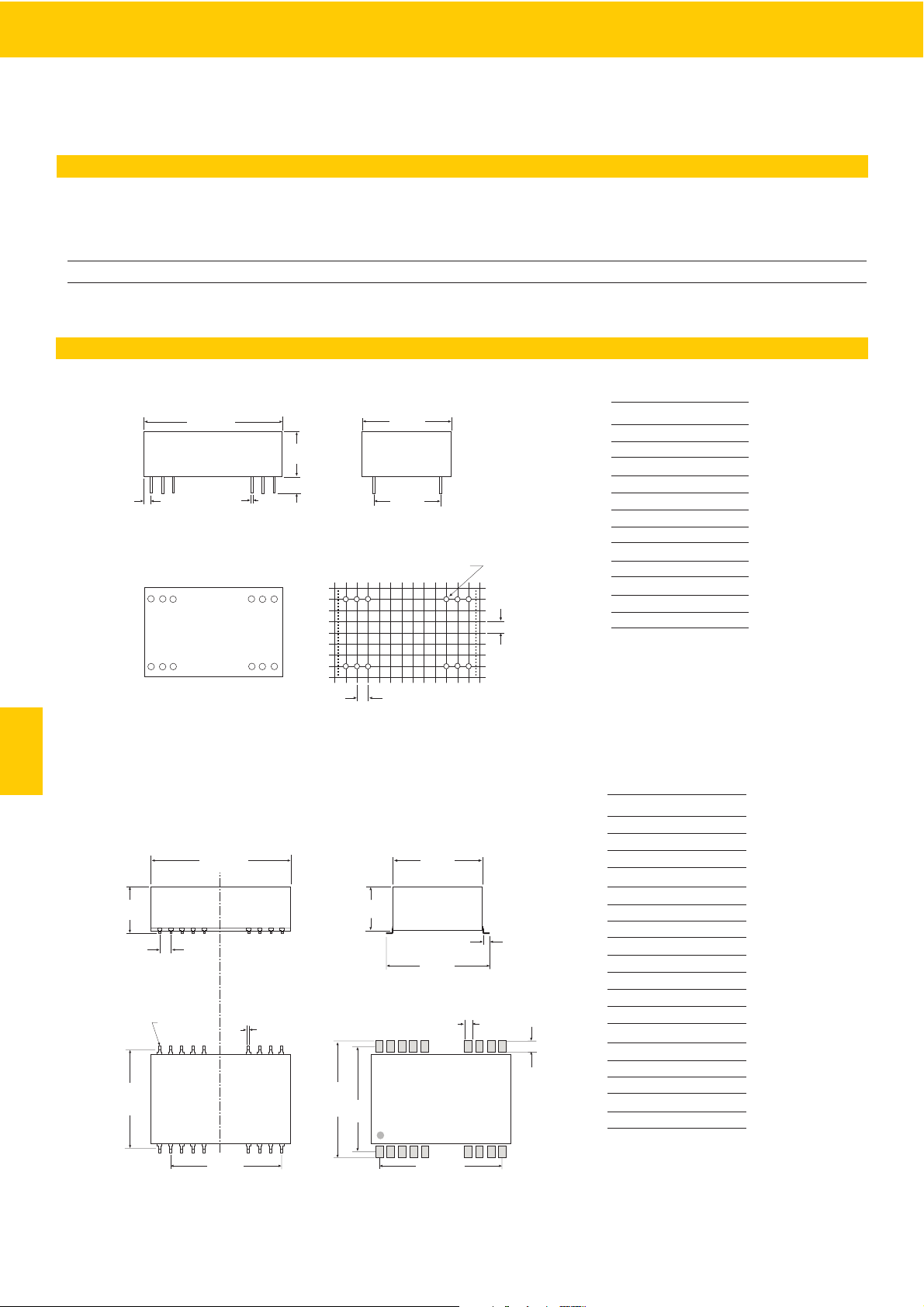

Package Style and Pinning (mm)
ECONOLINE
DC/DC-Converter
32.00
10.20
3.81
2.06
1
Bottom View
Top View
12
11
10
32
13
14
15
22
23
24
15.24
20.30
2.54
1.00ø+0.15/0
0.51
2.54
Recommended Footprint Details
24 PIN DIP Package
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
20.32
9
10
11
12
24
23
22
16
15
14
13
21
20
1
325
4
1
1.50
25.40
10.90
Bottom View
23.40
25.40
Pin area
0.1 x 0.50
0.50
32.00
11.20
2.54
24.14
27.94
26.54
1.60
2.40
Top View
24 PIN DIP SMD Package
Recommended Footprint Details
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
SMD pin
connections
follow standard
package
pinning.
All unused pins
are NC (No
Connection).
Pin Connections
Pin # Single Dual
1 +Vin +Vin
2 NC –Vout
3 NC Com
4NCNC
5NCNC
9NCNC
10 -Vout Com
11 +Vout +Vout
12 -Vin -Vin
13 -Vin -Vin
14 +Vout +Vout
15 -Vout Com
16 NC NC
20 NC NC
21 NC NC
22 NC Com
23 NC -Vout
24 +Vin +Vin
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
Notes
Note 1: Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter
Note 2: The REC3-R series require a minimum of 10% loading on the output to maintain specified regulation. Operating under un-load
condition will not damage these devices, however they may not meet all listed specifications.
REC3-S_DR/H1
Series
Certifications
EN General Safety Report: SPCLVD1212007 EN60950-1:2006 + A11:2009+A1:2010+A12:2011
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
