Page 1

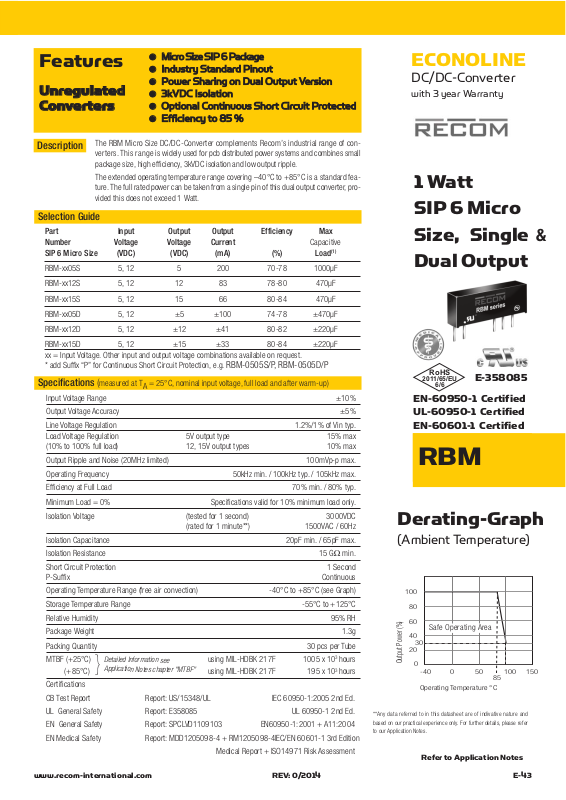

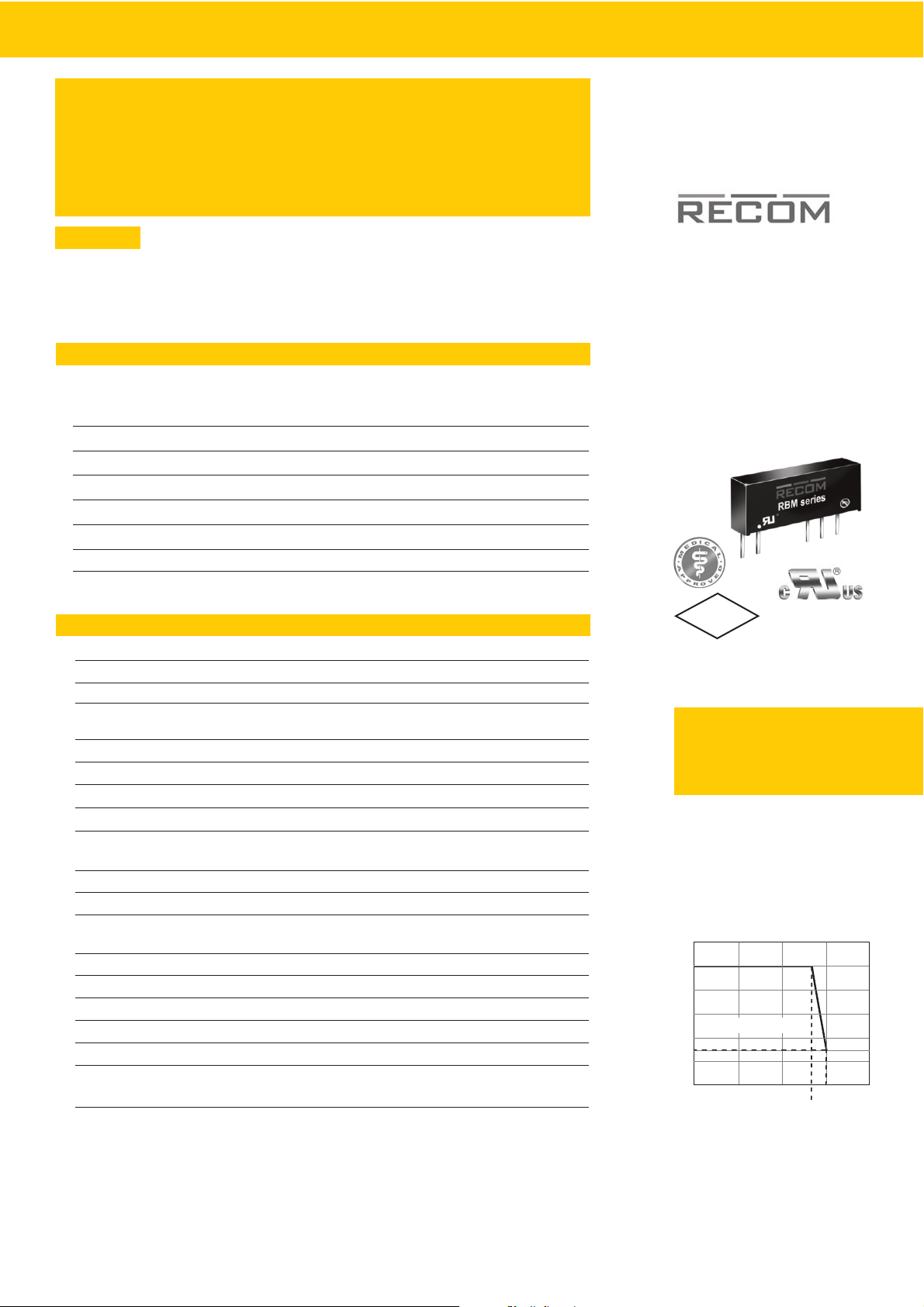

ECONOLINE
DC/DC-Converter
with 3 year Warranty
www.recom-international.com E-43REV: 0/2014
RBM
Selection Guide
Part Input Output Output Efficiency Max
Number Voltage Voltage Current Capacitive
SIP 6 Micro Size (VDC) (VDC) (mA) (%) Load
(1)
RBM-xx05S 5, 12 5 200 70-78 1000µF
RBM-xx12S 5, 12 12 83 78-80 470µF
RBM-xx15S 5, 12 15 66 80-84 470µF
RBM-xx05D 5, 12 ±5 ±100 74-78 ±470µF
RBM-xx12D 5, 12 ±12 ±41 80-82 ±220µF
RBM-xx15D 5, 12 ±15 ±33 80-84 ±220µF
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RBM-0505S/P, RBM-0505D/P
Output Power (%)
100
60
20
40
100500-40
85
150
Operating Temperature °C
0
80
Safe Operating Area
30
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range ±10%
Output Voltage Accuracy ±5%
Line Voltage Regulation 1.2%/1% of Vin typ.
Load Voltage Regulation 5V output type 15% max
(10% to 100% full load) 12, 15V output types 10% max
Output Ripple and Noise (20MHz limited) 100mVp-p max.
Operating Frequency 50kHz min. / 100kHz typ. / 105kHz max.
Efficiency at Full Load 70% min. / 80% typ.
Minimum Load = 0% Specifications valid for 10% minimum load only.
Isolation Voltage (tested for 1 second) 3000VDC
(rated for 1 minute**) 1500VAC / 60Hz
Isolation Capacitance 20pF min. / 65pF max.
Isolation Resistance 15 GΩ min.
Short Circuit Protection 1 Second
P-Suffix Continuous
Operating Temperature Range (free air convection) -40°C to +85°C (see Graph)
Storage Temperature Range -55°C to +125°C
Relative Humidity 95% RH
Package Weight 1.3g
Packing Quantity 30 pcs per Tube
MTBF (+25°C) using MIL-HDBK 217F 1005 x 10
3
hours
(+85°C) using MIL-HDBK 217F 195 x 103 hours
Certifications
CB Test Report Report: US/15348/UL IEC 60950-1:2005 2nd Ed.
UL General Safety Report: E358085 UL 60950-1 2nd Ed.
EN General Safety Report: SPCLVD1109103 EN60950-1:2001 + A11:2004
EN Medical Safety Report: MDD1205098-4 + RM1205098-4IEC/EN 60601-1 3rd Edition
Medical Report + ISO14971 Risk Assessment
1 Watt
SIP 6 Micro
Size, Single
&
Dual Output
Derating-Graph
(Ambient Temperature)
●
Micro Size SIP 6 Package
●
Industry Standard Pinout
●
Power Sharing on Dual Output Version
●
3kVDC Isolation
●
Optional Continuous Short Circuit Protected
●
Efficiency to 85 %
Features
Unregulated
Converters
The RBM Micro Size DC/DC-Converter complements Recom’s industrial range of converters. This range is widely used for pcb distributed power systems and combines small
package size, high efficiency, 3kVDC isolation and low output ripple.
The extended operating temperature range covering –40°C to +85°C is a standard feature. The full rated power can be taken from a single pin of this dual output converter, provided this does not exceed 1 Watt
.
Description
}
Detailed Information see
Application Notes chapter "MTBF"
Refer to Application Notes
EN-60950-1 Certified
UL-60950-1 Certified
EN-60601-1 Certified
E-358085
RoHS
2011/65/EU
6/6
**Any data referred to in this datasheet are of indivative nature and
based on our practical experience only. For further details, please refer
to our Application Notes.

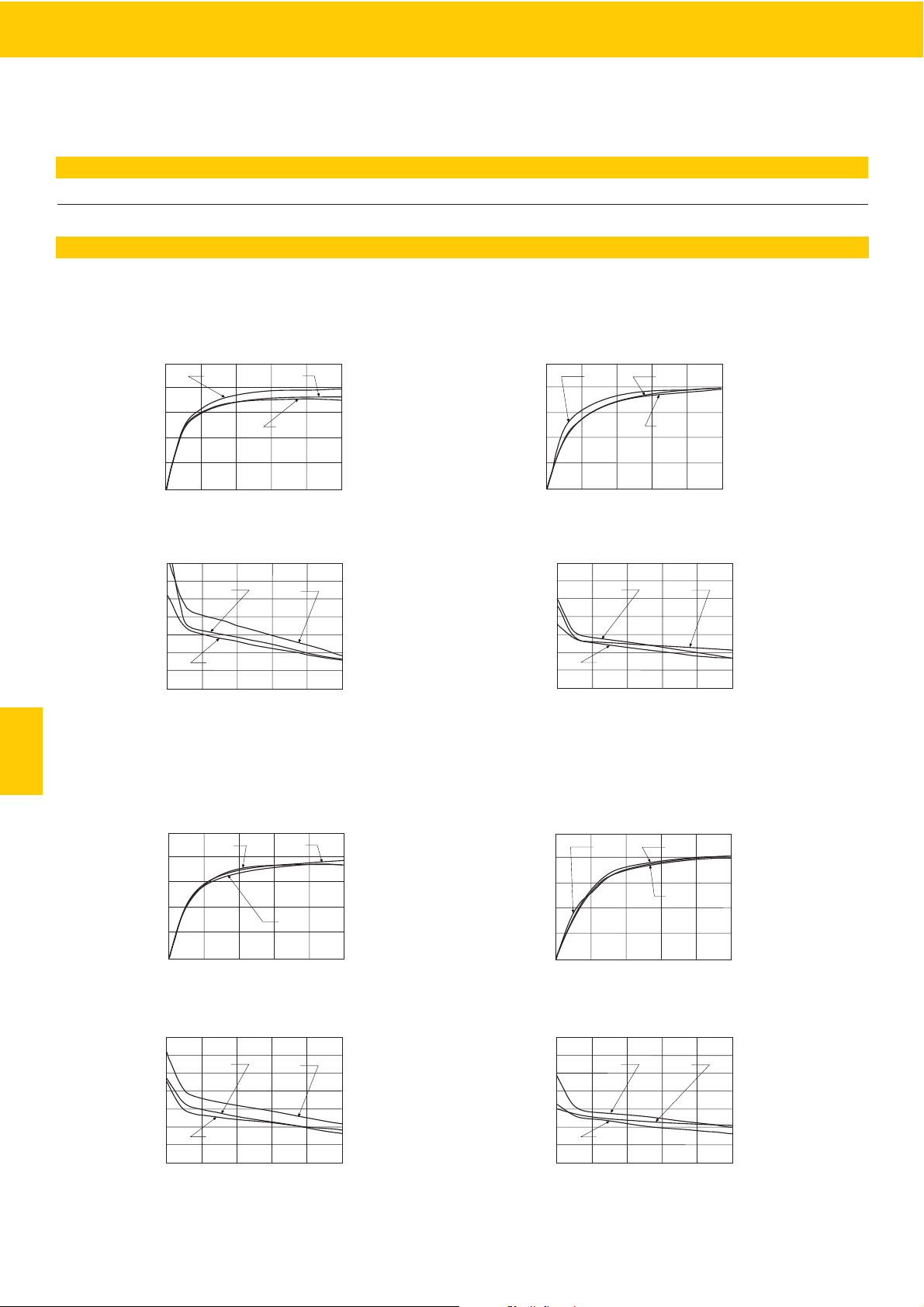

Page 2
Typical Characteristics
RBM
Series
ECONOLINE
DC/DC-Converter
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.305
0505
1205
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.312
0512
1212
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0505
0.000
5.000
10.000
15.000
20.000
25.000
3.305
1205
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0512
0.000
5.000
10.000
15.000
20.000
25.000
3.312
1212
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.305
0505
1205
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0505
0.000
5.000
10.000
15.000
20.000
25.000
3.305
1205
RBM-xx05D
RBM-xx05S RBM-xx12S
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.312
1212
0512
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0512
0.000
5.000
10.000
15.000
20.000
25.000
3.312
1212
RBM-xx12D
RBM
REV: 0/2014 www.recom-power.comE-44
Notes
Note 1 Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)

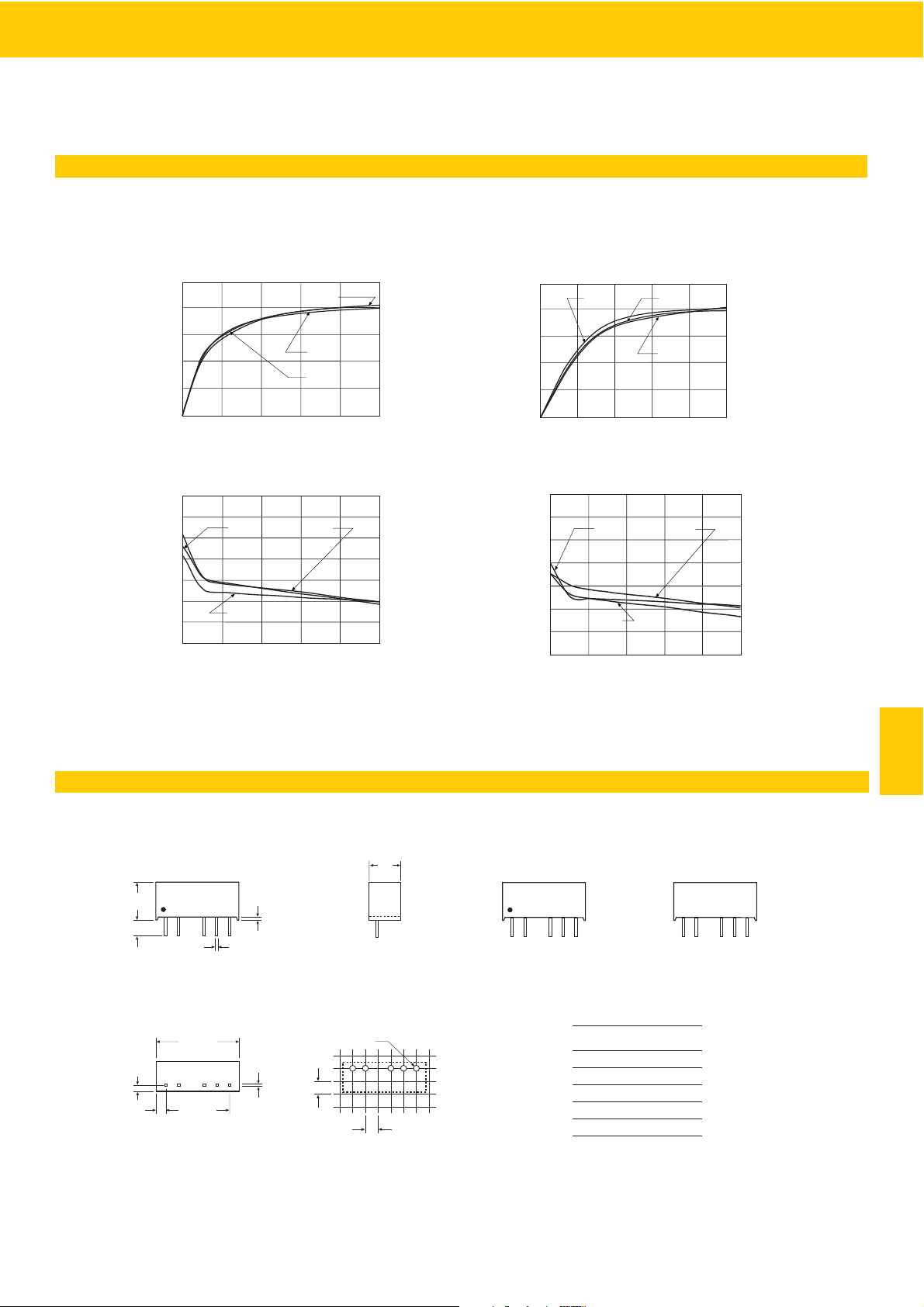

Page 3
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.315
1215
0515
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0515
0.000
5.000
10.000
15.000
20.000
25.000
3.315
1215
RBM-xx15S
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
0515
3.315
1215
Deviation / Load
-10.000
40%0% 100%
Deviation from Nominal (%)
60%
80%
20%
-5.000
Total Output current (%)
0515
0.000
5.000
10.000
15.000
20.000
25.000
3.315
1215
RBM-xx15D
Package Style and Pinning (mm)
RBM
Series
ECONOLINE
DC/DC-Converter
Top View
RECOM
RBM-0505D
****
12 456
Dual Output
Single Output
12 456
1.27
0.25
12.70
1.9
16.55
0.51 typ.
4.10
7.70
RECOM
RBM-0505S
****
Bottom View
RECOM
RBM-0505S
****
6.00
2.54
1.00ø+0.15/0
2.54
0.51 typ.
Pin Connections
Pin # Single Dual
1 +Vin +Vin
2 –Vin –Vin
4 NC –Vout
5 –Vout Com
6 +Vout +Vout
NC = No Connection
Recommended Footprint Details
SIP6 Micro Size Package
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
Typical Characteristics
REV: 0/2014 E-45www.recom-international.com
RBM
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agress to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
