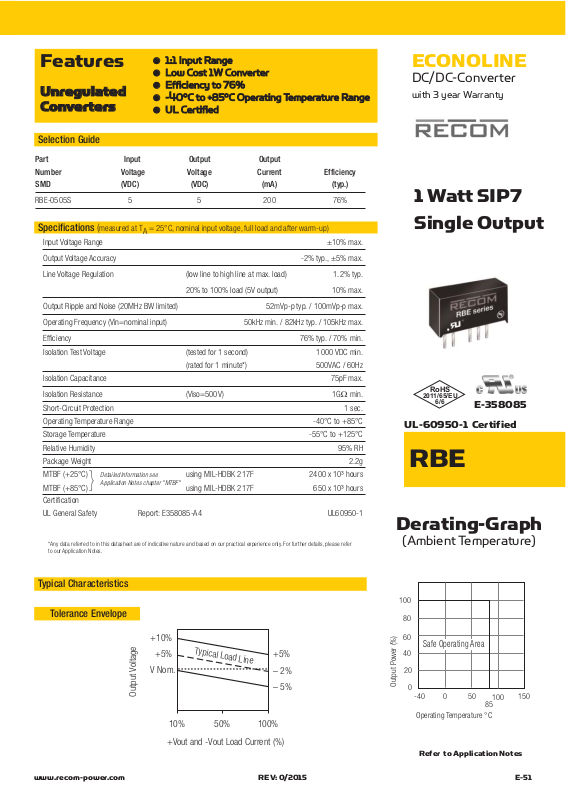

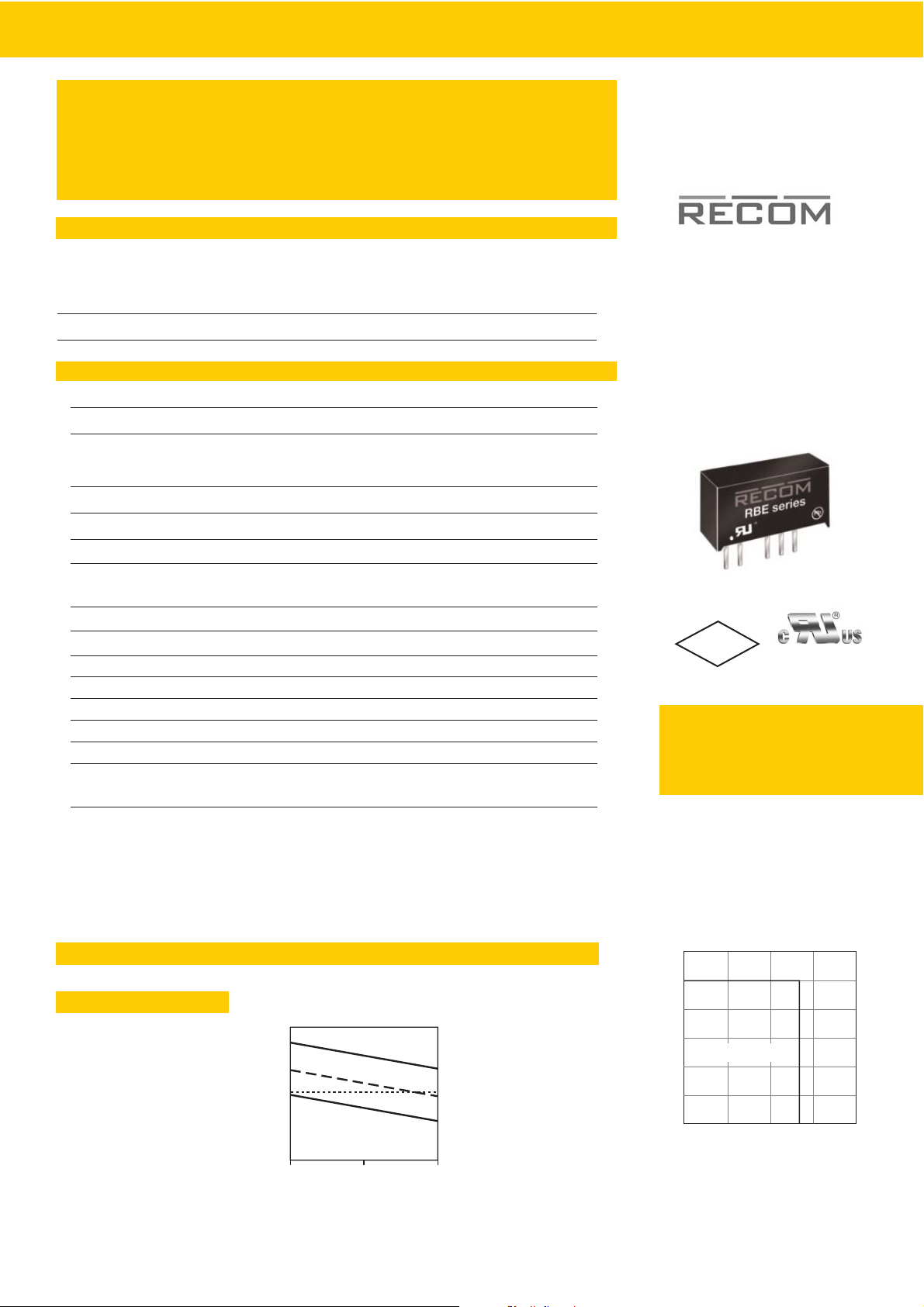

Page 1
Input Voltage Range ±10% max.
Output Voltage Accuracy -2% typ., ±5% max.
Line Voltage Regulation (low line to high line at max. load) 1.2% typ.
20% to 100% load (5V output) 10% max.
Output Ripple and Noise (20MHz BW limited) 52mVp-p typ. / 100mVp-p max.
Operating Frequency (Vin=nominal input) 50kHz min. / 82kHz typ. / 105kHz max.
Efficiency 76% typ. / 70% min.
Isolation Test Voltage (tested for 1 second) 1000 VDC min.
(rated for 1 minute*) 500VAC / 60Hz
Isolation Capacitance 75pF max.
Isolation Resistance (Viso=500V) 1GΩ min.
Short-Circuit Protection 1 sec.
Operating Temperature Range -40°C to +85°C
Storage Temperature -55°C to +125°C
Relative Humidity 95% RH
Package Weight 2.2g
MTBF (+25°C) using MIL-HDBK 217F 2400 x 10³ hours
MTBF (+85°C) using MIL-HDBK 217F 650 x 10³ hours
Certification
UL General Safety Report: E358085-A4 UL60950-1
}
Detailed Information see
Application Notes chapter "MTBF"
Typical Characteristics
Derating-Graph
(Ambient Temperature)
Tolerance Envelope
Selection Guide
Part Input Output Output
Number Voltage Voltage Current Efficiency
SMD (VDC) (VDC) (mA) (typ.)
RBE-0505S 5 5 200 76%
Specifications (measured at T
A
= 25°C, nominal input voltage, full load and after warm-up)
1 Watt SIP7
Single Output
●
1:1 Input Range
●
Low Cost 1W Converter
●
Efficiency to 76%
●
-40°C to +85°C Operating Temperature Range
●
UL Certified
Features
Unregulated
Converters
RBE
ECONOLINE
DC/DC-Converter
with 3 year Warranty
+10%
+5%
V Nom.
+5%
2%
10% 50% 100%
Output Voltage
+Vout and -Vout Load Current (%)
5%
Typical Load Line
Output Power (%)
100
60
20
40
100
500-40 150
Operating Temperature °C
0
80
Safe Operating Area
85
RoHS
2011/65/EU
6/6
*Any data referred to in this datasheet are of indicative nature and based on our practical experience only. For further details, please refer
to our Application Notes.
UL-60950-1 Certified
E-358085
Refer to Application Notes
REV: 0/2015 E-51www.recom-power.com

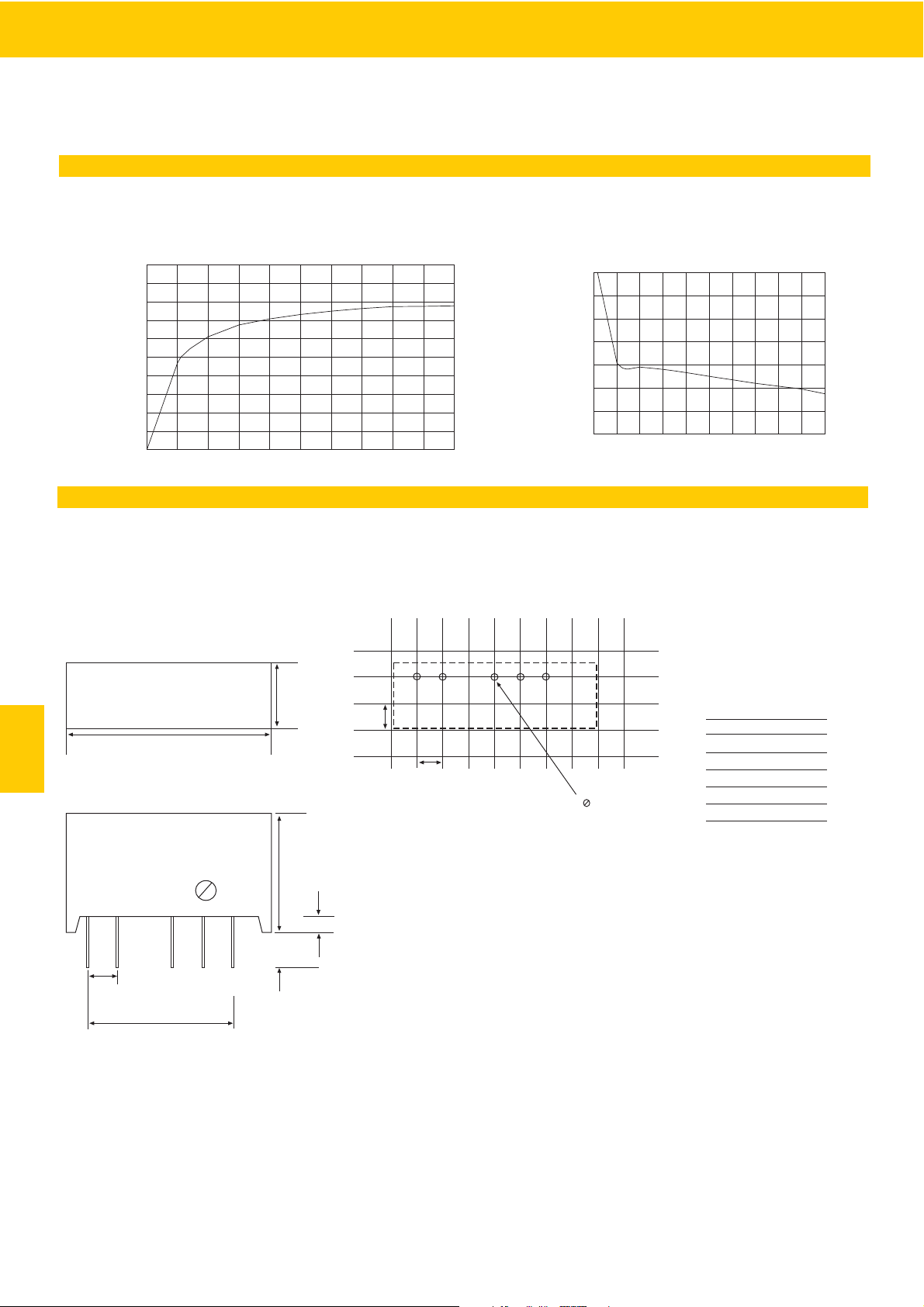

Page 2
RBE Series
ECONOLINE
DC/DC-Converter
RBE-0505S
Typical Characteristics
RBE
Package Style and Pinning
Pin Connections
Pin # Function
1 +Vin
2 -Vin
4NC
5 -Vout
6 +Vout
NC = No Connection
Unit: mm
Tolerance: ± 0.25 mm
6.00
10.20
0.51
RECOM
RBE-0505S
1208
Pb
12 5
4
4.10
12.70
2.54
2.54
2.54
Single SIP 7PIN Package
19.60
6
Footprint
Top View
1.00
+0.15/-0
100
90
80
70
60
50
40
30
20
10
0
0102030405060708090100
Efficiency/Load
Load %
Efficiency %
25
20
15
10
5
0
-5
-10
0
10 20 30 40 50 60 70 80 90 100
Deviation/Load
Deviation from Nominal %
Load %
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
REV: 0/2015 www.recom-power.comE-52
