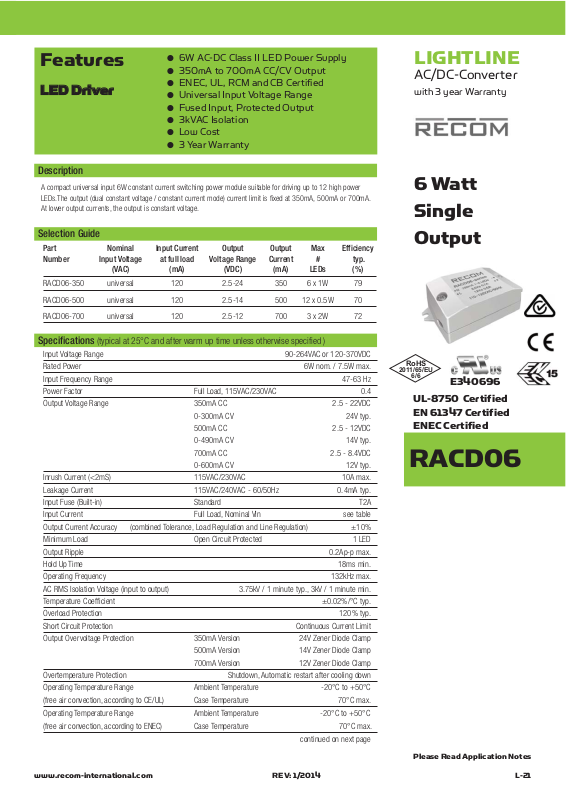

Page 1
L-21www.recom-international.com REV: 1/2014
Please Read Application Notes
LIGHTLINE
AC/DC-Converter
with 3 year Warranty
RACD06
6 Watt
Single
Output
● 6W AC-DC Class II LED Power Supply
● 350mA to 700mA CC/CV Output
● ENEC, UL, RCM and CB Certified
● Universal Input Voltage Range
● Fused Input, Protected Output
● 3kVAC Isolation
● Low Cost
● 3 Year Warranty
Features
LED Driver
Selection Guide
Part Nominal Input Current Output Output Max Efficiency
Number Input Voltage at full load Voltage Range Current # typ.
(VAC) (mA) (VDC) (mA) LEDs (%)
RACD06-350 universal 120 2.5-24 350 6 x 1W 79
RACD06-500 universal 120 2.5-14 500 12 x 0.5W 70
RACD06-700 universal 120 2.5-12 700 3 x 2W 72
Input Voltage Range 90-264VAC or 120-370VDC
Rated Power 6W nom. / 7.5W max.
Input Frequency Range 47-63 Hz
Power Factor Full Load, 115VAC/230VAC 0.4
Output Voltage Range 350mA CC 2.5 - 22VDC
0-300mA CV 24V typ.
500mA CC 2.5 - 12VDC
0-490mA CV 14V typ.
700mA CC 2.5 - 8.4VDC
0-600mA CV 12V typ.
Inrush Current (<2mS) 115VAC/230VAC 10A max.
Leakage Current 115VAC/240VAC - 60/50Hz 0.4mA typ.
Input Fuse (Built-in) Standard T2A
Input Current Full Load, Nominal Vin see table
Output Current Accuracy (combined Tolerance, Load Regulation and Line Regulation) ±10%
Minimum Load Open Circuit Protected 1 LED
Output Ripple 0.2Ap-p max.
Hold Up Time 18ms min.
Operating Frequency 132kHz max.
AC RMS Isolation Voltage (input to output) 3.75kV / 1 minute typ., 3kV / 1 minute min.
Temperature Coefficient ±0.02%/°C typ.
Overload Protection 120% typ.
Short Circuit Protection Continuous Current Limit
Output Overvoltage Protection 350mA Version 24V Zener Diode Clamp
500mA Version 14V Zener Diode Clamp
700mA Version 12V Zener Diode Clamp
Overtemperature Protection Shutdown, Automatic restart after cooling down
Operating Temperature Range Ambient Temperature -20°C to +50°C
(free air convection, according to CE/UL) Case Temperature 70°C max.
Operating Temperature Range Ambient Temperature -20°C to +50°C
(free air convection, according to ENEC) Case Temperature 70°C max.
continued on next page
Description
Specifications
(typical at 25°C and after warm up time unless otherwise specified )
A compact universal input 6W constant current switching power module suitable for driving up to 12 high power
LEDs.The output (dual constant voltage / constant current mode) current limit is fixed at 350mA, 500mA or 700mA.
At lower output currents, the output is constant voltage.
UL-8750 Certified
EN 61347 Certified
ENEC Certified
E340696
RoHS
2011/65/EU
6/6

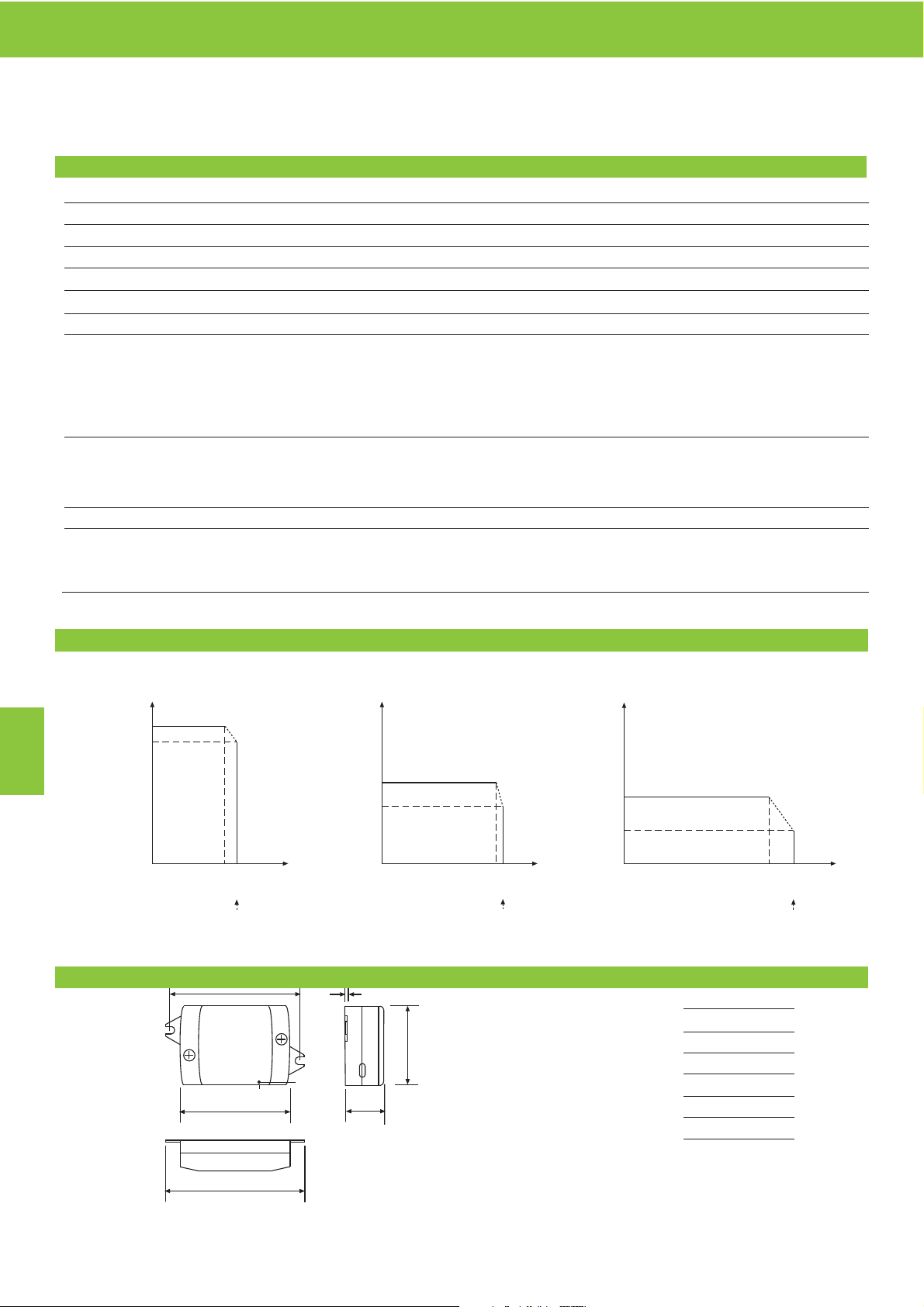

Page 2
RACD06
www.recom-power.comL-22 REV: 1/2014
64
58
21
35
1.5
68
Output Current
24V
350mA
Nominal Current Limit
22V
3V
300mA
CC
CV
CV
Output Current
Output Voltage
Nominal Current Limit
12V
500mA
14V
490mA
CV
CC
Output Current
12.5V
700mA
Nominal Current Limit
600mA
CV
CC
Output Voltage
8.4V
3V 3V
Output Voltage
T
C
1
15
RACD06
Series
LIGHTLINE
AC/DC-Converter
Package Style and Pinning
Characteristics
Connections
CN1 Function
L VAC in (L)
N VAC in (N)
CN2 Function
+ LED+
- LED-
Tolerance
XX = +/-0.5mm
XX.X = +/-0.25mm
Storage Temperature Range -40°C to +85°C
Humidity 95% RH max.
IP Rating IP20, Indoor Use Only
Weight 34g
Packing Quantity 10pc
PCB Material (UL94V-0) Plastic Resin with Fibreglass
Case Material (UL94V-0) Plastic
Designed to meet Standards Electrical Lighting, EMC Emissions EN55015:2006 + A1: 2007 + A2:2009
Limits for Harmonics Emissions EN 61000-3-2:2006
EMC Compatibilty: Flicker and Voltage Variations EN 61000-3-3:2006
Electrical Lighting: EMC Immunity EN 61547:1995 + A1:2000
Class II Power Supply Safety UL1310
FCC FCC18A
Certifications LED Lighting Safety (E340696) designed to meet UL8750
RCM (U21382) AS/NZS 61347.1:2002, IEC 61347-2-13
ENEC General Safety EN 61347-1: 2008
ENEC Safety of AC supplied Control Gear for LED Modules EN 61347-2-13: 2006
Design Lifetime 25°C ambient >20 x 10³ hours in operation
Connections AC Input Screw terminal
LED Output Screw Terminal
Specifications
(typical at 25°C and after warm up time unless otherwise specified )
2 Mounting screws are included
Tc = Case Temperature Measuring Point
Constant Current (CC) and Constant Voltage (CV) Graph
RACD06-350 RACD06-500
RACD06-700
Note:
All LED Drivers may not be used without a load. They must be switched on the primary side only. Noncompliance may damage the LED or reduce its lifetime.
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
