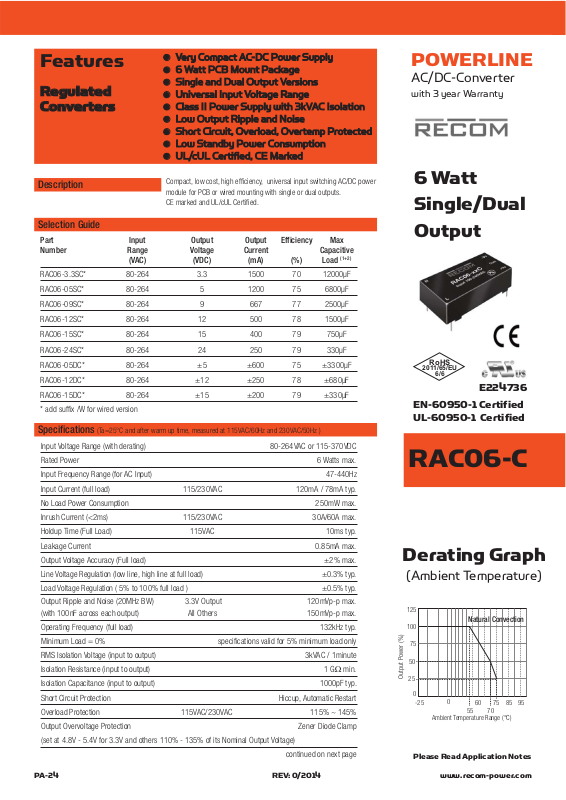

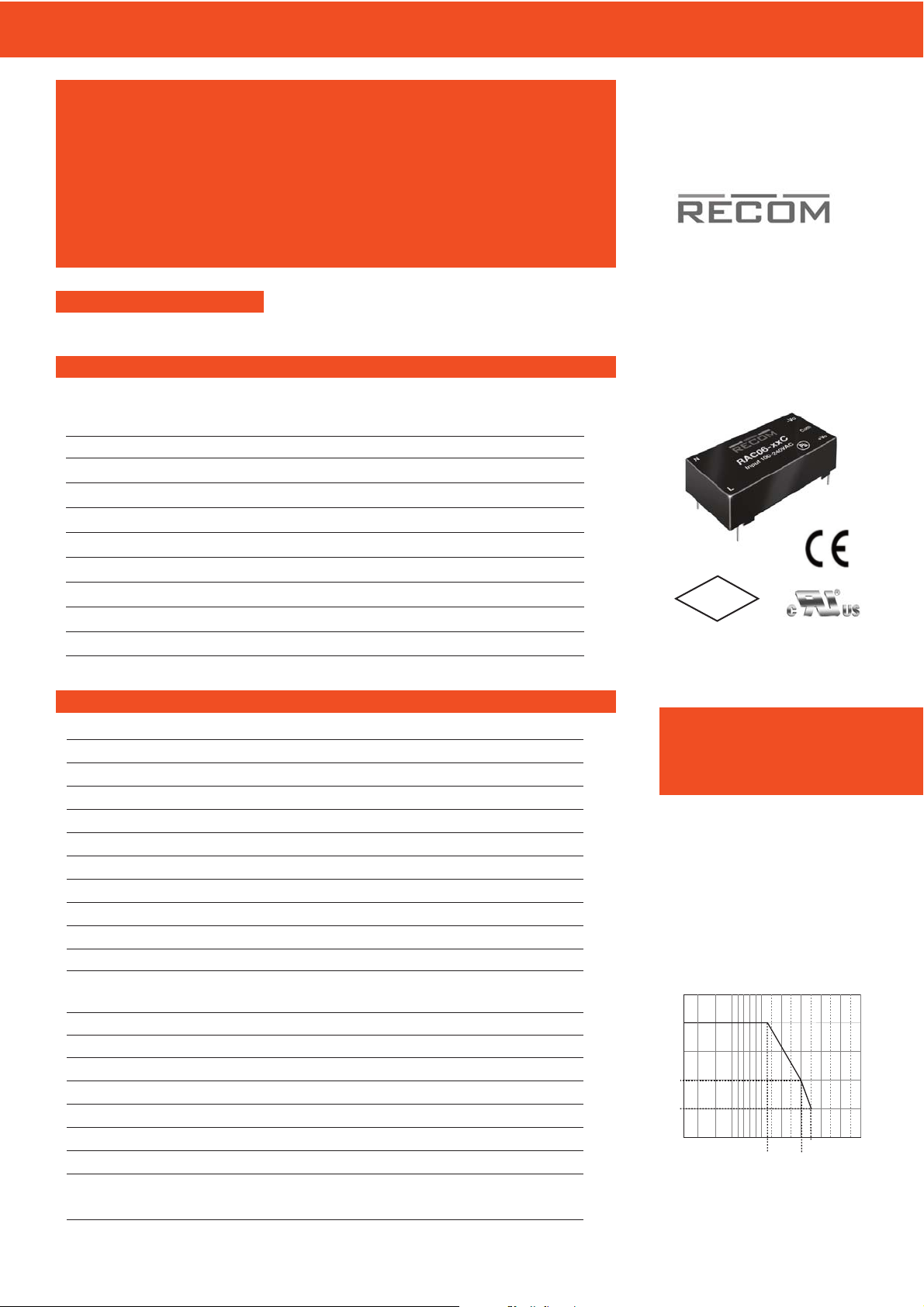

Page 1
PA-24 www.recom-power.comREV: 0/2014
Please Read Application Notes
POWERLINE
AC/DC-Converter
with 3 year Warranty
RAC06-C
6 Watt
Single/Dual
Output
●
Very Compact AC-DC Power Supply
● 6 Watt PCB Mount Package
●
Single and Dual Output Versions
●
Universal Input Voltage Range
● Class II Power Supply with 3kVAC Isolation
●
Low Output Ripple and Noise
●
Short Circuit, Overload, Overtemp Protected
● Low Standby Power Consumption
●
UL/cUL Certified, CE Marked
Features
Regulated
Converters
Selection Guide
Part Input Output Output Efficiency Max
Number Range Voltage Current Capacitive
(VAC) (VDC) (mA) (%) Load
(1+2)
RAC06-3.3SC* 80-264 3.3 1500 70 12000µF
RAC06-05SC* 80-264 5 1200 75 6800µF
RAC06-09SC* 80-264 9 667 77 2500µF
RAC06-12SC* 80-264 12 500 78 1500µF
RAC06-15SC* 80-264 15 400 79 750µF
RAC06-24SC* 80-264 24 250 79 330µF
RAC06-05DC* 80-264 ±5 ±600 75 ±3300µF
RAC06-12DC* 80-264 ±12 ±250 78 ±680µF
RAC06-15DC* 80-264 ±15 ±200 79 ±330µF
* add suffix /W for wired version
Input Voltage Range (with derating) 80-264VAC or 115-370VDC
Rated Power 6 Watts max.
Input Frequency Range (for AC Input) 47-440Hz
Input Current (full load) 115/230VAC 120mA / 78mA typ.
No Load Power Consumption 250mW max.
Inrush Current (<2ms) 115/230VAC 30A/60A max.
Holdup Time (Full Load) 115VAC 10ms typ.
Leakage Current 0.85mA max.
Output Voltage Accuracy (Full load) ±2% max.
Line Voltage Regulation (low line, high line at full load) ±0.3% typ.
Load Voltage Regulation ( 5% to 100% full load ) ±0.5% typ.
Output Ripple and Noise (20MHz BW) 3.3V Output 120mVp-p max.
(with 100nF across each output) All Others 150mVp-p max.
Operating Frequency (full load) 132kHz typ.
Minimum Load = 0% specifications valid for 5% minimum load only
RMS Isolation Voltage (input to output) 3kVAC / 1minute
Isolation Resistance (input to output) 1 GΩ min.
Isolation Capacitance (input to output) 1000pF typ.
Short Circuit Protection Hiccup, Automatic Restart
Overload Protection 115VAC/230VAC 115% ~ 145%
Output Overvoltage Protection Zener Diode Clamp
(set at 4.8V - 5.4V for 3.3V and others 110% - 135% of its Nominal Output Voltage)
continued on next page
Description
125
75
50
25
0
100
Ambient Temperature Range (°C)
-25
0
55
60
70
75
85 95
Output Power (%)
Natural Convection
Compact, low cost, high efficiency, universal input switching AC/DC power
module for PCB or wired mounting with single or dual outputs.
CE marked and UL/cUL Certified.
Derating Graph
(Ambient Temperature)
EN-60950-1 Certified
UL-60950-1 Certified
RoHS
2011/65/EU
6/6
Specifications
(Ta=25°C and after warm up time, measured at 115VAC/60Hz and 230VAC/50Hz )
E224736

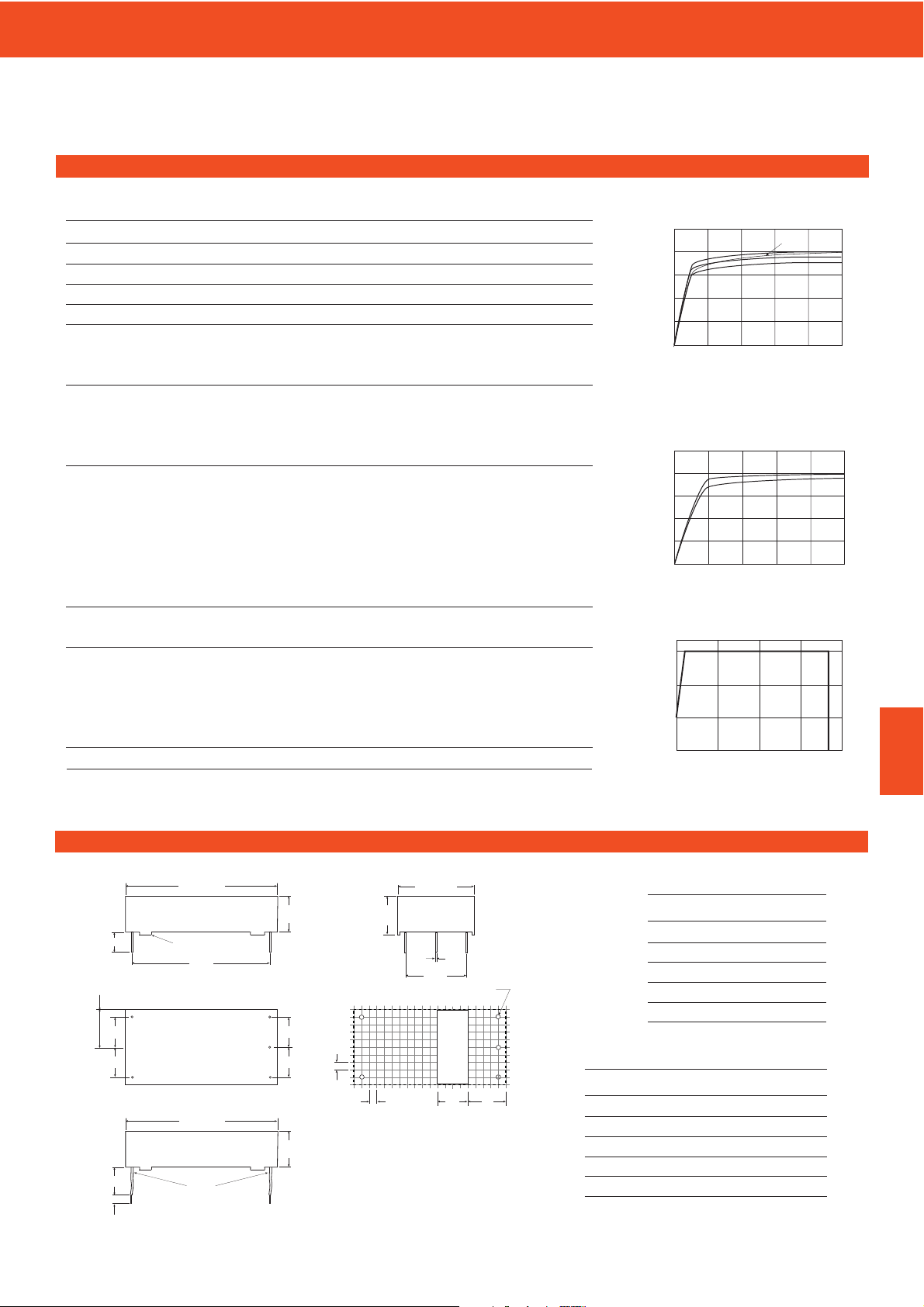

Page 2
2.54
1.2ø+0.2/0.1
2.54
1
2
3
4
10
15
(5)
6.1
45.72
15.65
16.40+0.25
-
-
88
15.65
AWG#22
10
stripped and tinned
1
2
4
3
10.16
Bottom View
50.9 (single)
53.5 (dual)
20.32
Top View
1.0
10.16
10.16
Standoffs = 0.75+0.25
Leave
Clear of
PCB
Traces
(5)
10.16
25.5 (single)
27.8 (dual)
12.75 (single)
13.90 (dual)
50.9 (single)
53.5 (dual)
RAC06
www.recom-international.com PA-25REV: 0/2014
RAC06-S_DC
Series
POWERLINE
AC/DC-Converter
Typical Characteristics
Pin Connections
Pin # Single Out Dual Out
1 VAC in (N) VAC in (N)
2 VAC in (L) VAC in (L)
3 +VDC out +VDC out
4 -VDC out Com
5 No Pin -VDC out
Tolerance ± 0.5 mm
Recommended Footprint Details
PCB Mounting Version (Standard)
Wired Version (Suffix /W)
Wire Connections
Wire AWG#22 Single Out Dual Out
Blue 1015 VAC in (N) VAC in (N)
Brown 1015 VAC in (L) VAC in (L)
Red 1007 +VDC out +VDC out
Black 1007 -VDC out Com
Orange 1007 -VDC out
Package Style and Pinning
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
3.3V
5V
15V, 24V
9V, 12V
Operating Temperature Range (free air convection, without derating) -25°C to +55°C
(free air convection, with derating) -25°C to +75°C
Storage Temperature Range -40°C to +100°C
Recommended External Input Fuse 1.5A Slow Blow
Humidity 95% RH max.
Case Material Plastic Case filled with Epoxy (UL94V-0)
Package Weight Single/Dual 35g/38g
Packing Quantity Single Output 10 pcs
Dual Output 9 pcs
/W Version 1 pc
Emissions CE EN 55022: 2006 + A1: 2007 / Class B
EMC EN 55024:1998 + A1:2001 + A2:2003
Harmonics EN 61000-3-2:2006 / Class A
Flicker EN 61000-3-3:1995 + A1:2001 +A2:2005
Immunity ESD IEC 61000-4-2 / Criterion B
RS IEC 61000-4-3 / Criterion A
EFT IEC 61000-4-4 / Criterion B
Surge IEC 61000-4-5 / Criterion B
CS IEC 61000-4-6 / Criterion A
PMF IEC 61000-4-8 / Criterion A
Voltage Variations IEC 61000-4-11 / Criteria B + C
MTBF (+25°C) using MIL-HDBK-217F >400 x 10
3
hours
(+65°C) >200 x 103hours
Certifications:
UL General Safety Report: E224736 UL-60950-1, 2nd Edition
cUL Report: E224736 C22.2 No. 60950-1-07, 2nd Edition
EN General Safety Report: SPCLVD1211033-1 EN-60950-1:2006 + A12:2011
CE EN55022 Class B
Efficiency %
100
0
40%0% 100%
40
Efficiency / Load
60%
80%
20%
20
60
80
Total Output current (%)
±5V
±12V, ±15V
Single Output
Dual Output
Input Voltage Derating Graph
Load (%)
Input Voltage (VAC) Ta=25°C
Safe Operating Area
100%
90%
80%
70%
80
130 180
230
280
90V, 100%
80V, 80%
264V, 100%
Notes:
Note1: Measured @ 230VAC / 50Hz / Ta=25°C with constant resistant mode at full load.
Note2: If used @ 115VAC / 60Hz with full load, max. capacitive load is less, please contact RECOM for
detailed information.
