RAC04-C

4 Watt

Single

Output

● Universal Input 80-264VAC or 115-370VDC

●

Operating Temperature Range of -25°C to +85°C

● Isolated Output 3kVAC / 1 min

●

Short Circuit and Overcurrent Protection

●

Low Output Ripple & Noise

● Low Cost AC/DC Power Supply

●

EN, UL and CE certified

Features

Regulated Converters

Selection Guide

Descritption

Part Input Output Output Efficiency Max. Number Voltage Voltage Current max. Typ. Capacitive

(VAC) (VDC) (mA) (%) Load

(1+2)

RAC04-3.3SC 80-264 3.3 1200 67 5600µF

RAC04-05SC 80-264 5 800 72 2000µF

RAC04-09SC 80-264 9 444 76 1500µF

RAC04-12SC 80-264 12 333 74 560µF

RAC04-15SC 80-264 15 267 77 470µF

RAC04-24SC 80-264 24 167 77 150µF

Specifications

(measured at TA 25°C, nominal input voltage, full load after warm-up)

POWERLINE

AC/DC-Converter

with 3 year Warranty

IEC-60950-1 certified UL-60950-1 certified

RAC04-C

100

Ambient Temperature Range (°C)

-20

200 40 60 80 100

Output Power (%)

120

Safe Operating Area

-25

E224736

Input Voltage Range (with Derating) 80-264VAC or 115-370VDC Input Frequency (for AC Input) 47-63Hz Input Current (Full Load) 115VAC / 230VAC 110mA / 72mA max. Inrush Current 115VAC / 230VAC 30A / 60A max. External Input Fuse Required Recommended Value 1A - 1.5A / Slow Blow Type No Load Power Consumption 80-264VAC 100mW typ. / 200mW max. Output Voltage (Vout nom.) 3.3V-24V Output Current Range 167mA - 1200mA Output Voltage Tolerance ±2% typ. / ±5% max. Minimum Load 10% min. Output Ripple & Noise

(3)

(Full Load)115VAC / 230VAC @ 20MHz limited 200mVp-p max. Line Voltage Regulation LL-HL at full Load ±0.5% typ. / ±1% max. Load Voltage Regulation 10%-100% Load ±1.5% typ. / ±5% max. Overcurrent LImit 105% - 155% Switching Frequency at Full Load 40kHz typ. Isolation Voltage Input-Output 3kVAC / 1 minute Leakage Current 0.85mA max. Isolation Resistance Input-Output 1G Ω min Isolation Capacitance Input-Output 1000pF typ. Short Circuit Protection Hiccup, Auto Restart Over Voltage Category OVC II Operating Temperature Range

(4)

natural convection, without derating -20°C to +60°C

natural air convection, with derating -25°C to +85°C Storage Temperature Range -40°C to +100°C Case Material UL94V-0 black plastic Potting Material Silicone Relative Humidity 95% RH max. Package Weight 39g typ. Package Quantity 12 pcs

continued on next page

The new RAC04-SC modules are available with output voltages of 3.3, 5, 9, 12, 15, and 24V, and the input-to-output isolation is approximately 3kVAC/1min. With a standby consumption of typical 100mW, the mini power supplies are particularly suitable for energy-saving sleep mode and standby applications. Because of its compact design (height <17 mm), it is a versatile solution for home automation and other similar applications. Complete with an integrated input filter, the series has enhanced EMI performance and complies with EN55022, class B. The mini power supplies are also protected against short circuit with fully automatic restart after the error has been solved. The converters are EN/UL60950-1 certified and come complete with a 3 year warranty.

RoHS

2011/65/EU

6/6

Derating-Graph

(Ambient Temperature)

PA- 16 www.recom-power.comREV: 1/2015

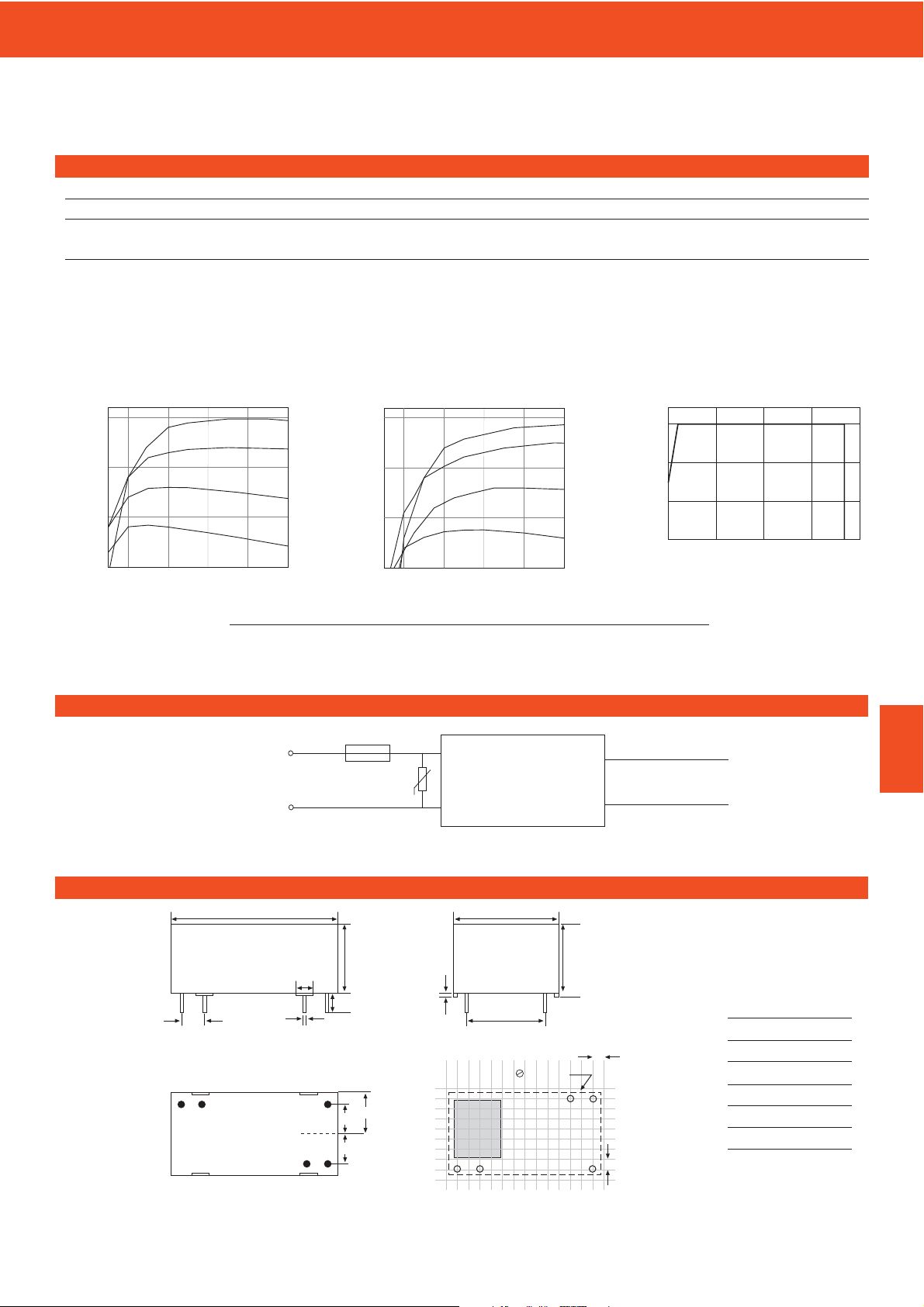

Page 2

RAC04-xxC Series

POWERLINE

AC/DC-Converter

Package Style and Pinning

RAC04-C

Specifications

(measured at TA 25°C, nominal input voltage, full load after warm-up)

Pin Connections

Pin # Single Out

1 VAC in (L)

3 VAC in (N)

13 NC

14 -VDC out

16 +VDC out

Tolerance ±0.5mm

Unless otherwise specified

37.80

6.10

5.0

23.90

1.0

313

1416

Recommendend Footprint Details

Bottom View

2.54

1.20 +0.2/-0.1

0.75+0.25

16.40+0.25

15.65

5.08

17.78

23.90

Leave Clear of PCB Traces

8.89

11.95

Application Note

Fuse 1-1.5A

MOV

VAC(L)

VAC(N)

Vout+

Vout-

Recommended external input fuse 1.0 - 1.5A / slow blow type. An external MOV is required for 230VAC operation. (MOV model: shall comply with IEC61051-2, e.g. Epcos S14 Series)

70%

65%

80%

20%10% 40% 60% 80% 100%

230VAC in (%)

75%

Load (%)

3.3V

30% 50% 70% 90%

24V

12V

230VAC115VAC

70%

65%

80%

20%10% 40% 60% 80% 100%

115VAC in (%)

75%

Load (%)

3.3V

30% 50% 70% 90%

24V

12V

Input Voltage Derating Graph

70%

Input Voltage (VAC) Ta=25°C

80 130 280

180 230

80%

90%

100%

Load (%)

90V, 100%

264V, 100%

80V, 85%

Notes:

1. Measured @230VAC / 50Hz

2. If used @ 115VAC / 60Hz with full load, please contact RECOM for detailed information.

3. To measure the output ripple & noise with short runs by 0.1uF/50V@20MHz, nominal input and full load.

4. Start up only is guaranteed at temperatures down to -25°C. Other specifications may not be met.

Physical Dimension (LxWxH) 37.80 x 23.90 x 16.40 mm MTBF (+25°C) MIL-HDBK-217F 500 * 103hours EMI Conducted and Radiated EN55022, Class B

Noise Immunity EN55024 Safety Standard CB Report Number: 1111070-CB IEC-60950-1, 2nd Edition UL General Safety Report Number: E224736-A5-UL UL-60950-1, 2nd Edition

The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit

written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer

shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.

www.recom-power.com PA- 17REV: 1/2015
