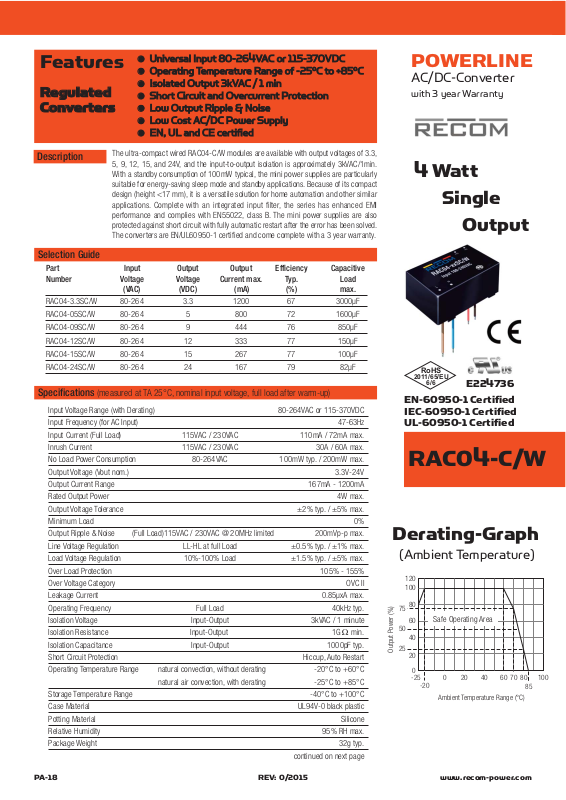

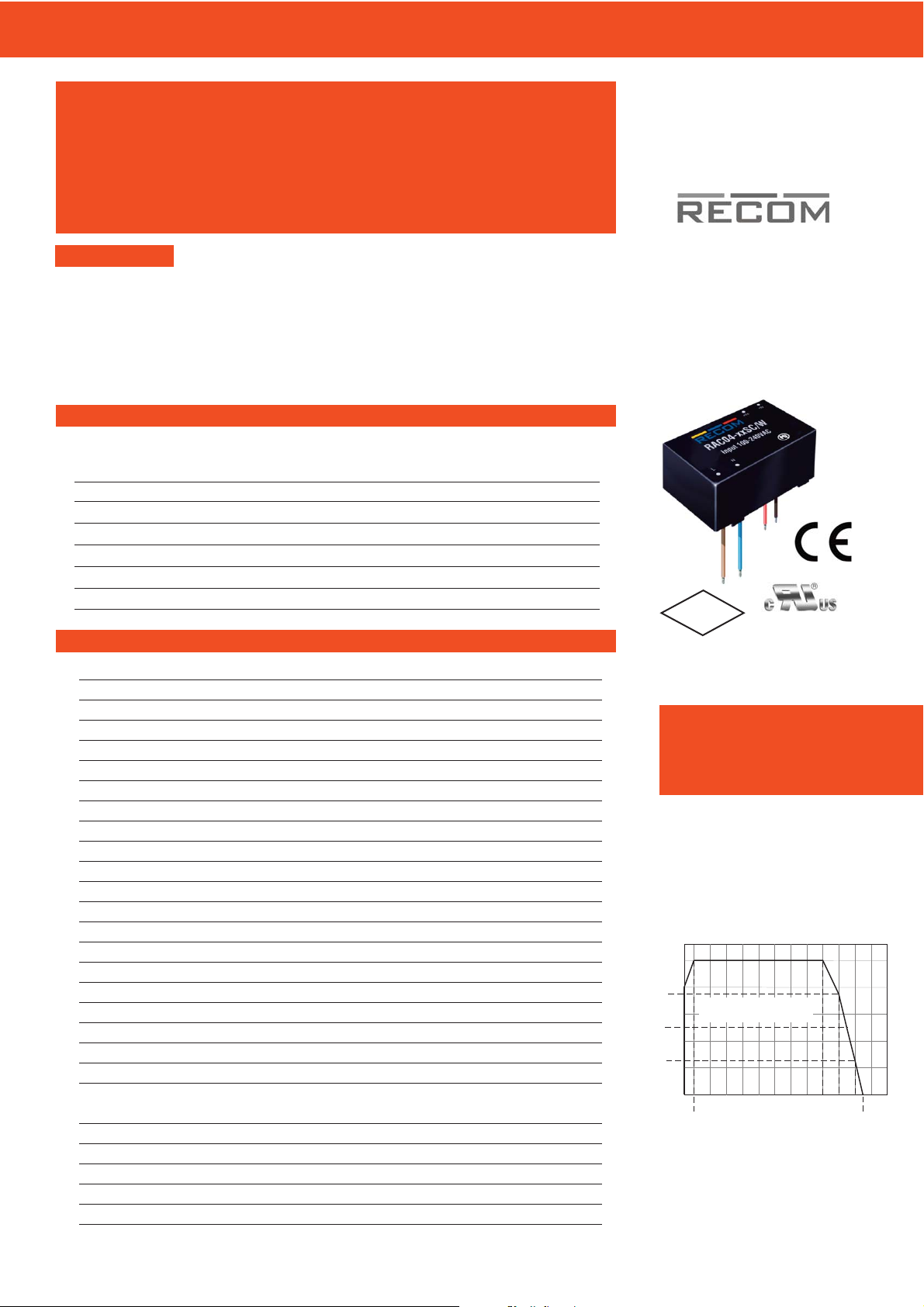

Page 1

4 Watt

Single

Output

●

Universal Input 80-264VAC or 115-370VDC

●

Operating Temperature Range of -25°C to +85°C

●

Isolated Output 3kVAC / 1 min

●

Short Circuit and Overcurrent Protection

● Low Output Ripple & Noise

●

Low Cost AC/DC Power Supply

●

EN, UL and CE certified

Features

Regulated Converters

Selection Guide

Description

Part Input Output Output Efficiency Capacitive Number Voltage Voltage Current max. Typ. Load

(VAC) (VDC) (mA) (%) max.

RAC04-3.3SC/W 80-264 3.3 1200 67 3000µF

RAC04-05SC/W 80-264 5 800 72 1600µF

RAC04-09SC/W 80-264 9 444 76 850µF

RAC04-12SC/W 80-264 12 333 77 150µF

RAC04-15SC/W 80-264 15 267 77 100µF

RAC04-24SC/W 80-264 24 167 79 82µF

Specifications

(measured at TA 25°C, nominal input voltage, full load after warm-up)

POWERLINE

AC/DC-Converter

with 3 year Warranty

EN-60950-1 Certified IEC-60950-1 Certified UL-60950-1 Certified

RAC04-C/W

100

Ambient Temperature Range (°C)

-20

200 40 60 80 100

Output Power (%)

120

Safe Operating Area

-25

E224736

Input Voltage Range (with Derating) 80-264VAC or 115-370VDC Input Frequency (for AC Input) 47-63Hz Input Current (Full Load) 115VAC / 230VAC 110mA / 72mA max. Inrush Current 115VAC / 230VAC 30A / 60A max. No Load Power Consumption 80-264VAC 100mW typ. / 200mW max. Output Voltage (Vout nom.) 3.3V-24V Output Current Range 167mA - 1200mA Rated Output Power 4W max. Output Voltage Tolerance ±2% typ. / ±5% max. Minimum Load 0% Output Ripple & Noise (Full Load)115VAC / 230VAC @ 20MHz limited 200mVp-p max. Line Voltage Regulation LL-HL at full Load ±0.5% typ. / ±1% max. Load Voltage Regulation 10%-100% Load ±1.5% typ. / ±5% max. Over Load Protection 105% - 155% Over Voltage Category OVC II Leakage Current 0.85µxA max. Operating Frequency Full Load 40kHz typ. Isolation Voltage Input-Output 3kVAC / 1 minute Isolation Resistance Input-Output 1G Ω min. Isolation Capacitance Input-Output 1000pF typ. Short Circuit Protection Hiccup, Auto Restart Operating Temperature Range natural convection, without derating -20°C to +60°C

natural air convection, with derating -25°C to +85°C Storage Temperature Range -40°C to +100°C Case Material UL94V-0 black plastic Potting Material Silicone Relative Humidity 95% RH max. Package Weight 32g typ.

continued on next page

The ultra-compact wired RAC04-C/W modules are available with output voltages of 3.3, 5, 9, 12, 15, and 24V, and the input-to-output isolation is approximately 3kVAC/1min. With a standby consumption of 100mW typical, the mini power supplies are particularly suitable for energy-saving sleep mode and standby applications. Because of its compact design (height <17 mm), it is a versatile solution for home automation and other similar applications. Complete with an integrated input filter, the series has enhanced EMI performance and complies with EN55022, class B. The mini power supplies are also protected against short circuit with fully automatic restart after the error has been solved. The converters are EN/UL60950-1 certified and come complete with a 3 year warranty.

RoHS

2011/65/EU

6/6

Derating-Graph

(Ambient Temperature)

PA- 18 www.recom-power.comREV: 0/2015

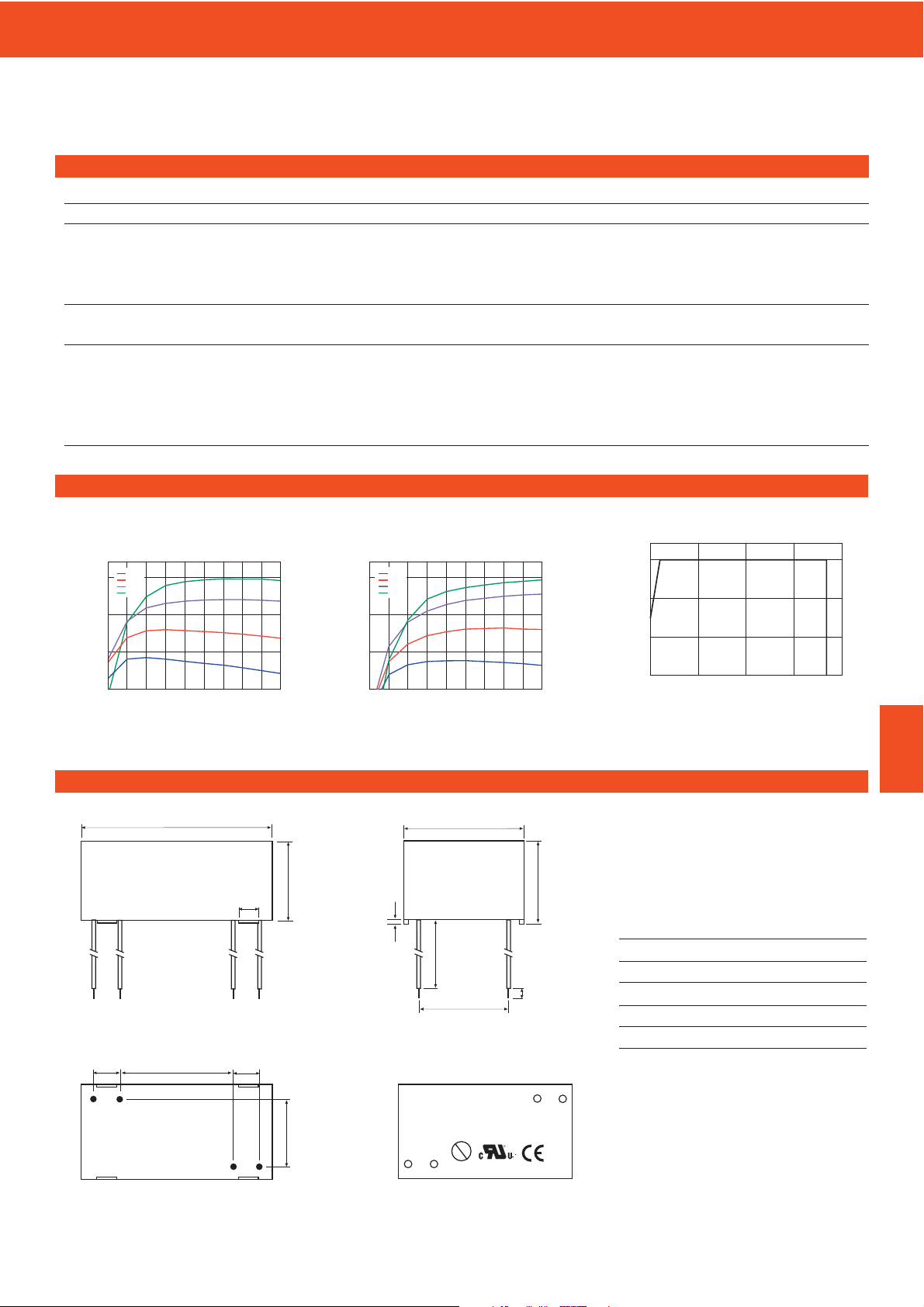

Page 2

RAC04-xxxC/W Series

POWERLINE

AC/DC-Converter

RAC04-

C/W

Specifications

(measured at TA 25°C, nominal input voltage, full load after warm-up)

10 20 30 40 50 60 70 80 90 100

Load (%)

Efficiency (%)

10 20 30 40 50 60 70 80 90 100

Load (%)

Efficiency (%)

3.3V 5V 12V 24V

115VAC 230VAC

Input Voltage Derating Graph

70%

Input Voltage (VAC) Ta=25°C

80 130 280

180 230

80%

90%

100%

Load (%)

90V, 100%

264V, 100%

80V, 85%

Package Quantity 30pcs Physical Dimension (LxWxH) 37.80 x 23.90 x 16.40 mm MTBF 115VAC, 25°C 820 x 10

hours

230VAC, 25°C 735 x 10

hours

115VAC, 60°C 550 x 10

hours

230VAC, 25°C 430 x 103hours

EMC Conducted and Radiated EN55022, Class B

Noise Immunity EN55024 Safety Standard EN General Safety Report: SPCLVD1310055-1 EN-60950-1, 3rd Edition IEC General Safety CB Report: 1311055-CB IEC-60950-1 2nd Edition UL General Safety Report Number: E224736-A21 UL-60950-1, 2nd Edition

CSA C22.2 No. 60950-1-07

Typical Characteristic

Efficiency vs Load

Package Style and Pinning

Bottom View

0.75+0.25

16.40+0.25

17.78

23.90

5.0

87.00

15.65

37.80

10.0

5.0

20.32

AC IN

DC OUT

RECOM

RAC04-12SC/W

Input 80-264VAC

Output 12V/333mA

xxxx

17.78

Wired Connections

Wired Color Type Function

1 Brown UL-1015 AWG#22 VAC in (L)

2 Blue UL-1015 AWG#22 VAC in (N)

3 Red UL-1430 AWG#22 +VDC out

4 Black UL-1430 AWG#22 -VDC out

Case Tolerance ±0.5mm Unless otherwise specified

The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit

written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer

shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.

www.recom-power.com PA-1 9REV: 0/2015
