INNOLINE
DC/DC-Converter
with 3 year Warranty
R-6xxx
www.recom-power.comI-48 REV: 0/2014
EN-60950-1 Certified
1-2 AMP
SIP12
Vertical
&
Horizontal
● Adjustable Output Voltage
● Non-Isolated
● 1-2AMP Adjustable Positive Step Down
Integrated Switching Regulator
● Internal Short Circuit Protection
● ON/OFF Control(Ground Off)
● UL94V-0 Package Material
● Wide Input Range
● Efficiency to 96%
● See Innoline Application Notes for use as an
inverter
Features
Selection Guide
Specifications (refer to the standard application circuit, Ta: 25°C)
Characteristics Conditions Min. Typ. Max.
Input Voltage Range Vout = 1.8V 9V 32V
Vout = 2.5V 9V 32V
Vout = 3.3V 9V 32V
Vout = 5V 9V 32V
Vout = 9V 11V 32V
Vout = 12V 14V 32V
Vout = 18V 20V 32V
Output Voltage Adjust Range (see table 1) Vout = 1.8V 1.5V 1.8V 3.6V
Vout = 2.5V 1.5V 2.5V 4.5V
Vout = 3.3V 1.8V 3.3V 6V
Vout = 5V 1.8V 5V 9V
Vout = 9V 3.3V 9V 15V
Vout = 12V 3.3V 12V 15V
Vout = 18V 18V
Continued on next page
Part Input Nominal Vout Output Efficiency (%)
Number Range Output Voltage Adjust Range Current Vin min. Vin max.
SIP12 (V) (V) (V) (A) (%) (%)
R-611.8x 9 – 32 1.8 1.5 – 3.6 1 79 67
R-612.5x 9 – 32 2.5 1.5 – 4.5 1 84 74
R-613.3x 9 – 32 3.3 1.8 – 6 1 88 79
R-615.0x 9 – 32 5 1.8 – 9 1 92 84
R-619.0x 11 – 32 9 3.3 – 15 1 96 90
R-6112x 14 – 32 12 3.3 – 15 1 97 92
R-621.8x 9 – 32 1.8 1.5 – 3.6 2 76 68
R-622.5x 9 – 32 2.5 1.5 – 4.5 2 81 74
R-623.3x 9 – 32 3.3 1.8 – 6 2 86 80
R-625.0x 9 – 32 5 1.8 – 9 2 90 85
R-629.0x 11 – 32 9 3.3 – 15 2 95 91
R-6212x 14 – 32 12 3.3 – 15 2 96 93
Note: Vin -Vout ≥ 1.5V if adjust function is used!
Suffix x: (see mechanical drawing for details)
x = P pins vertical through hole
x = D pins bent for horizontal through hole mounting
The R-6XXX series is a high performance 1.5V to 15V (18V), 1.1Amp to 2.0Amp,12-Pin SIP (single in-line
package) switching regulator. Synchronuous rectification yields excellent efficiencies of up to 97%.
The devices feature short circuit protection with internal crowbar function to reduce the short circuit input
current to under 50mA during fault conditions.
Description
RoHS
2011/65/EU
6/6
Page 2
I-49www.recom-international.com REV: 0/2014
R-6xxx

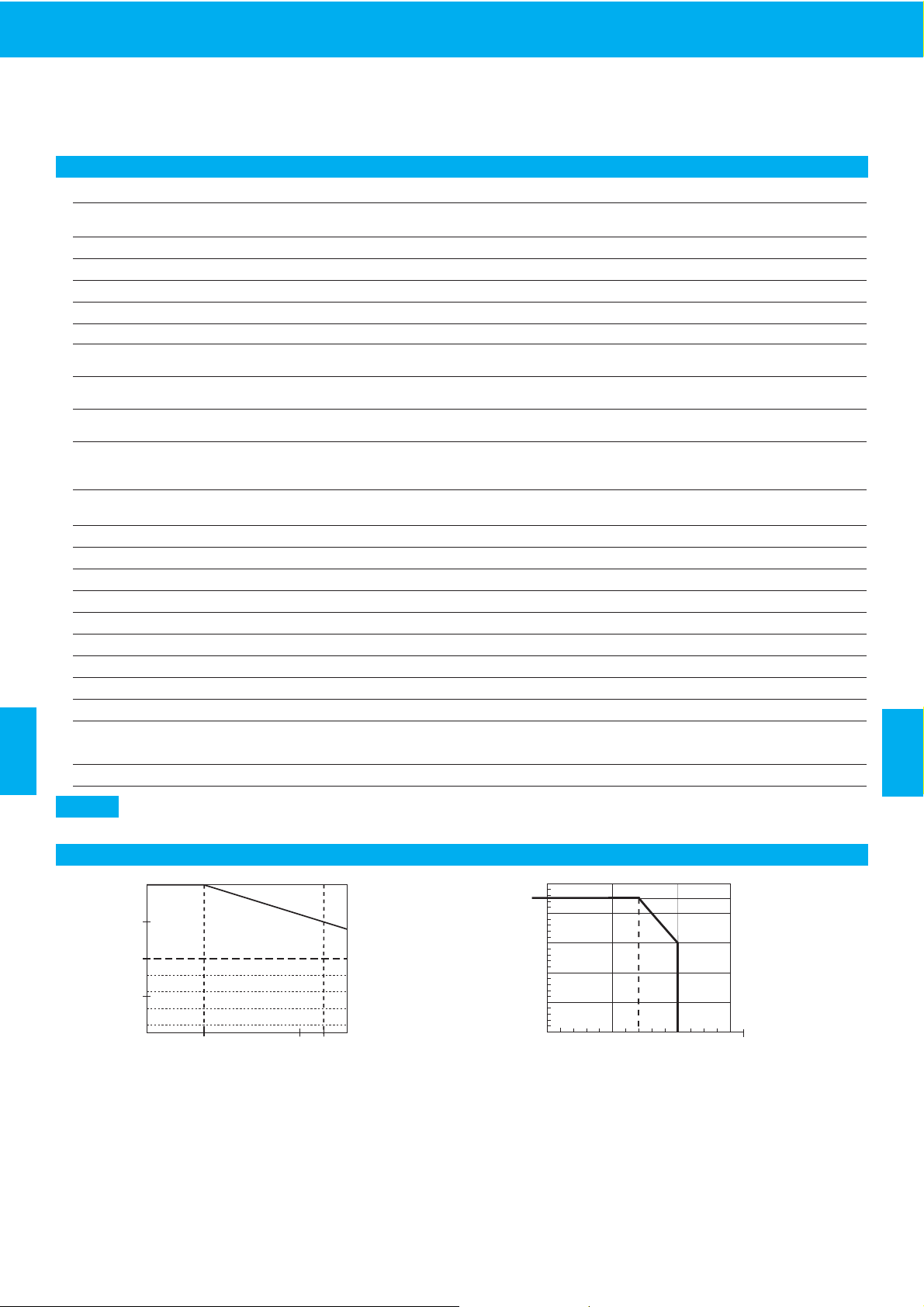

Characteristics Conditions Min. Typ. Max.
Output Current R-61xxP/D 0.1A 1.1A
R-62xxP/D 0.2A 2.0A
Output Current Limit 4A 4.5A 5A
Short Circuit Input Current Vin > 12V 20mA 100mA
Short Circuit Protection Continuous, automatic recovery
Output Voltage Accuracy At 100% Load ±1% ±2%
Line Voltage Regulation (Vin = min. to max. at full load) 0.5%
Load Regulation (10 to 100% full load) R-61xxP/D 0.5%
R-62xxP/D 1.0%
Vo Ripple & Noise R-61xxP/D 40mVpp 100mVpp
R-62xxP/D 40mVpp 120mVpp
Transient Response (see note 1) 50% Load Change 100us 200us
Vout Over / Undershoot 5%
Remote ON / OFF (see note 2) Open or high (Power ON) 2.0V 10V
(positive logic) Low (Power OFF) 0.8V
Remote Off Input Current Remote ON/OFF low level 100µA
Max capacitance Load with normal start-up time, no external diodes 200µF
with <1 second start up time + diode protection circuit 6800µF
Switching Frequency 200kHz 250kHz 300kHz
Quiescent Current Vin = min. to max. at 0% load 6mA 10mA
Operating Temperature Range -40°C +85°C
Storage Temperature Range -40°C +125°C
Case Material Non-Conductive Black Plastic
Potting Material Epoxy (UL94V-0)
internal Power Dissipation Io x Vo x (1-Efficiency) 1.0W
Package Weight 9g
Packing Quantity 15 pcs per Tube
MTBF (Nominal Vout, 100% load) Tamb. = +25°C 563 x 10³ hours
Tamb. = +71°C 117 x 10³ hours
EN General Safety Report: SPCLVD 1301028-1 EN60950-1:2006 + A12:2011
R-6xxxP_D
Series
Specifications (refer to the standard application circuit, Ta: 25°C)
Output Current vs Input Voltage
Notes:
INNOLINE
DC/DC-Converter
Output Current (A)
2
1
14
9.0
28
Input Voltage (V)
0
1.2A
R-62XX
R-61XX
24
32
Max output current calculation:
Internal power dissipation
(1W) = Io x Vo x (1-Efficiency)
Io = 1(W) / Vo x (1-Efficiency)
Example : R-6212P
at Vin = 28VDC
Efficiency = 94% (see ”Selection Guide” table)
Vo = 12VDC
Io = 1W / 12V x (1-0.94) = 1.388A = 1.5A
at Vin = 14VDC
Efficiency = 96% (see ”Selection Guide” table)
Vo = 12Vdc
Io = 1W / 12V x (1-0.96) = 2.08A (spec. = 2A max.)
Ambient Temperature (°C)
90
60
20
40
1.510.5
Internal Power Dissipation (W)
0
80
85
0.7
1. Requires a 100µF electrolytic or tantalum output capacitor for proper operation in all applications (the capacitor to be placed as close as possible to the output pins).
2. ON / OFF pin can be driven by TTL (logic gate), open-collector bipolar transistor or open-drain MOSFET.
3. Output Current vs. Input Voltage (see graph below).
}
Detailed Information see
Application Notes chapter "MTBF"
Page 3
R-6xxx
www.recom-power.comI-50 REV: 0/2014
R-6xxxP_D
Series
Characteristics
INNOLINE
DC/DC-Converter
Efficiency (%)
Iout (A)
2.01.51.00.1 0.5
Vin = 9V
Vin = 12V
Vin = 26V
80
60
70
50
82.5
85.0
87.5
90.0
92.5
100.0
Ripple (mV)
100
60
20
40
Iout (A)
0
2.01.51.00.1 0.5
80
Vin = 26V
Vin = 12V
Vin = 9V
Iout (A)
2.01.51.00.1 0.5
Vin = 12V
Vin = 24V
Vin = 38V
Vin = 9V
80
60
70
50
82.5
85.0
87.5
90.0
92.5
100
Efficiency (%)
R-623.3 / R-613.3
Efficiency vs Output Current
R-625.0 / R-615.0
Efficiency vs Output Current
Ripple (mV)
100
60
20
40
Iout (A)
0
2.01.51.00.1 0.5
80
Vin = 24V
Vin = 12V
Vin = 9V
Vin = 38V
R-623.3 / R-613.3
Ripple vs Output Current
R-625.0 / R-615.0
Ripple vs Output Current
Package Style and Pinning (mm)
Bottom
View
1 2 3 4 5 6 7 8 9
2.54
0.7
4.0
15.00
32.20
10 11 12
9.1
0.2
Bottom
View
4.0
0.7
0.7
1 2 3 4 5 6 7 8 9
2.54
0.7
15.00
32.20
10 11 12
9.1
0.2
RECOM
R-615.0P
RECOM
R-615.0D
2.13
2.13
SIP12 PIN Package
Tolerance:
± 0.25 mm
Pin Connections
Pin # Name Description
1 ON / OFF Input pin : Active low (less than 0.8V) to disable the device
2, 3, 4 Vin Power input
5, 6, 7, 8 GND Input and output ground (common)
9 , 10, 11 Vout Power output
12 Vout-Adj With external resistors R1,R2 to selected output voltage
Page 4
I-51www.recom-international.com
REV: 0/2014
R-6xxxP_D
Series
Table 1: Adjustment Resistor Values
INNOLINE
DC/DC-Converter
Standard Application Circuit
Vout
Com
Vin
TTL
Com
2, 3, 4 9, 10, 11
R-61XX
R-62XX
R1
(Adjust down)
R2
(Adjust up)
12
5, 6, 7,8
1µF
(Optional)
1
C1
OFF
ON
Q1
C2
100µF/10V
(REQ`D)
Add a blocking diode to Vout if
current can flow backwards
into the output, as this can
damage the converter.
Protection diodes are
required for high capacitive
loads.
Refer to R-5xxxA Datasheet
(see Optional Diode Protection
Circuit) for circuit suggestions.
R-6xxx
1.1Adc R-611.8P/D R-621.5P/D R-613.3P/D R-615.0P/D R-619.0P/D R-6112P/D
2.0Adc R-621.8P/D R-622.5P/D R-623.3P/D R-625.0P/D R-629.0P/D R-6212P/D
Vout (nominal) 1.8Vdc 2.5Vdc 3.3Vdc 5Vdc 9Vdc 12Vdc
Vout (adj) R1 R2 R1 R2 R1 R2 R1 R2 R1 R2 R1 R2
1.5 13.6KΩ 3.3KΩ
1.8 8.2KΩ 3.1KΩ 820Ω
2.0 10KΩ 15KΩ 5.1KΩ 1.5KΩ
2.5 5.1KΩ 13KΩ 3.6KΩ
3.0 2.5KΩ 10KΩ 51KΩ 7.0KΩ
3.3 1.7KΩ 5.9KΩ 9.7KΩ 0Ω 0Ω
3.6 1.2KΩ 3.9KΩ 18KΩ 14KΩ 1.5KΩ 560Ω
3.9 2.8KΩ 9.1KΩ 20KΩ 3.3KΩ 1.2KΩ
4.5 1.6KΩ 3.9KΩ 60KΩ 7.5KΩ 2.1KΩ
5.0 2.4KΩ 11KΩ 4.0KΩ
5.1 2.2KΩ 60KΩ 12KΩ 4.3KΩ
5.5 1.6KΩ 15KΩ 17KΩ 5.6KΩ
6.0 1.1KΩ 7.2Ω 24KΩ 7.5KΩ
7.0 2.8KΩ 51KΩ 12KΩ
8.0 1.5KΩ 130KΩ 19KΩ
9.0 880Ω 31KΩ
10 450Ω 36KΩ 55KΩ
11 180Ω 15KΩ 125KΩ
12 8.2KΩ
13 4.7KΩ 11KΩ
14 2.7KΩ 4.0KΩ
15 1.3KΩ 1.6KΩ
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
