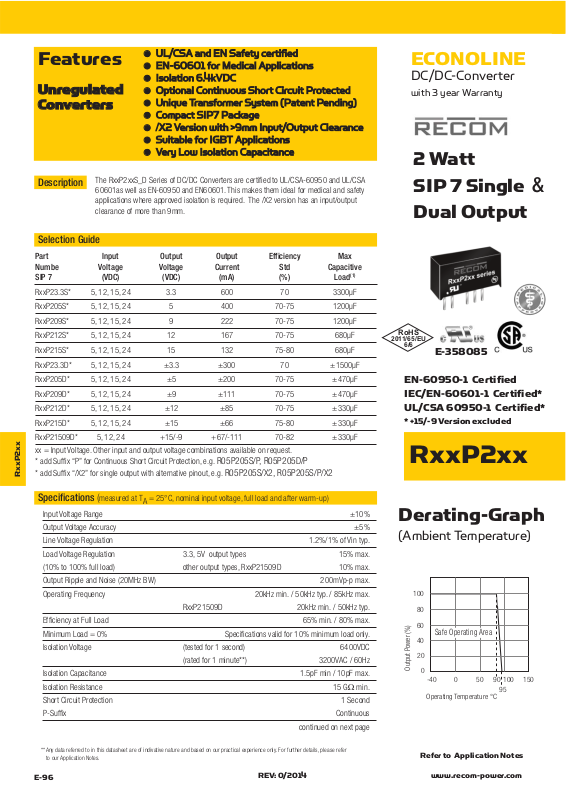

RECOM R05P209S Datasheet

E-96

www.recom-power.com

REV: 0/2014

RxxP2xx

Refer to Application Notes

ECONOLINE

DC/DC-Converter

with 3 year Warranty

RxxP2xx

Selection Guide

Part Input Output Output Efficiency Max
Numbe Voltage Voltage Current Std Capacitive
SIP 7 (VDC) (VDC) (mA) (%) Load

(1)

RxxP23.3S* 5, 12, 15, 24 3.3 600 70 3300µF

RxxP205S* 5, 12, 15, 24 5 400 70-75 1200µF

RxxP209S* 5, 12, 15, 24 9 222 70-75 1200µF

RxxP212S* 5, 12, 15, 24 12 167 70-75 680µF

RxxP215S* 5, 12, 15, 24 15 132 75-80 680µF

RxxP23.3D* 5, 12, 15, 24 ±3.3 ±300 70 ±1500µF

RxxP205D* 5, 12, 15, 24 ±5 ±200 70-75 ±470µF

RxxP209D* 5, 12, 15, 24 ±9 ±111 70-75 ±470µF

RxxP212D* 5, 12, 15, 24 ±12 ±85 70-75 ±330µF

RxxP215D* 5, 12, 15, 24 ±15 ±66 75-80 ±330µF

RxxP21509D* 5, 12, 24 +15/-9 +67/-111 70-82 ±330µF
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g.

R05P205S/P, R05P205D/P

* add Suffix “/X2” for single output with alternative pinout, e.g. R05P205S/X2, R05P205S/P/X2

Output Power (%)

100

60

20

40

100500-40

90

150

Operating Temperature °C

0

80

Safe Operating Area

95

Input Voltage Range ±10%

Output Voltage Accuracy ±5%

Line Voltage Regulation 1.2%/1% of Vin typ.

Load Voltage Regulation 3.3, 5V output types 15% max.

(10% to 100% full load) other output types, RxxP21509D 10% max.

Output Ripple and Noise (20MHz BW) 200mVp-p max.

Operating Frequency 20kHz min. / 50kHz typ. / 85kHz max.

RxxP21509D 20kHz min. / 50kHz typ.

Efficiency at Full Load 65% min. / 80% max.

Minimum Load = 0% Specifications valid for 10% minimum load only.

Isolation Voltage (tested for 1 second) 6400VDC

(rated for 1 minute**) 3200VAC / 60Hz

Isolation Capacitance 1.5pF min / 10pF max.

Isolation Resistance 15 GΩ min.

Short Circuit Protection 1 Second

P-Suffix Continuous

continued on next page

2 Watt
SIP 7 Single &
Dual Output

Derating-Graph

(Ambient Temperature)

●

UL/CSA and EN Safety certified

● EN-60601 for Medical Applications

●

Isolation 6.4kVDC

●

Optional Continuous Short Circuit Protected

●

Unique Transformer System (Patent Pending)

●

Compact SIP7 Package

●

/X2 Version with >9mm Input/Output Clearance

●

Suitable for IGBT Applications

●

Very Low Isolation Capacitance

Features

Unregulated
Converters

Description

Specifications (measured at T

A

= 25°C, nominal input voltage, full load and after warm-up)

The RxxP2xxS_D Series of DC/DC Converters are certified to UL/CSA-60950 and UL/CSA
60601as well as EN-60950 and EN60601. This makes them ideal for medical and safety
applications where approved isolation is required. The /X2 version has an input/output
clearance of more than 9mm.

E-358085

RoHS

2011/65/EU

6/6

EN-60950-1 Certified
IEC/EN-60601-1 Certified*
UL/CSA 60950-1 Certified*

* +15/-9 Version excluded

**Any data referred to in this datasheet are of indivative nature and based on our practical experience only. For further details, please refer

to our Application Notes.

E-97

RxxP2xx

www.recom-international.com REV: 0/2014

Typical Characteristics

ECONOLINE

DC/DC-Converter

Operating Temperature Range (free air convection, without derating) -40°C to +90°C (see Graph)

Storage Temperature Range -55°C to +125°C

Relative Humidity 95% RH

Package Weight 4.3g

Packing Quantity 25 pcs per Tube

MTBF (+25°C) Single/Dual using MIL-HDBK 217F 2113/2434 x 10

3

hours

. (+85°C) Single/Dual using MIL-HDBK 217F 299/334 x 103 hours

Certifications

UL/cUL General Safety Report: E358085 UL 60950-1 2nd Ed.

EN General Safety Report: SPCLVD1109103 EN60950-1:2006 + A12: 2011

EN Medical Safety Report: SPCMDD1205098-4 IEC/EN60601-1:2006, 3rd Edition

Specifications (measured at T

A

= 25°C, nominal input voltage, full load and after warm-up)

Tolerance Envelope

+10%

+5%

V Nom.

+5%

 1.5%

10% 50% 100%

Output Voltage

Output Load Current (%)

 5%

Typical Load Line

Efficiency %

100

0

40%0% 100%

40

Efficiency / Load

60%

80%

20%

20

60

80

Total Output current (%)

R05P209S

R12P09S

R05P205S,
R12P205S

RxxP209S

R05P209D

Efficiency %

100

0

40%0% 100%

40

Efficiency / Load

60%

80%

20%

20

60

80

Total Output current (%)

R05P209D

R12P209D

R05P205D,
R12P205D

Deviation / Load

-10.000
40%0% 100%

Deviation from Nominal (%)

60%

80%

20%

-5.000

Total Output current (%)

R05P205D

0.000

5.000

10.000

15.000

20.000

25.000

R12P209D

R05P209D

R12P205D

Deviation / Load

-10.000
40%0% 100%

Deviation from Nominal (%)

60%

80%

20%

-5.000

Total Output current (%)

0.000

5.000

10.000

15.000

20.000

25.000

R12P209S

R05P205S

R05P209S

R12P205S

}

Detailed Information see
Application Notes chapter "MTBF"

Notes

Note 1 Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.

RxxP2xxS_D
Series

RxxP205S

R05P205D

E-98

www.recom-power.com

REV: 0/2014

RxxP2xx

RxxP2xxS_D
Series

ECONOLINE

DC/DC-Converter

Efficiency %

100

0

40%0% 100%

40

Efficiency / Load

60%

80%

20%

20

60

80

Total Output current (%)

R05P215D

R12P212D

R05P212D

R12P215D

Deviation / Load

-10.000
40%0% 100%

Deviation from Nominal (%)

60%

80%

20%

-5.000

Total Output current (%)

R05P212D

0.000

5.000

10.000

15.000

20.000

25.000

R12P215D

R12P212D

R05P212D

RxxP215D

Typical Characteristics

Efficiency %

100

0

40%0% 100%

40

Efficiency / Load

60%

80%

20%

20

60

80

Total Output current (%)

R12P215S

R12P215S

R05P212S

R05P215S

Deviation / Load

-10.000
40%0% 100%

Deviation from Nominal (%)

60%

80%

20%

-5.000

Total Output current (%)

0.000

5.000

10.000

15.000

20.000

25.000

R12P212S

R05P212S

R05P212S

R12P215S

RxxP212S

Application

Isolated

DC/DC

Converter

IGBT
Driver

IGBT

Rg

+Vout

-Vout

Control Signal

-Vin

C1

C2

C3

+

+

+

1

2

7

6

5

IGBT Application

Circuit

RxxP212D

RxxP215S

E-99

www.recom-international.com REV: 0/2014

ECONOLINE

DC/DC-Converter

Package Style and Pinning (mm)

Dual Output

0.5

4.1

12.5

0.5

9.8

12 6 7

5

RECOM

R05P205D

****

RECOM

RxxP2xxD

****

Single Output

12 7

5

RECOM

RxxP2xxS

****

2.4

9.66

pin clearance

1.9

0.25

19.5

2.54

1.00ø+0.15/0

2.54

/X2 Single Output

12 6 7

RECOM

RxxP2xxS/X2

****

+15/-9 Output

12 6 7

5

RECOM

RxxP21509D

****

2.4

15.24

1.9

0.25

19.5

2.54

1.00ø+0.15/0

2.54

7.12

pin clearance

/X2 Top View

/X2 Bottom View

Top View

Bottom View

Recommended Footprint Details

7 PIN SIP Package

XX.X ± 0.5 mm
XX.XX ± 0.25 mm

Pin Connections

Pin # Single Dual /X2

1 +Vin +Vin +Vin
2 -Vin -Vin -Vin
5 –Vout –Vout No Pin
6 No Pin Com -Vout
7 +Vout +Vout +Vout

RxxP2xx

RxxP2xxS_D
Series

The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.

The Buyer agress to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
