ASSEMBLY INSTRUCTIONS
Description
: SINGLE JELLY CUPBOARD RTA
- 1 -
Printed in Vietnam
BEFORE ASSEMBLY

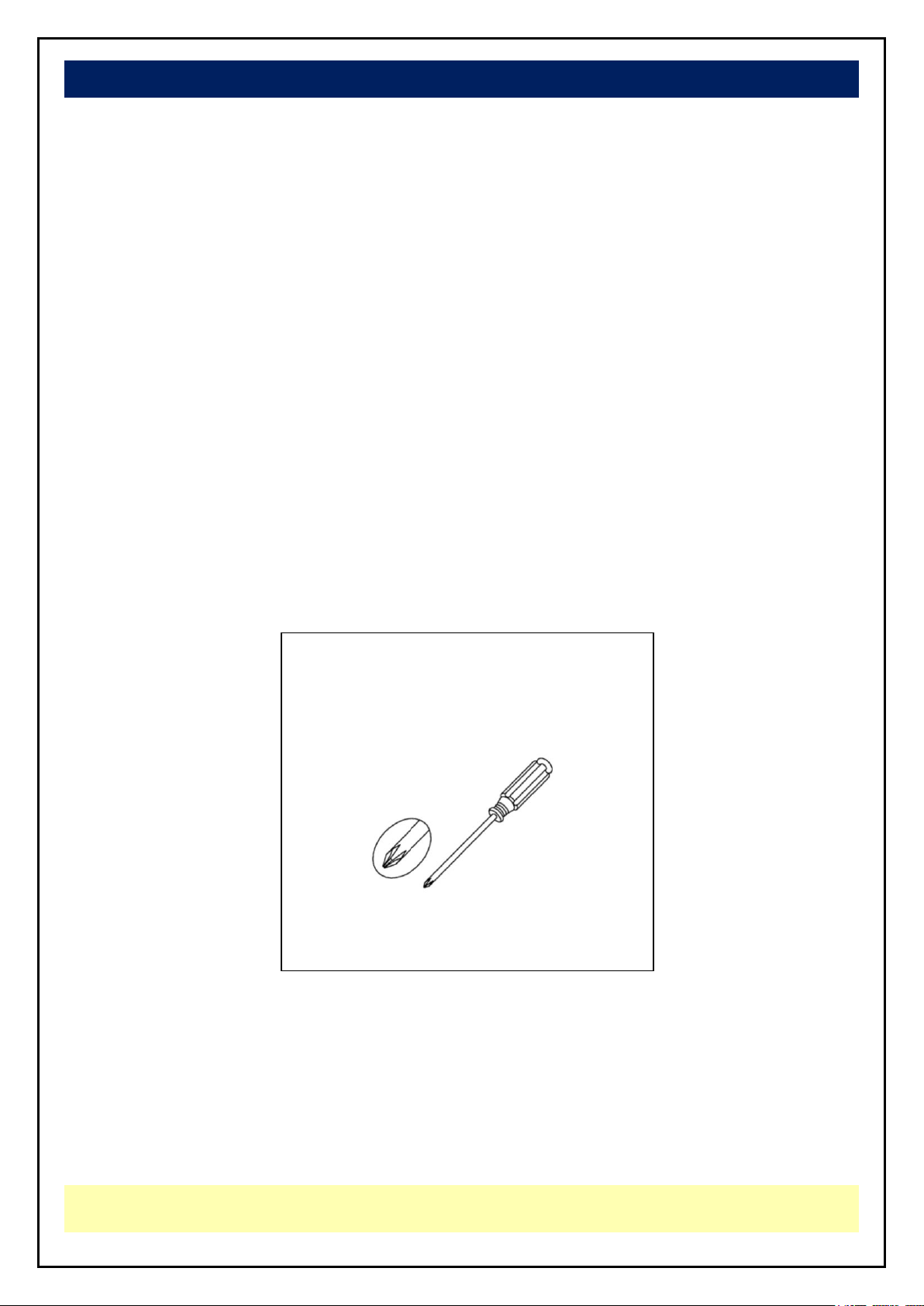

ASSEMBLY TOOLS REQUIRED
NOT INCLUDED
Thank you for purchasing this quality product. This product has been designed for easy assembly
and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to
beginning assembly, however, make sure all parts and hardware are included and free of obvious
defect. If a part is missing or defective, please contact the store where purchased.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the
parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to
assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
WARNING:
Long exposure to rubber or soft plastic may cause a chemical reaction and damage the
finish of your product. Protect the surface of the product with cloth if you are using any
product with rubber feet or base.
- 2 -
Printed in Vietnam
PART LIST
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
A
Top
1
B
Shelf
1
C
Bottom shelf
1
D
Side panel
(L-R)
2
E
Back panel
1
F
Door
1
G
Adjustable
shelf
2
H
Rail
1
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have the following parts:
- 3 -
Printed in Vietnam
HARDWARE LIST
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
1
Bolt
(M6 x 35mm)
12
2
Lock washer
(ɸ6.5 x 11mm)
12
3
Flat washer
(ɸ6.5 x 19mm)
12
4
Long screw
(M4 x 35mm)
4
5
Short screw
(M3.5 x 15mm)
19
6
Short pan head
screw
(M3.5 x 15mm)
6
7
Allen key
(M4 X 30mm x 120mm)
1
8
Knob
1
9
Long pan head screw
(M4 x 28mm)
1
10
Steel band
1
11
Bracket
8
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
- 4 -
Printed in Vietnam
STEP 1
STEP 2
Insert rail (H) into side panels (D) as shown below. Then attach shelf (B) and bottom shelf (C) to side
panels (D) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (7).
Attach rail (H) to top (A) with screws (4) as shown below. Tighten with a screwdriver. Then attach side
panels (D) to top (A) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (7).
Slide back panel (E) into the grooves of top (A) and side panels (D). Then attach back panel (E) to
the unit with pan head screws (6) as shown below. Tighten with a screwdriver.
- 5 -
Printed in Vietnam
STEP 3
STEP 4
Attach door (F) to the unit with screws (5) as shown below .Tighten with a screwdriver
Attach knob (8) to door (F) with pan head screw (9) as shown below. Tighten with a screwdriver.
Attach brackets (11) to side panels (D) as shown below. Then place the adjustable shelves (G) on the
brackets and attach with screws (5). Tighten with a screwdriver.
Attach steel band (10) to the unit with screws (5) and attach steel band (10) to the wall with screw (4)
as shown below (to secure the product and prevent tipping). Tighten with a screwdriver.
