Page 1
RM-300 WIRELESS
WIRELESS OPTICAL
MOUSE
USER’S MANUAL
Page 2
Technical support: www.real-el.com
1
ENG
User’s Manual
RM-300 WIRELESS
2
2
2
3
3
6
6
Congratulations on purchasing the ТМ REAL-EL PC mouse!
Please read the following instructions carefully before connecting, operating or adjusting this product. Besides, please keep this Manual in a safe
place for future reference.
COPYRIGHT
© 2015. ENEL GROUP OU. This Manual and information contained in it are
copyrighted. All rights reserved. All trademarks are the property of their legal
holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is”
terms. The author and the publisher do not bear any liability to a person or
an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. SPECIAL FEATURES ..................................................
2. PACKAGE CONTENTS ................................................
3. SYSTEM REQUIREMENTS ..........................................
4. DESCRIPTION .........................................................
5. INSTALLATION .........................................................
6. TROUBLESHOOTING ................................
.................
7. TECHNICAL SPECIFICATIONS ...........................
...........
Page 3
1. SPECIAL FEATURES
• Power saving wireless technology
• Stylish ergonomic design
• USB nano receiver included (range up to 10 m)
• DPI resolution switch
• 800/1200/1600 dpi resolution
• USB interface
• Powered by AA battery
• Long life battery-fed operation (to 1 year)
2. PACKAGE CONTENTS
• Optical mouse – 1 рс
• 2.4 GHz USB nano receiver – 1 рс
• 1.5V DC AA battery – 1 рс
• User’s manual – 1 рс
• Warranty card – 1 рс
3. SYSTEM REQUIREMENTS
• Windows/Mac OS.
• Free USB port.
ENG
Technical support: www.real-el.com
2
Wireless Optical Mouse
RM-300 WIRELESS
Page 4
Technical support: www.real-el.com
ENG
3
User’s Manual
RM-300 WIRELESS
Fig. 1. Top view
4. DESCRIPTION
Scroll wheel
Dpi resolution switch
Optical sensor
Battery compartment
Nano receiver
USB connector
5. INSTALLATION
• Open the cover of the mouse battery compartment , insert 1.5V DC AA
battery into the battery compartment matching the polarity, and close the
cover of the battery compartment (see Fig. 4).
• Сonnect the included nano receiver to a free PC USB port (Fig. 5).
Fig. 2. Bottom view Fig. 3. Nano receiver
Page 5
Technical support: www.real-el.com
ENG
4
Wireless Optical Mouse
RM-300 WIRELESS
Battery
compartment
Battery compartment
cover
1.5V АА DC
battery
Fig. 4. Battery installation
Fig. 5. Receiver connection
Improper installation of
battery can result in failure
of the mouse!
• To activate the mouse, press any button of the mouse or turn the scroll
wheel. If the mouse is connected correctly, it will turn on automatically.
Page 6
Technical support: www.real-el.com
ENG
5
User’s Manual
RM-300 WIRELESS

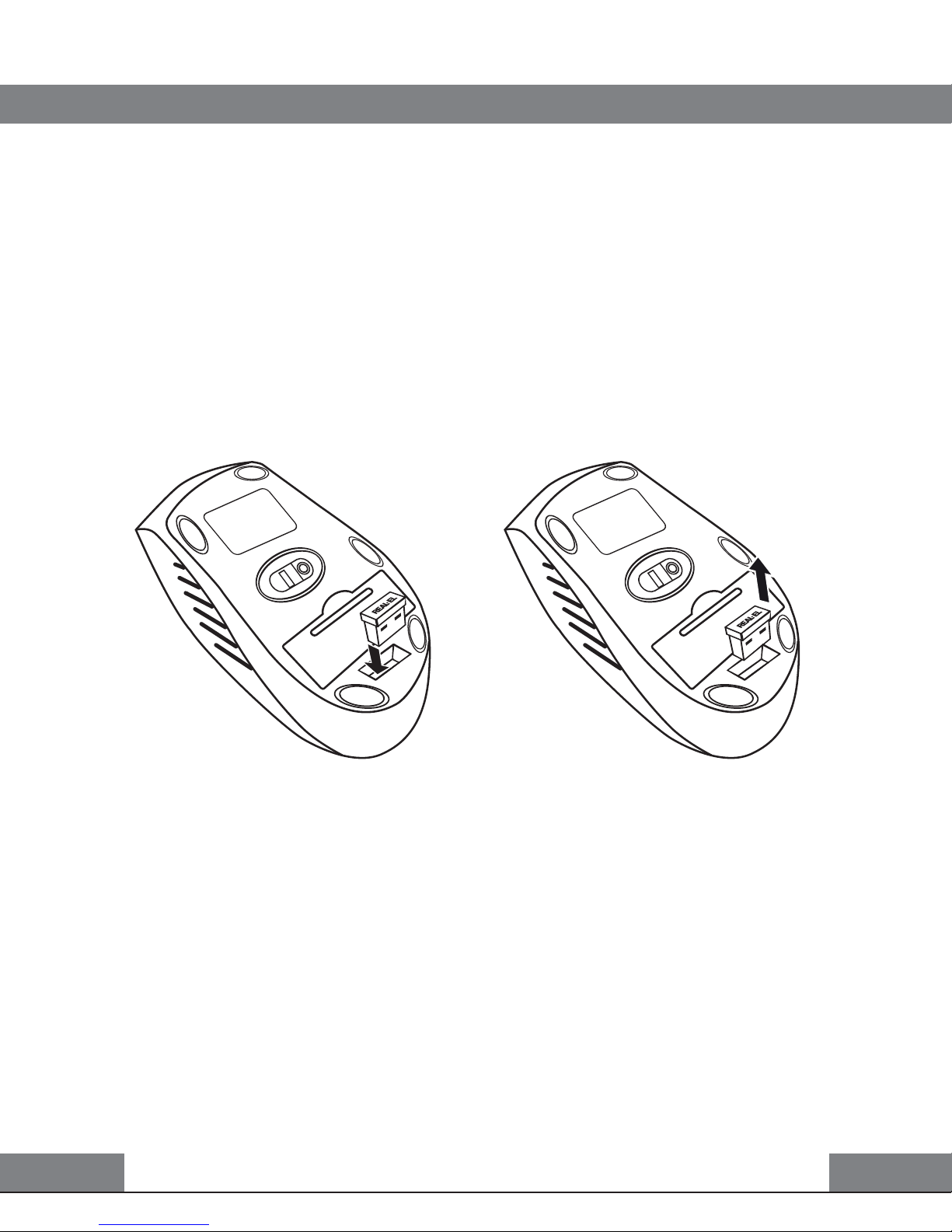

Fig. 6. Fitting the receiver
into the mouse case
Fig. 7. Extraction of the receiver
from the mouse case
• After finishing work you can pull out the receiver from the PC USB port
and insert it into the mouse (Fig. 6).
When using the receiver again, pull it
out from the mouse (Fig. 7) and connect it to the PC USB port again.
• Do not place the receiver into a confined metal space (table drawer, box,
safe), as a metal screen does not transmit radio signals.
• If the battery run down, the mouse works in jerks. It means that the battery should be replaced with new ones, as it is shown in Fig. 4. Always install only identical new battery.
Page 7
Technical support: www.real-el.com
6
Wireless Optical Mouse
ENG
RM-300 WIRELESS
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to improvement of TM REAL-EL production.
7.
TECHNICAL SPECIFICATIONS
Parameter
OS compatibility
Type of mouse
Operating range, m
Resolution, dpi
Quantity of buttons
Interface
Error-free running time
Battery type
Dimensions, mm
Weight, g
Value
W
indows/Mac
wireless 2.4 GHz
10
800/1200/1600
3 + 1 (scroll wheel)
USB
more than 3,000,000 strokes
1 × АА 1.5V DC
105 × 71 × 38
56 ± 2
6. TROUBLESHOOTING
Solution
1. Make sure that the nano receiver has been
inserted into the USB port and its distance to
the mouse is less than 10 m.
2. Check whether the battery have been installed correctly.
3. Check if the battery have run down, replace
the battery with new ones if necessary.
4. Address nearest authorized service center.
Problem
The mouse does not
work.
Page 8
Model: RM-300 Wireless
Manufacturer: ENEL GROUP OU, Joe tn 5-39, Tallinn, Harjumaa 10151, Estonia.
Made in China.
® Registered Trademark of ENEL GROUP OU. Estonia.
