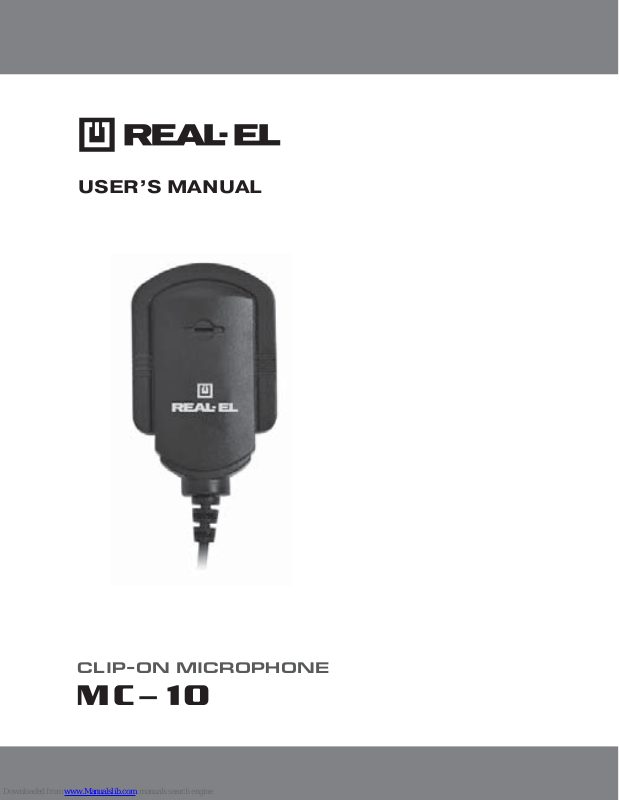

Page 1
CLIP-ON MICROPHONE
MC-10
USER’S MANUAL
Page 2
Technical support: www.real-el.com
1
ENG
User’s Manual
MC-10
Congratulations on purchasing the ТМ REAL-EL microphone!
APPLICATION
MС-10 clip-on microphone is designed for online communication, recording
words and phrases and controlling pronunciation in distance foreign
language learning. High sensitivity and effective polar pattern width provide
high-quality accurate sound reproduction. MС-10 is equipped with a clip for
attachment to clothing (a tie, jacket lapel or pocket) and a detachable mount
for desktop or PC monitor installation.
PACKAGE CONTENTS
• Microphone – 1 pc
• User’s Manual – 1 pc
• Warranty card – 1 pc
SAFETY PRECAUTIONS
• Do not place in environment of possible ingress of liquid, moisture, dust and
exposure to high temperatures.
• Do not open and do not repair on your own. In case of a device malfunction,
consult your nearest service center.
SPECIAL FEATURES
• Fixing with clips
• Can be mounted on a desk or monitor
CONNECTION AND OPERATION
• Connect the microphone plug to the microphone input of a signal source
(PC, notebook), as shown in Fig. 1. Turn on the signal source.
Page 3
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Sensitivity, dB
Frequency range, Hz
Microphone module size, mm
Connector type
Cable length, m
Weight, g
Value
-58 ± 3
50 – 16 000
9 × 7
Ø 3.5 mm mini jack
1,8
23
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change
without notice due to improvement of TM REAL-EL production.
Mic in
Mic connector
Sound card
ENG
Technical support: www.real-el.com
2
Clip-on microphone
MC-10
Fig. 1. Connection diagram
Page 4
Model: MC-10
Manufacturer: ENEL GROUP OU, Joe tn 5-39, Tallinn, Harjumaa 10151, Estonia.
Made in China.
® Registered Trademark of ENEL GROUP OU. Estonia.
