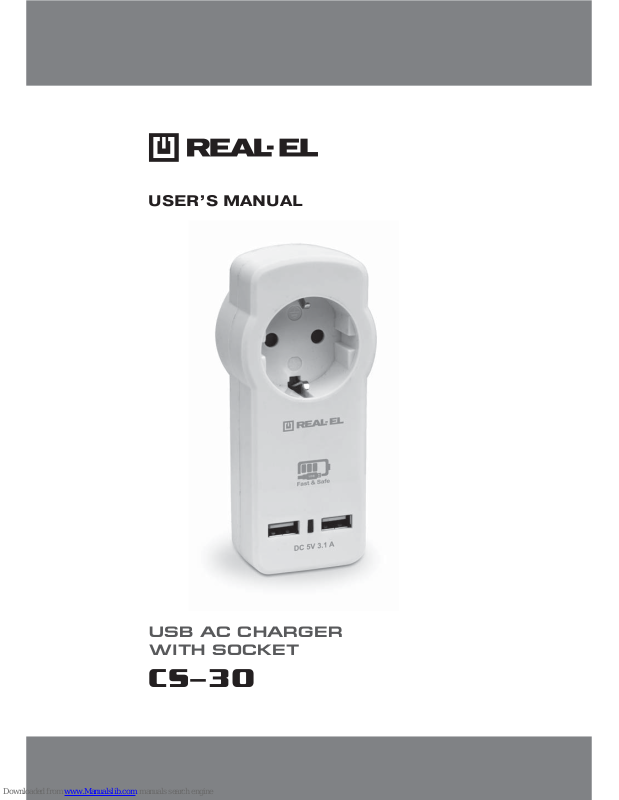

Page 1
CS-30
USB AC CHARGER
WITH SOCKET
USER’S MANUAL
Page 2
Technical support: www.real-el.com
1
User’s Manual
ENG
CS-30
Congratulations on your purchase of the REAL-EL charger!
Please read this User’s Manual before using the unit and retain this User’s
Manual in a safe place for future reference.
COPYRIGHT
© 2016. ENEL GROUP OU.
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The
author and the publisher do not bear any liability to a person or an organization
for loss or damage, which has arisen from the information contained in this
Manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box.
Check up the device for damage; if the product was damaged during transportation, address the firm, which carried out the delivery; if the product functions
incorrectly, address the dealer at once.
USAGE

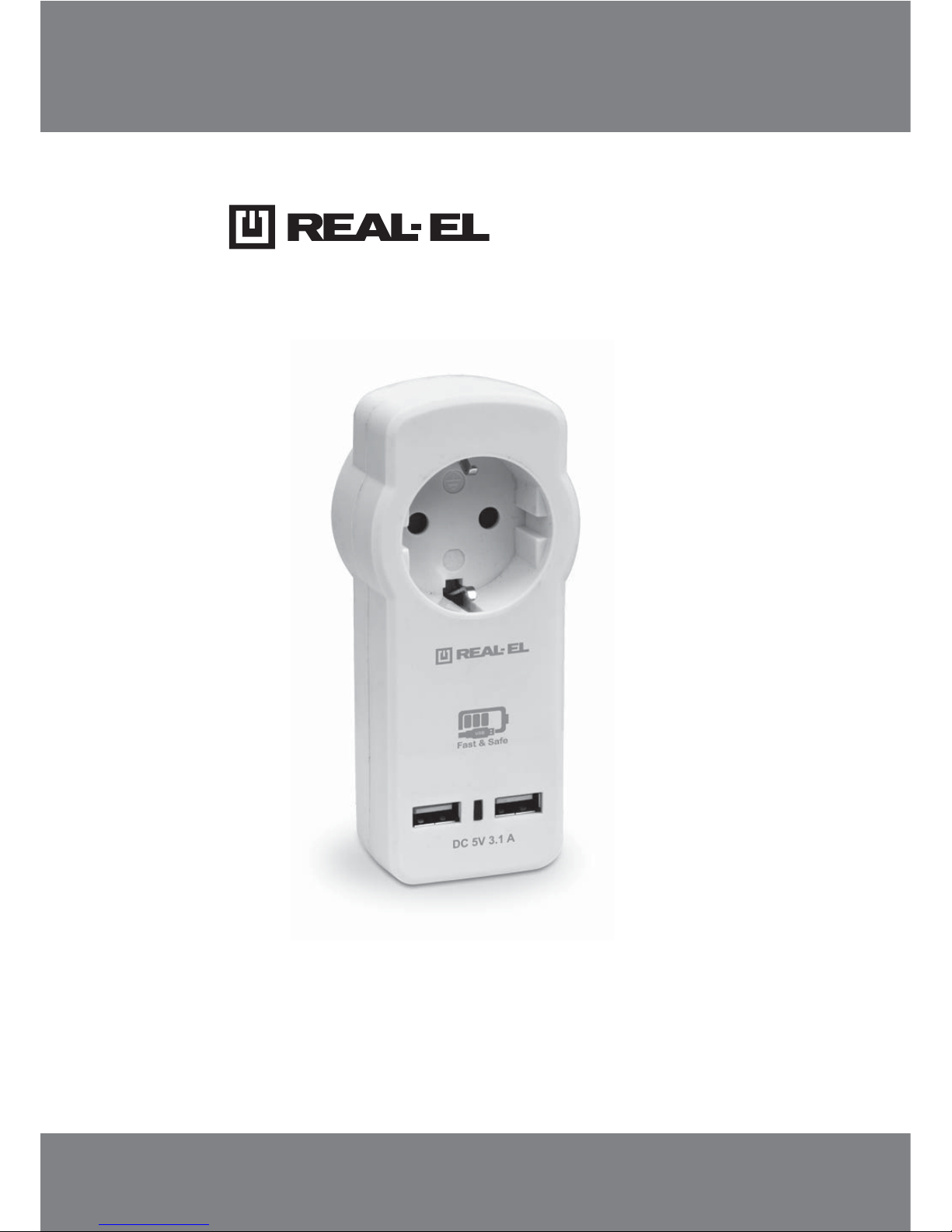

The CS-30 AC USB charger with a socket is designed to charge batteries or provide power supply of portable devices (mobile telephones, smartphones, MP3
players, pocket PCs, tablet PCs and other digital devices) from the home power
supply network and the simultaneous use of CS-30 as a power socket.
PACKAGE CONTENTS
• USB AC charger – 1 рс
• User’s manual – 1 рс
• Warranty card – 1 рс
Page 3
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change
without notice due to the improvement of ТМ REAL-EL production.
Parameter, measurement unit
Connector type
Rated input voltage, V/Hz
Maximum current load, A
Output voltage, V
Maximum output current of USB, mА
Output power, W
Output socket type
Value
2 × USB
~230-250/50
16
5 ± 5 %
310 0
15
1 × CEE 7/4
Technical support: www.real-el.com
2
ENG
USB AC Charger with Socket
CS-30
SPECIAL FEATURES
• Suitable to charge most mobile devices
• Possibility to charge two devices simultaneously
• Built-in overload protection
• It does not occupy a wall socket
CONNECTION
• Insert the charger into a wall socket and connect load to it.
TECHNICAL SPECIFICATIONS
Page 4
Model: CS-30
Manufacturer: ENEL GROUP OU, Katusepapi tn 6, Lasnamäe district, Tallinn city,
Harju county, 11412, Estonia. Made in China.
® Registered Trademark of ENEL GROUP OU. Estonia.
