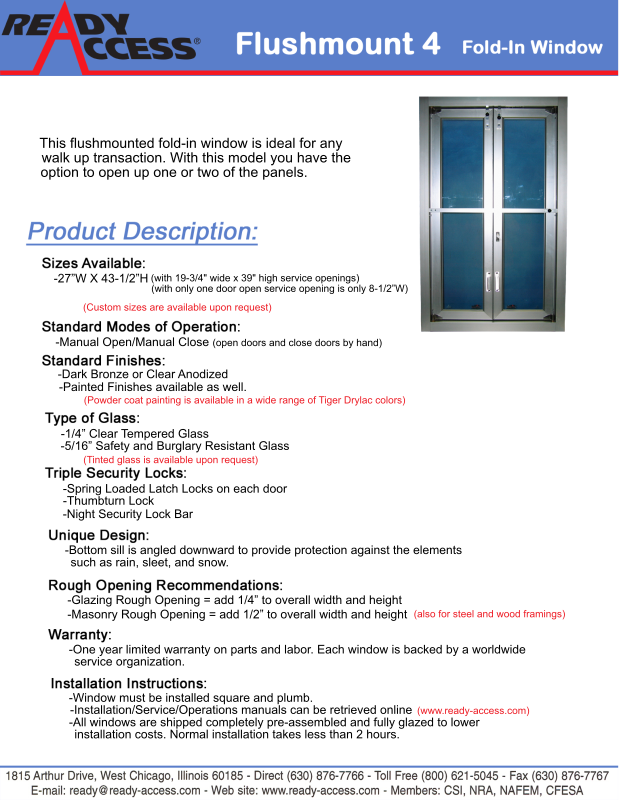

Ready Access FM-4 User Manual

This flushmounted fold-in window is ideal for any

walk up transaction. With this model you have the

option to open up one or two of the panels.

-27”W X 43-1/2”H

(Custom sizes are available upon request)

-Manual Open/Manual Close

(with 19-3/4" wide x 39" high service openings)
(with only one door open service opening is only 8-1/2”W)

(open doors and close doors by hand)

-Dark Bronze or Clear Anodized

-Painted Finishes available as well.

(Powder coat painting is available in a wide range of Tiger Drylac colors)

-1/4” Clear Tempered Glass

-5/16” Safety and Burglary Resistant Glass

(Tinted glass is available upon request)

-Spring Loaded Latch Locks on each door

-Thumbturn Lock

-Night Security Lock Bar

-Bottom sill is angled downward to provide protection against the elements
such as rain, sleet, and snow.

-Glazing Rough Opening = add 1/4” to overall width and height

-Masonry Rough Opening = add 1/2” to overall width and height

(also for steel and wood framings)

-One year limited warranty on parts and labor. Each window is backed by a worldwide
service organization.

-Window must be installed square and plumb.

-Installation/Service/Operations manuals can be retrieved online

(www.ready-access.com)

-All windows are shipped completely pre-assembled and fully glazed to lower

installation costs. Normal installation takes less than 2 hours.
