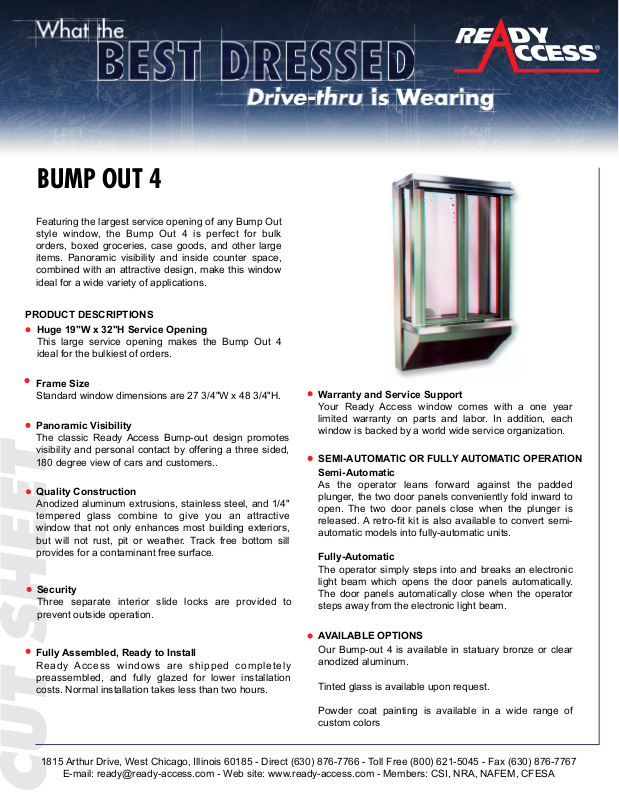

BUMP OUT 4

Featuring the largest service opening of any Bump Out
style window, the Bump Out 4 is perfect for bulk
orders, boxed groceries, case goods, and other large
items. Panoramic visibility and inside counter space,
combined with an attractive design, make this window
ideal for a wide variety of applications.

PRODUCT DESCRIPTIONS

Huge 19"W x 32"H Service Opening

This large service opening makes the Bump Out 4
ideal for the bulkiest of orders.

Frame Size

Standard window dimensions are 27 3/4"W x 48 3/4"H.

Panoramic Visibility

The classic Ready Access Bump-out design promotes
visibility and personal contact by offering a three sided,
180 degree view of cars and customers..

Quality Construction

Anodized aluminum extrusions, stainless steel, and 1/4"
tempered glass combine to give you an attractive
window that not only enhances most building exteriors,
but will not rust, pit or weather. Track free bottom sill
provides for a contaminant free surface.

Security

Three separate interior slide locks are provided to
prevent outside operation.

Warranty and Service Support

Your Ready Access window comes with a one year
limited warranty on parts and labor. In addition, each
window is backed by a world wide service organization.

SEMI-AUTOMATIC OR FULLY AUTOMATIC OPERATION
Semi-Automatic

As the operator leans forward against the padded
plunger, the two door panels conveniently fold inward to
open. The two door panels close when the plunger is
released. A retro-fit kit is also available to convert semi­automatic models into fully-automatic units.

Fully-Automatic

The operator simply steps into and breaks an electronic
light beam which opens the door panels automatically.
The door panels automatically close when the operator
steps away from the electronic light beam.

AVAILABLE OPTIONS

Fully Assembled, Ready to Install

Ready Ac c e s s w i n d o ws a r e s hi p p e d co m p l et e l y
preassembled, and fully glazed for lower installation
costs. Normal installation takes less than two hours.

1815 Arthur Drive, West Chicago, Illinois 60185 - Direct [phone] - Toll Free [phone] - Fax [phone]

E-mail: [e-mail] - Web site: www.ready-access.com - Members: CSI, NRA, NAFEM, CFESA

Our Bump-out 4 is available in statuary bronze or clear
anodized aluminum.

Tinted glass is available upon request.

Powder coat painting is available in a wide range of
custom colors

BUMP-OUT 4 BI-PARTING WINDOW

Semi-automatic operation or Fully-automatic operation

"W" ROUGH

OPENING

34-1/2"

(876 mm)

27-3/4"

(705 mm)

19"W x 32"H
SERVICE OPENING

48-3/4"

(1238 mm)

"H" ROUGH

OPENING

TEMPLATE FOR LOCATING
MOUNTING HOLES.

15-3/4"

(400 mm)

MIN. DISTANCE FROM
TOP OF COUNTER TO
FLOOR.

15-3/4"

(400 mm)

36"

(914 mm)

BUMP-OUT 4 ROUGH OPENINGS

Glazing Rough Opening =
24-1/4"W (616 mm) x 34-1/2"H (876 mm)
Masonry Rough Opening =
28-1/4"W (718 mm) x 49-1/4"H (1251 mm)

ELECTRICAL REQUIREMENTS

USA (DOMESTIC) : 115 vac - 60 Hz
WITH A 15 amp
BRANCH CIRCUIT

INTERNATIONAL : 220/240 vac - 50/60 Hz
WITH A MAX. 8 amp
BRANCH CIRCUIT

1815 Arthur Drive, West Chicago, Illinois 60185 - Direct [phone] - Toll Free [phone] - Fax [phone]

E-mail: [e-mail] - Web site: www.ready-access.com - Members: CSI, NRA, NAFEM, CFESA

022502-BO4
