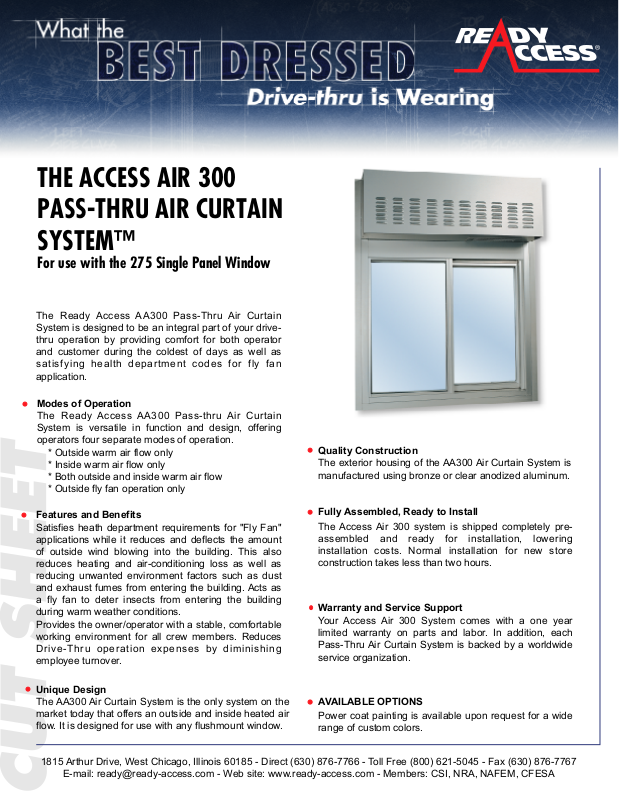

THE ACCESS AIR 300
PASS-THRU AIR CURTAIN
SYSTEM™

For use with the 275 Single Panel Window

The Ready Access AA300 Pass-Thru Air Curtain
System is designed to be an integral part of your drive­thru operation by providing comfort for both operator
and customer during the coldest of days as well as
satisfying h e a l th de p a r t ment c o d es fo r f l y fan
application.

Modes of Operation

The Ready Access AA300 Pass-thru Air Curtain
System is versatile in function and design, offering

operators four separate modes of operation.

* Outside warm air flow only
* Inside warm air flow only
* Both outside and inside warm air flow
* Outside fly fan operation only

Quality Construction

The exterior housing of the AA300 Air Curtain System is
manufactured using bronze or clear anodized aluminum.

Features and Benefits

Satisfies heath department requirements for "Fly Fan"
applications while it reduces and deflects the amount
of outside wind blowing into the building. This also
reduces heating and air-conditioning loss as well as
reducing unwanted environment factors such as dust
and exhaust fumes from entering the building. Acts as
a fly fan to deter insects from entering the building
during warm weather conditions.
Provides the owner/operator with a stable, comfortable
working environment for all crew members. Reduces
Drive-Thr u o per a t i on e x p ens e s b y di m i n is h i n g
employee turnover.

Unique Design

The AA300 Air Curtain System is the only system on the
market today that offers an outside and inside heated air
flow. It is designed for use with any flushmount window.

1815 Arthur Drive, West Chicago, Illinois 60185 - Direct [phone] - Toll Free [phone] - Fax [phone]

E-mail: [e-mail] - Web site: www.ready-access.com - Members: CSI, NRA, NAFEM, CFESA

Fully Assembled, Ready to Install

The Access Air 300 system is shipped completely pre­assembled and ready for installation, lowering
installation costs. Normal installation for new store
construction takes less than two hours.

Warranty and Service Support

Your Access Air 300 System comes with a one year
limited warranty on parts and labor. In addition, each
Pass-Thru Air Curtain System is backed by a worldwide
service organization.

AVAILABLE OPTIONS

Power coat painting is available upon request for a wide
range of custom colors.

AA300 - 275 PASS-THRU AIR CURTAIN SYSTEM

4-1/2" REF.

47-3/4"

(1213 mm)

ROUGH OPENING

16-1/4"

(413 mm)

ROUGH OPENING

(114 mm)

9-7/8"

(251 mm)

7-3/8"

(187 mm)

(406 mm)

16"

(1829 mm)

72"

MIN. DISTANCE FROM
FLOOR TO BOTTOM
OF UNIT.

47-1/2"

(1207 mm)

21-3/4"

(553 mm)

10"

(254 mm)

(152 mm)

6"

UNIT SPECIFICATIONS:

208/240 VOLTS

13-7/8"

(352 mm)

7100 HEATER WATTS
32 ACTUAL UNIT AMPS
1 (SINGLE) PHASE
60 HZ
600 FPM AIR VELOCITY

1815 Arthur Drive, West Chicago, Illinois 60185 - Direct [phone] - Toll Free [phone] - Fax [phone]

E-mail: [e-mail] - Web site: www.ready-access.com - Members: CSI, NRA, NAFEM, CFESA

022502-A300275
