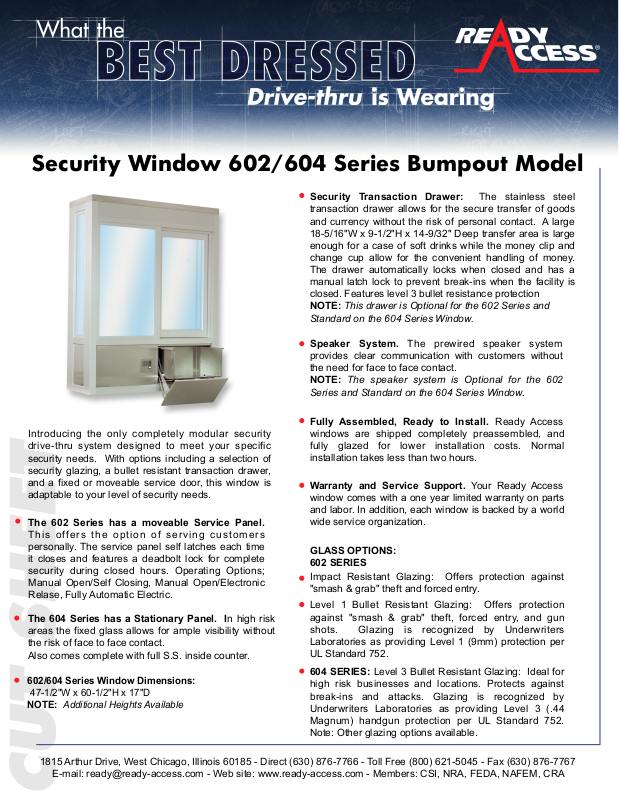

Security Window 602/604 Series Bumpout Model

Introducing the only completely modular security
drive-thru system designed to meet your specific
security needs. With options including a selection of
security glazing, a bullet resistant transaction drawer,
and a fixed or moveable service door, this window is
adaptable to your level of security needs.

The 602 Series has a moveable Service Panel.
Th i s off e rs th e o pt i on of s erv i ng c u sto mer s
personally. The service panel self latches each time
it closes and features a deadbolt lock for complete
security during closed hours. Operating Options;
Manual Open/Self Closing, Manual Open/Electronic
Relase, Fully Automatic Electric.

The 604 Series has a Stationary Panel. In high risk
areas the fixed glass allows for ample visibility without
the risk of face to face contact.
Also comes complete with full S.S. inside counter.

602/604 Series Window Dimensions:
47-1/2"W x 60-1/2"H x 17"D
NOTE: Additional Heights Available

Security Transaction Drawer: The stainless steel

transaction drawer allows for the secure transfer of goods
and currency without the risk of personal contact. A large
18-5/16"W x 9-1/2"H x 14-9/32" Deep transfer area is large
enough for a case of soft drinks while the money clip and
change cup allow for the convenient handling of money.
The drawer automatically locks when closed and has a
manual latch lock to prevent break-ins when the facility is
closed. Features level 3 bullet resistance protection

NOTE: This drawer is Optional for the 602 Series and
Standard on the 604 Series Window.

Speaker System. The prewired speaker system
provides clear communication with customers without
the need for face to face contact.

NOTE: The speaker system is Optional for the 602
Series and Standard on the 604 Series Window.

Fully Assembled, Ready to Install. Ready Access
windows are shipped completely preassembled, and
fully glazed for lower installation costs. Normal
installation takes less than two hours.

Warranty and Service Support. Your Ready Access
window comes with a one year limited warranty on parts
and labor. In addition, each window is backed by a world
wide service organization.

GLASS OPTIONS:
602 SERIES

Impact Resistant Glazing: Offers protection against
"smash & grab" theft and forced entry.

Level 1 Bullet Resistant Glazing: Offers protection
against "smash & grab" theft, forced entry, and gun
shots. Glazing is recognized by Underwriters
Laboratories as providing Level 1 (9mm) protection per
UL Standard 752.

604 SERIES: Level 3 Bullet Resistant Glazing: Ideal for
high risk businesses and locations. Protects against
break-ins and attacks. Glazing is recognized by
Underwriters Laboratories as providing Level 3 (.44
Magnum) handgun protection per UL Standard 752.
Note: Other glazing options available.

1815 Arthur Drive, West Chicago, Illinois 60185 - Direct [phone] - Toll Free [phone] - Fax [phone]

E-mail: [e-mail] - Web site: www.ready-access.com - Members: CSI, NRA, FEDA, NAFEM, CRA

602/604 SECURITY WINDOW

"W" ROUGH OPENING

"H" ROUGH OPENING

19"

(483 mm)

36"

(914 mm)

MIN. DISTANCE
FROM TOP OF
SILL TO FLOOR

604 SERIES

602 SERIES

60-1/2"

(1537 mm)

604 SERIES

60-1/2"

(1537 mm)

602 SERIES

47-1/2"

(1207 mm)

20" X 35"
SERVICE OPENING

47-1/2"

(1207 mm)

20"

(508 mm)

34-3/4"

(883 mm)

4-1/2"

(114 mm)

GLASS OPTIONS:
"SMASH & GRAB"
LEVEL 1 GLAZING

17"

(432 mm)

17"

(432 mm)

4-1/2"

(114 mm)

GLASS OPTIONS:
LEVEL 1 GLAZING
LEVEL 3 GLAZING

17"

(432 mm)

602/604 - 43-1/2"H (60-1/2")

Glazing Rough Opening =
47-3/4"W (1213 mm) x 60-3/4"H (1543 mm)
Masonry Rough Opening =
48"W (1219 mm) x 61"H (1549 mm)

602/604 - 35-3/4"H (52-3/4")

Glazing Rough Opening =
47-3/4"W (1213 mm) x 53"H (1346 mm)
Masonry Rough Opening =
48"W (1219 mm) x 53-1/4"H (1353 mm)

Three Standard Window Heights

43-1/2" H with 20" x 34-3/4" service opening

35-3/4" H with 20" x 27" service opening

17"

(432 mm)

Window must be installed square and plumb.

Installation illustrations are for reference only. Construction and
local codes will determine proper installation of window.

Contact Ready Access for more information on installation.
