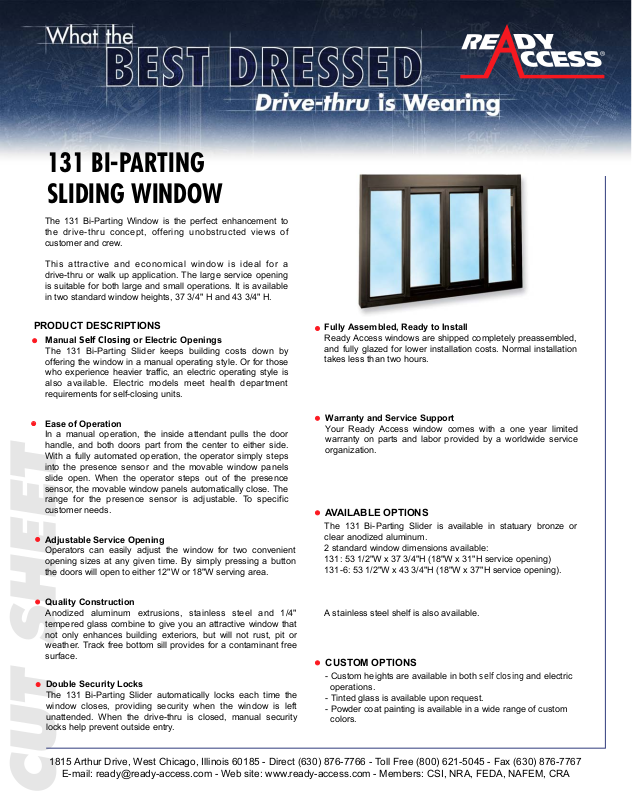

131 BI-PARTING
SLIDING WINDOW

The 131 Bi-Parting Window is the perfect enhancement to
the drive-thru concept, offering unobstructed views of
customer and crew.

This attr act ive and econ omical window i s ideal for a
drive-thru or walk up application. The large service opening
is suitable for both large and small operations. It is available
in two standard window heights, 37 3/4" H and 43 3/4" H.

PRODUCT DESCRIPTIONS

Manual Self Closing or Electric Openings

The 131 Bi-Parting Slider keeps building costs down by
offering the window in a manual operating style. Or for those
who experience heavier traffic, an electric operating style is
also available. Electric models meet health department
requirements for self-closing units.

Ease of Operation

In a manual operation, the inside attendant pulls the door
handle, and both doors part from the center to either side.
With a fully automated operation, the operator simply steps
into the presence sensor and the movable window panels
slide open. When the operator steps out of the presence
sensor, the movable window panels automatically close. The
range for the presence sensor is adjustable. To specific
customer needs.

Adjustable Service Opening

Operators can easily adjust the window for two convenient
opening sizes at any given time. By simply pressing a button
the doors will open to either 12"W or 18"W serving area.

Quality Construction

Anodized aluminum extrusions, stainless steel and 1/4"
tempered glass combine to give you an attractive window that
not only enhances building exteriors, but will not rust, pit or
weather. Track free bottom sill provides for a contaminant free
surface.

Double Security Locks

The 131 Bi-Parting Slider automatically locks each time the
window closes, providing security when the window is left
unattended. When the drive-thru is closed, manual security
locks help prevent outside entry.

Fully Assembled, Ready to Install

Ready Access windows are shipped completely preassembled,
and fully glazed for lower installation costs. Normal installation
takes less than two hours.

Warranty and Service Support

Your Ready Access window comes with a one year limited
warranty on parts and labor provided by a worldwide service
organization.

AVAILABLE OPTIONS

The 131 Bi-Parting Slider is available in statuary bronze or
clear anodized aluminum.
2 standard window dimensions available:
131: 53 1/2"W x 37 3/4"H (18"W x 31"H service opening)
131-6: 53 1/2"W x 43 3/4"H (18"W x 37"H service opening).

A stainless steel shelf is also available.

CUSTOM OPTIONS

- Custom heights are available in both self closing and electric

operations.

- Tinted glass is available upon request.

- Powder coat painting is available in a wide range of custom
colors.

1815 Arthur Drive, West Chicago, Illinois 60185 - Direct [phone] - Toll Free [phone] - Fax [phone]

E-mail: [e-mail] - Web site: www.ready-access.com - Members: CSI, NRA, FEDA, NAFEM, CRA

131 FLUSHMOUNT BI-PARTING WINDOW

Manual operation or Fully-automatic operation

131 - 53-1/2"W x 37-3/4"H

"W" ROUGH

OPENING

36"

(914 mm)

"H" ROUGH

OPENING

Glazing Rough Opening =
53-3/4"W (1365 mm) x 38"H (965 mm)
Masonry Rough Opening =
54"W (1372 mm) x 38-1/4"H (972 mm)

131-6 - 53-1/2"W x 43-3/4"H

Glazing Rough Opening =
53-3/4"W (1365 mm) x 44"H (1118 mm)
Masonry Rough Opening =
54"W (1372 mm) x 44-1/4"H (1124 mm)

53-1/2"

(1359 mm)

37-3/4"

(959 mm)

TWO STANDARD WINDOW HEIGHTS

37-3/4" H WITH 18"W x 31"H SERVICE OPENING

43-3/4" H WITH 18"W x 37"H SERVICE OPENING

4"

(102 mm)

ELECTRICAL REQUIREMENTS

36"

(914 mm)

MIN. DISTANCE
FROM TOP OF
SILL TO FLOOR

USA (DOMESTIC) : 115 vac - 60 Hz
WITH A 15 amp
BRANCH CIRCUIT

INTERNATIONAL : 220/240 vac - 50/60 Hz
WITH A MAX. 8 amp
BRANCH CIRCUIT

SERVICE OPENING ADJUSTS TO 12"W
FROM THE PUSH OF A BUTTON.

Custom sizes and colors available.
Please contact Ready Access for more information.
