1 Overview

1.1 Introduction

DEC 1000 decoder is the special hardware equipment developed by Shenzhen Reach Software Technology Co., Ltd for multimedia signal decoding and output, as well as use together with Reach’s various series of Multimedia Recording & Streaming Server. Adopting TI new DSP chip of high performance and special hardware platform, REACH decoder supports synchronized decode and display maximum 2 stream 720P video and 1 stream VGA signal, as well as the remote controller operation. It is more flexible and convenient, compared with the PC receiving way. The launch of REACH decoder adds the a new way of media receiving for the multimedia recording & streaming system, further improving Reach's total recording & streaming solution, thus satisfies the user's need of playing back media files in different environments. It can be widely used in various applications, such as conference room, conference hall, demonstration hall and leader’s office, etc..

1.2 Feature and Specification Description

1.2.1 Hardware parameters

Dimensions: L x W x H = 330mm x 230mm x 45mm

Weight: 2kg

1.2.2 Environmental parameters

Storage temperature: -40 to 80℃

REACH DEC1000

User Manual

Humidity: 5% to 95%

Working temperature: 0 to 50℃

1.2.3 Electrical specifications

Operating voltage: DC12V/3A

Power consumption: 10W

1.2.4 Network interface

LAN: Local area network interface.

REACH DEC1000

User Manual

2 Installation and Configuration

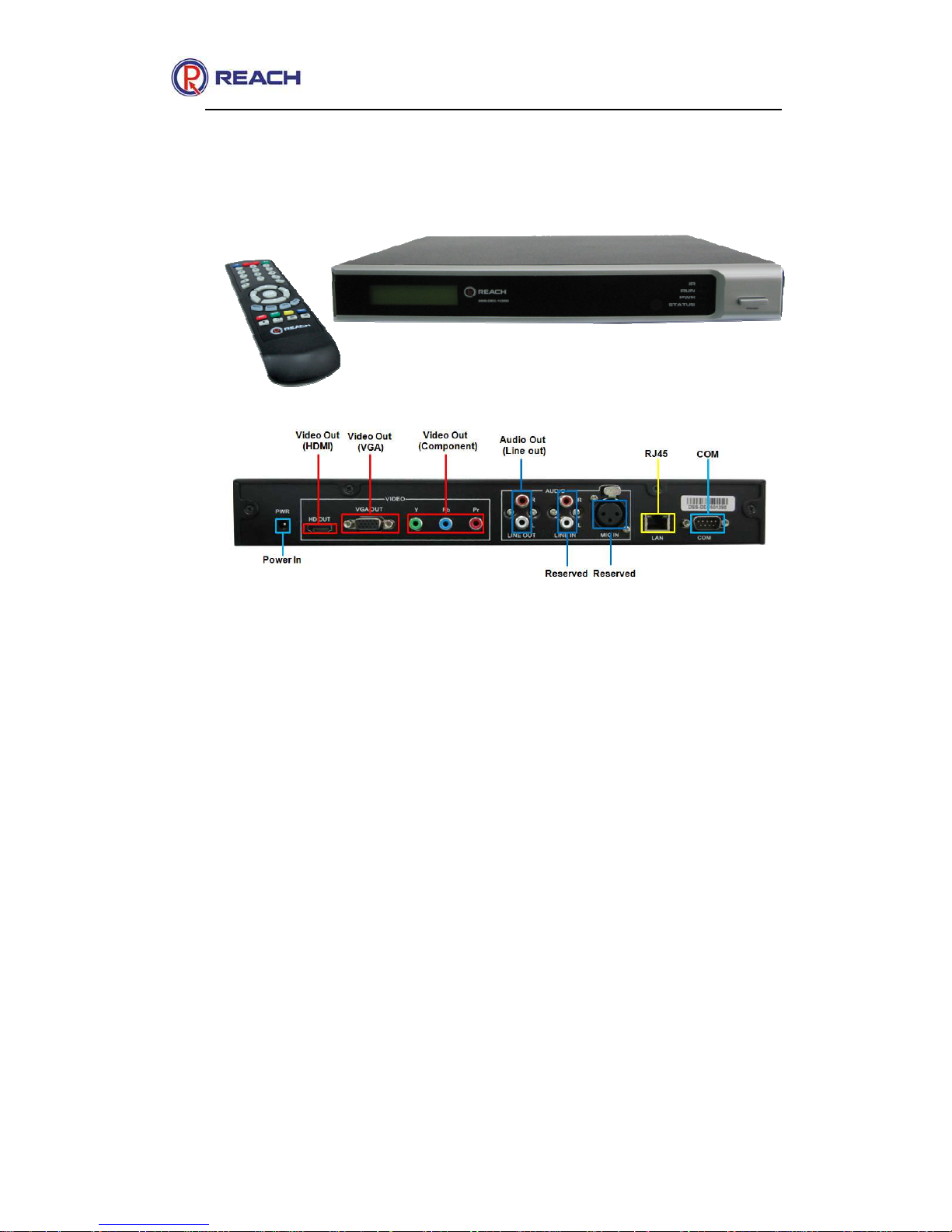

2.1 Product View

The above figure shows all ports and connection methods of the decoder. Ports are selectively to be connected based on requirements while installation (but Power, LAN, LIN OUT and HDMI/VGA/YPbPr must be connected).

2.2 Decoder Configuration Instruction

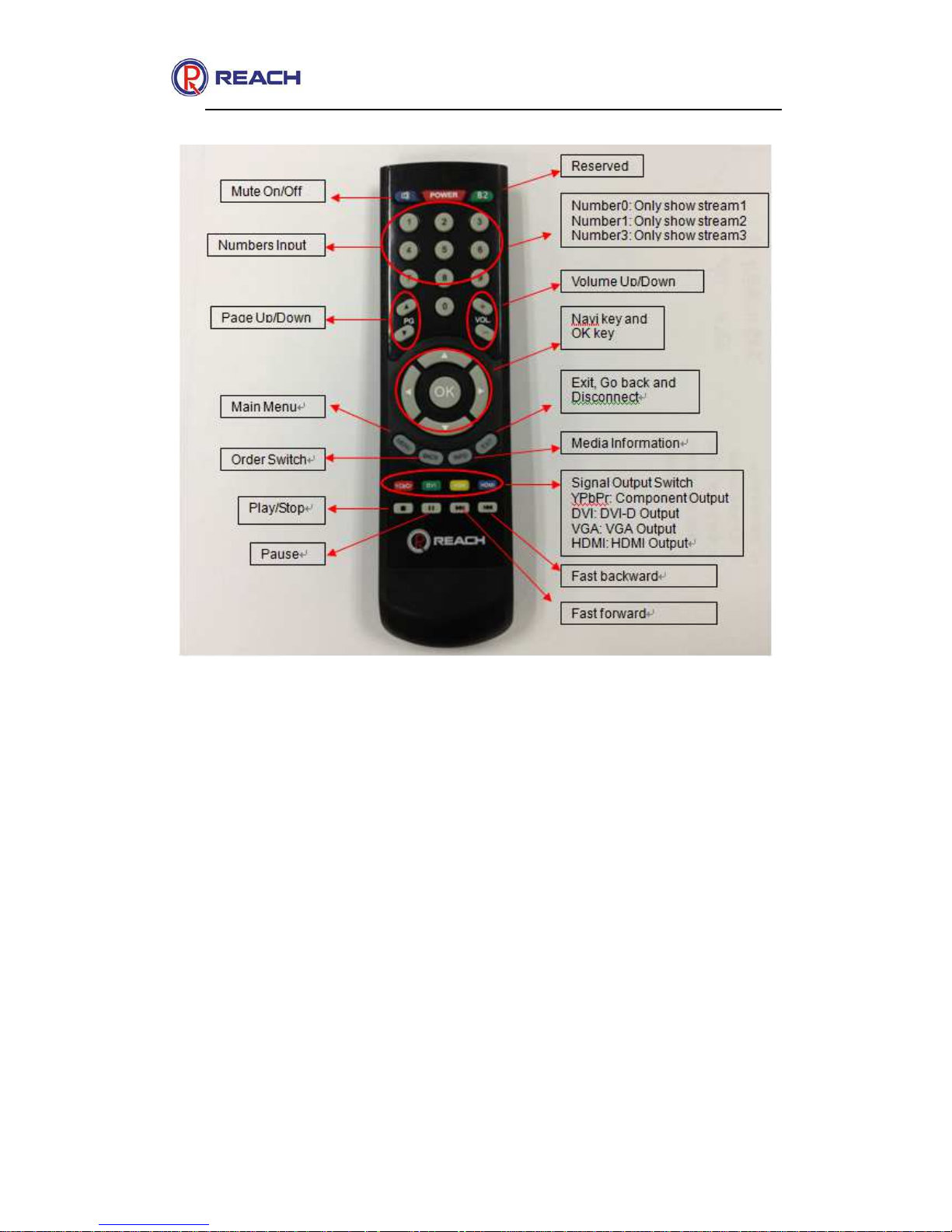

2.2.1 Button function introduction of the remote controller

The decoder can do all the operations of receiving live streaming, play on demand and parameter setting, with remote controller, as shown in the following figure.

REACH DEC1000

User Manual

2.2.2 Network parameter setting

2.2.2.1 How to set the network address parameter

The leave-factory default IP address of the decoder is random, and you can get it from the rolling information on the front LCD panel of the equipment. To facilitate the explanation, assume that the decoder IP address is 192.168.1.100, and the subnet mask is 255.255.255.0.

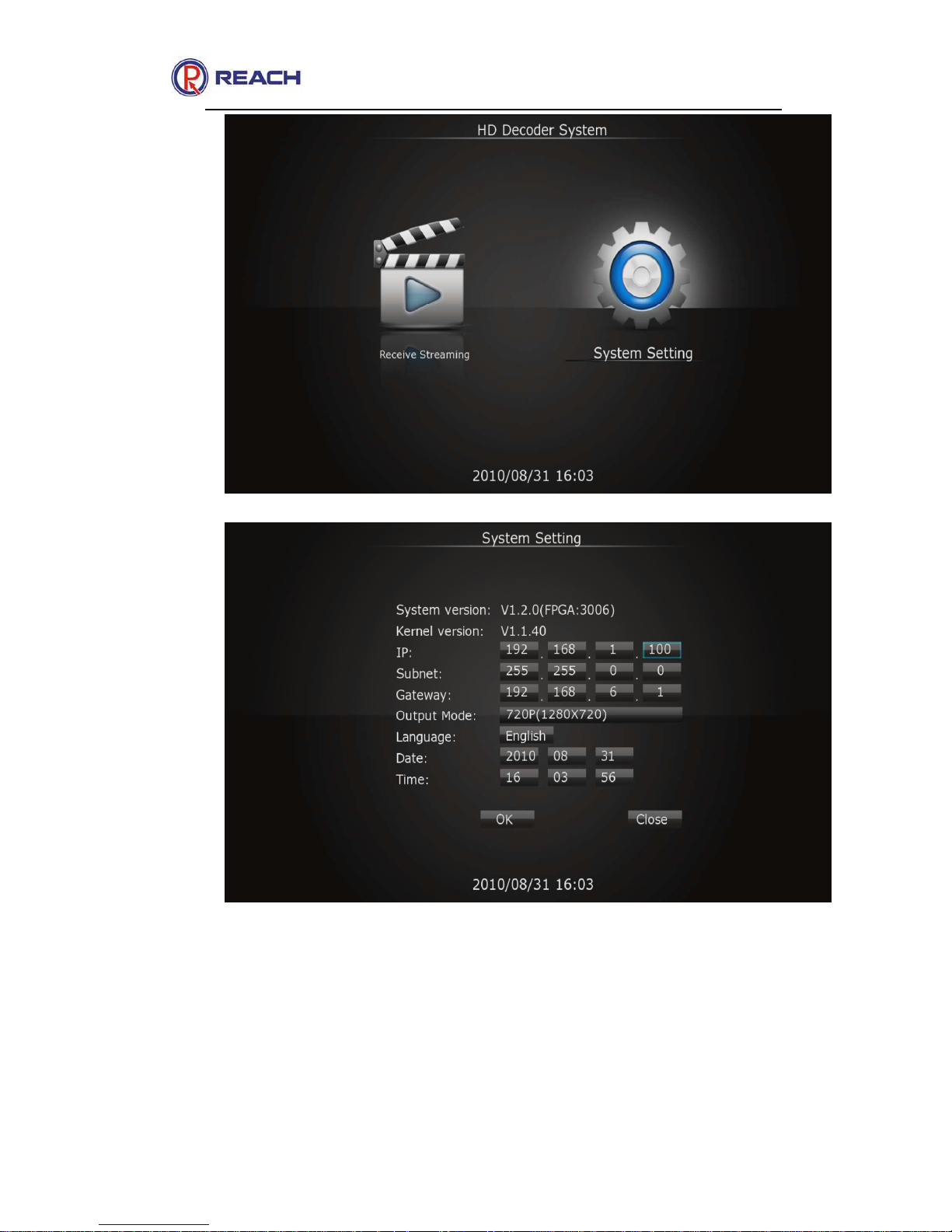

To change the network address parameter of the decoder, enter the decoder menu interface, and select the “System setting” function menu by the remote controller's [Left] and [Right] navigation buttons, then press [OK], as shown in the following figure.

REACH DEC1000

User Manual

After saving the changed network address parameter, IP address will be effective, and no need to restart the decoder. You can check whether the address parameter is changed successfully in the front LCD panel of decoder.

REACH DEC1000

User Manual

2.2.2.2 Test whether the decoder starts normally.

Change your computer IP address to be in the same network segment and have the same subnet mask as the decoder, such as 192.168.1.110

255.255.255.0.

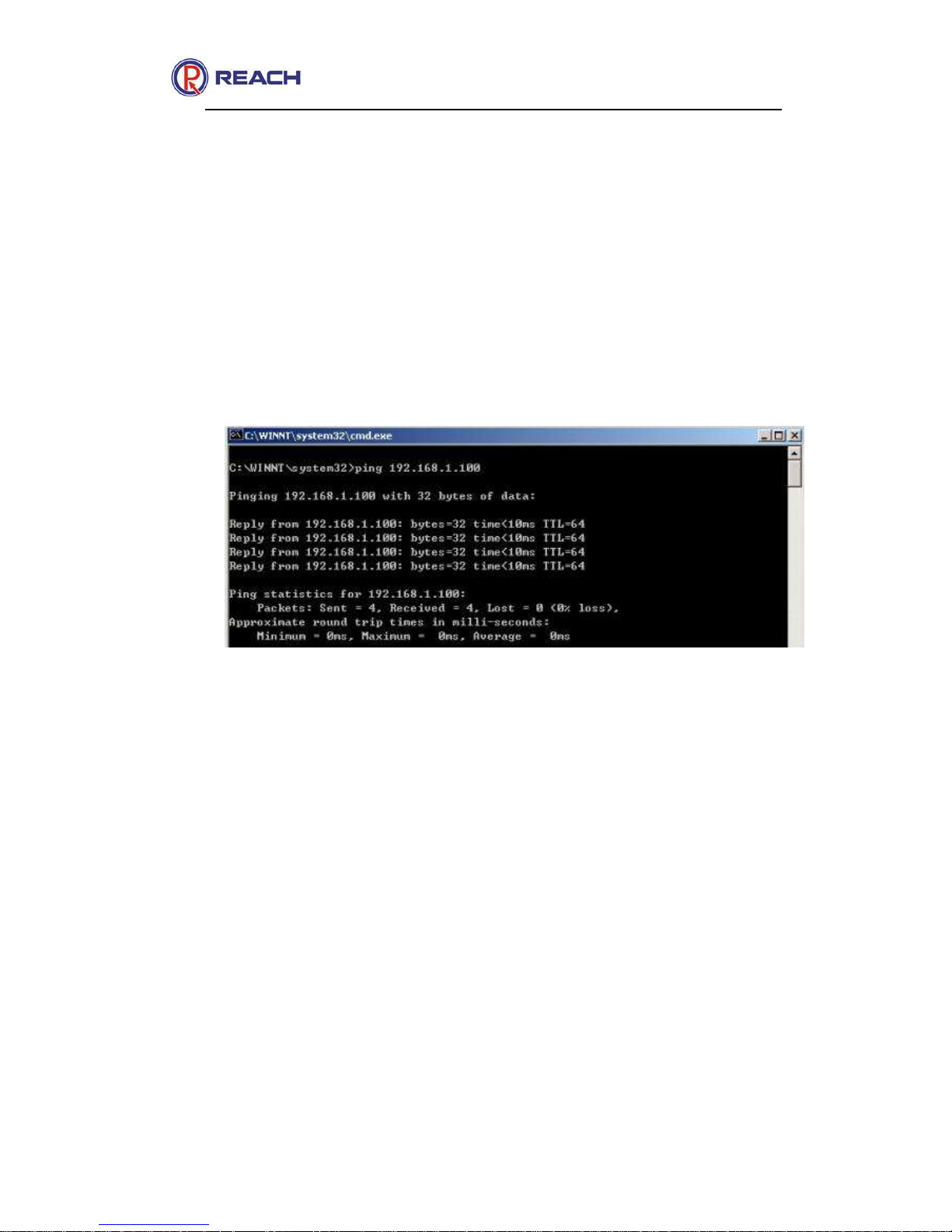

Open the command line window: Click Start→Run→Command to open the command line window, and enter <ping 192.168.1.100> in the command line window.

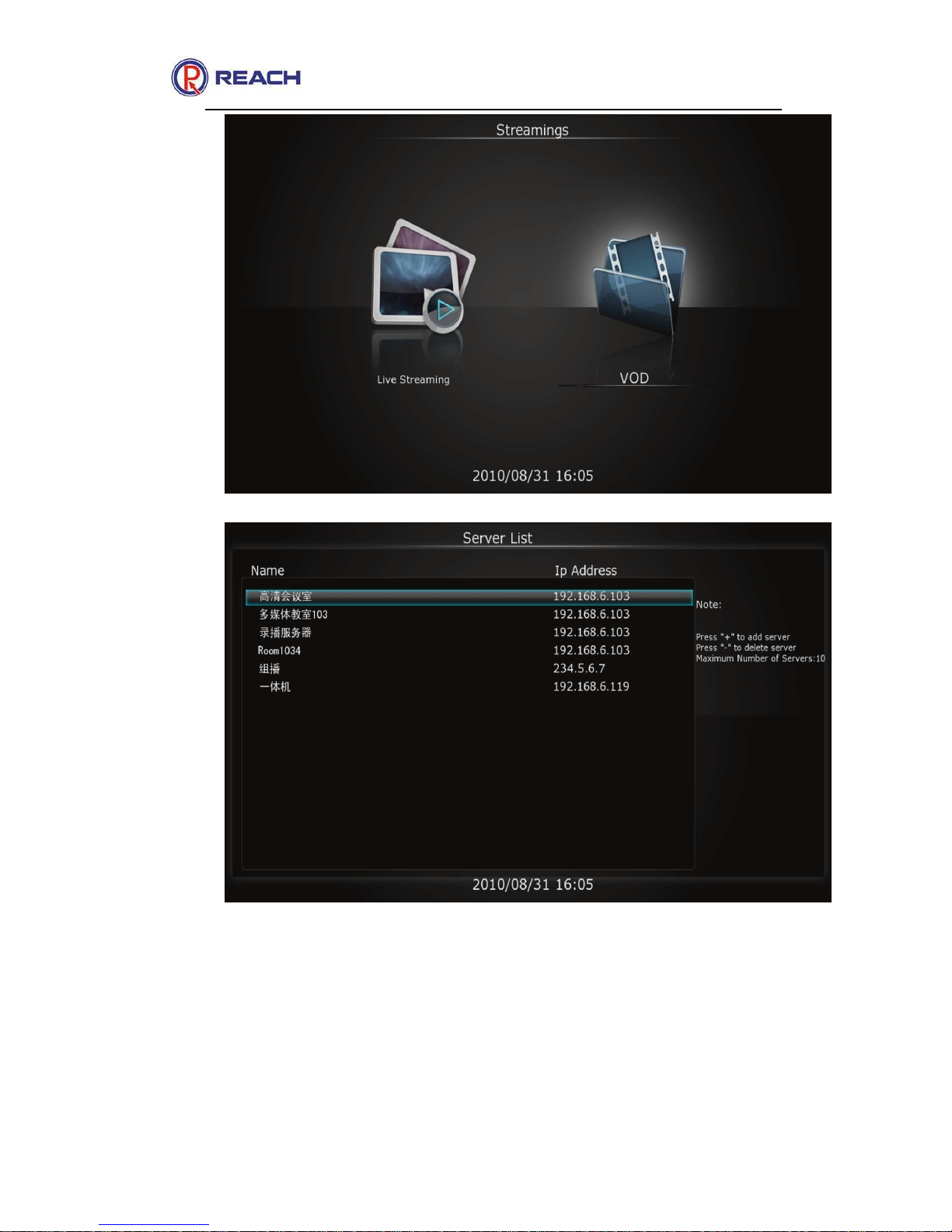

2.2.2.3 Live Streaming

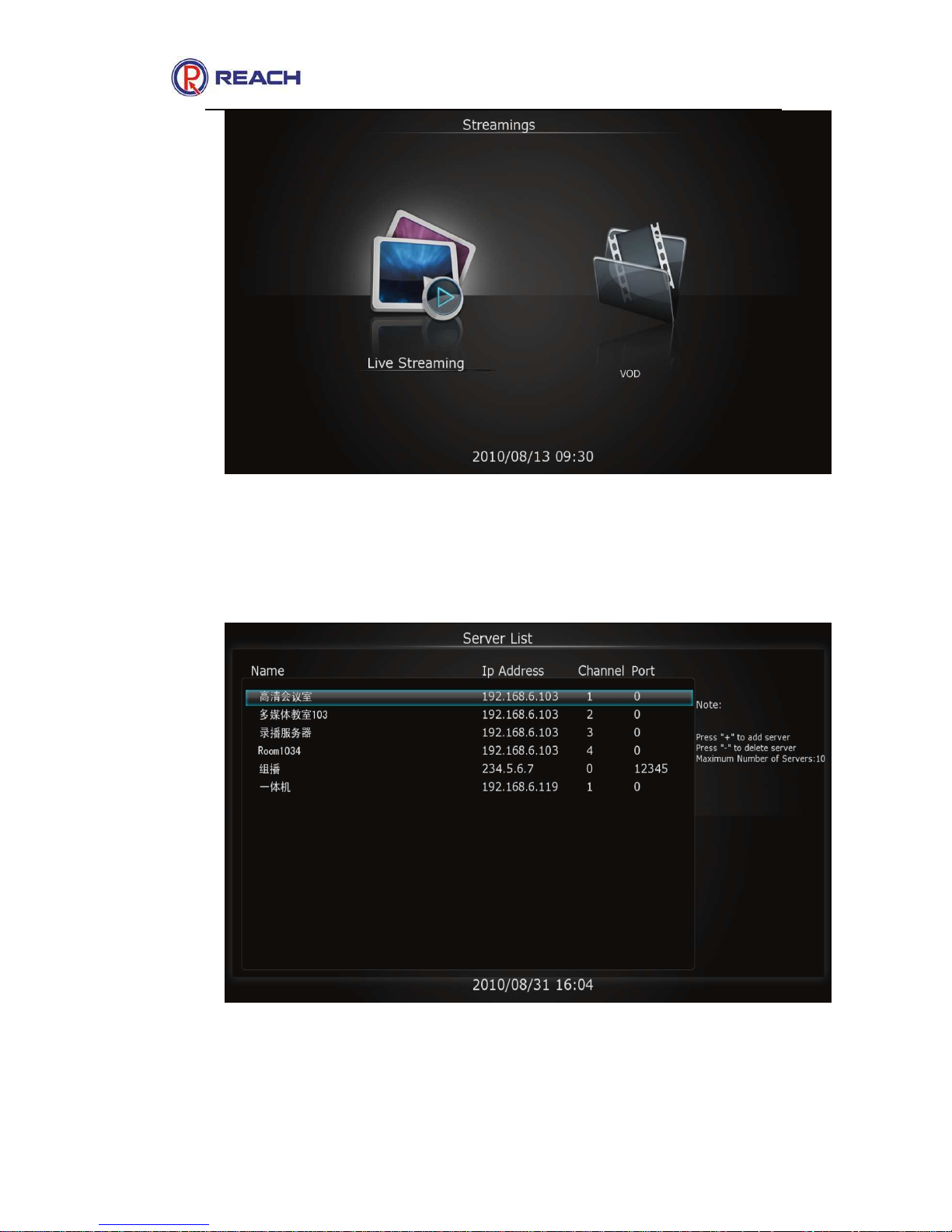

It is mainly used to receive the real time live streaming of the multimedia recording & streaming server. The live streaming interface is as shown in the following figure:

REACH DEC1000

User Manual

There are two ways of receiving the real time live streaming: unicast and multicast, which can be recognized automatically by the input IP and port/channel, as shown in the following figure:

Name：To display name of the server for receiving unicast and multicast.

IP Address

：To display IP address of server for receiving unicast and

REACH DEC1000

User Manual

multicast.

Channel: To display channel for receiving unicast.

Port: To display port for receiving multicast

+: Add new server.

-: Delete server.OK: Enter the media receiver interface after selecting

server.

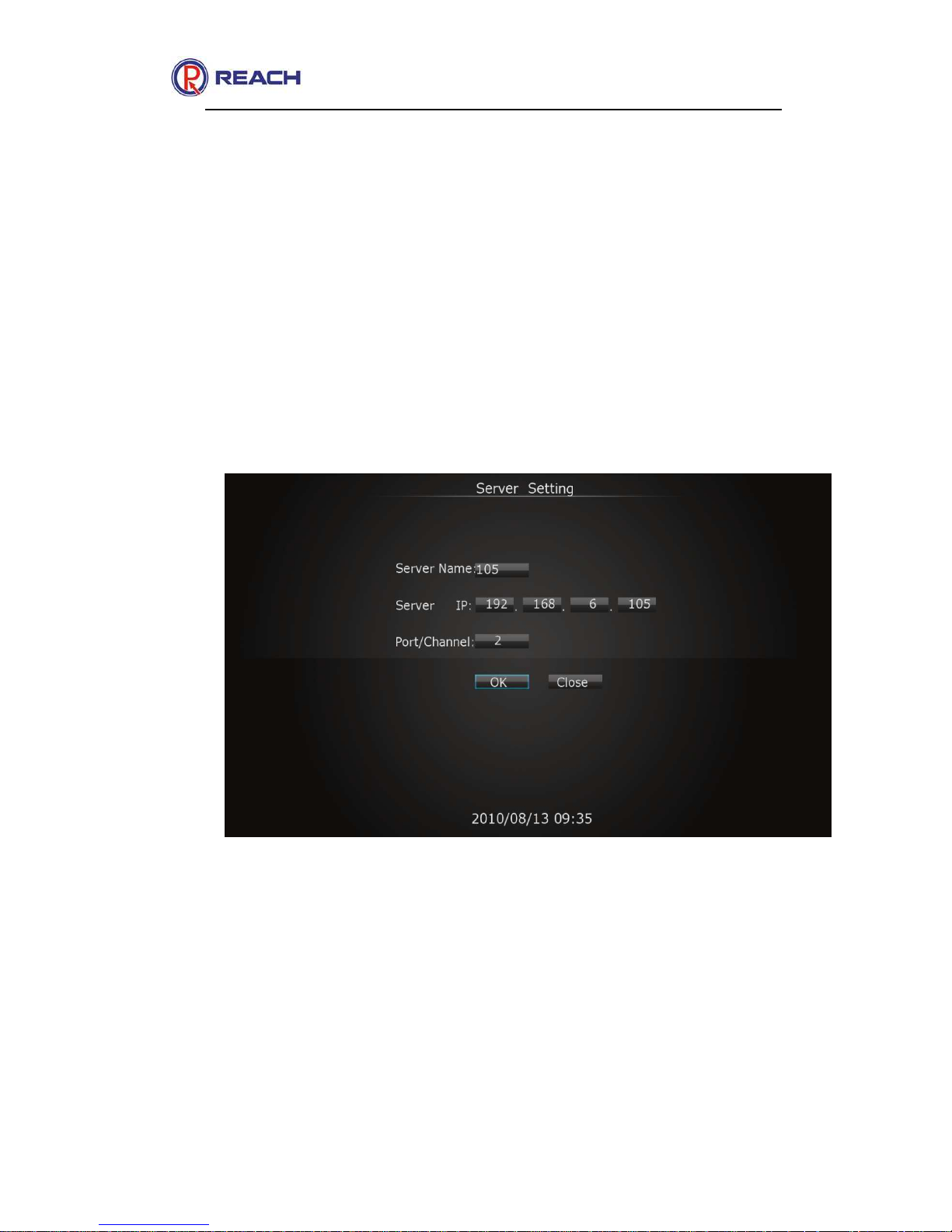

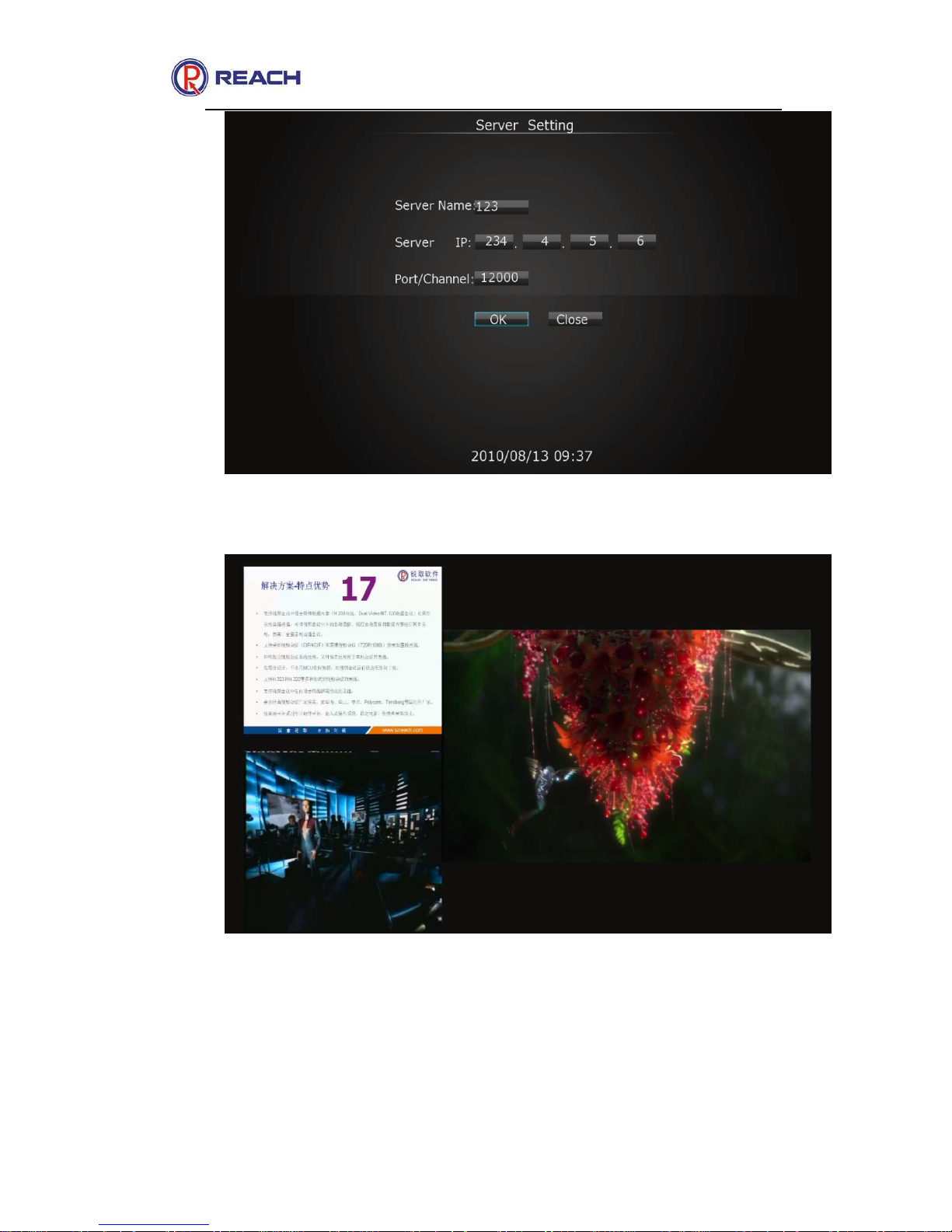

The unicast receiving configuration is as shown in the following figure:

The multicast receiving configuration is as shown in the following figure:

REACH DEC1000

User Manual

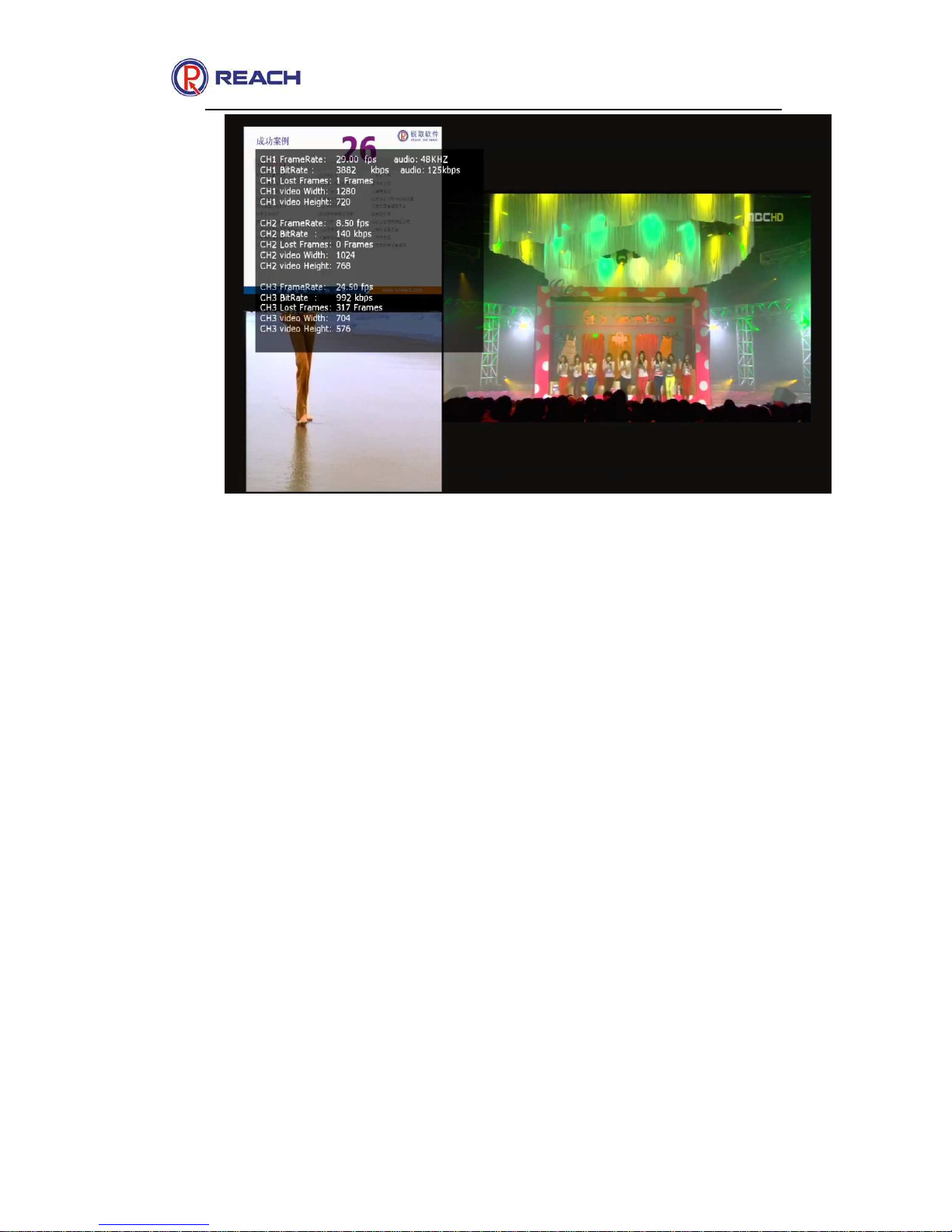

The live streaming picture is as shown in the following figure

By pressing [INFO] button on the remote controller, you can view the current media frame rate, bite rate, audio sample rate, audio bandwidth and video resolution while receiving media. The corresponding figure is as below:

REACH DEC1000

User Manual

Furthermore, display order can be changed by pressing [SHIFT] button on the remote controller.

2.2.3 VOD

It is used to play on demand the files that have been recorded by the multimedia recording & streaming server, the VOD interface is as shown in the following figure:

REACH DEC1000

User Manual

Name: To display name of the VOD server

IP Address: To display IP address of the VOD Server

+: Add new VOD server

REACH DEC1000

User Manual

-: Delete VOD server.

OK: After Selecting the VOD server, press it to enter the VOD interface.

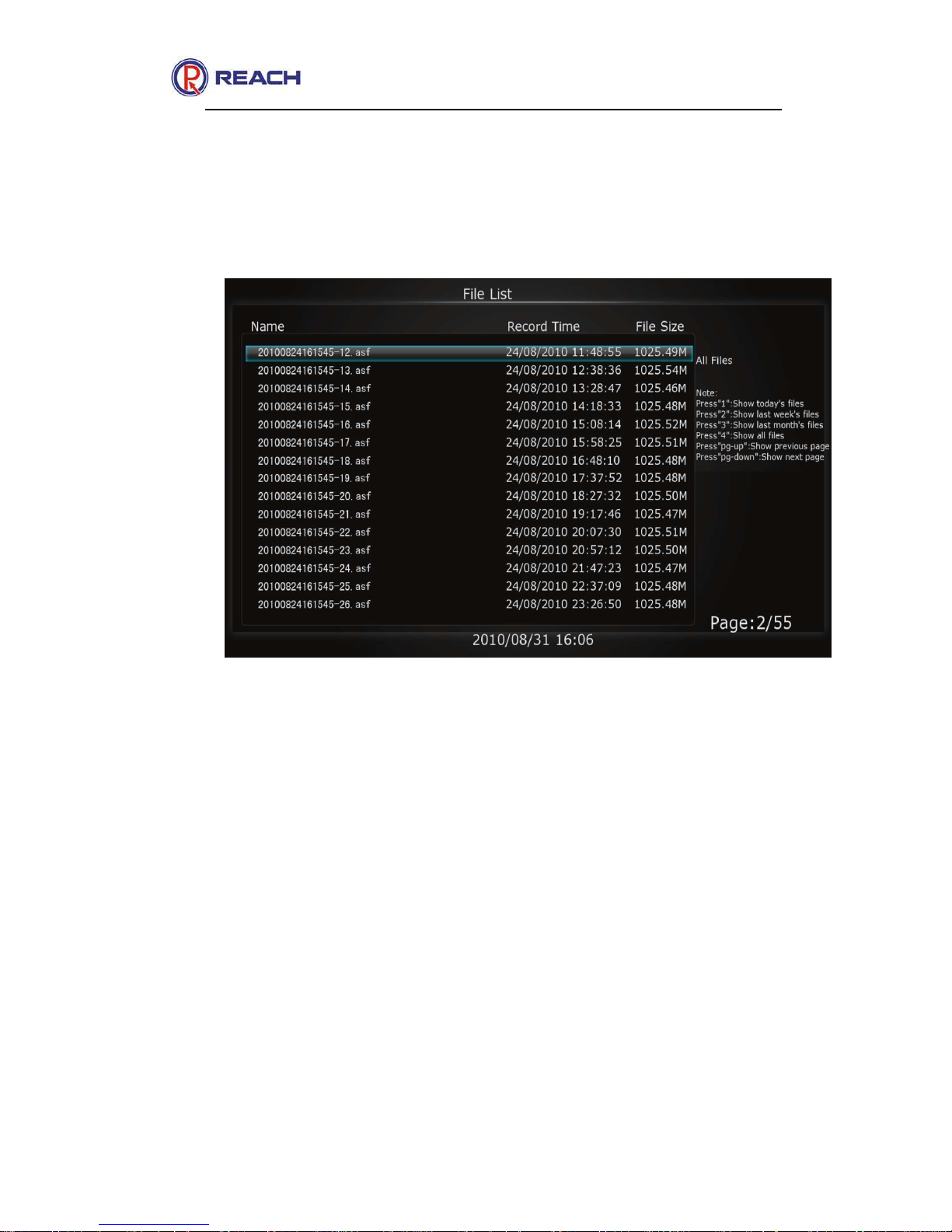

The following interface is as below

To show different files by pressing the number buttons [1]~~[4], and turn the file pages by pressing the [Up] and [Down] PG buttons on the remote controller. Choose any file and press [OK] to play. You can press the buttons [Fast Forward], [Backward], [Pause] and [Play] to control the playing progress.

If you need to cycling play on the demand file, press button [8] to switch to the cycling play mode.

If you need to exit playing on demand file, press [EXIT] button, then you will be back to the VOD file list.

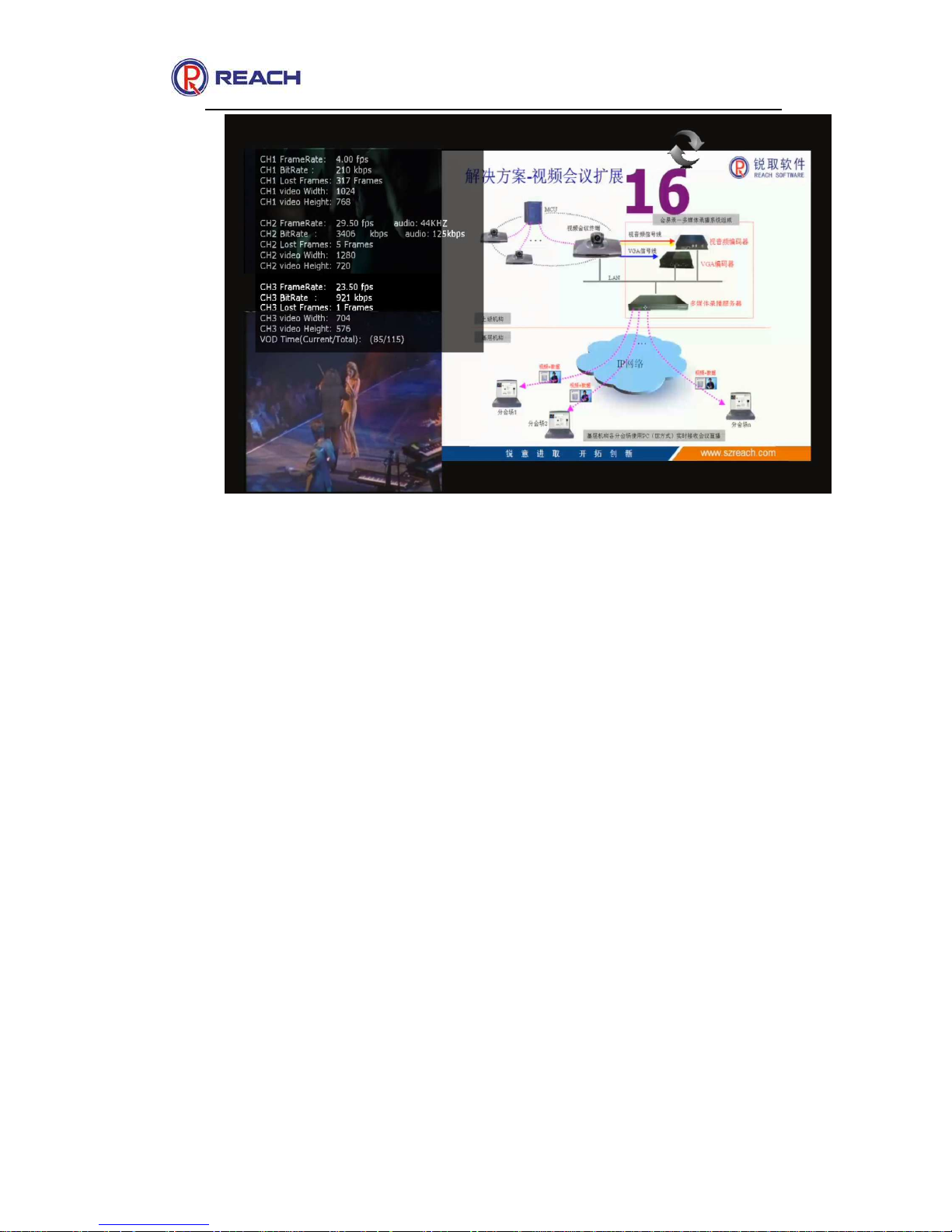

The video on demand previewing mode is as below:

REACH DEC1000

User Manual

2.2.4 System Setting

It is used to set the network parameter, Output mode, language, date and time of the decoder.

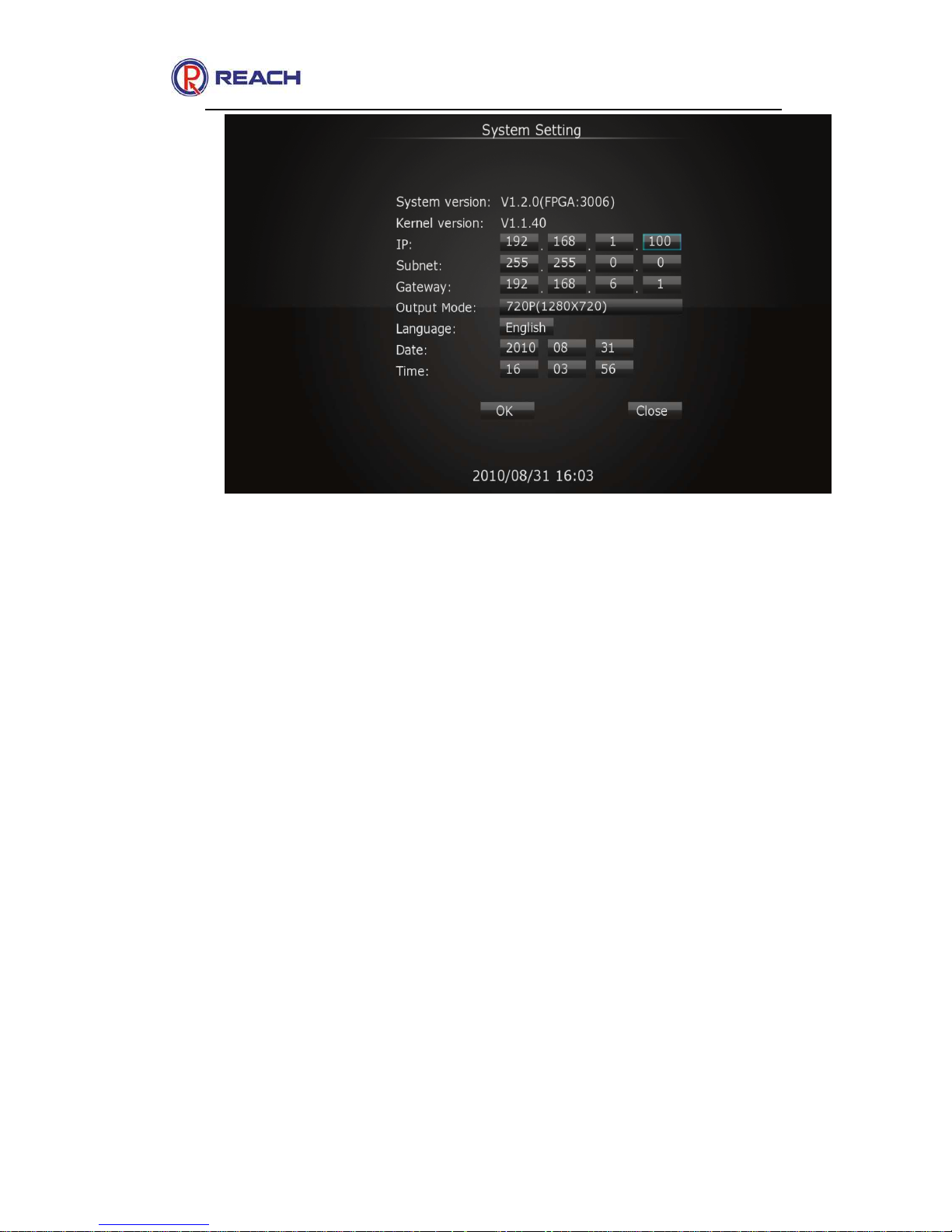

Select “System Setting” in the main menu interface and press [OK] to enter into the setting interface. In the system setting, we can view the current system’s version information, and set the network parameter, Output mode, language, date and time, etc. The system setting is shown in the following figure:

REACH DEC1000

User Manual

Network Parameter: Set the IP address, subnet and gateway of the decoder. The settings will be effective, and no need to restart the decoder.

Output Mode: Support four output modes of 720P, 1080i, XGA and SXGA.

Language: Support Chinese version and English version.

Date and Time: Set the date and time of the decoder.

OK: Save the revised parameter setting and exit the interface.

Close: Cancel the current changing and return to the last interface.

2.2.5 Introduction of the Web interface

The decoder is embedded with WEB server. All the operations are completed through the browser (Internet Explorer), which is very easy and convenient. The functions in the Web interface mainly include the operations of system information, system configuration, servers list,

REACH DEC1000

User Manual

restart and exit.

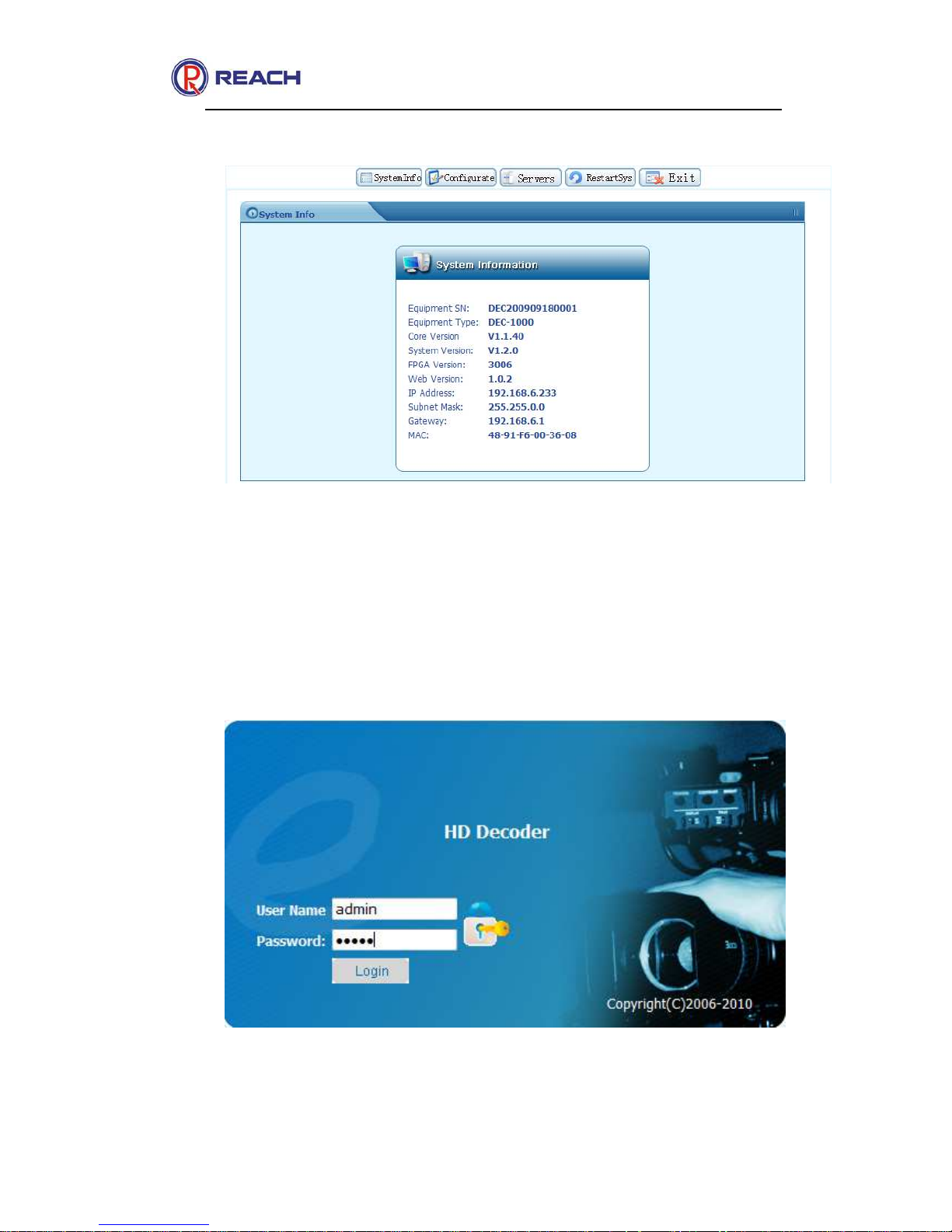

2.2.5.1 Web logon

After 192.168.1.100 is entered in the browser address field, the logon page in the following figure will appear.

User: admin (factory default, for administrator, can not be

REACH DEC1000

User Manual

changed)

Password: admin (factory default, can be changed after login)

Click [Login] button to enter the decoder management configuration page.

2.2.5.2 System Information

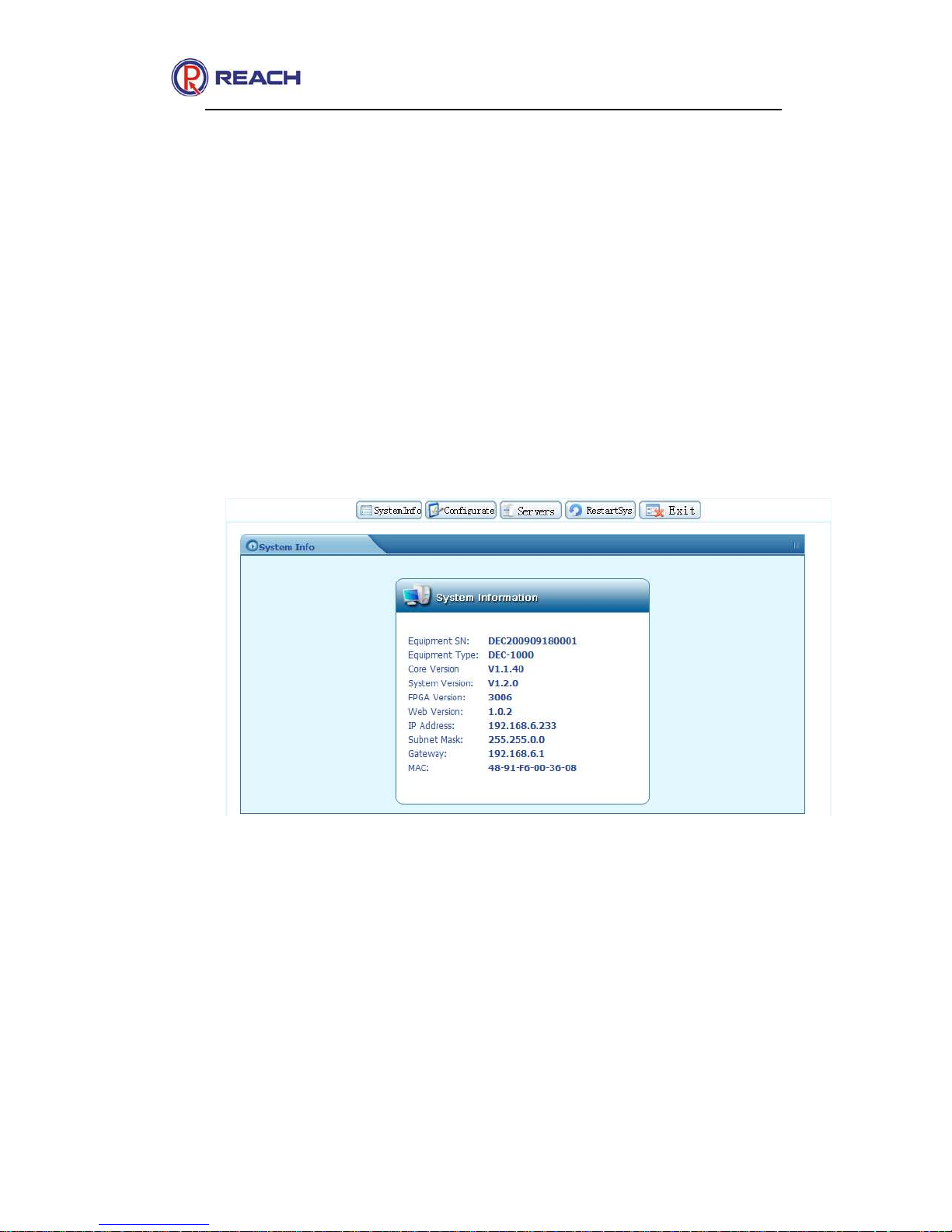

It mainly displays the system information, such as equipment serial No, equipment type, core version, system version , web version, FPGA version and IP address, as shown in the following figure:

2.2.5.3 Configurate

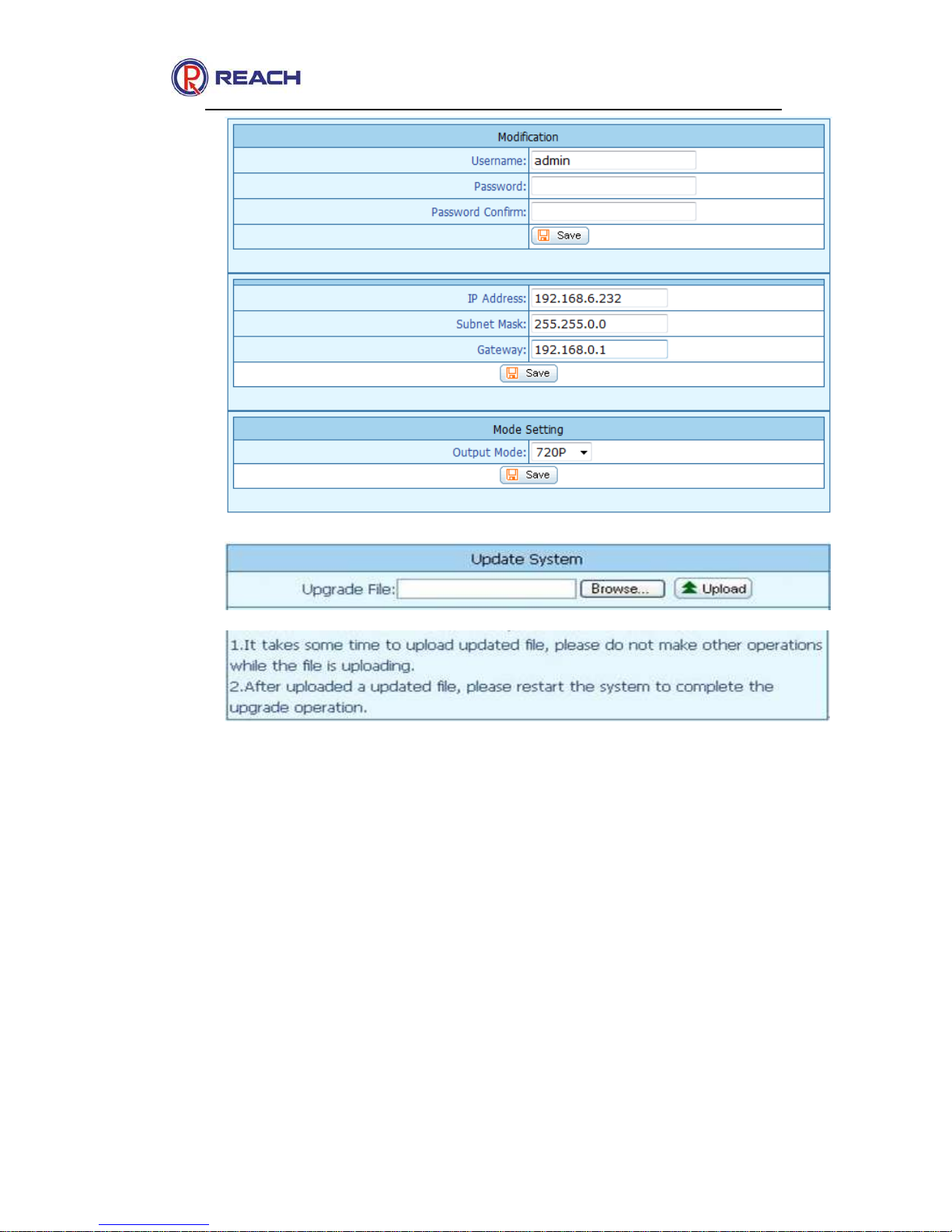

System configuration mainly includes language, password modification, network setting, mode setting and system upgrade, etc., as shown in the following figure:

REACH DEC1000

User Manual

Modification: To modify the admin logon password. Enter the modified logon password in [Password] and [Password Confirm], then press “Save” to finish the modification.

Network setting: To change the network IP address of the decoder. Enter the modified IP address, subnet mask and default gateway, then press “Save”.

Note: After changing the network address, it will take effect after the decoder restarts.

Mode Setting: To set the decoder's output modes, which include the

REACH DEC1000

User Manual

720P, 1080I , XGA and SXGA modes.

Update System: If the internal version of the decoder needs to be upgraded, click [Browse] button to select the corresponding upgrade package stored in the local disk (the upgrade should comply with the order of upgrade documents), and then click [Upload] button to upgrade. It may take about three minutes to complete upgrade, and during this period of time, it is recommended not to conduct any other operations. After finishing the upgrade, you need to restart manually to complete the system upgrade.

2.2.5.4 Servers

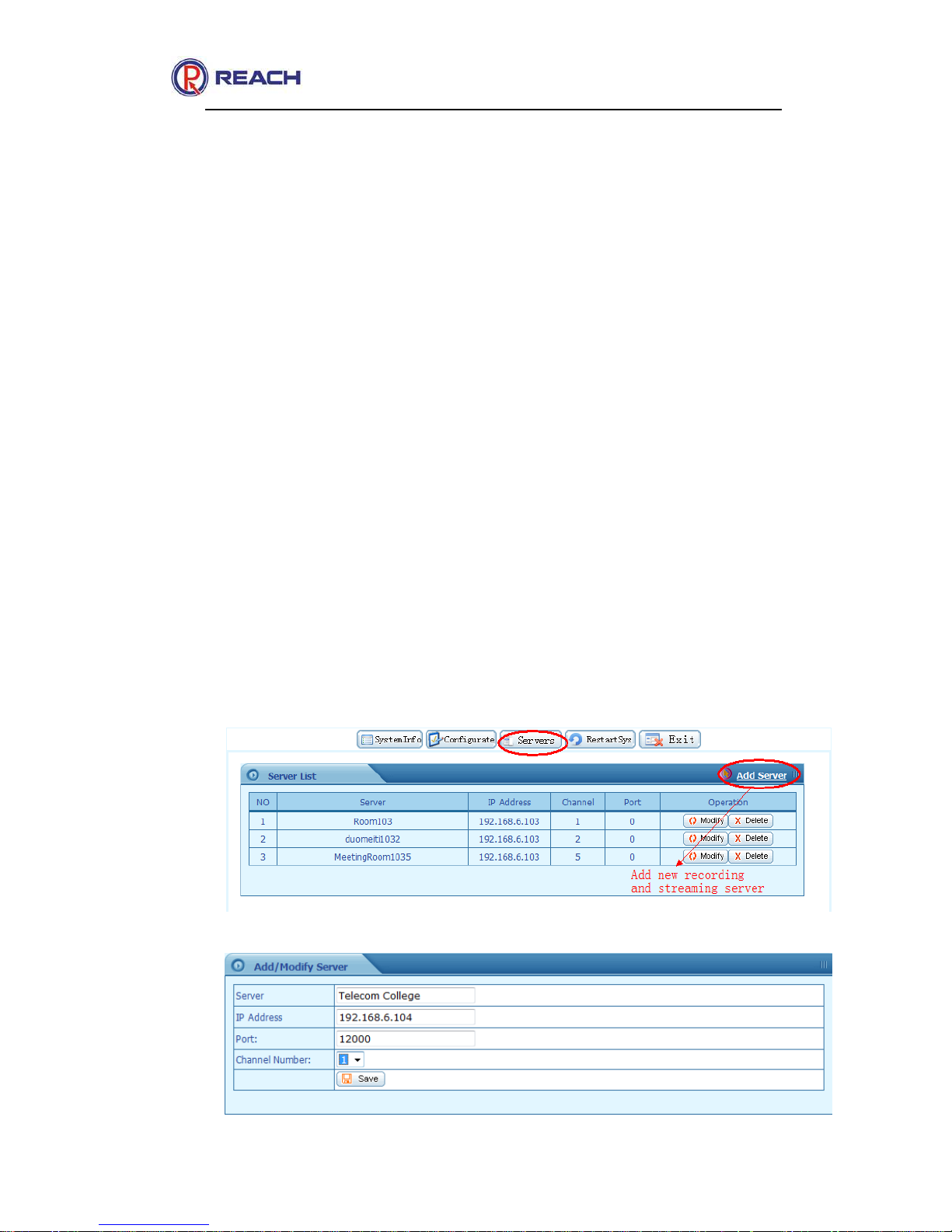

It is mainly used to add the remote server. After adding the server, you can directly select the added server and corresponding port number/channel number from the receiving media function in the remote controller end interface, to receive unicast, multicast and VOD, as shown in the following figure:

REACH DEC1000

User Manual

Server: To edit the added remote server’s name.

IP Address: To enter and edit the server’s IP address.

Port: To enter the multicast port when receiving multicast.

Channel Number: To enter the channel number of receiving unicast.

Save: Save the entered server information and finish the addition.

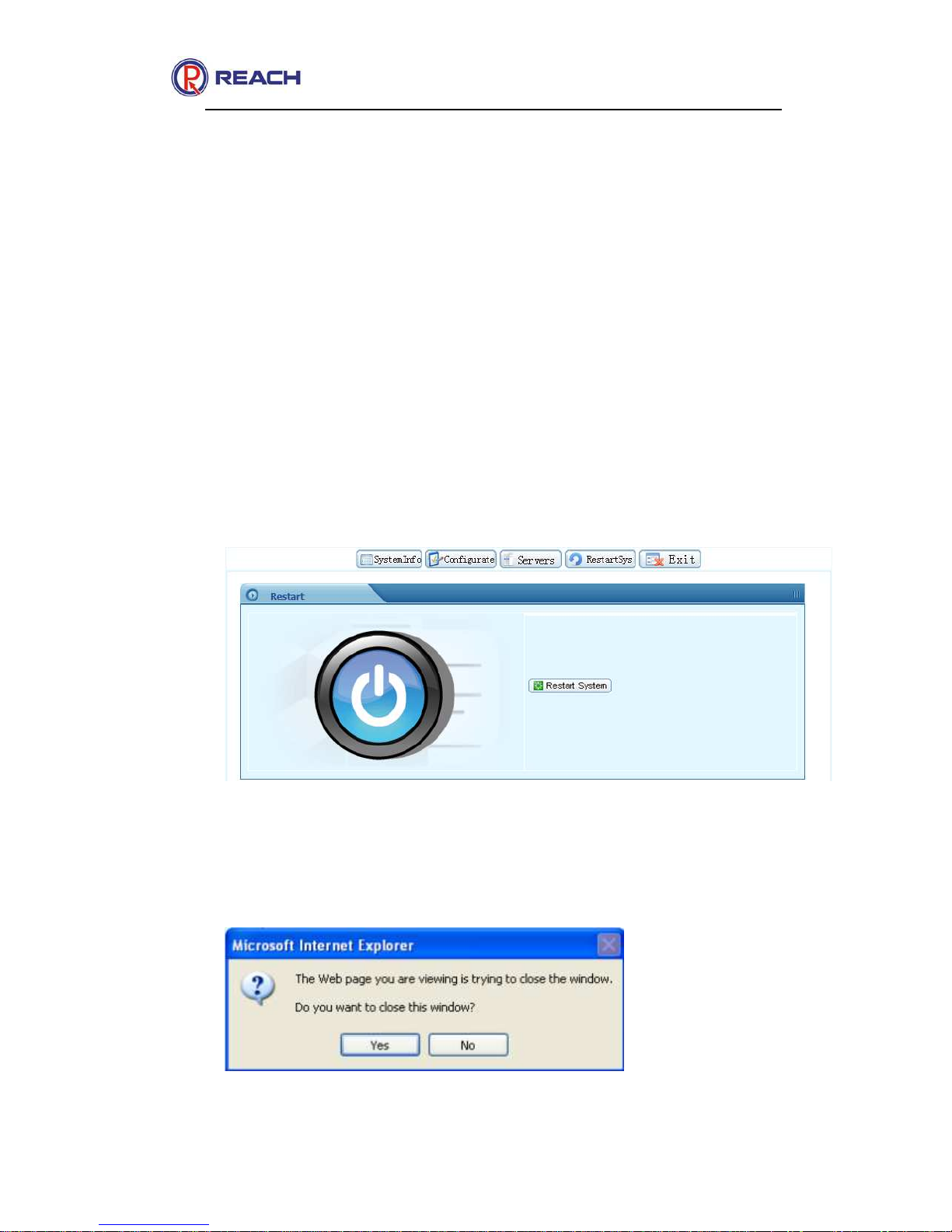

2.2.5.5 Restart System

It is mainly used to remotely restart the decoder through network, as shown in the following figure:

3.2.6.6 Exit

To exit the logged on Web management interface.

REACH DEC1000

User Manual

Click “Yes” to exit and close the WEB page; click “No” to cancel the exit operation.

3 Trouble Shooting

 Unable to start up

Please try the following operations:

 Make sure that there is power supply for the power socket.  Connect the power cables properly.  Turn on the power switch of the product.

 The computer could not log on the Web interface

 Make sure that the computer and this product are connected in the

same interworking network.  Make sure that the network parameters (such as IP address) of the computer and this product have been set according to the requirements of the network administrator.  Use the network tool and software, e.g. ping command, to test the network connection between the computer and this product.

If you still could not log on the web interface, please contact the network administrator.
