ACCESSORIES

Model UC-1 / UC-2
Utility Chassis

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

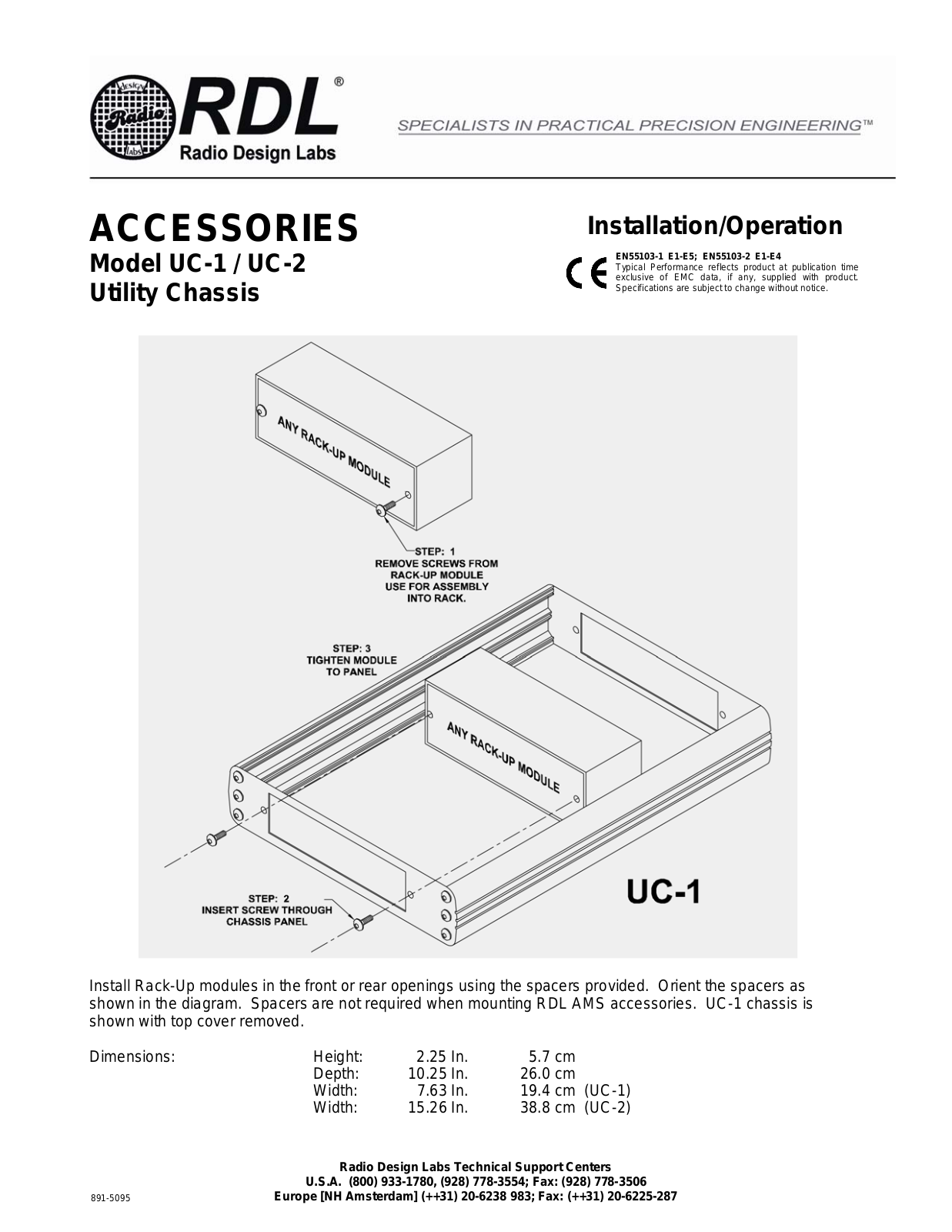

Install Rack-Up modules in the front or rear openings using the spacers provided. Orient the spacers as
shown in the diagram. Spacers are not required when mounting RDL AMS accessories. UC-1 chassis is
shown with top cover removed.

Dimensions: Height: 2.25 In. 5.7 cm
Depth: 10.25 In. 26.0 cm
Width: 7.63 In. 19.4 cm (UC-1)
Width: 15.26 In. 38.8 cm (UC-2)
