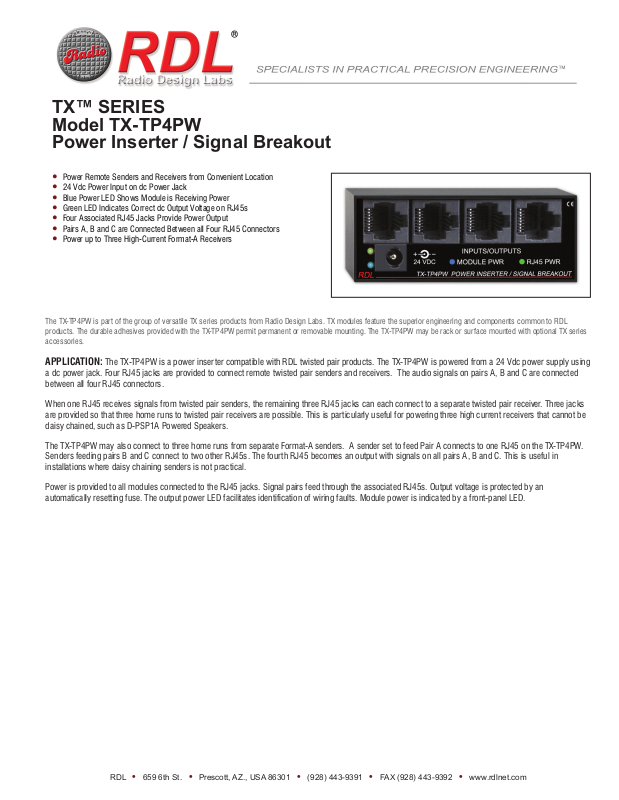

RDL TX-TP4PW Datasheet

TX™ SERIES
Model TX-TP4PW
Power Inserter / Signal Breakout

y Power Remote Senders and Receivers from Convenient Location
y 24 Vdc Power Input on dc Power Jack
y Blue Power LED Shows Module is Receiving Power
y Green LED Indicates Correct dc Output Voltage on RJ45s
y Four Associated RJ45 Jacks Provide Power Output
y Pairs A, B and C are Connected Between all Four RJ45 Connectors
y Power up to Three High-Current Format-A Receivers

The TX-TP4PW is part of the group of versatile TX series products from Radio Design Labs. TX modules feature the superior engineering and components common to RDL
products. The durable adhesives provided with the TX-TP4PW permit permanent or removable mounting. The TX-TP4PW may be rack or surface mounted with optional TX series
accessories.

APPLICATION: The TX-TP4PW is a power inserter compatible with RDL twisted pair products. The TX-TP4PW is powered from a 24 Vdc power supply using

a dc power jack. Four RJ45 jacks are provided to connect remote twisted pair senders and receivers. The audio signals on pairs A, B and C are connected
between all four RJ45 connectors.

When one RJ45 receives signals from twisted pair senders, the remaining three RJ45 jacks can each connect to a separate twisted pair receiver. Three jacks
are provided so that three home runs to twisted pair receivers are possible. This is particularly useful for powering three high current receivers that cannot be
daisy chained, such as D-PSP1A Powered Speakers.

The TX-TP4PW may also connect to three home runs from separate Format-A senders. A sender set to feed Pair A connects to one RJ45 on the TX-TP4PW.
Senders feeding pairs B and C connect to two other RJ45s. The fourth RJ45 becomes an output with signals on all pairs A, B and C. This is useful in
installations where daisy chaining senders is not practical.

Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. Output voltage is protected by an
automatically resetting fuse. The output power LED facilitates identification of wiring faults. Module power is indicated by a front-panel LED.

RDL • 659 6th St. • Prescott, AZ., USA 86301 • [phone] • FAX [phone] • www.rdlnet.com

TX™ SERIES
Model TX-TP4PW
Power Inserter / Signal Breakout

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reects product at publication time
exclusive of EMC data, if any, supplied with product.
Specications are subject to change without notice.

TYPICAL PERFORMANCE

Outputs (4): RJ45
Indicators (2): Power In; Power Out
Power Connection: Power Jack
Ambient Operating Environment: 0° C to 55° C
Maximum Load Current: 200 mA (each RJ45 output)
Power Requirement: 24 Vdc @ 15 mA plus connected loads
Dimensions: 3.0” (7.6 cm) W; 1.2” (3.0 cm) H; 1.4” (3.6 cm) D
