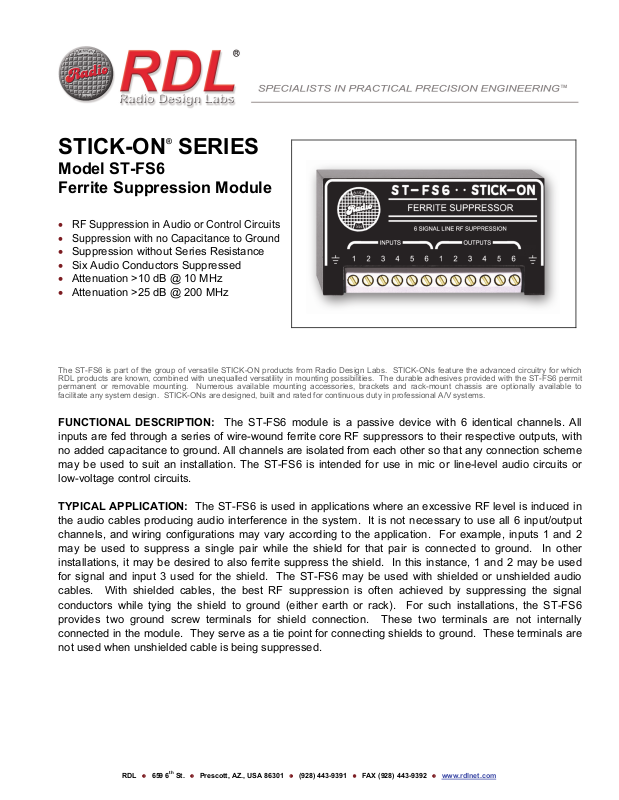

RDL ST-FS6 Datasheet

STICK-ON® SERIES

Model ST-FS6
Ferrite Suppression Module



RF Suppression in Audio or Control Circuits



Suppression with no Capacitance to Ground

 Suppression without Series Resistance
 Six Audio Conductors Suppressed
 Attenuation >10 dB @ 10 MHz
 Attenuation >25 dB @ 200 MHz

The ST-FS6 is part of the group of versatile STICK-ON products from Radio Design Labs. STICK-ONs feature the advanced circuitry for which
RDL products are known, combined with unequalled versatility in mounting possibilities. The durable adhesives provided with the ST-FS6 permit
permanent or removable mounting. Numerous available mounting accessories, brackets and rack-mount chassis are optionally available to
facilitate any system design. STICK-ONs are designed, built and rated for continuous duty in professional A/V systems.

FUNCTIONAL DESCRIPTION: The ST-FS6 module is a passive device with 6 identical channels. All
inputs are fed through a series of wire-wound ferrite core RF suppressors to their respective outputs, with
no added capacitance to ground. All channels are isolated from each other so that any connection scheme
may be used to suit an installation. The ST-FS6 is intended for use in mic or line-level audio circuits or
low-voltage control circuits.

TYPICAL APPLICATION: The ST-FS6 is used in applications where an excessive RF level is induced in
the audio cables producing audio interference in the system. It is not necessary to use all 6 input/output
channels, and wiring configurations may vary according to the application. For example, inputs 1 and 2
may be used to suppress a single pair while the shield for that pair is connected to ground. In other
installations, it may be desired to also ferrite suppress the shield. In this instance, 1 and 2 may be used
for signal and input 3 used for the shield. The ST-FS6 may be used with shielded or unshielded audio
cables. With shielded cables, the best RF suppression is often achieved by suppressing the signal
conductors while tying the shield to ground (either earth or rack). For such installations, the ST-FS6
provides two ground screw terminals for shield connection. These two terminals are not internally
connected in the module. They serve as a tie point for connecting shields to ground. These terminals are
not used when unshielded cable is being suppressed.

RDL  659 6th St.  Prescott, AZ., USA 86301  [phone]  FAX [phone]  www.rdlnet.com

STICK-ON® SERIES

Model ST-FS6
Ferrite Suppressor Module

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specifications provided on product package.

Specifications are subject to change without notice.

Notes: 1) Follow equipment manufacture recommendations for external rf suppression.

2) Shield may also route through ST-FS6 if needed.

3) Each of 6 I/O terminals may be used independently for Audio, dc power or logic signal
Power Requirement: Passive (not required)
Ambient Operating Environment: -20° C to 60° C

891-1030E
