RDL SF-ND2 Datasheet

Model SF-ND2

Network to Digital Audio Interface

y Converts Two Dante Network Audio Signals to Left/Right Digital Audio
y AES/EBU or S/PDIF Coaxial or Optical Output
y Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
y Digital Audio Output Sample Rate Equals Dante Sample Rate
y Transformer-Isolated AES/EBU Output
y Dante Audio Signals Remain in the Digital Domain through the Output
y Special Software Not Required for Module Setup
y LED Indicator for Valid Power and Network Sync
y Operation from PoE Power (Class 0, IEEE 802.3af)
y Equipped for SysFlex™ Rack Mounting or Surface Mounting

The SysFlex series is a family of A/V modules providing complex interface solutions at the click of a connector. SysFlex modules provide connectorized
interface between data networks and analog and digital audio devices, networked and conventional amplifiers and other application-specific solutions.
In RDL’s tradition of versatility, SysFlex modules can be used right where they are needed: Rack-mounted, Surface-mounted, or unmounted. They
are light-weight, compact and easy to install with simple, straightforward switch settings and LED indicators. Modules quickly snap into the SysFlex
rack mount and each is firmly secured with a single screw. The racking system segregates network and power wiring from the audio and digital audio
connectors. For connectorized network audio endpoints and A/V system components that provide unparalleled performance and advanced features without
giving up simplicity and ease of installation, SysFlex is the industry’s best value.

APPLICATION: The SF-ND2 is a digital audio interface that conver ts two Dante network audio channels to a stereo digital audio output. The
output is switch-selectable to provide an AES/EBU on XLR, or coaxial and optical S/PDIF. The switch enables the appropriate output jack and
any required electrical and data format conversion. Special software is not required to configure the module. The SF-ND2 is a professional
grade product for studio quality performance.

The SF-ND2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of
the unit.

The SF-ND2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted
operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The
versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.

RDL • 659 6th St. • Prescott, AZ., USA 86301 • [phone] • FAX [phone] • www.rdlnet.com

Model SF-ND2

Network to Digital Audio Interface

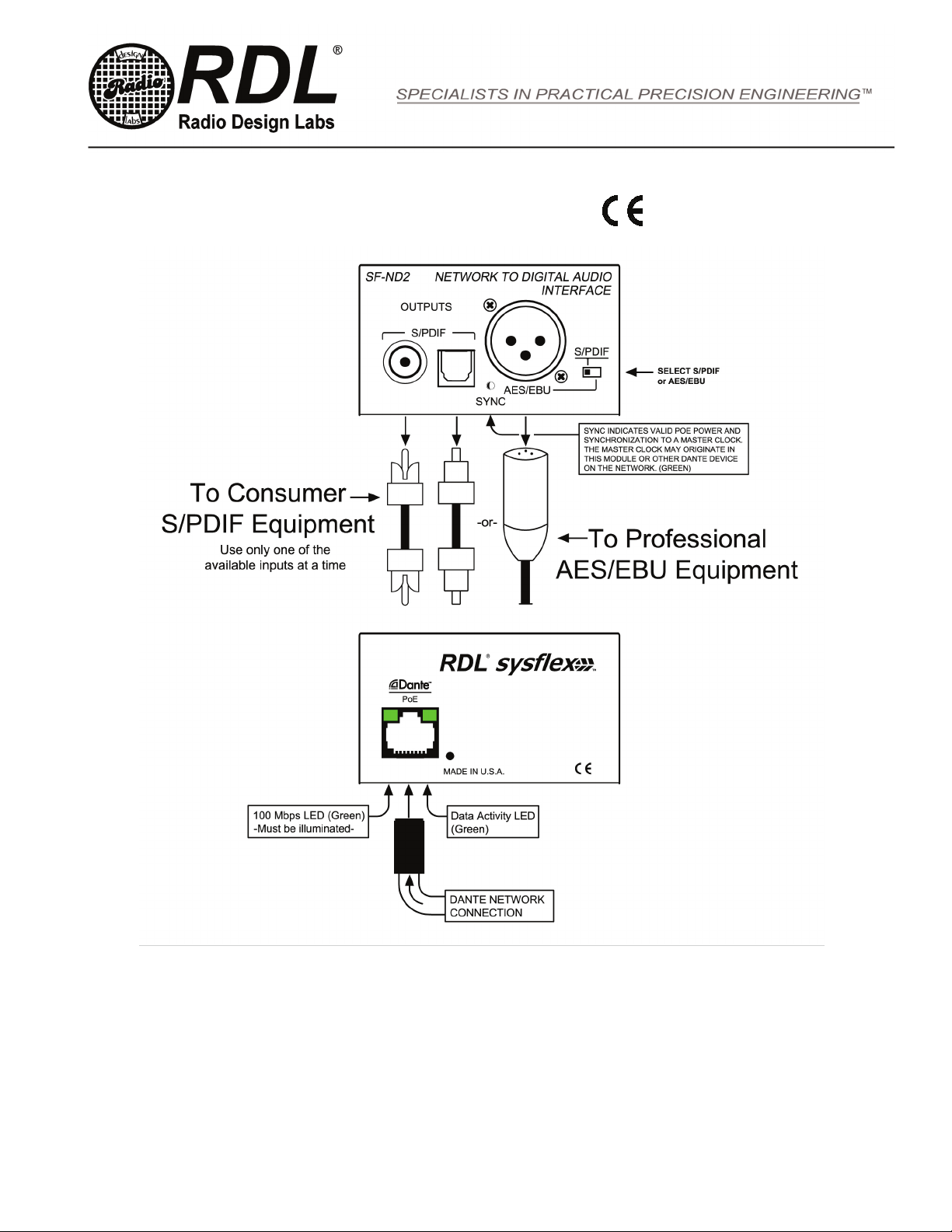

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specications provided on product package.
Specications are subject to change without notice.

TYPICAL PERFORMANCE

Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante
Transmission Rate: 100 Mbps
Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported: 24 bits

Outputs (3): 110 Ω AES/EBU XLR, transformer isolated;
75 Ω S/PDIF RCA jack; S/PDIF optical (selectable)

Indicators (3): Ethernet Link and Speed (2, rear panel);

Sync (front panel)

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

891-7515

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

Ambient Operating Environment: 0° C to 50° C
Power Requirement: PoE Class 0, IEEE 802.3af

Dimensions: 2.79” (7.09 cm) W; 1.68” (4.27 cm) H;

5.77” (14.66 cm) D
Package Type: Cardboard Box
Package Dimensions: 7 x 4.375 x 2.25 in.
Shipping Weight: 1.09 lbs.
WEEE weight: 0.88 lbs.
Tariff code: 8517.18.0050
