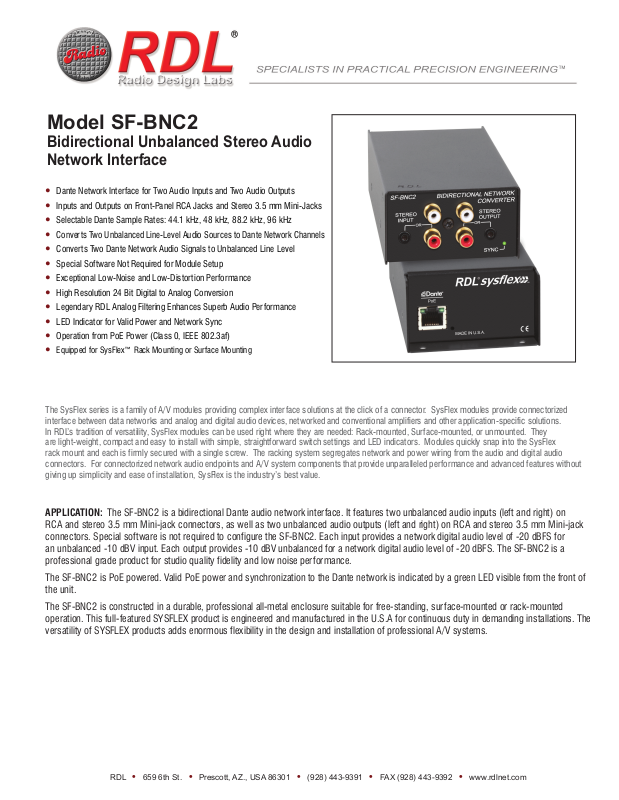

RDL SF-BNC2 User Manual

Model SF-BNC2

Bidirectional Unbalanced Stereo Audio
Network Interface

y Dante Network Interface for Two Audio Inputs and Two Audio Outputs
y Inputs and Outputs on Front-Panel RCA Jacks and Stereo 3.5 mm Mini-Jacks
y Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
y Converts Two Unbalanced Line-Level Audio Sources to Dante Network Channels
y Converts Two Dante Network Audio Signals to Unbalanced Line Level
y Special Software Not Required for Module Setup
y Exceptional Low-Noise and Low-Distortion Performance
y High Resolution 24 Bit Digital to Analog Conversion
y Legendary RDL Analog Filtering Enhances Superb Audio Performance
y LED Indicator for Valid Power and Network Sync
y Operation from PoE Power (Class 0, IEEE 802.3af)
y Equipped for SysFlex™ Rack Mounting or Surface Mounting

The SysFlex series is a family of A/V modules providing complex interface solutions at the click of a connector. SysFlex modules provide connectorized
interface between data networks and analog and digital audio devices, networked and conventional amplifiers and other application-specific solutions.
In RDL’s tradition of versatility, SysFlex modules can be used right where they are needed: Rack-mounted, Surface-mounted, or unmounted. They
are light-weight, compact and easy to install with simple, straightforward switch settings and LED indicators. Modules quickly snap into the SysFlex
rack mount and each is firmly secured with a single screw. The racking system segregates network and power wiring from the audio and digital audio
connectors. For connectorized network audio endpoints and A/V system components that provide unparalleled performance and advanced features without
giving up simplicity and ease of installation, SysFlex is the industry’s best value.

APPLICATION: The SF-BNC2 is a bidirectional Dante audio network interface. It features two unbalanced audio inputs (left and right) on
RCA and stereo 3.5 mm Mini-jack connectors, as well as two unbalanced audio outputs (left and right) on RCA and stereo 3.5 mm Mini-jack
connectors. Special software is not required to configure the SF-BNC2. Each input provides a network digital audio level of -20 dBFS for
an unbalanced -10 dBV input. Each output provides -10 dBV unbalanced for a network digital audio level of -20 dBFS. The SF-BNC2 is a
professional grade product for studio quality fidelity and low noise performance.

The SF-BNC2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of
the unit.

The SF-BNC2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted
operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The
versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.

RDL • 659 6th St. • Prescott, AZ., USA 86301 • [phone] • FAX [phone] • www.rdlnet.com

Model SF-BNC2

Bidirectional Unbalanced Stereo Audio
Network Interface

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specications provided on product package.
Specications are subject to change without notice.

TYPICAL PERFORMANCE

Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante
Transmission Rate: 100 Mbps
Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported: 24 bits
Audio Operating Level: -20 dBFS = -10 dBV
Reference Level: 0 dBFS = +10 dBV

Line Inputs to Network Interface
Inputs (4): Mini-jack Stereo or RCA jacks (2, L and R)
Input Level (for +4 dBu/-20 dBFS): -10 dBV nominal
Input Level (maximum): +10 dBV

Input Impedance: > 15 kΩ

Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
Noise below -20 dBFS (20 to 20 kHz): < -80 dB
Crosstalk: < -85 dB (L into R, R into L, 20 Hz to 20 kHz)
THD+N: < 0.05% (20 Hz to 20 kHz, -20 dBFS);

0.02% at 1 kHz (typ)
Headroom: 20 dB

Network to Line Outputs

Outputs (4): Mini-jack Stereo or RCA jacks (2, L and R)
Output Level (operating): -10 dBV nominal

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

891-7500

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

Output Level (maximum): +10 dBV

Output Impedance: 40 Ω

Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
THD+N: < 0.1%
Noise: < -75 dB (below -10 dBV)
Crosstalk: < -70 dB (20 Hz to 20 kHz)
Headroom above -10 dBV: 20 dB

Indicators (3): Ethernet Link and Speed (2, rear panel);
Sync (front panel)
Ambient Operating Environment: 0° C to 50° C
Power Requirement: PoE Class 0, IEEE 802.3af

Specification Conditions: Gain/Level: ± 1 dB; Source termination: 150 Ω;

A to D values measured in digital domain
Dimensions: 2.79” (7.09 cm) W; 1.68” (4.27 cm) H;

5.77” (14.66 cm) D
Package Type: Cardboard Box
Package Dimensions: 7 x 4.375 x 2.25 in.
Shipping Weight: 1.115 lbs.
WEEE weight: 0.905 lbs.
Tariff code: 8517.18.0050
