ACCESSORIES

SAS-HCT
Table Bracket Under/Over

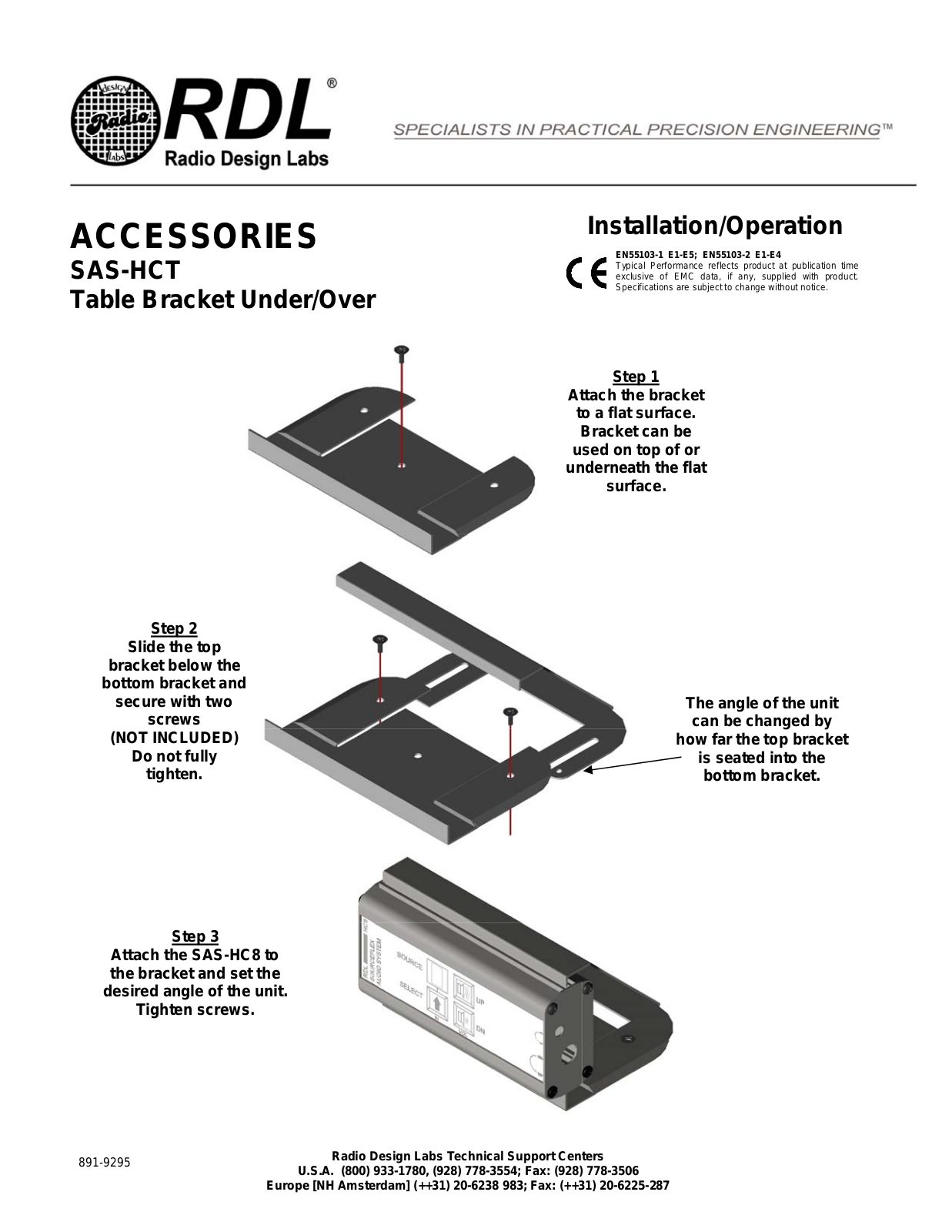

Step 2

Slide the top

bracket below the

bottom bracket and

secure with two

screws

(NOT INCLUDED)

Do not fully

tighten.

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

Step 1

Attach the bracket

to a flat surface.

Bracket can be

used on top of or

underneath the flat

surface.

The angle of the unit

can be changed by

how far the top bracket

is seated into the

bottom bracket.

Step 3

Attach the SAS-HC8 to

the bracket and set the

desired angle of the unit.

Tighten screws.
