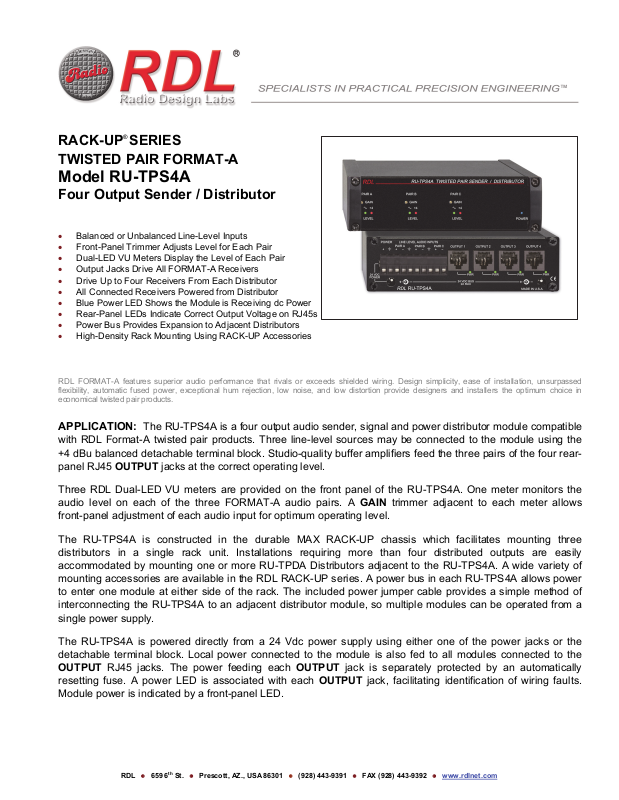

RDL RU-TPS4A Datasheet

RACK-UP® SERIES
TWISTED PAIR FORMAT-A

Model RU-TPS4A

Four Output Sender / Distributor

 Balanced or Unbalanced Line-Level Inputs
 Front-Panel Trimmer Adjusts Level for Each Pair
 Dual-LED VU Meters Display the Level of Each Pair
 Output Jacks Drive All FORMAT-A Receivers
 Drive Up to Four Receivers From Each Distributor
 All Connected Receivers Powered from Distributor
 Blue Power LED Shows the Module is Receiving dc Power
 Rear-Panel LEDs Indicate Correct Output Voltage on RJ45s
 Power Bus Provides Expansion to Adjacent Distributors
 High-Density Rack Mounting Using RACK-UP Accessories

RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed
flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in
economical twisted pair products.

APPLICATION: The RU-TPS4A is a four output audio sender, signal and power distributor module compatible

with RDL Format-A twisted pair products. Three line-level sources may be connected to the module using the
+4 dBu balanced detachable terminal block. Studio-quality buffer amplifiers feed the three pairs of the four rear­panel RJ45 OUTPUT jacks at the correct operating level.

Three RDL Dual-LED VU meters are provided on the front panel of the RU-TPS4A. One meter monitors the
audio level on each of the three FORMAT-A audio pairs. A GAIN trimmer adjacent to each meter allows
front-panel adjustment of each audio input for optimum operating level.

The RU-TPS4A is constructed in the durable MAX RACK-UP chassis which facilitates mounting three
distributors in a single rack unit. Installations requiring more than four distributed outputs are easily
accommodated by mounting one or more RU-TPDA Distributors adjacent to the RU-TPS4A. A wide variety of
mounting accessories are available in the RDL RACK-UP series. A power bus in each RU-TPS4A allows power
to enter one module at either side of the rack. The included power jumper cable provides a simple method of
interconnecting the RU-TPS4A to an adjacent distributor module, so multiple modules can be operated from a
single power supply.

The RU-TPS4A is powered directly from a 24 Vdc power supply using either one of the power jacks or the
detachable terminal block. Local power connected to the module is also fed to all modules connected to the
OUTPUT RJ45 jacks. The power feeding each OUTPUT jack is separately protected by an automatically
resetting fuse. A power LED is associated with each OUTPUT jack, facilitating identification of wiring faults.
Module power is indicated by a front-panel LED.

RDL  659 6th St.  Prescott, AZ., USA 86301  [phone]  FAX [phone]  www.rdlnet.com

RACK-UP® SERIES

Installation/Operation

Twisted Pair FORMAT-A
Model RU-TPS4A

Four Output Sender / Distributor

Notes: The RU-TPS4A provides power to all connected receivers. Each input may be connected balanced or unbalanced.

Declaration of Conformity available from rdlnet.com.

Sole EMC specifications provided on product package.

Specifications are subject to change without notice.

RJ45 Standard wiring

Pair A: Audio +4 dBu

Pair B: Audio +4 dBu

Pair C: Audio +4 dBu

Pair D: Power +24 Vdc

RJ45 conductor colors shown are for 568A standard. The 568B standard m ay be used if the connectors at both ends of the cable are wired identically.

TYPICAL PERFORMANCE:

Inputs (3): 20 kΩ balanced
Input Connection: Detachable Terminal Block
Format-A Signal Pairs Used (3): A, B, C
Gain: -4 dB to +18 dB Adjustable, multi-turn front-panel tr immer
Outputs (4): RDL TP Format-A
Output Connection: RJ45
Frequency Response: 10 Hz to 50 kHz (+/- 0.1 dB)
THD+N: < 0.005%

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

891-3250C

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

Tab on bottom of connector

(1) + White / Green
(2) – Green
(3) + White / Orange
(4) – Blue
(5) + White / Blue
(6) – Orange
(7) + White / Brown
(8) – Brown

Noise below +4 dBu: < 90 dB
Crosstalk: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
Headroom above +4 dBu: > 18 dB
CMRR: > 80 dB (50 Hz to 150 Hz)
Indicators (11): Power In (1); Power Out (4); 3 Dual-LED VU Meters (6)
Power Connections (3): Power Jack (2); Detachable Terminal Block
Power Requirement: 24 Vdc @ 120 mA plus connected loads
Maximum Load Current: 200 mA (each RJ45 output)
Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 3.25" (8.25 cm) D
