RDL RU-D1 Datasheet

ACCESSORIES

Model RU-D1

RACK-UP Mount for Decora® Module

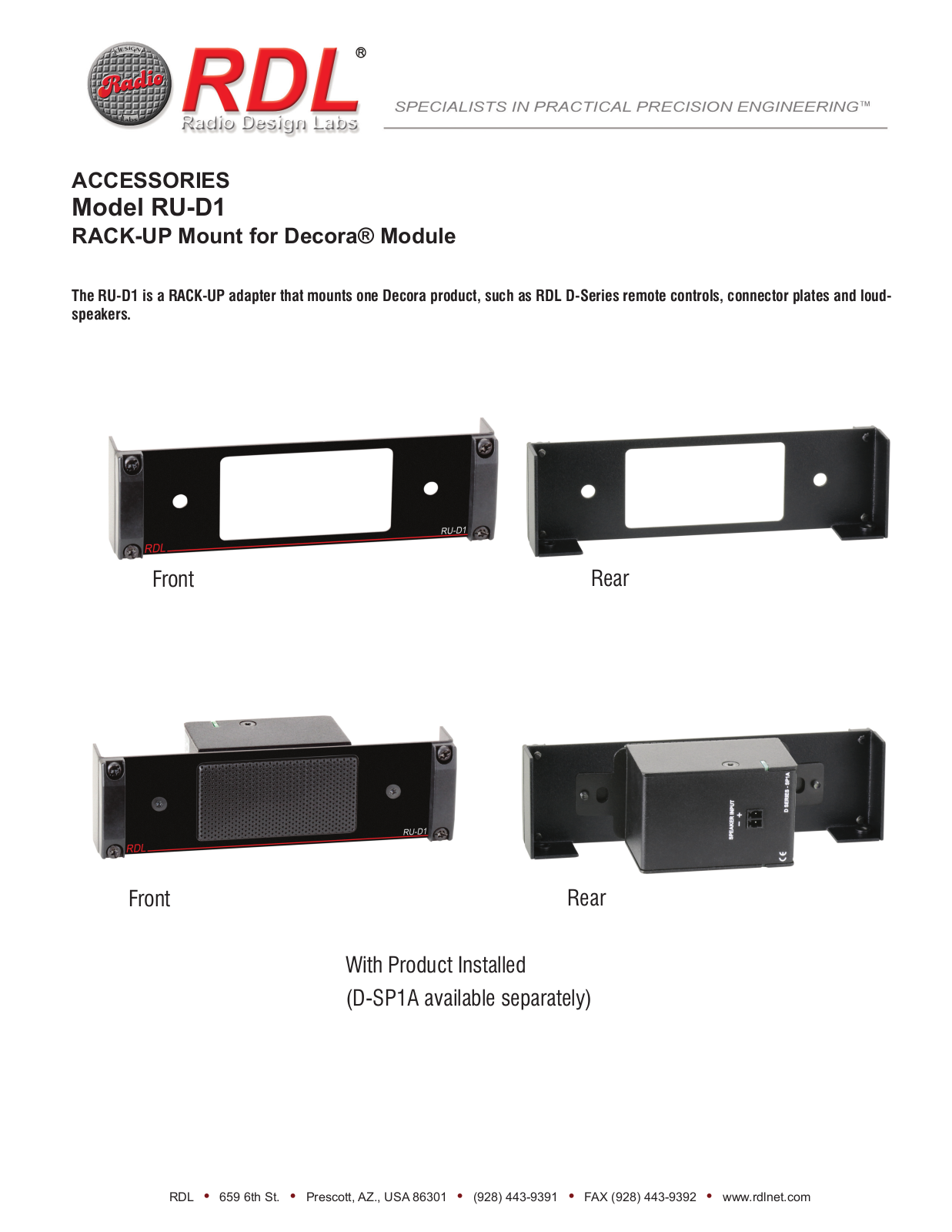

The RU-D1 is a RACK-UP adapter that mounts one Decora product, such as RDL D-Series remote controls, connector plates and loud­speakers.

Front

Front

Rear

Rear

With Product Installed
(D-SP1A available separately)

RDL • 659 6th St. • Prescott, AZ., USA 86301 • [phone] • FAX [phone] • www.rdlnet.com

ACCESSORIES

Model RU-D1

RACK-UP Mount for Decora® Module

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specications provided on product package.
Specications are subject to change without notice.

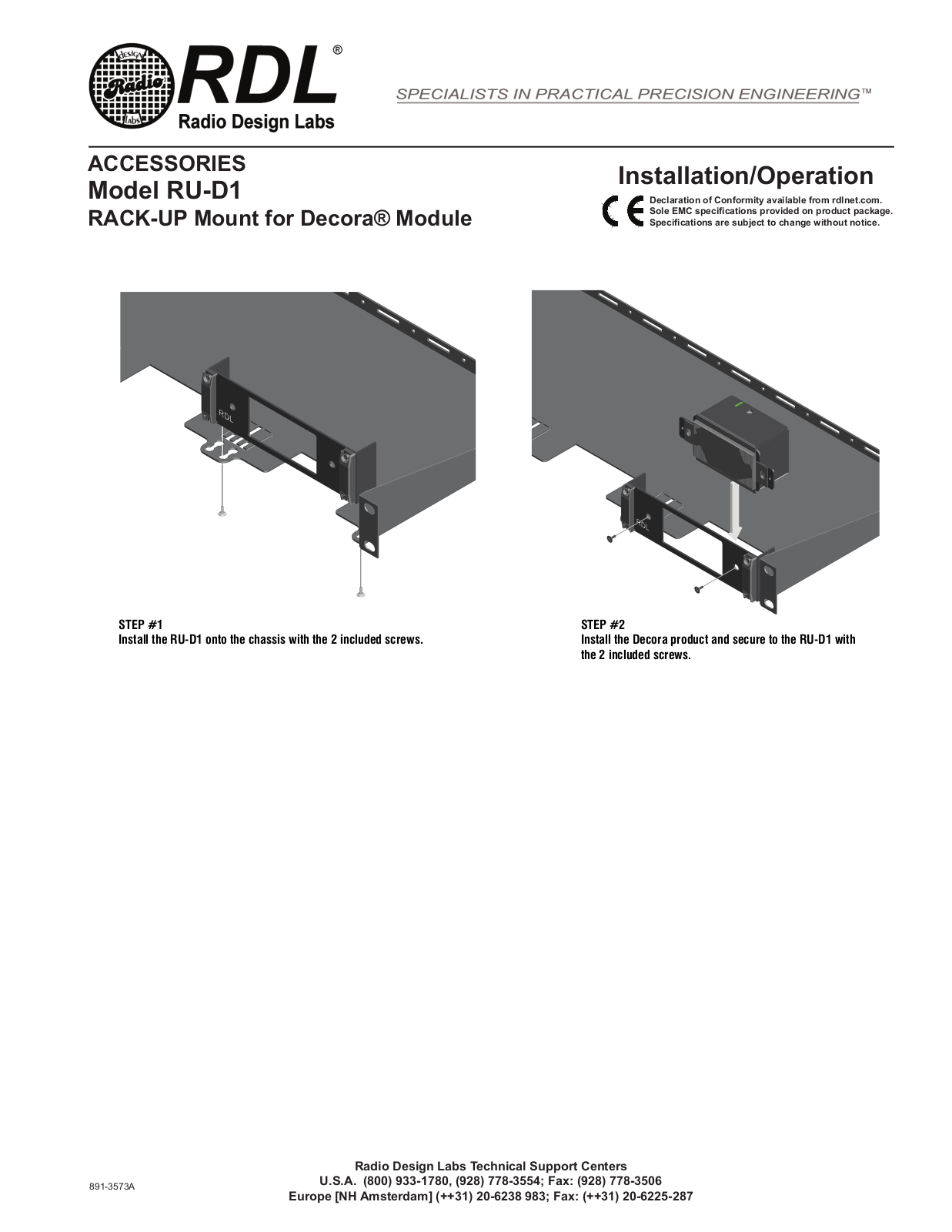

STEP #1
Install the RU-D1 onto the chassis with the 2 included screws.

STEP #2
Install the Decora product and secure to the RU-D1 with
the 2 included screws.

891-3573A

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
