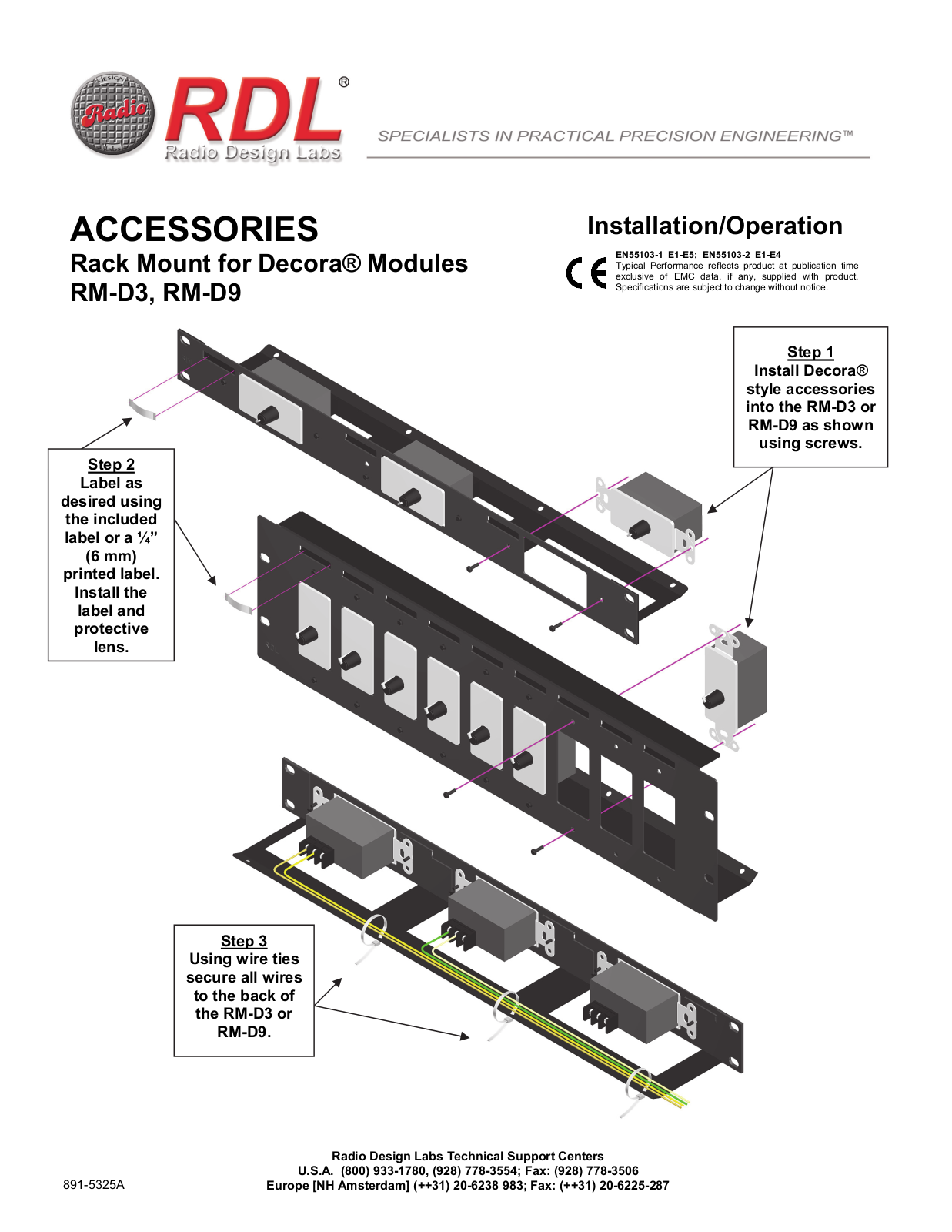

RDL RM-D3 Datasheet

ACCESSORIES

Rack Mount for Decora® Modules
RM-D3, RM-D9

Step 2

Label as

desired using

the included
label or a ¼”

(6 mm)

printed label.

Install the

label and

protective

lens.

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

Step 1

Install Decora®
style accessories
into the RM-D3 or

RM-D9 as shown

using screws.

891-5325A

Step 3

Using wire ties

secure all wires

to the back of

the RM-D3 or

RM-D9.
