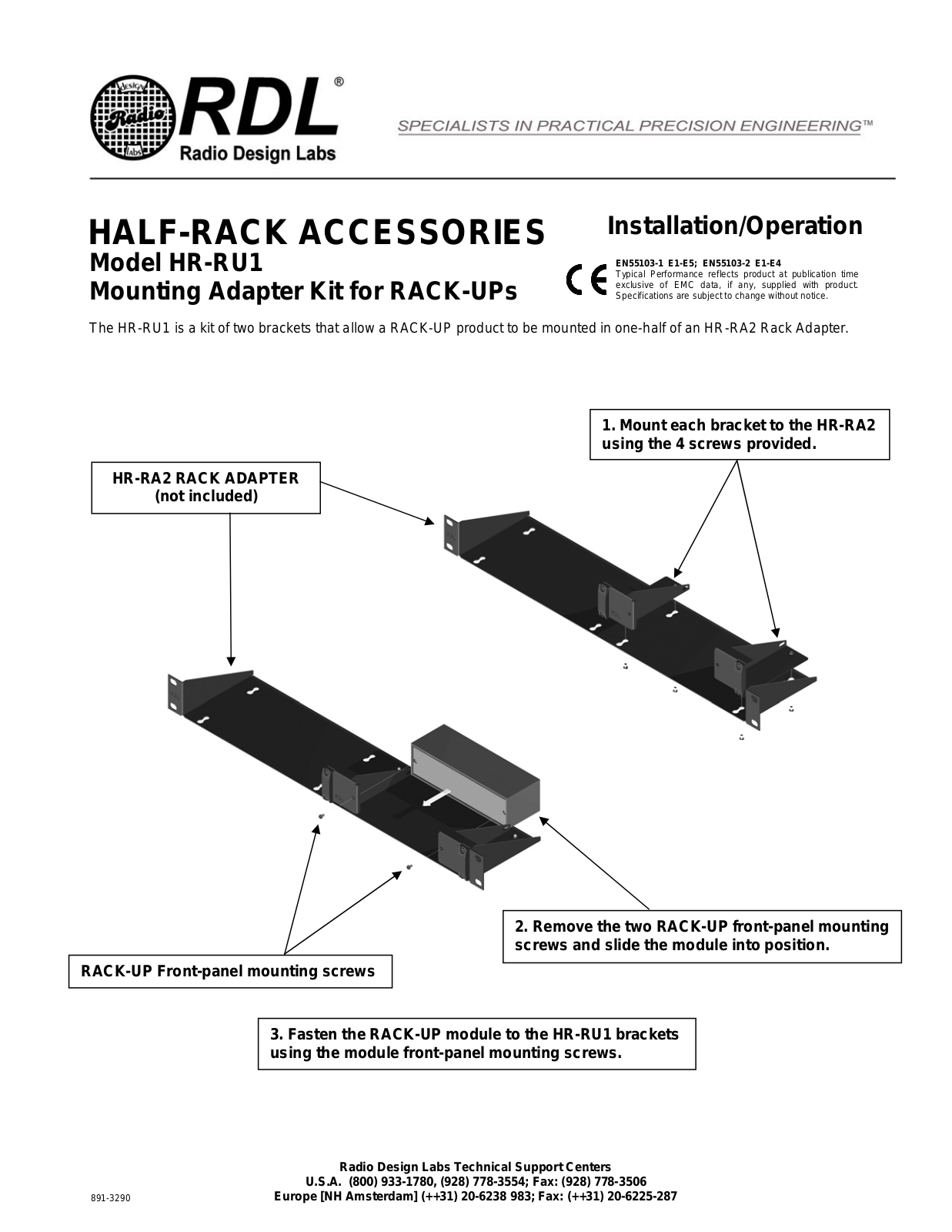

RDL HR-RU1 Quick Start Guide

HALF-RACK ACCESSORIES

Model HR-RU1
Mounting Adapter Kit for RACK-UPs

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

The HR-RU1 is a kit of two brackets that allow a RACK-UP product to be mounted in one-half of an HR-RA2 Rack Adapter.

1. Mount each bracket to the HR-RA2
using the 4 screws provided.

HR-RA2 RACK ADAPTER

(not included)

RACK-UP Front-panel mounting screws

3. Fasten the RACK-UP module to the HR-RU1 brackets
using the module front-panel mounting screws.

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

891-3290

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

2. Remove the two RACK-UP front-panel mounting
screws and slide the module into position.
