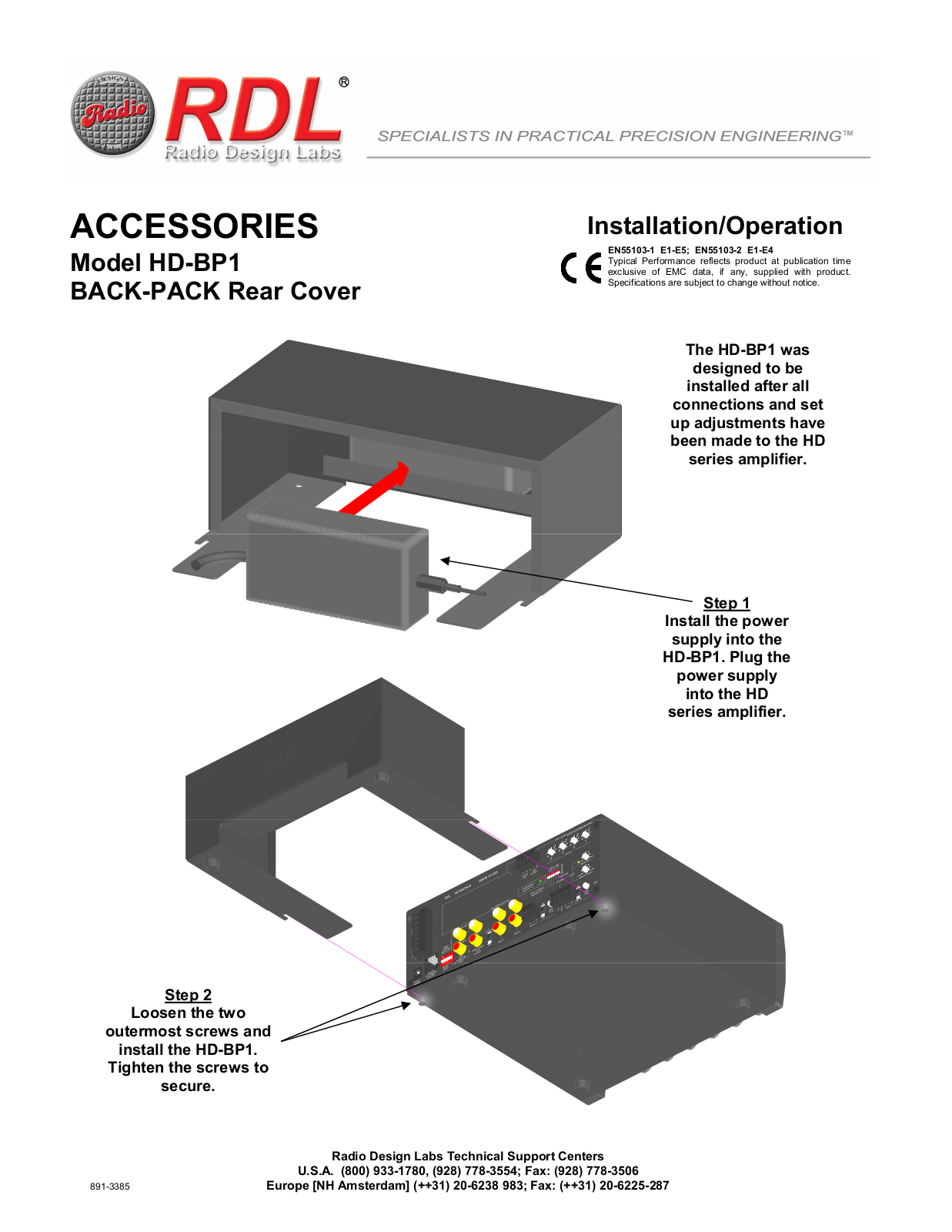

ACCESSORIES

Model HD-BP1
BACK-PACK Rear Cover

Step 2

Secure

frame to

bracket on

DIN rail.

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

The HD-BP1 was

designed to be

installed after all

connections and set
up adjustments have
been made to the HD

series amplifier.

Step 1

Install the power

supply into the

HD-BP1. Plug the

power supply

into the HD

series amplifier.

Step 2

Loosen the two

outermost screws and

install the HD-BP1.

Tighten the screws to

secure.

891-3385

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
