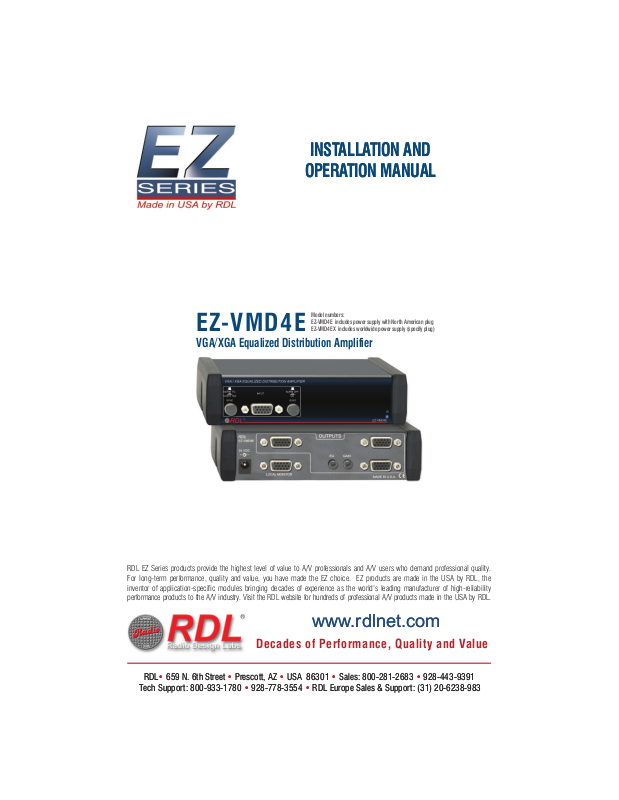

Page 1
INSTALLATION AND
INSTALLATION AND
OPERATION MANUAL
OPERATION MANUAL
Model numbers:
EZ-VMD4E
EZ-VMD4E includes power supply with North American plug
EZ-VMD4EX includes worldwide power supply (specify plug)
VGA/XGA Equalized Distribution Amplifier
RDL EZ Series products provide the highest level of value to A/V professionals and A/V users who demand professional quality.
RDL EZ Series products provide the highest level of value to A/V professionals and A/V users who demand professional quality.
For long-term performance, quality and value, you have made the EZ choice. EZ products are made in the USA by RDL, the
For long-term performance, quality and value, you have made the EZ choice. EZ products are made in the USA by RDL, the
inventor of application-specific modules bringing decades of experience as the world’s leading manufacturer of high-reliability
inventor of application-specific modules bringing decades of experience as the world’s leading manufacturer of high-reliability
performance products to the A/V industry. Visit the RDL website for hundreds of professional A/V products made in the USA by RDL.
performance products to the A/V industry. Visit the RDL website for hundreds of professional A/V products made in the USA by RDL.
www.rdlnet.com
www.rdlnet.com
Decades of Performance, Quality and Value
Decades of Performance, Quality and Value
RDL• 659 N. 6th Street • Prescott, AZ • USA 86301 • Sales: 800-281-2683 • 928-443-9391
RDL• 659 N. 6th Street • Prescott, AZ • USA 86301 • Sales: 800-281-2683 • 928-443-9391
Tech Support: 800-933-1780 • 928-778-3554 • RDL Europe Sales & Support: (31) 20-6238-983
Tech Support: 800-933-1780 • 928-778-3554 • RDL Europe Sales & Support: (31) 20-6238-983
Page 2
EZ-VMD4E
VGA/XGA Equalized Distribution Amplifier
•
Input and Outputs on HD15 Female Connectors
•
Wide RGB Bandwidth > 400 MHz Loaded
•
High Resolution Compatibility VGA through QXGA
•
Reliable Full-Size Switches for Switched Functions
•
Switch-Selectable TTL or Video 75 Ω Input Sync
•
NORM ID BIT Connects LOCAL MONITOR and INPUT ID
•
Front-Panel ID Bit Selection for Each Input
•
DC RGB Coupling, Output Polarity and Offset Follow Input
•
Rear-Panel GAIN and EQ Peaking Trimmers
The EZ-VMD4E is a high-resolution computer video distribution amplifier with four outputs. The input has an associated ID BIT
switch to assure compatibility with various computers. Sync is front-panel switch-selectable between standard TTL or 75 Ω
video. One of the four outputs is indivually buffered for driving the computer monitor. The other three outputs are driven by
separate output amplifiers that include rear-panel gain and equalization trimmers that provide adjustable compensation for
quality monitor cable lengths exceeding 100 m (300 ft). All switched functions are easily accessible on the front panel. The
EZ-VMD4E is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, stores and
commercial A/V systems.
TYPICAL APPLICATION
Remote Monitors
EZ-VMD4E
Local Monitor
www.rdlnet.com • • • www.rdlez.com
www.rdlnet.com • • • www.rdlez.com
Computer
Page 3
SYNC INPUT SELECTOR
The SYNC switch selects between standard computer card TTL sync
and RGBHV 75 ohm video format sync. Set the switch to the NORM TTL
position (button OUT) for use with a normal computer video source; set to
the VIDEO 75 OHM position (button IN) for use with a 75 ohm sync source.
ID BIT
Set to NORM OFF position (button OUT) unless computer video
output fails to operate with the connected monitors; set switch
to ON position (button IN) if needed to activate computer video
monitor output (not typically required unless using certain laptops).
VIDEO INPUT
Connect the video source to the INPUT jack.
POWER INDICATOR
Glows blue when the
product is connected to
a valid power source.
24 VDC INPUT
Insert plug from
power supply.
Rotate 1/4 turn
clockwise to lock.
EQUALIZATION ADJUSTMENT
If long video cables are connected to the outputs, turn the EQ
control clockwise until the picture sharpness appears normal.
If short output cables are connected, or if the picture clarity is
normal, set the EQ control fully counter-clockwise.
FOR BEST PICTURE QUALITY, REMOTE VIDEO MONITOR “OPTIMIZATION” FUNCTION SHOULD BE RUN, IF PROVIDED.
POWER CONNECTION
POWER CONNECTION
Insert Power Plug
Insert Power Plug
Rotate 1/4-turn
Rotate 1/4-turn
clockwise to lock
clockwise to lock.
LOCAL MONITOR OUTPUT
Connect the LOCAL MONITOR
output to the input of the local
computer video monitor.
Rotate 1/4-turn
Rotate 1/4-turn
counter-clockwise
counter-clockwise
to unlock
to unlock.
GAIN ADJUSTMENT
If long video cables are connected to the
outputs, turn the GAIN control clockwise
until the picture brightness appears normal.
If short output cables are connected, or if
the picture brightness is normal, set the
GAIN control fully counter-clockwise.
FIXED MOUNTING RUBBER FEET ATTACHMENT
FIXED MOUNTING RUBBER FEET ATTACHMENT
Screw
Screw
directly to flat
directly to flat
surface without
surface without
installing rubber feet.
installing rubber feet.
MONITOR OUTPUTS
Connect to the video inputs of
1, 2 or 3 monitors or projectors.
Recess
Recess
Bottom View
Bottom View
of chassis
of chassis
Peel backing and stick the 4 rubber
Peel backing and stick the 4 rubber
feet to chassis in recesses provided.
feet to chassis in recesses provided.
Page 4
SELECTED MOUNTING ACCESSORIES
EZ-RA6
Rack Adapter for 6 Increments of 1/6 Rack Width
EZ-CC6
Component Chassis for 6 Increments of 1/6 Rack Width
Complete accessory listing available at: rdlez.com
EZ-SMB2
Surface Mount Bezel for 1/3 Rack Width Products
EZ-UCB2
EZ-UCB2
Under-Counter Brackets 1/6 or 1/3 Rack Width
Under-Counter Brackets 1/6 or 1/3 Rack Width
TYPICAL PERFORMANCE
TYPICAL PERFORMANCE
Input: VGA - QXGA RGBHV or RGB with combined sync
Outputs (4): LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT 1), OUTPUTS (3, with GAIN and EQ trim)
Gain: Unity (LOCAL MONITOR output), Unity to +6 dB (Monitor outputs)
Equalization (peaking): None (LOCAL MONITOR output), Adjustable 0 to +8 dB at 100 MHz (Monitor outputs)
Video bandwidth: > 400 MHz
Video impedance: 75 Ω (Input and output)
Sync (HV) input: 500 Ω TTL or 75 Ω Video (Switch-selectable), 0.7 V to 5 V p-p
Sync (HV) output: 5V TTL
Sync (HV) Propogation delay: < 4 nS typ.
Sync (HV) Rise time: < 4 nS typ.
Sync (combined): Output follows input
Bit Control: Switch-selectable (individual selector per input, pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
24 Vdc power supply current: 70 mA (idle), 90 mA (max.)
Power supply input voltage: 100 to 240 VAC
Warranty: 3 Years; contact RDL technical support department for assistance
Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size: 1/3 rack width
EZ-DC2
Desktop Chassis 1/3 Rack Width
EZ-SD2
Storage Drawer 1/3 Rack Width
Use In Place of Filler Panel
Holds Adapters and Cables
Mounts in EZ-CC6 and EZ-RA6
Copyright © 2009 Radio Design Labs, Inc. RDL, Radio Design Labs and the RDL logo are registered trademarks of Radio Design Labs, Inc. Data reflects product at publication time, subject to change without notice. “Made in USA” applies to all EZ products except power supplies.
Copyright © 2009 Radio Design Labs, Inc. RDL, Radio Design Labs and the RDL logo are registered trademarks of Radio Design Labs, Inc. Data reflects product at publication time, subject to change without notice. “Made in USA” applies to all EZ products except power supplies.
891-1595
