EZ-PA20

20 Watt Stereo Audio Power Amplifier

•

Audio Amplifier with Front-Panel Level Control

•

10 Watts RMS Per Channel into 8 Ω

•

8 Watts RMS Per Channel into 4 Ω

•

Switch-Selectable Load Impedance on Rear Panel

•

Unbalanced Line Input on RCA Jacks

•

Switch-Selectable Mono or Stereo Mode

•

Integral Overload Limiter with LED Indicator

•

Limiter Controls Overloads from Clipping

The EZ-PA20 is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than a standard amplifier. The outputs drive 4 or 8 ohm speakers. The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.

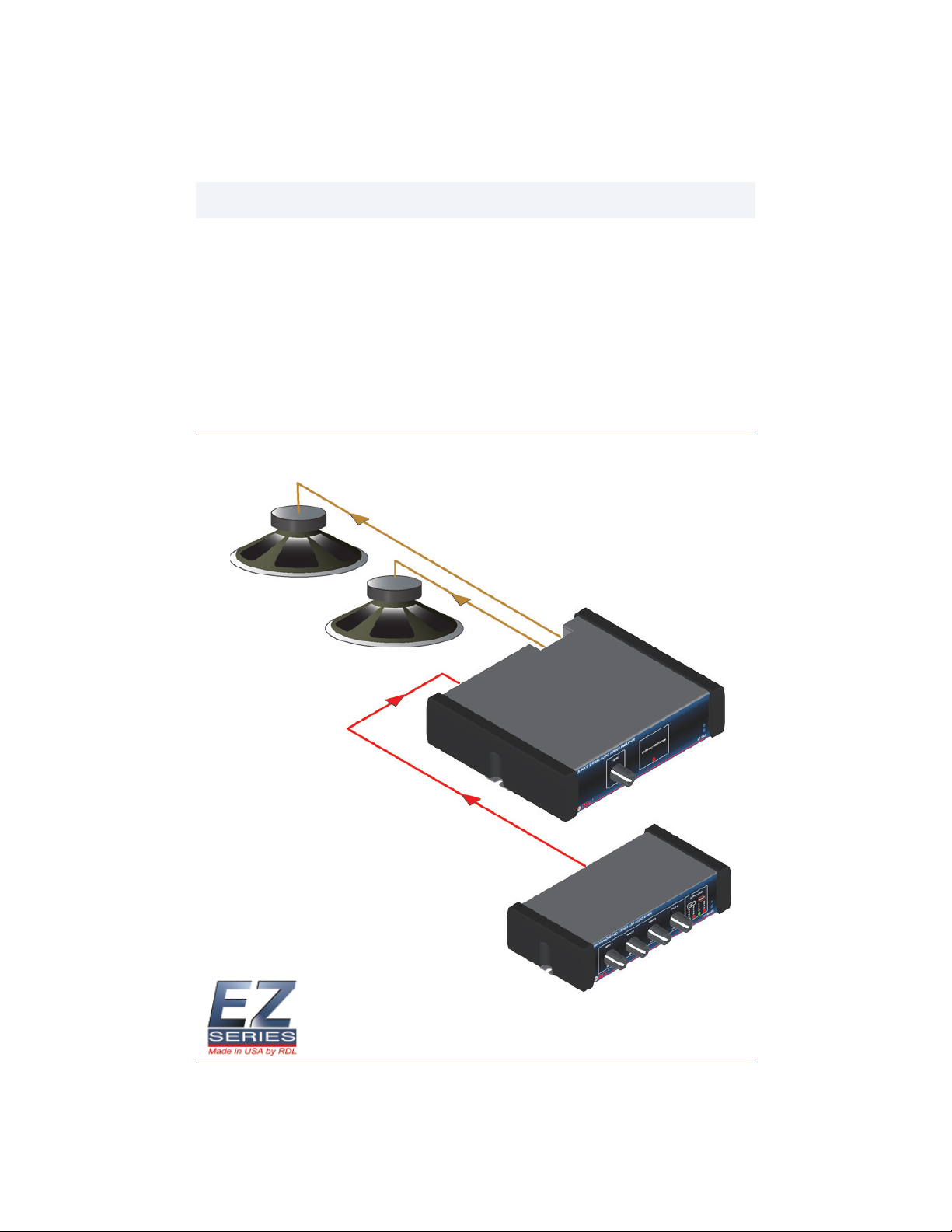

TYPICAL APPLICATION

EZ-PA20

Mixer

www.rdlnet.com • • • www.rdlez.com

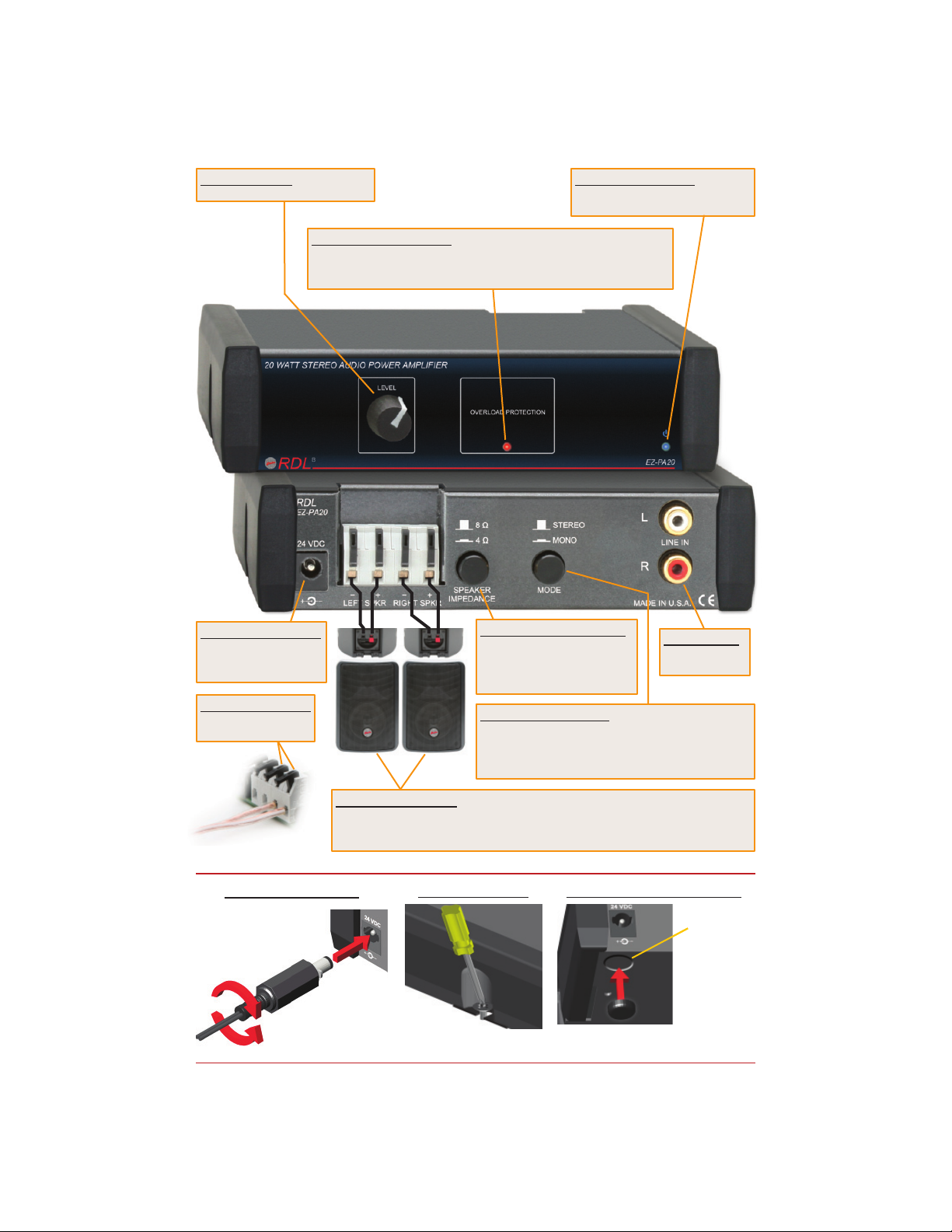

OUTPUT LEVEL

Adjust for the desired sound level.

OVERLOAD INDICATOR

LED flashes when the internal compression circuits are protecting the amplifier output against overload. It is normal for this indicator to flash during high audio levels. Reduce the input level if this indicator flashes excessively or stays on continuously.

POWER INDICATOR

Glows blue when the product is connected to a valid power source.

24 V POWER INPUT

Insert plug from power supply. Rotate 1/4 turn clockwise to lock.

SPEAKER WIRING

Lift lever, insert wire. Close lever to lock.

POWER CONNECTION

Insert Power Plug

Rotate 1/4-turn

Rotate 1/4-turn clockwise to lock

clockwise to lock.

Rotate 1/4-turn

Rotate 1/4-turn counter-clockwise

counter-clockwise to unlock

to unlock.

IMPEDANCE SELECTOR

Set to match the speakers connected: 8 Ohm: Button OUT 4 Ohm: Button IN

LINE INPUTS

Connect a line-level source to LINE IN.

MONO/STEREO MODE

If a mono source is connected to one input, set MODE to MONO (Button IN). If a stereo source is connected, but a mono summed (combined left and right) amplifier output is preferred, set MODE to MONO; for stereo operation, set MODE to STEREO (Button OUT).

SPEAKER OUTPUTS

Connect a pair of 8 Ohm or 4 Ohm speakers to the LEFT SPKR and RIGHT SPKR terminals. Connect the speaker “+” terminal to the amplifier “+” terminal. Connect the speaker “-” terminal to the amplifier “-” terminal.

FIXED MOUNTING RUBBER FEET ATTACHMENT

Screw

Screw directly to flat

directly to flat surface without

surface without installing rubber feet.

installing rubber feet.

DO NOT GROUND ANY SPEAKER OUTPUT TERMINAL!

Recess

Bottom View

Bottom View of chassis

of chassis

Peel backing and stick the 4 rubber

Peel backing and stick the 4 rubber feet to chassis in recesses provided.

feet to chassis in recesses provided.

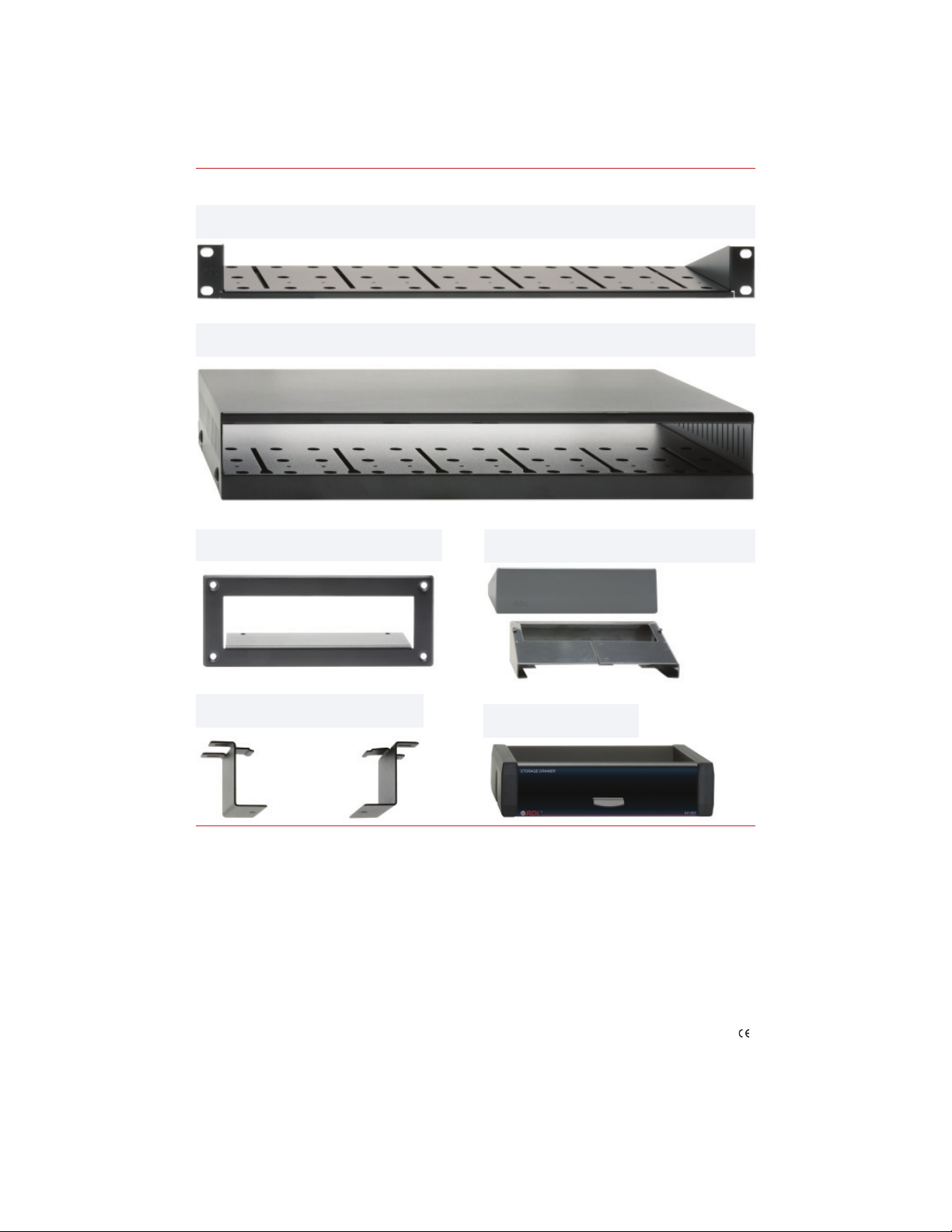

SELECTED MOUNTING ACCESSORIES

EZ-RA6

Rack Adapter for 6 Increments of 1/6 Rack Width

EZ-CC6

Component Chassis for 6 Increments of 1/6 Rack Width

Complete accessory listing available at: rdlez.com

EZ-SMB2

Surface Mount Bezel for 1/3 Rack Width Products

EZ-UCB2

Under-Counter Brackets 1/6 or 1/3 Rack Width

TYPICAL PERFORMANCE

Input: > 10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. Gain: Off to 32 dB Outputs (2): Left and Right, 10 Watts RMS into 8 Ω per channel or 8 Watts RMS into 4 Ω per channel, switch-selectable output impedance Frequency Response: 35 Hz to 20 kHz (±1.5 dB, 10 Watts) THD+N: < 0.25% Crosstalk: < -68 dB (1 kHz) Phantom: Switch-selectable 24 V (IEC 1938: 1996-12) Noise: < -70 dB (below 10 Watts) 24 Vdc power supply current: 160 mA (idle), 1000 mA (max.) Power supply input voltage: 100 to 240 VAC Warranty: 3 Years; contact RDL technical support department for assistance Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D Mounting size: 1/3 rack width

EZ-DC2

Desktop Chassis 1/3 Rack Width

EZ-SD2

Storage Drawer 1/3 Rack Width

Use In Place of Filler Panel Holds Adapters and Cables Mounts in EZ-CC6 and EZ-RA6
