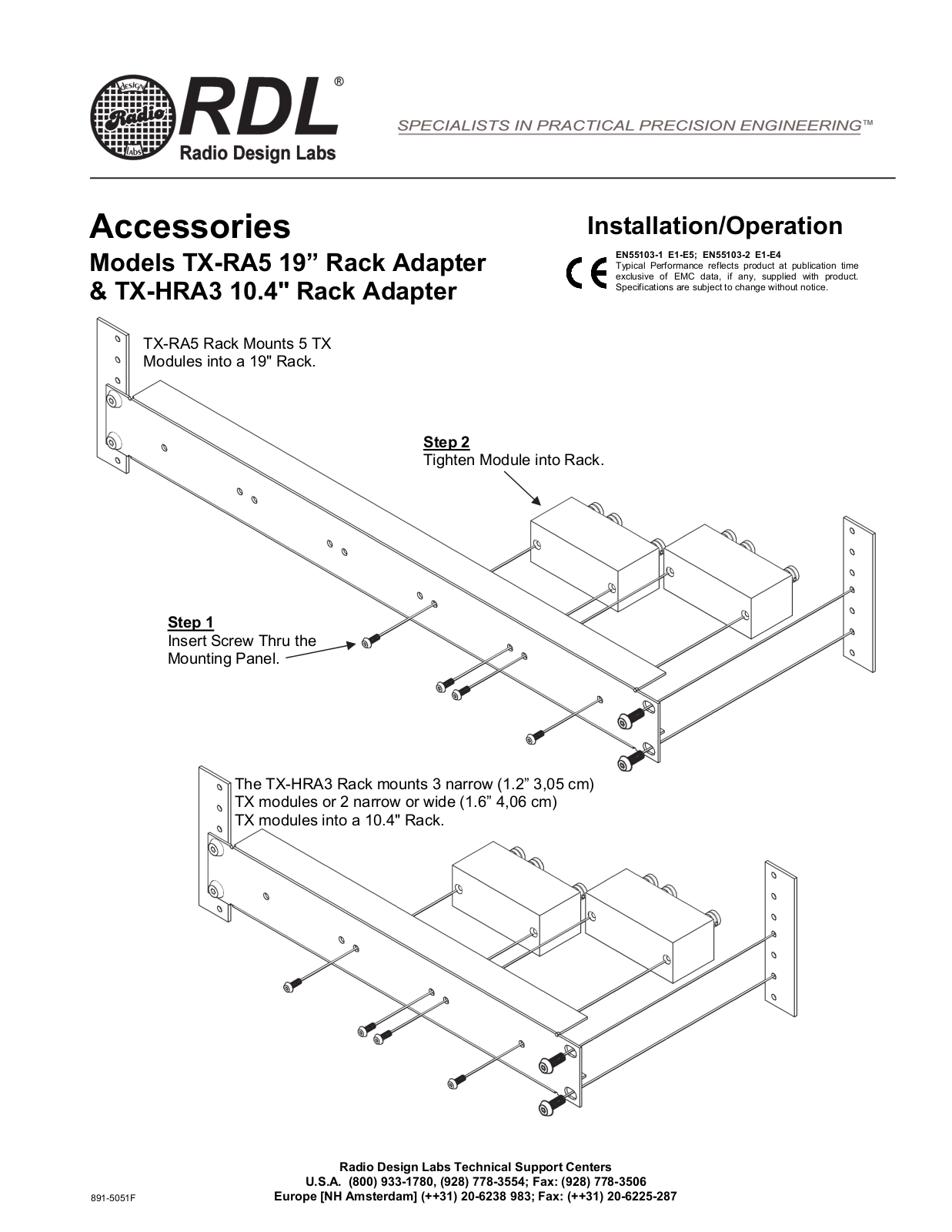

Accessories
Models TX-RA5 19” Rack Adapter
& TX-HRA3 10.4" Rack Adapter
TX-RA5 Rack Mounts 5 TX
Modules into a 19" Rack.
Step 2
Tighten Module into Rack.
Step 1
Insert Screw Thru the
Mounting Panel.
Installation/Operation
EN55103-1 E1-E5; EN55103-2 E1-E4
Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.
The TX-HRA3 Rack mounts 3 narrow (1.2” 3,05 cm)
TX modules or 2 narrow or wide (1.6” 4,06 cm)
TX modules into a 10.4" Rack.
