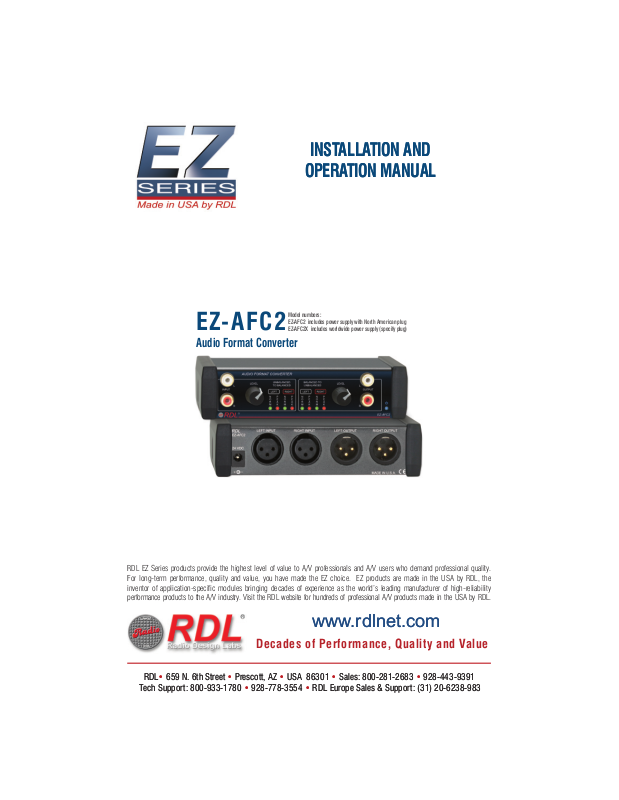

Page 1
Model numbers:
EZ-AFC2
EZ-AFC2 includes power supply with North American plug
EZ-AFC2X includes worldwide power supply (specify plug)
Audio Format Converter
INSTALLATION AND
INSTALLATION AND
OPERATION MANUAL
OPERATION MANUAL
RDL EZ Series products provide the highest level of value to A/V professionals and A/V users who demand professional quality.
RDL EZ Series products provide the highest level of value to A/V professionals and A/V users who demand professional quality.
For long-term performance, quality and value, you have made the EZ choice. EZ products are made in the USA by RDL, the
For long-term performance, quality and value, you have made the EZ choice. EZ products are made in the USA by RDL, the
inventor of application-specific modules bringing decades of experience as the world’s leading manufacturer of high-reliability
inventor of application-specific modules bringing decades of experience as the world’s leading manufacturer of high-reliability
performance products to the A/V industry. Visit the RDL website for hundreds of professional A/V products made in the USA by RDL.
performance products to the A/V industry. Visit the RDL website for hundreds of professional A/V products made in the USA by RDL.
www.rdlnet.com
www.rdlnet.com
Decades of Performance, Quality and Value
Decades of Performance, Quality and Value
RDL• 659 N. 6th Street • Prescott, AZ • USA 86301 • Sales: 800-281-2683 • 928-443-9391
RDL• 659 N. 6th Street • Prescott, AZ • USA 86301 • Sales: 800-281-2683 • 928-443-9391
Tech Support: 800-933-1780 • 928-778-3554 • RDL Europe Sales & Support: (31) 20-6238-983
Tech Support: 800-933-1780 • 928-778-3554 • RDL Europe Sales & Support: (31) 20-6238-983
Page 2
EZ-AFC2
Audio Format Converter
•
Unbalanced to Balanced Audio Conversion
•
Balanced to Unbalanced Audio Conversion
•
Unbalanced RCA Connections on Front Panel
•
Balanced XLR Connections on Rear Panel
•
Front-Panel LEVEL Controls
•
Dual-LED VU Meter for Each Channel
The EZ-AFC2 is a stereo bi-directional audio format converter with level controls. Conversion is provided between balanced
rear-panel XLR jacks and unbalanced front-panel RCA jacks. LED VU metering is provided for all audio channels facilitating
adjustment for high or low input levels. The EZ-AFC2 is used in houses of worship, studios, sound booths, home component
systems and commercial sound systems.
TYPICAL APPLICATION
Pro Mixer with XLR inputs and outputs
EZ-AFC2
CD or Cassette Recorder/Player
www.rdlnet.com • • • www.rdlez.com
www.rdlnet.com • • • www.rdlez.com
Page 3

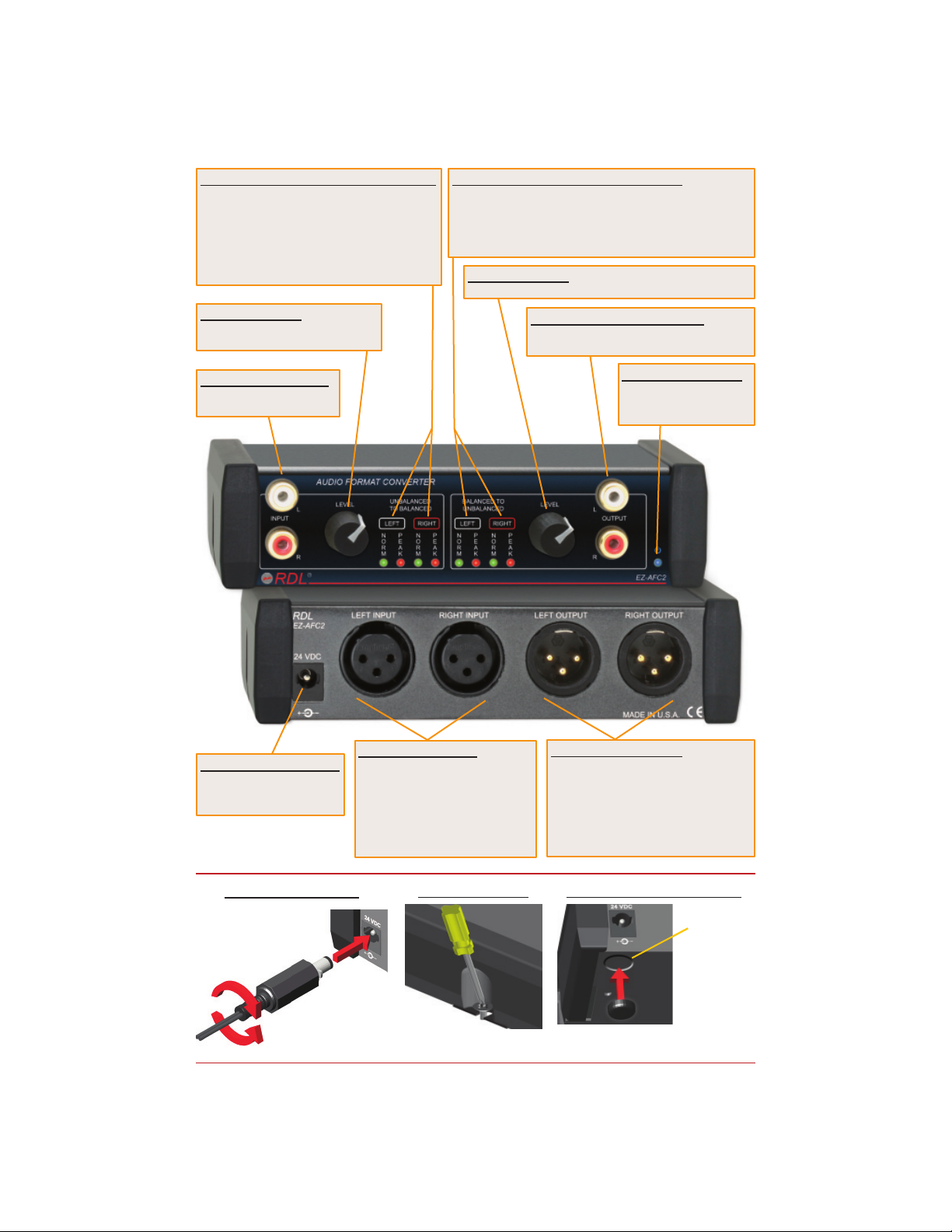

UNBALANCED TO BALANCED VU METERS
LEFT and RIGHT LED VU meters monitor the
balanced outputs for proper +4 dBu level.
With audio present, the variable intensity green
LED should be as bright as possible with
the red LED flashing occasionally. (The red
LED flashes when the rear-panel output level
exceeds +4 dBu.)
LEVEL CONTROL
Adjust the LEVEL control for proper
audio level on the VU meters.
BALANCED TO UNBALANCED VU METERS
LEFT and RIGHT LED VU meters monitor the unbalanced
outputs for proper -10 dBV level. With audio present, the
variable intensity green LED should be as bright as possible
with the red LED flashing occasionally. (The red LED
flashes when the front-panel output level exceeds -10 dBV.)
LEVEL CONTROL
Adjust the LEVEL control for proper audio level on the VU meters.
UNBALANCED LINE OUTPUT
Connect to a consumer product unbalanced
stereo input.
UNBALANCED INPUT
Connect an unbalanced
stereo source.
24 VDC POWER INPUT
Insert plug from power
supply. Rotate 1/4 turn
clockwise to lock.
BALANCED INPUTS
Connect a balanced stereo source
to the LEFT INPUT and RIGHT
INPUT XLR jacks. Typical sources
include professional mixers
and professional recording and
playback products. For mono
conversion, use only one channel.
POWER INDICATOR
Glows blue when the
product is connected to a
valid power source.
BALANCED OUTPUTS
Connect the LEFT OUTPUT and RIGHT
OUTPUT to equipment with a balanced
stereo input. Typical connections
include professional mixers and
professional recording and playback
products. For mono conversion, use
only one channel.
POWER CONNECTION
POWER CONNECTION
Insert Power Plug
Insert Power Plug
Rotate 1/4-turn
Rotate 1/4-turn
clockwise to lock
clockwise to lock.
Rotate 1/4-turn
Rotate 1/4-turn
counter-clockwise
counter-clockwise
to unlock
to unlock.
FIXED MOUNTING RUBBER FEET ATTACHMENT
FIXED MOUNTING RUBBER FEET ATTACHMENT
Recess
Recess
Bottom View
Bottom View
of chassis
of chassis
Screw
Screw
directly to flat
directly to flat
surface without
surface without
installing rubber feet.
installing rubber feet.
Peel backing and stick the 4 rubber
Peel backing and stick the 4 rubber
feet to chassis in recesses provided.
feet to chassis in recesses provided.
Page 4

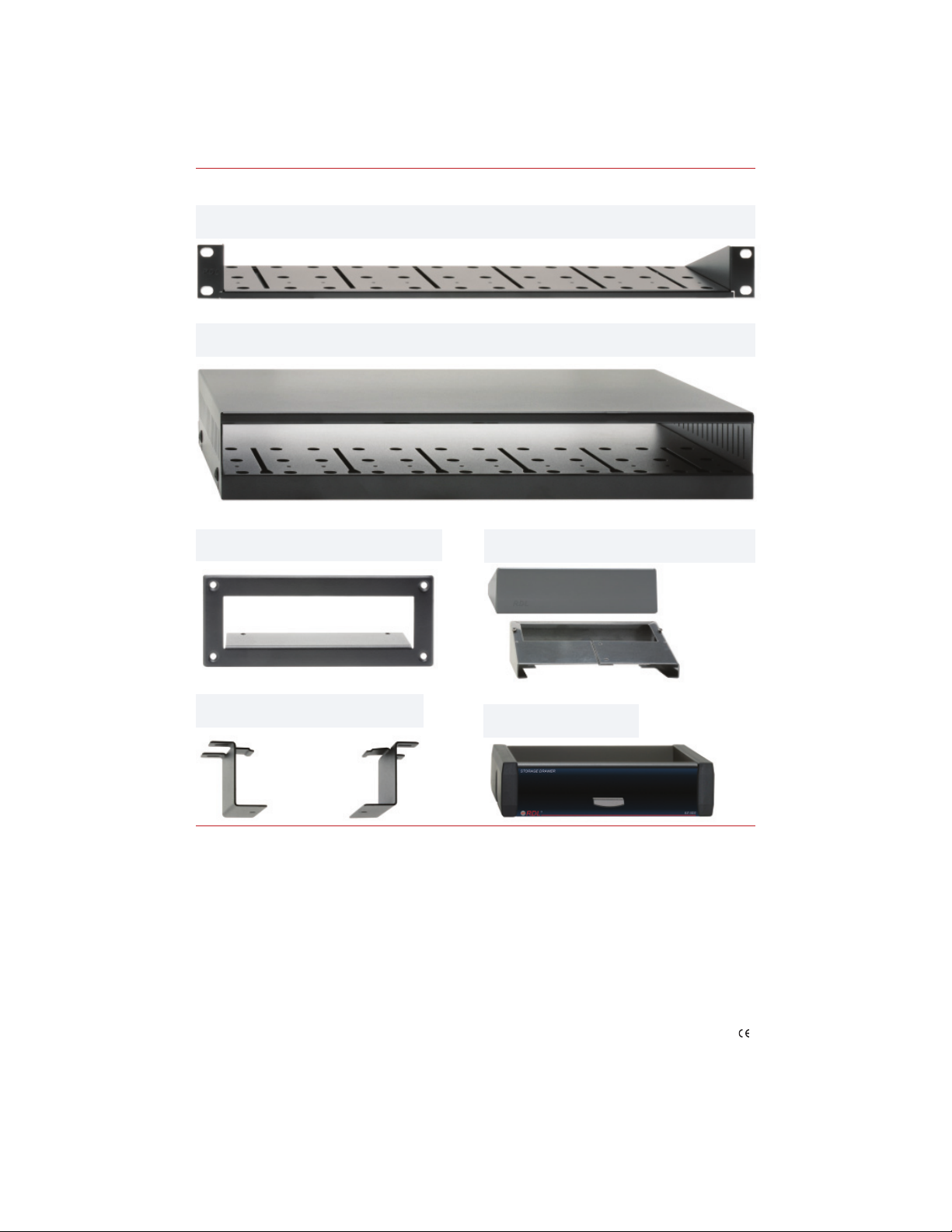

SELECTED MOUNTING ACCESSORIES
EZ-RA6
Rack Adapter for 6 Increments of 1/6 Rack Width
EZ-CC6
Component Chassis for 6 Increments of 1/6 Rack Width
Complete accessory listing available at: rdlez.com
EZ-SMB2
Surface Mount Bezel for 1/3 Rack Width Products
EZ-UCB2
EZ-UCB2
Under-Counter Brackets 1/6 or 1/3 Rack Width
Under-Counter Brackets 1/6 or 1/3 Rack Width
TYPICAL PERFORMANCE
TYPICAL PERFORMANCE
UNBALANCED TO BALANCED SECTION
Input: Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +16 dBV max.
Level control: Off to 12 dB gain above nominal
Output: Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max.
Frequency Response: 10 Hz to 50 kHz (±0.01 dB)
THD+N: < 0.01%
Metering: Dual-LED VU Meter for Left and Right, calibrated to +4 dBu output
Crosstalk: < 75 dB (1 kHz)
Noise: < -85 dB (below +4 dBu output)
24 Vdc power supply current: 45 mA (idle), 90 mA (max.)
Power supply input voltage: 100 to 240 VAC
Warranty: 3 Years; contact RDL technical support department for assistance
Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size: 1/3 rack width
EZ-DC2
Desktop Chassis 1/3 Rack Width
EZ-SD2
Storage Drawer 1/3 Rack Width
BALANCED TO UNBALANCED SECTION
Input: Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max.
Level control: Off to 12 dB gain above nominal
Output: Stereo on dual RCA jacks, -10 dBV nominal, +17 dBV max.
Frequency Response: 10 Hz to 50 kHz (±0.01 dB)
THD+N: < 0.003%
Crosstalk: < 80 dB (1 kHz)
CMRR: > 50 dB (50 Hz to 120 Hz)
Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise: < -75 dB (below +4 dBu output)
Use In Place of Filler Panel
Holds Adapters and Cables
Mounts in EZ-CC6 and EZ-RA6
Copyright © 2009 Radio Design Labs, Inc. RDL, Radio Design Labs and the RDL logo are registered trademarks of Radio Design Labs, Inc. Data reflects product at publication time, subject to change without notice. “Made in USA” applies to all EZ products except power supplies.
Copyright © 2009 Radio Design Labs, Inc. RDL, Radio Design Labs and the RDL logo are registered trademarks of Radio Design Labs, Inc. Data reflects product at publication time, subject to change without notice. “Made in USA” applies to all EZ products except power supplies.
