RDL DS-RGB1 Datasheet

ACCESSORIES

Models D-RGB1, DB-RG1, DS-RGB1

Component Video RGB Connection Plate

i i i

DB-RGB1

DS-RGB1

D-RGB1

 Component Video Input or Output Panel
 RGB video Input on RCA Jacks
 Video Output on Detachable Terminal Block

The D-SERIES-RGB1 are Decora®-compatible video accessories from Radio Design Labs. All metal enclosures are attractively
finished in white, black or brushed stainless steel to complement the decor encountered in commercial environments. Custom
labeling is available at www.rdlnet.com

The D SERIES-RGB1 is the ideal choice in installations requiring a wall-mounted component video input or output.
The panel is typically installed as an input plate, but may equally be used as an output jack panel.

The front panel features three RCA jacks, intended for a component video source. The video signals are fed to a
rear-panel detachable terminal block.

The D SERIES-RGB1 is the ideal choice to connect component video sources to a video monitor or projector in
meeting rooms, classrooms and other A/V systems.

.

 Available in RDL White/Gray (D-RGB1)
 Available in RDL Stainless Steel (DS-RGB1)
 Available in RDL Black (DB-RGB1)

RDL  659 6th St.  Prescott, AZ., USA 86301  [phone]  FAX [phone]  www.rdlnet.com

ACCESSORIES

Models D-RGB1, DB-RG1, DS-RGB1

Component Video RGB Connection Plate

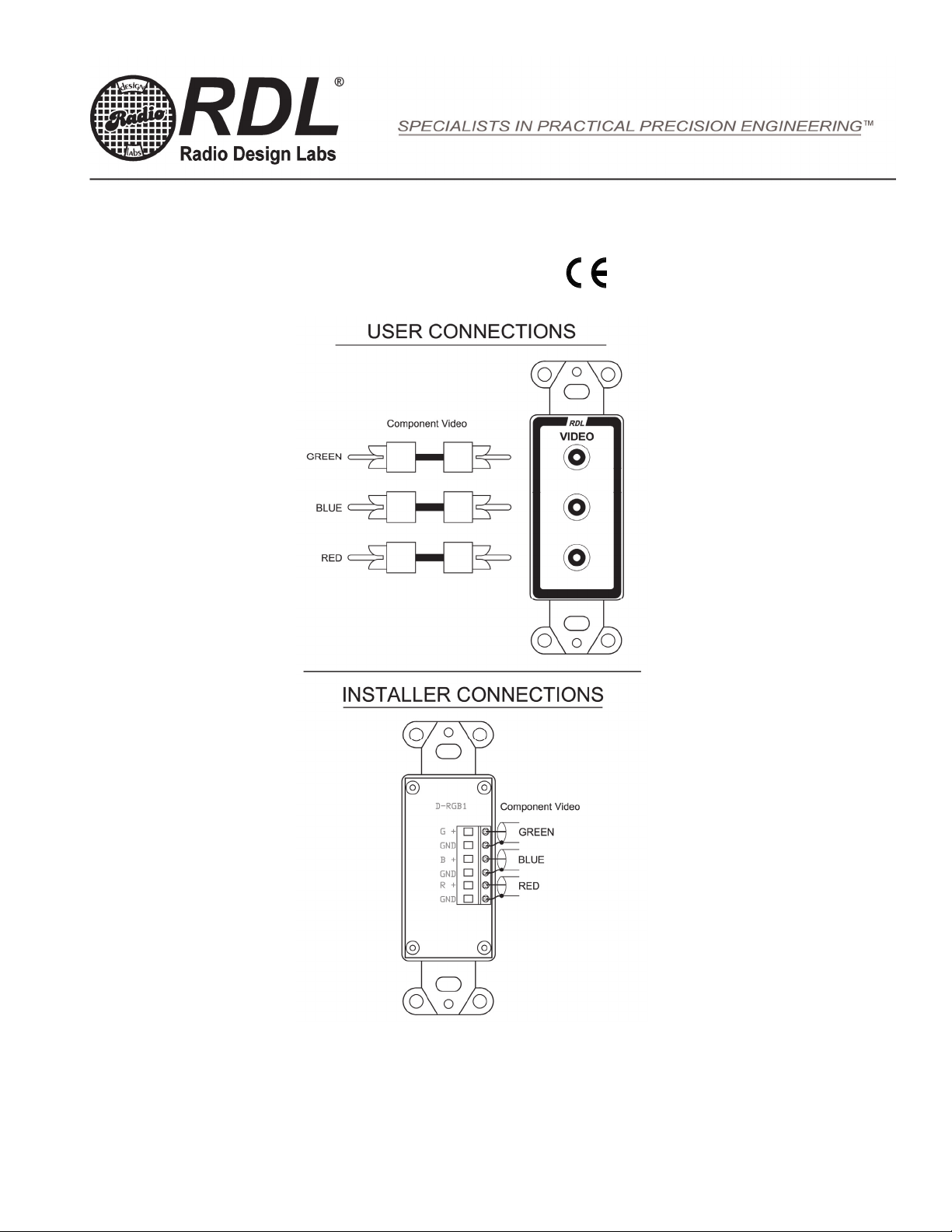

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

TYPICAL PERFORMANCE

Component video input connectors (3): RCA, RGB
Component video output connector: Detachable Terminal Block
Dimensions: Height: 4.13 in. 10.49 cm
Width: 1.3 in. 3.3 cm
Depth: 1 in. 2.54 cm
Mounting Box Minimum Dimensions: Width: 1.80 in. 4.57 cm
Depth: 1.25 in. 3.18 cm

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

891-5515A

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
