ACCESSORIES

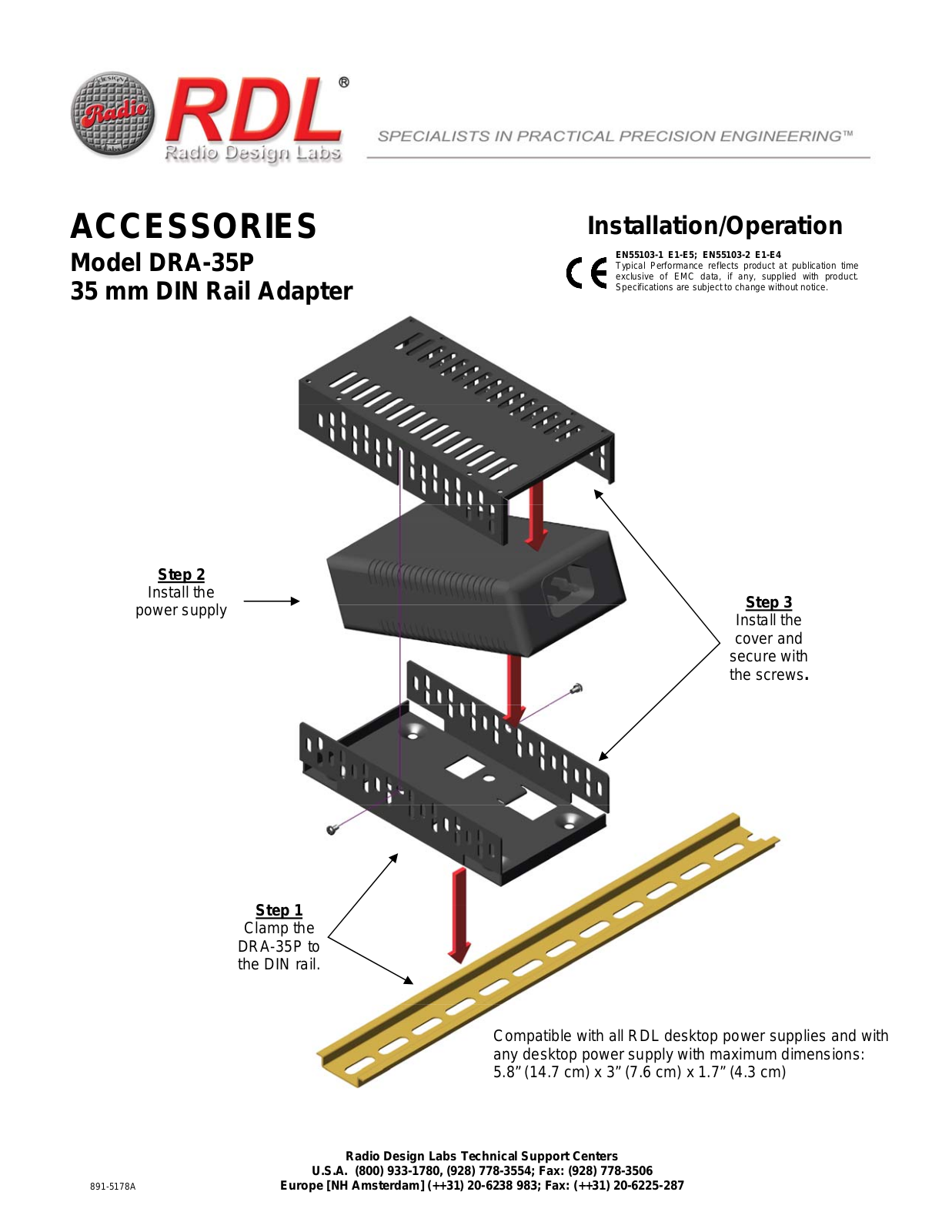

Model DRA-35P
35 mm DIN Rail Adapter

Step 2

Install the

power supply

Installation/Operation

EN55103-1 E1-E5; EN55103-2 E1-E4

Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.

Step 3

Install the

cover and
secure with
the screws.

891-5178A

DRA-35P to
the DIN rail.

Step 1

Clamp the

Compatible with all RDL desktop power supplies and with
any desktop power supply with maximum dimensions:

5.8” (14.7 cm) x 3” (7.6 cm) x 1.7” (4.3 cm)
