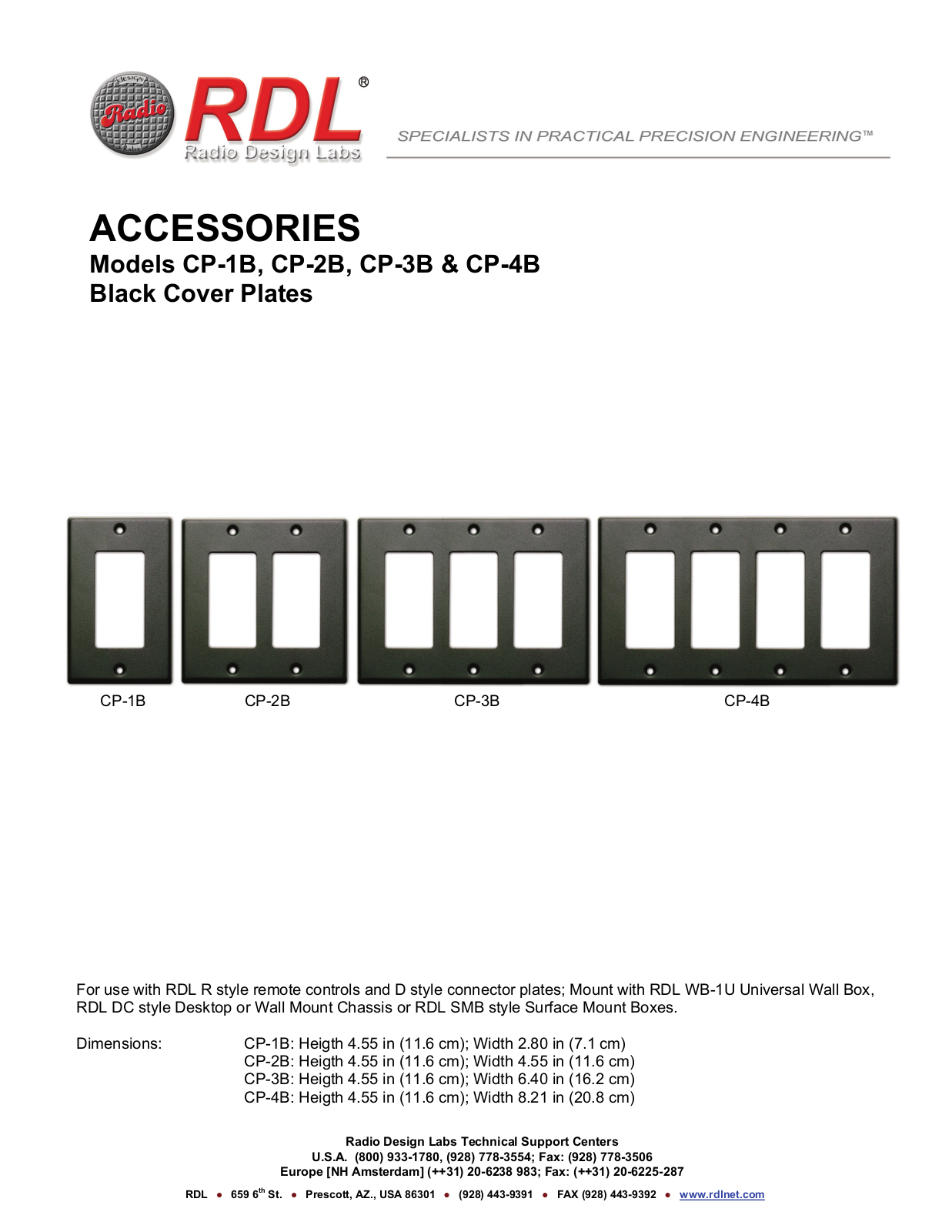

ACCESSORIES

Models CP-1B, CP-2B, CP-3B & CP-4B
Black Cover Plates

CP-1B CP-2B CP-3B CP-4B

For use with RDL R style remote controls and D style connector plates; Mount with RDL WB-1U Universal Wall Box,
RDL DC style Desktop or Wall Mount Chassis or RDL SMB style Surface Mount Boxes.

Dimensions: CP-1B: Heigth 4.55 in (11.6 cm); Width 2.80 in (7.1 cm)
CP-2B: Heigth 4.55 in (11.6 cm); Width 4.55 in (11.6 cm)
CP-3B: Heigth 4.55 in (11.6 cm); Width 6.40 in (16.2 cm)
CP-4B: Heigth 4.55 in (11.6 cm); Width 8.21 in (20.8 cm)
