RDL AMS-SW2 Datasheet

ACCESSORIES

RDL • 659 6th St. • Prescott, AZ., USA 86301 • [phone] • FAX [phone] • www.rdlnet.com

Model AMS-SW2

Latching DPDT Pushbutton
Terminal block connections

y Mounts in D-Style Standard Cutouts
y Mounts in all AMS Mounting Frames
y Mounts in RDL Decora-Style Wall Plates
y Availability of a Wide Variety of Associated AMS Accessories
y Bezel Provides Professional Aesthetic Appearance
y Provides Flexibility for Connections and Controls

Mounted in a DB-D1

(Available Separately)

The AMS SYSTEM is a versatile product group from Radio Design Labs. The unique design allows the associated AMS accessories to mount into any standard RDL RACK-UP®
or HALF-RACK mounting opening as well as other RDL mounting accessories and enclosures. These optionally available RDL rack mount, wall mount and countertop enclosures
make the AMS SYSTEM accessories useful in a wide variety of installations.

APPLICATION: The AMS-SW2 is an accessory with a DPDT latching pushbutton switch that mounts in AMS mounting frames and in

standard D-style cutouts. Two high quality terminal blocks are provided for the connections. The front plate and bracket are constructed of
black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These
accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

ACCESSORIES

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

Model AMS-SW2

Latching DPDT Pushbutton
Terminal block connections

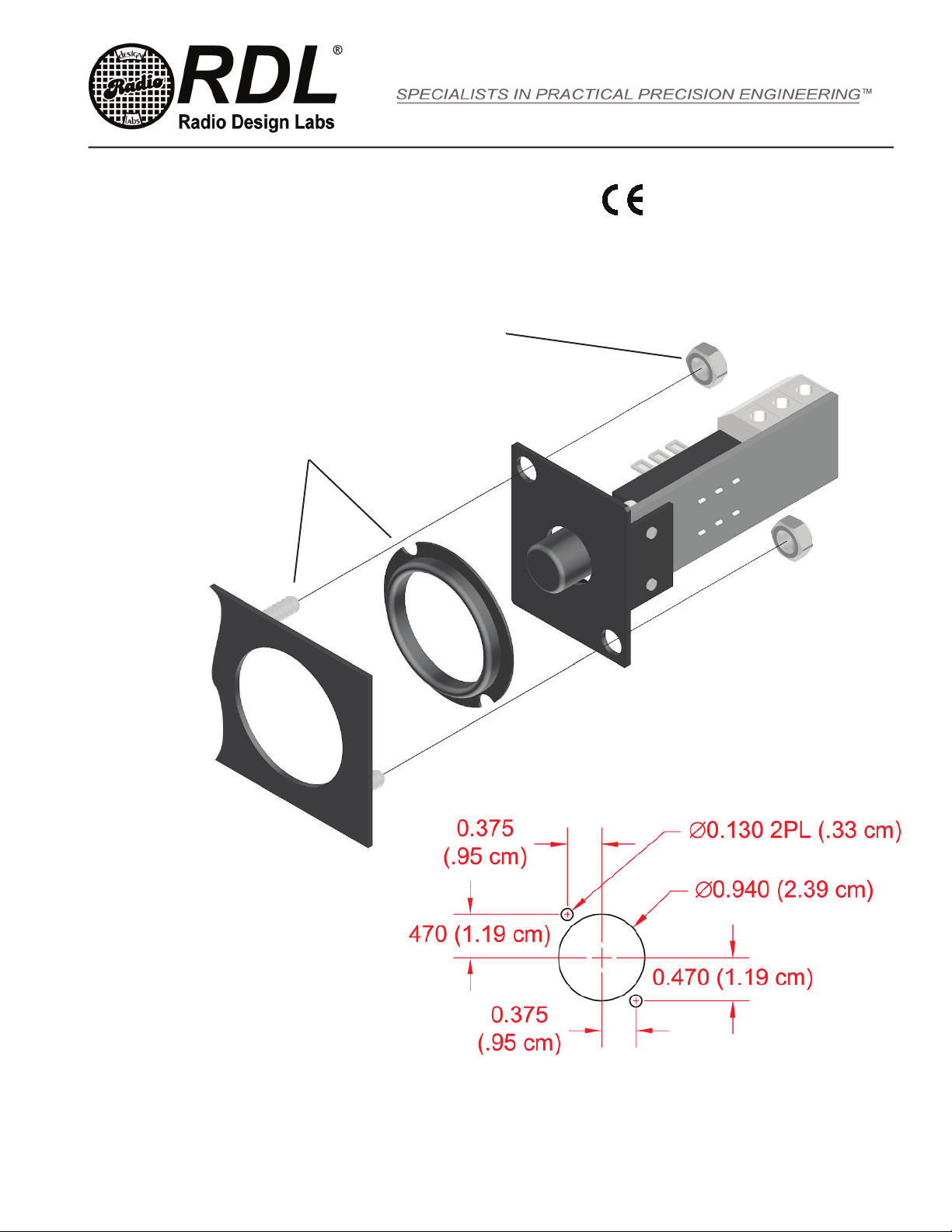

STEP #1
INSTALL THE BEZEL INTO THE MOUNTING HOLE AND
POSITION THE METAL PLATE OVER THE PEM STUDS.

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specications provided on product package.
Specications are subject to change without notice.

STEP #2
SECURE THE AMS-SW2 ONTO THE PEM STUDS WITH
THE TWO NUTS INCLUDED WITH THE AMS OR DECORA
MOUNTING PLATE.

TYPICAL PERFORMANCE

Mounting: AMS mounts; D-Style cutouts
Depth (behind the panel): 2.08 in
Ambient Operating Environment: -10 to 60 degrees C
Maximum Switching Power: 15 W (30 Vdc, 0.5 A)

891-3167A

Front View
Standard D-Style Cutout Dimensions
