RDI Technology M370ML Users Manual

DIGITAL WIRELESS CAMERA AND LCD

˖

MONITOR SYSTEM

INSTRUCTION MANUAL

MODEL: CMD6537ML

CAMERA MODEL: CA650ML

MONITOR MODEL

M370ML

Overview

Video Monitor

Music Buttons

Press the Next button to
change lullaby.

ON/OFF Switch

Slide the power switch to the
ON position to turn the video
monitor on.

Overview

Lullaby Button

Press the Lullaby button
once to begin playing a
lullaby song. Press the
Lullaby button again to stop
the song.

AUTO LED

Glows blue when
auto-record is enabled.

Audio Level Indicator

Displays the level of sound
detected by the camera.

Power LED

Glows green to indicate unit
is powered on.

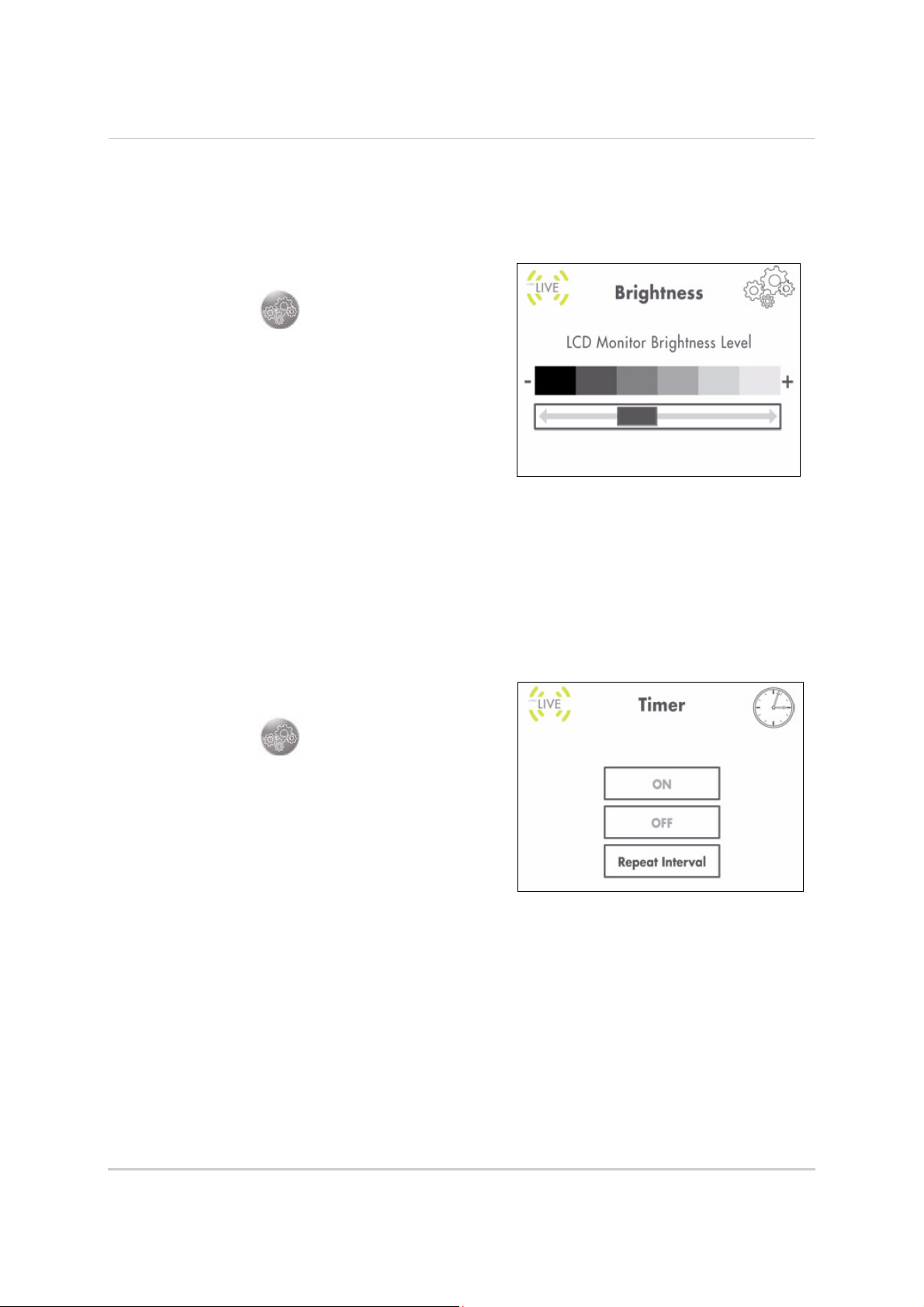

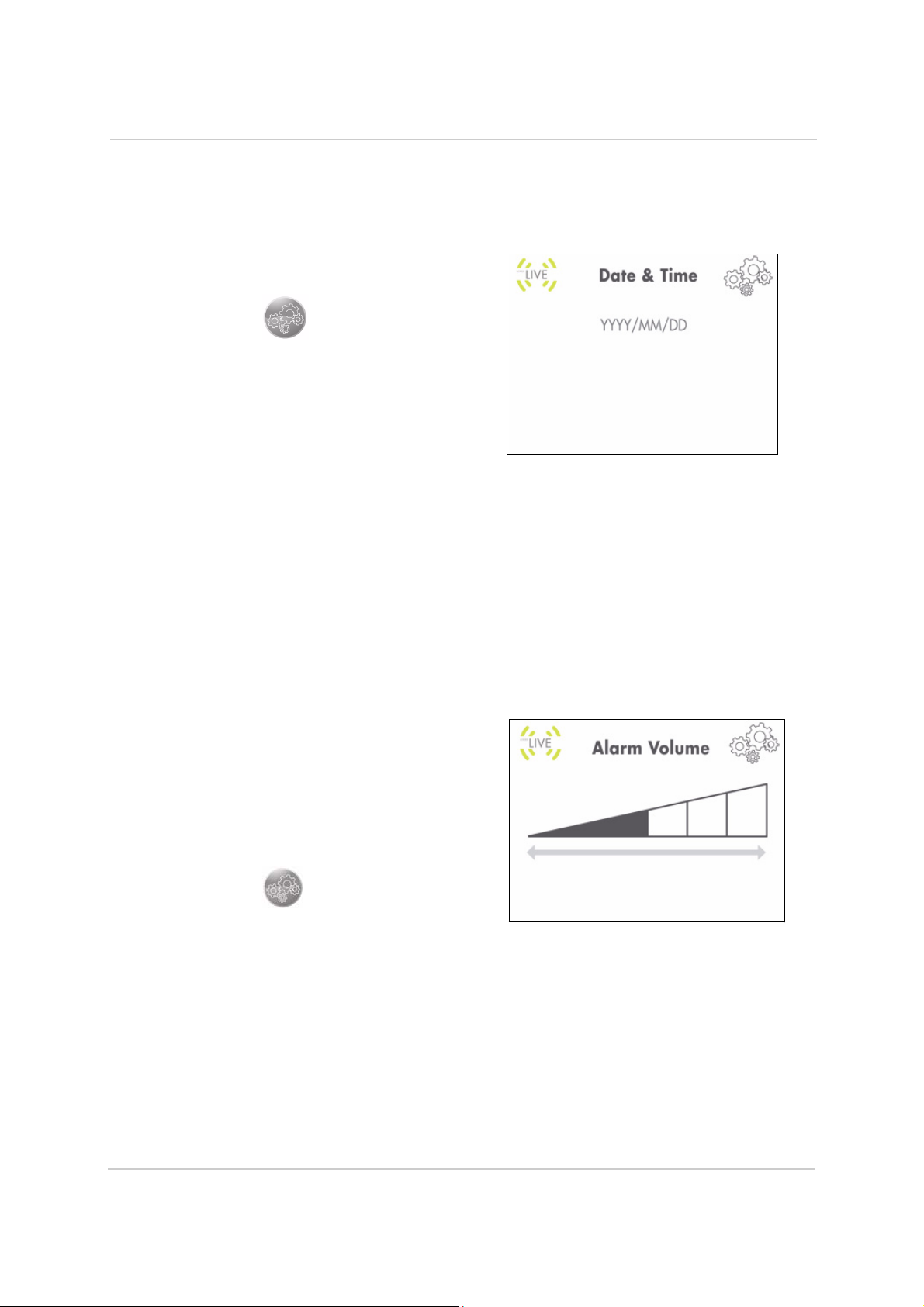

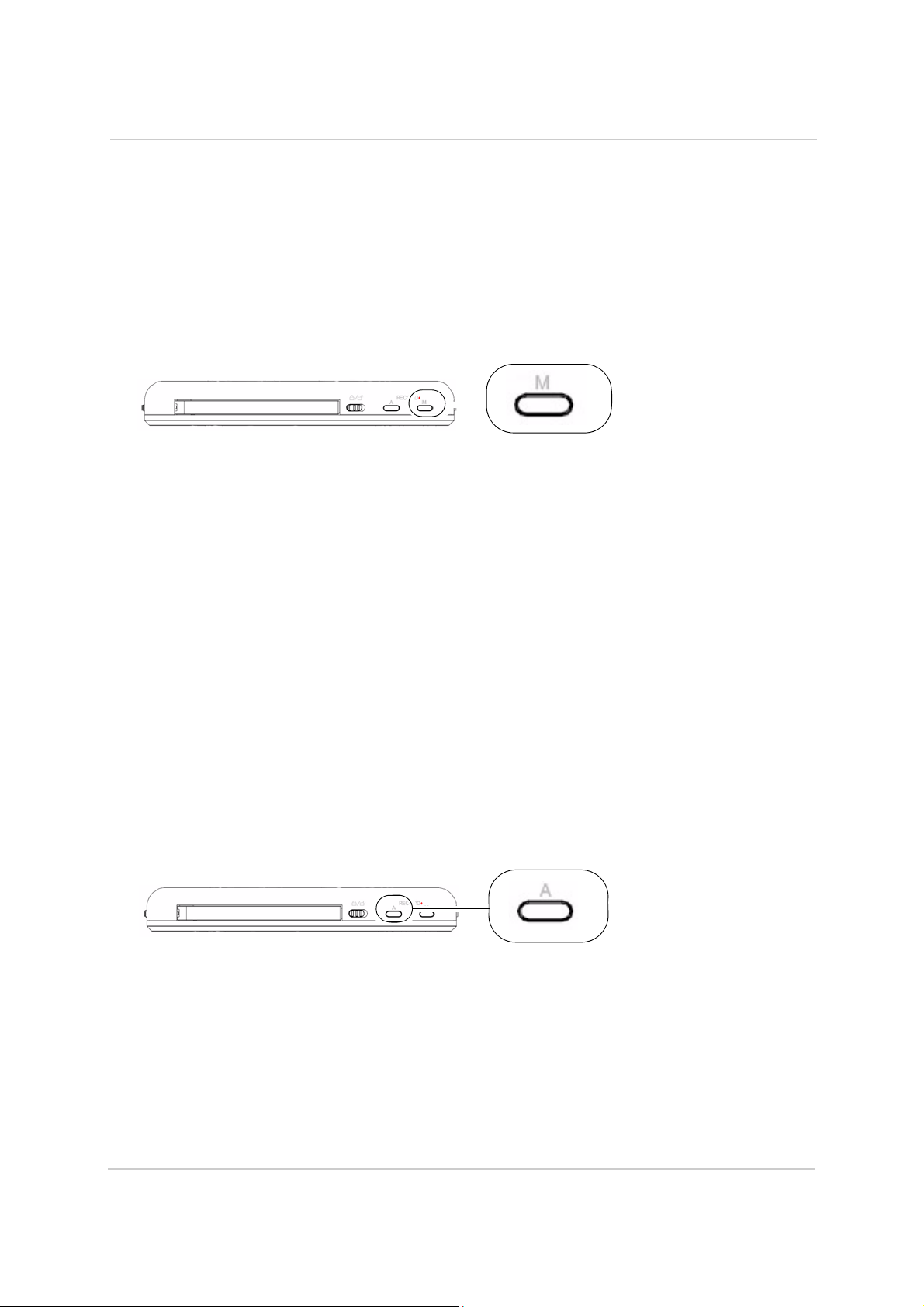

Menu Button

Press the menu button to
access the monitor menu
options.

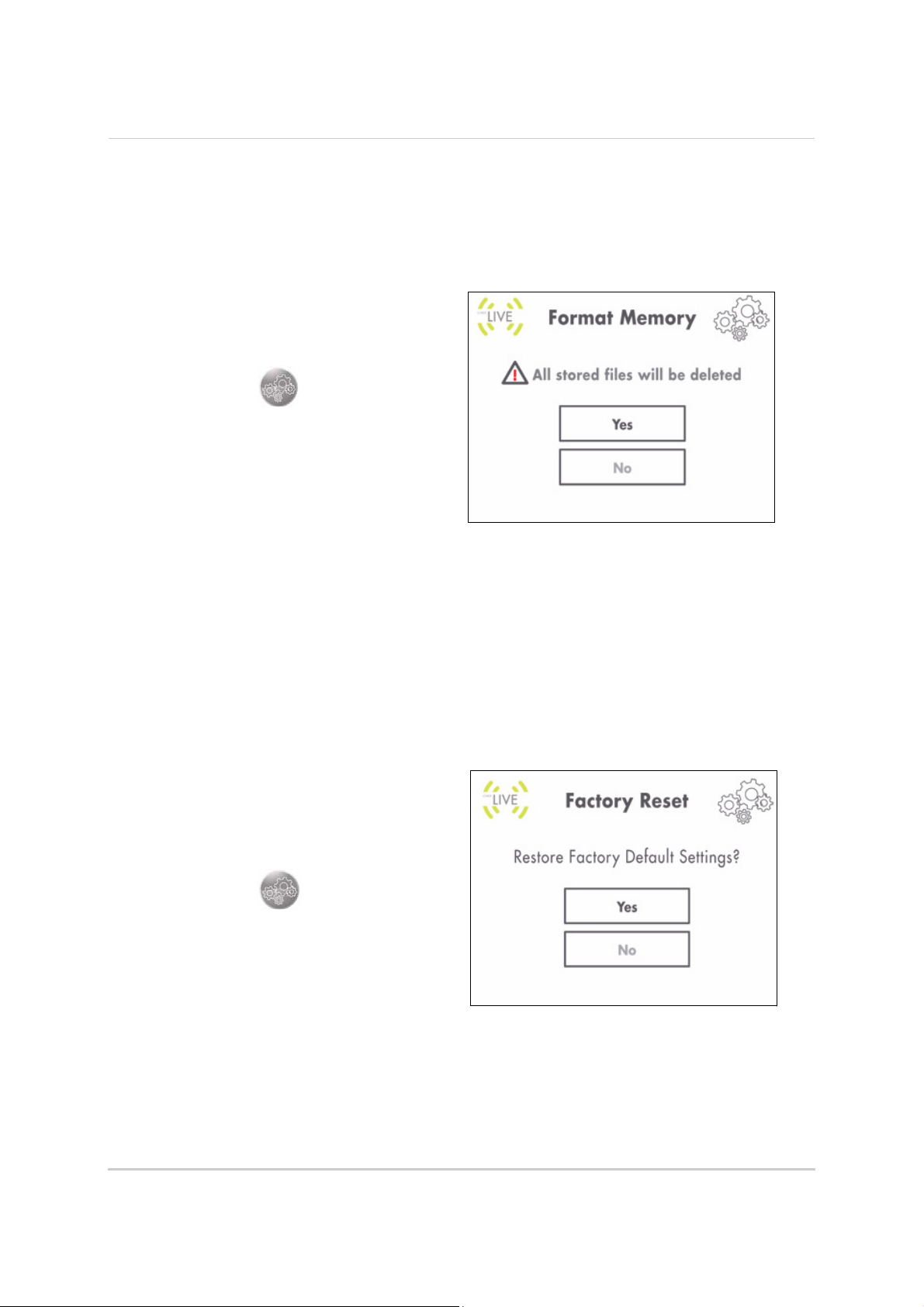

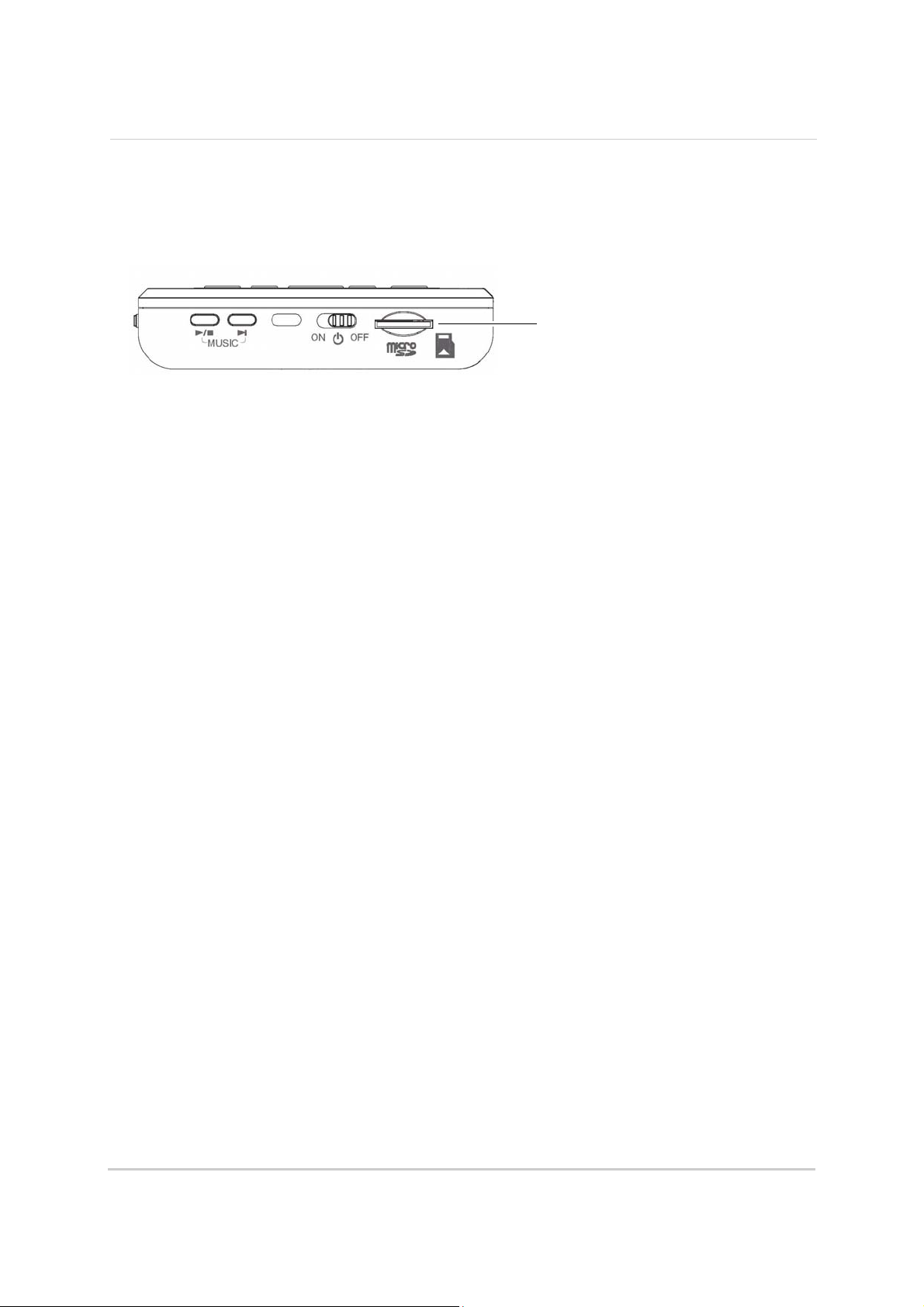

microSD Card Slot

Insert a microSD card to
record video.

Video Button

Press the Video button to
turn off the monitor. The
speakers will remain on.

Joystick

Use the joystick to navigate
system menus. Press down
on the joystick to confirm a
selection.

Volume Control

Press + / - to control the
volume.

Talk Button

Hold the talk button to
enable two-way
communication between the
video monitor and camera.

1

Overview

Video Monitor (continued)

Cam Button

Press the Cam button to
switch between channels 1-4.

Power Port

Connect the power adapter
labeled "For Monitor" into
the power port.

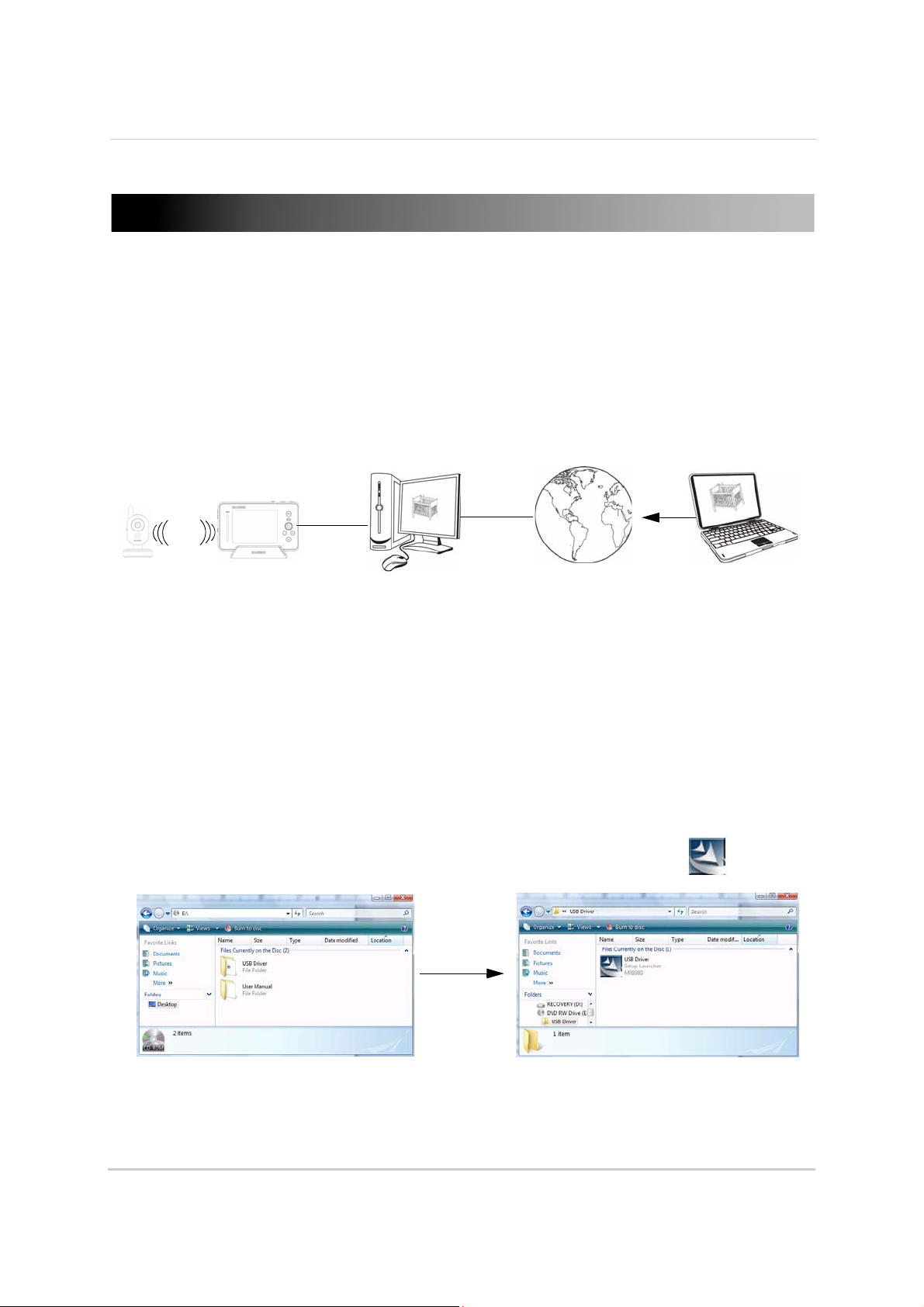

Micro USB

Connect a micro USB cable
(included) between the video
monitor and a computer to
view video from your PC or
remotely (setup required)

Sequence/ Quad Button

Press the Sequence/Quad button
to view video in quad mode (4
screen split view), or in sequence
view.

Scan Button

Scans for cameras that
detect sudden noises.

Charging LED Indicator

Glows red to indicate video
monitor is charging.

Speaker

Outputs sound received
from the camera.

How to use the joystick in menus

The joystick allows you to navigate through the video monitor menus.

OK Button

Press down on the joystick to confirm a selection.

Press up, down,
left, or right to
navigate through
the menus.

Antenna Switch

Slide the Antenna Switch
towards the unlock position
to reveal the antenna.

Power Port (DC5V)

Connect the power adapter
labeled "For Monitor" to the
charging cradle.

2

Camera Overview

Overview

LED

The camera has infrared
(IR) LEDs that allow you to
see in the dark.

Speaker

The speaker allows you to
hear the person speaking
into the video monitor.

Microphone

The microphone allows you
to speak to the person
through the video monitor.

Pair Button

Press the Pair button
during the pairing
process with the video
monitor.

Power Port (DC5V)

Plug in the connector
from the power adapter
labeled "To Camera" to
power the camera.

Sensitivity Dial

Adjust the level of
audio-detection sensitivity
of the camera to trigger an
alert.

Volume Dial

Adjusts the speaker volume.

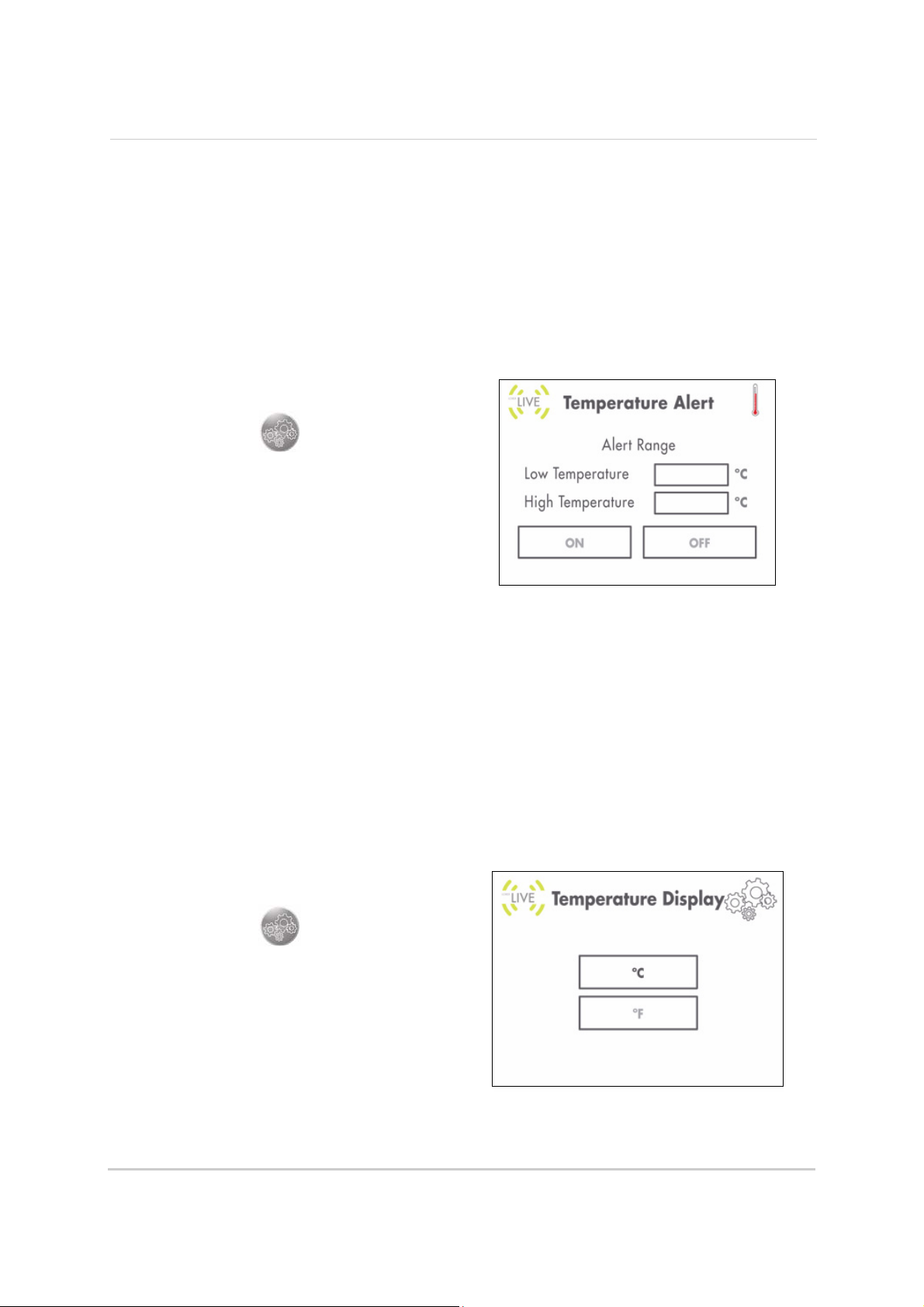

Temperature Sensor

Detects the room’s ambient
temperature.

Power Switch

Turns the camera on and off.

Battery Charging Indicator

Glows to indicate battery is charging.
This requires rechargable batteries
(not included, part # XXXXX)

3

Overview

OSD overview

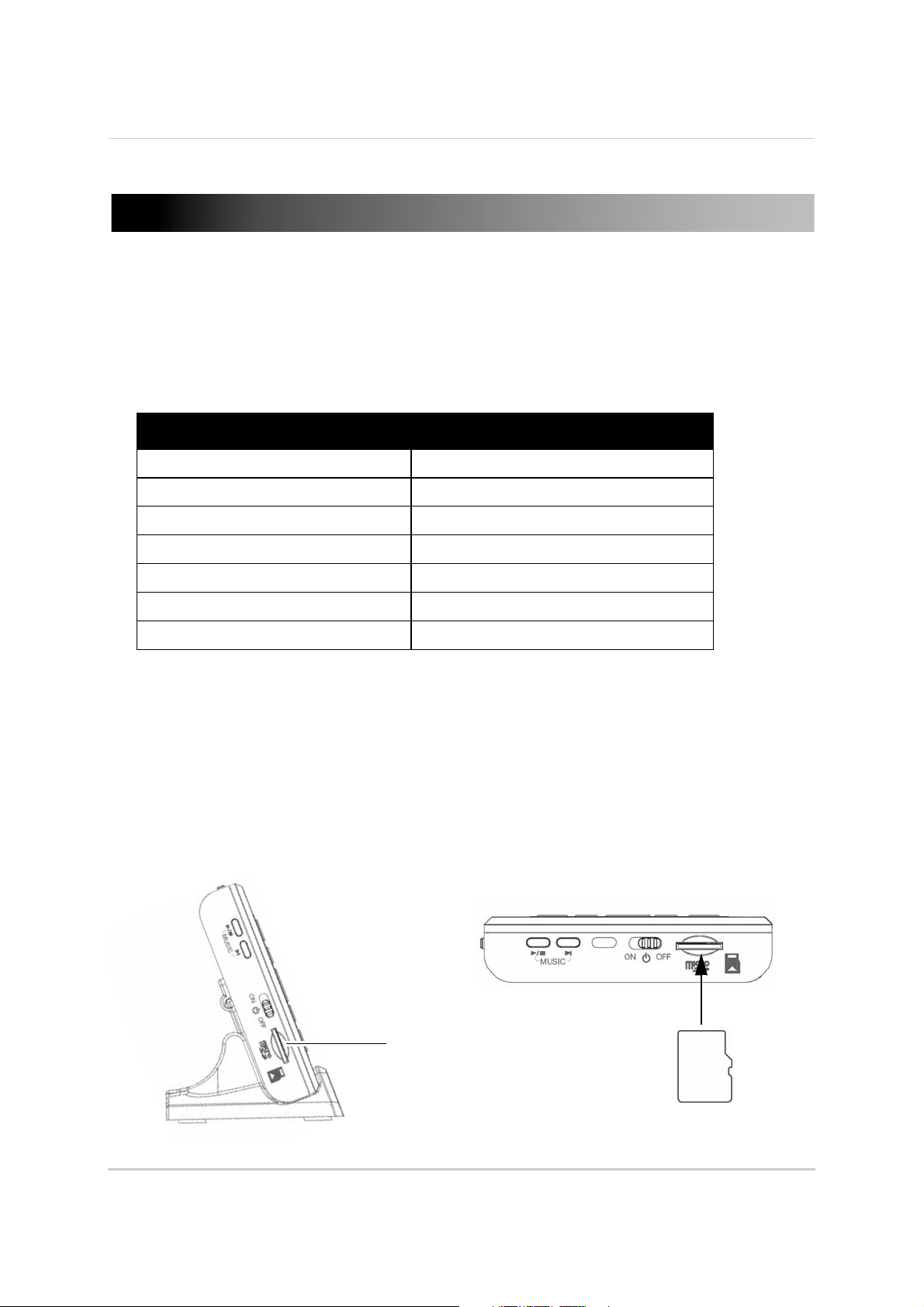

The video monitor displays the following icons during normal use. The table below
summarizes the video monitor icons, and what they mean.

Icon Meaning

No signal between the camera and video monitor.

Full signal between the camera and video monitor.

The camera night light is currently on.

The video monitor battery is low.

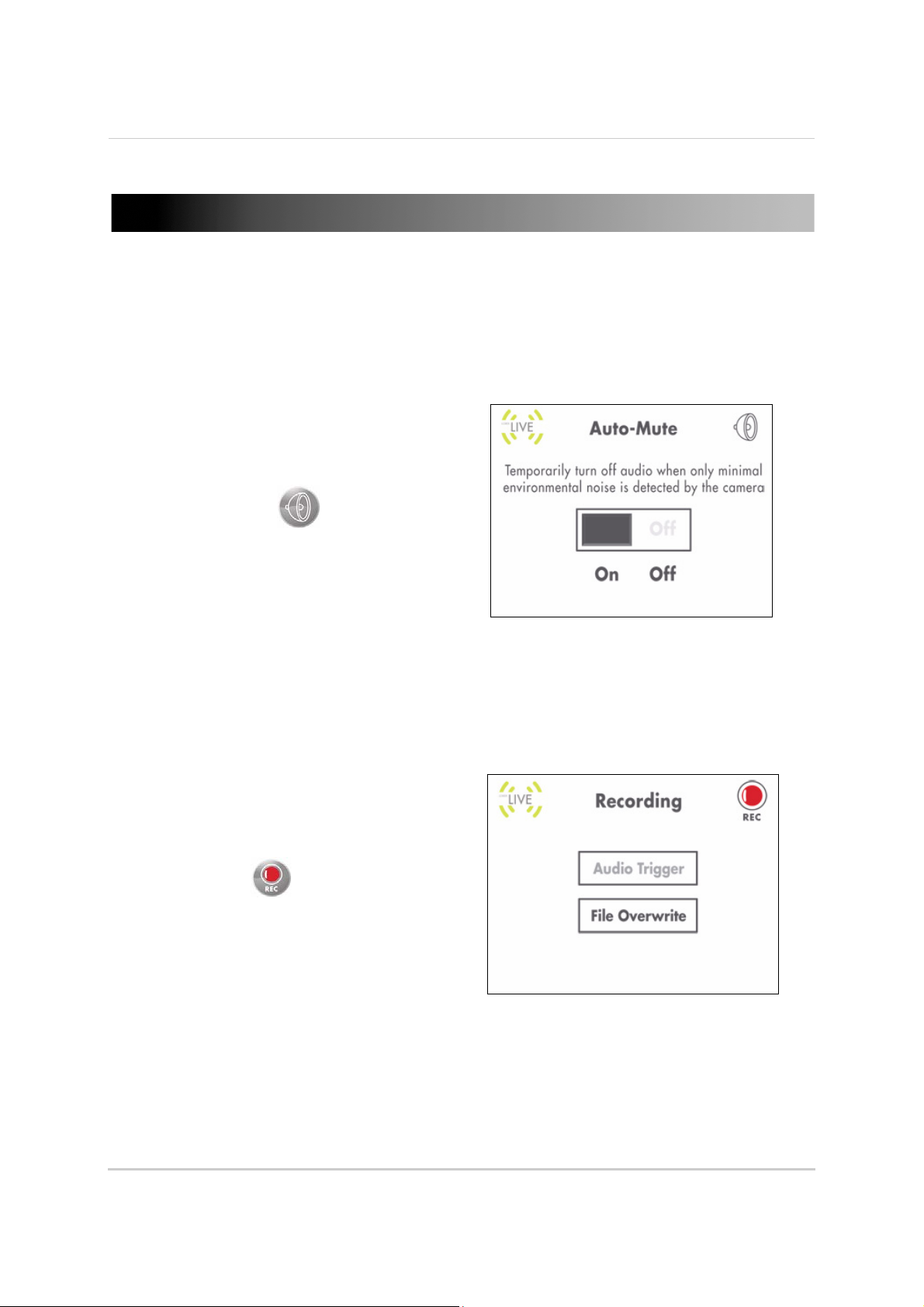

Auto recording is enabled.

Manual recording is enabled.

Two-way talk is enabled. You can now speak into the video
monitor.

Have factory confirm which icons will be included,
and what each icon means.

4

Basic Setup

Using the cable clips

Included are a bag of cable clips that allow you to manage the wires from the power
adapters. It is highly recommended that you use the cable clips keep the power cords out

of reach from young children and infants.

To use the cable clips, slide the wires in between the clips, then peel the protective film
behind the clip. Stick the clip along the wall /table leg so that it is out of reach.

line art of cable clip from vince

- diagram with cable setup around baby
crib

Basic Setup

Safety percautions?

5

Basic Setup

Optional: Charging the camera

The camera base has a built-in battery compartment where you can install three AA
batteries. This may be useful if you want to temporarily monitor an area with no power
outlets.

To install batteries in the camera:

1 Unplug the power cord from the base

of the camera.

2 Remove the battery cover.

3 Insert three AA batteries into the

battery compartment and replace the
battery cover.

NOTE: You can insert rechargable

batteries into the camera base.
Connect the power adapter into
the camera base to charge the batteries. Charge the batteries for 4.5 hours for a
full charge.

Remove battery cover from camera base.

NOTE: To order rechargable batteries, contact Lorex customer support at XXXXXXX and

inquire about part number XXXXXX.

.

To charge the camera battery:

1 Insert 3 AA batteries into the battery

compartment.

2 Plug the power adapter labeled "For Camera"

into a power outlet.

3 Connect the end of the power adapter into the

port labeled DC5V.

Connect the power adapter
into the DC5V port

6

Charging the video monitor

The video monitor can be charged using the cradle, or directly through the DC5V port on
the side of the video monitor. The batteries stop charging once it is full. You will
not"over-charge" the batteries. A full charge requires 4.5 hours.

To charge the video monitor using the cradle:

1 Connect the power adapter labeled "To Monitor" to a power outlet.

2 Connect the end of the power adapter into the charging cradle.

3 Rest the video monitor on the charging cradle, ensuring the metal contacts touch.

Basic Setup

DC5V port

To charge the video monitor without the cradle:

1 Connect the power adapter labeled "To Monitor" to a power outlet.

2 Connect the end of the power adapter into the DC5V port on the video monitor.

DC5V port

7

Basic Setup

Viewing your camera

To view your camera:

1 Connect the camera and video monitor to a power source.

NOTE: The power adapters are labeled "For Camera" and "For Monitor"

2 Slide the power switch to the ON position on the camera and video monitor. The video monitor

will automatically scan for cameras in range.

Camera image appears on monitor

Slide power switch
to the ON position

Testing your setup

It is recommended that you test your camera setup so that you get the best picture and
sound quality from your video monitor.

Test the camera and video monitor reception:

1 Place the camera and video monitor in two different rooms.

2 Have one person monitor the signal strength on the video monitor.

3 Have a second person move the camera in different locations of the room. The person holding

the video monitor can direct the person holding the camera, if the signal strength is low or
high.

Test the camera volume level:

1 Place the camera and video monitor in two different rooms. Have a person in each room.

2 Have a person with the video monitor press and hold the TALK button to confirm the volume

level from the camera. Adjust the volume dial on the camera as required.

3 The person holding the video monitor can determine if the camera needs to move to a

different location of the room for better sound quality.

8

Camera Setup

Adjust the camera volume

Adjust the Volume dial to the
desired level.

Basic Setup

Night Light Button

Press the Night Light button
to turn on or off the camera
night light.

Adjust the camera sensitivity

Adjust the sensitivity dial to the
desired level.

Adjust the camera angle

Tilt the camera to the desired
camera position.

Adjusting the camera sensitivity

The camera’s Sensitivity dial allows you to adjust how sensitive the camera is in detecting
ambient sounds. For example, if the camera detects the sound of a baby crying, the video
monitor beeps.

To adjust the camera’s sensitivity level:

• Scroll the Sensitivity dial on the side of the camera towards the
sensitivity. Scroll the dial towards the

- symbol for reduced sensitivity.

+ symbol for increased

Adjusting the camera volume

The camera’s speaker volume can be adjusted to the desired level. Scroll the dial towards

+ symbol to increase the volume. Scroll the dial towards the - symbol to reduce the

the
volume.

Turning on the camera night light

• Press the night light button on the top of the camera to turn the night light on or off. The night
light button glows when the night light is on.

9
