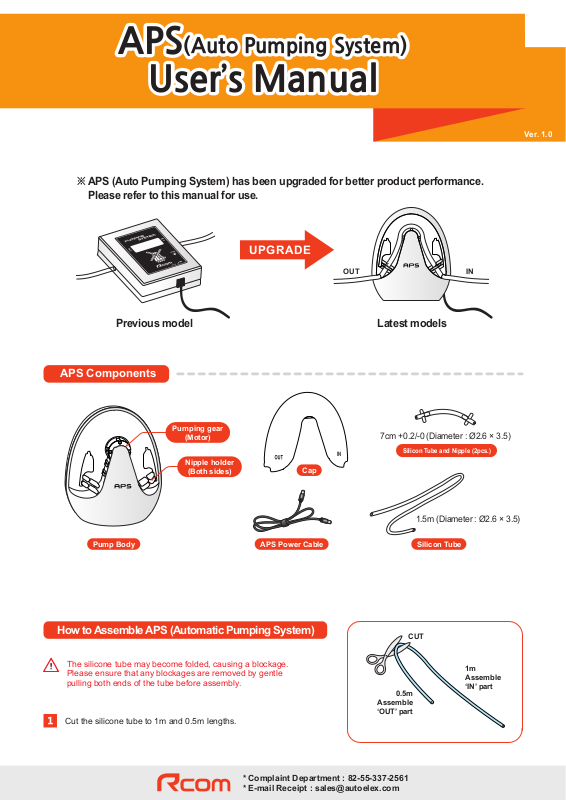

Rcom APS User Manual

APS(Auto Pumping System)

APS(Auto Pumping System)

User’s Manual

User’s Manual

※ APS (Auto Pumping System) has been upgraded for better product performance.
Please refer to this manual for use.

UPGRADE

OUT IN

Previous model Latest models

Ver. 1.0

APS Components

Pumping gear

(Motor)

Nipple holder

(Both sides)

How to Assemble APS (Automatic Pumping System)

Cap

7cm +0.2/-0 (Diameter : Ø2.6 × 3.5)

Silicon Tube and Nipple (2pcs.)

1.5m (Diameter : Ø2.6 × 3.5)

Silicon TubeAPS Power CablePump Body

CUT

The silicone tube may become folded, causing a blockage.
Please ensure that any blockages are removed by gentle
pulling both ends of the tube before assembly.

Cut the silicone tube to 1m and 0.5m lengths.

* Complaint Department : 82-55-337-2561
* E-mail Receipt : [e-mail]

0.5m
Assemble
‘OUT’ part

1m
Assemble
‘IN’ part

Direction of the

water in-flow

(assemble with the

water container)

Direction of the

water out-flow

(assemble with

the incubator)

Attach the cut parts of the silicone tube onto the nipples on either side

C

1m

Assemble

‘IN’ part

of the APS unit.

Please note that pumping performance
will be reduced if the silicone tube
isn’t fitted tightly onto the nipple,
or if the tube length is different from
[Picture A].

A

7cm +0.2/-0

Cross

Section

This part will be

factory pre-assembled.

As shown in [Picture B], insert a nipple, attached to 0.5m silicone tube,
into the ‘OUT’ part (left-hand side) of the nipple holder.

As shown in [Picture C], insert a nipple, attached to 1m silicone tube,
into the ‘IN’ part (right-hand side) of the nipple holder.

Assemble the cap onto the pump body.
Please make sure silicone tubes do not get jammed in the cap.

Connect the APS power cable onto the power inlet at the back of the
pump body.

Please refer to booklet manual page 16 for how to assemble the APS
with the incubator.

As shown, water flows out of the left silicon tube, and comes into
the right silicon tube.

B

0.5m
Assemble
‘OUT’ part

1m

Assemble

‘IN’ part

Turning direction
of the motor

* Complaint Department : 82-55-337-2561
* E-mail Receipt : [e-mail]
