WS 620XT
WATERPROOF SPEAKER FOR FLUSH-MOUNTING
DESCRIPTION
WS620XT is a ceiling speaker that can be
flush-mounted in false ceiling or panels. It has
been designed for external use, even on
boats. WS620XT incorporates a 160 mm (6”)
loudspeaker, with a 25 mm (1”) coaxial
tweeter. The speaker is equipped with a line
transformer that enables direct connection to
constant voltage systems at 70 V or 100 V. It
is possible to use the low impedance taps (4
ohm) removing the transformer. In this case
the installation can be done even with
reduced depth.
FEATURES
• Weather resistant splashproof speaker
• Two way speaker system with coaxial tweeter, recommended for hi level speech and background-
music reproduction
• Music power/RMS: 24/12W (20W if used at 4O)
• 6" woofer with coaxial tweeter
• Body and grille in plastic RAL 9016 White
• IP 55 protection
DATASHEET
Rev. C
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
105 dB
Coverage angle:
120°
System Sensitivity:
91 dB
Power section
Nominal Impedance (ohm):
4 ohm
Power Handling:
12 W RMS
Peak Power Handling:
48 W PEAK
Recommended Amplifier:
24 W
Transducers
Dome Tweeter:
1.0''
Woofer:
Coaxial 6.0''
Input/Output section
Input connectors:
Screw Terminals
Output connectors:
Screw Terminals
Power selection 1 (100 V):
12 W - 833 ohm
Power selection 2 (100 V):
6 W - 1667 ohm
Power selection 3 (100 V):
3 W - 3333 ohm
Standard compliance
IP protection grade:
IP 55
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Plastic
Grille:
Plastic
Color:
White - RAL 9016
Size
Depth:
115 mm / 4.53 inches
Recessed Depth:
97 mm / 3.82 inches
Diameter:
165 mm / 6.5 inches
Weight:
0.66 kg / 1.46 lbs
Shipping informations
Package Height:
155 mm / 6.1 inches
Package Width:
195 mm / 7.68 inches
Package Depth:
190 mm / 7.48 inches
Package Weight:
1.58 kg / 3.48 lbs
PART NUMBER
• 13133044
WS 620XT
EAN 8024530004996
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
165 mm
115 mm
18 mm
132 mm
DRAWINGS
DATASHEET
100 1000 10000
Frequency (Hz)
60
70
80
90
100
110
dB SPL
20
Response 1W/1m
100 1000 10000
Frequency (Hz)
1
10
100
Total Q
0
2
4
6
8
10
12
14
16
18
20
Directivity index Di, dB
Directivity Index and Q
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
Vertical +10 degrees
Vertical +20 degrees
Vertical +30 degrees
Vertical +40 degrees
Vertical +50 degrees
Vertical +60 degrees
Normalized Vertical off-axis Response. Above the box
100 1000 10000
Frequency (Hz)
0
30
60
90
120
150
180
210
240
270
300
330
360
Coverage Angle (Deg.)
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
Beamwidth vs. Frequency
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Normalized Horizontal off-axis Response
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
Vertical -10 degrees
Vertical -20 degrees
Vertical -30 degrees
Vertical -40 degrees
Vertical -50 degrees
Vertical -60 degrees
Normalized Vertical off-axis Response. Below the box
DATASHEET
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
315
250
200
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
2500
2000
1600
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
315
250
200
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
2500
2000
1600
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
630
500
400
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
5000
4000
3150
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
630
500
400
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
5000
4000
3150
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
1250
1000
800
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
10000
8000
6300
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
1250
1000
800
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
10000
8000
6300
Vertical 1/3 Octave Polars

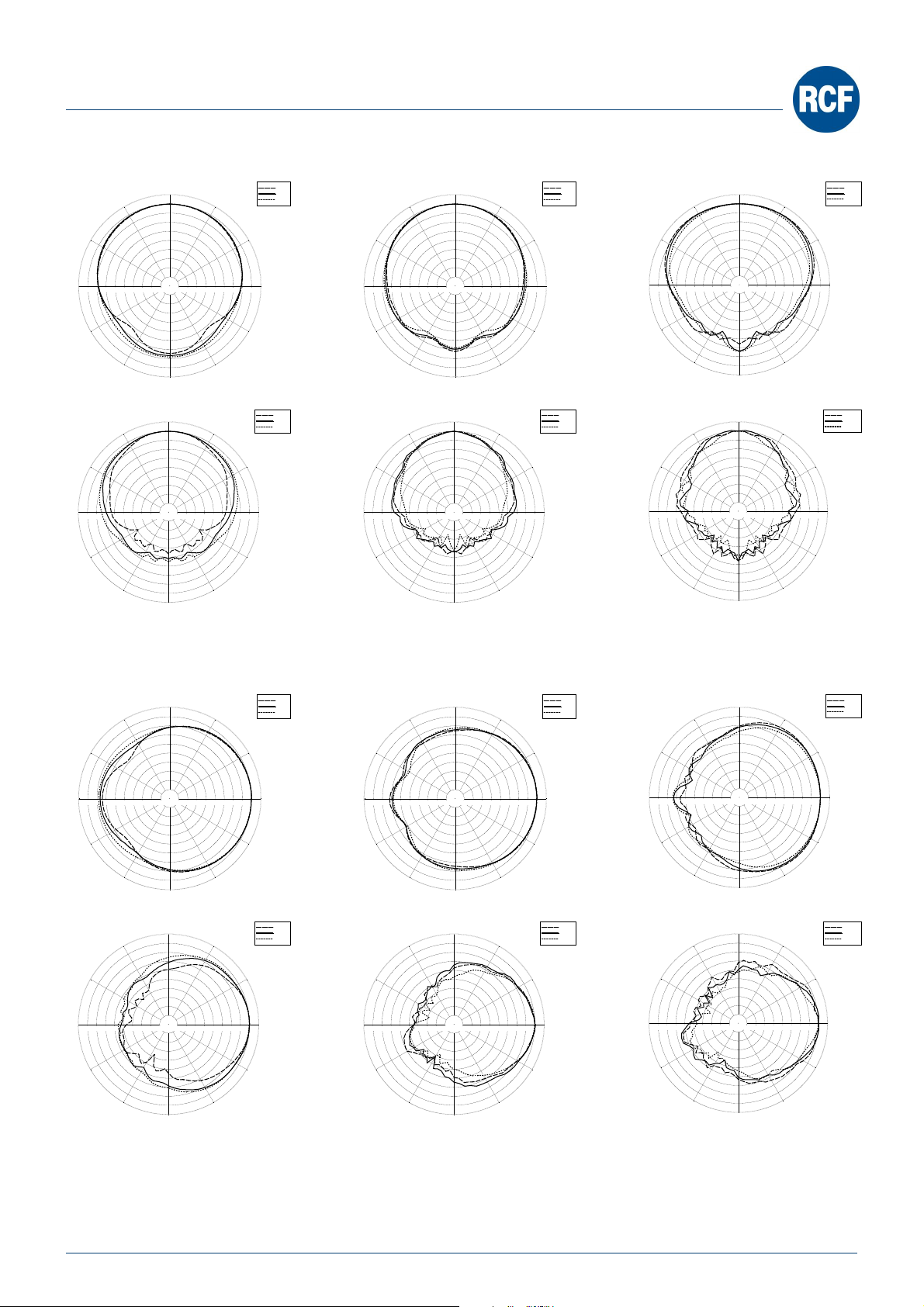

HORIZONTAL 1/3 POLAR PLOT
VERTICAL 1/3 POLAR PLOT
