V 6
HIGH POWER, TWO-WAY BASS REFLEX FULL RANGE SYSTEM
DESCRIPTION
The V6 is a very compact, full range,
extremely versatile two-way loudspeaker
system. It offers substantial output and
efficiency for a variety of professional
applications that include portable systems,
small sound reinforcement, permanent
installations and supplementary fill for larger
systems. The high-frequency section is a
constant directivity CMD horn mathematically
designed for Coverage Matching Design in
relation to the woofer system, loaded on a
compression driver with a 1.7” diaphragm
assembly for smooth, controlled dispersion.
The low-frequency transducer is a tight, high
power 6” mid-bass with a 1.8 ” voice coil.
FEATURES
• 6" high power, 1.8" voice coil mid bass
• 1 x 1.7" high power titanium compression driver
• 124 dB max SPL
• 200 Watt AES
• High output, response down to 60 Hz
• Birch plywood cabinet
• Weather resistant, textured, polyurea finish
• Epoxy powder coated front grille
DATASHEET
Rev. I
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
123 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Directivity index Q:
10
System Sensitivity:
94 dB
Power section
Nominal Impedance (ohm):
8 ohm
Power Handling:
200 W RMS
Peak Power Handling:
800 W PEAK
Recommended Amplifier:
400 W
Protections:
Bulb lamp dynamic
Crossover Frequencies:
1400 Hz
Transducers
Compression Driver:
1.0'', 1.75'' v.c
Nominal Impedance (ohm):
8 ohm
Input Power Rating:
100 W AES, 200 W PEAK
Sensitivity:
108 dB, 1W @ 1m
Woofer:
6.0'', 1.7'' v.c
Nominal Impedance (ohm):
8 ohm
Input Power Rating:
150 W AES, 300 W PEAK
Sensitivity:
94 dB, 1W @ 1m
Input/Output section
Input connectors:
Speakon® NL4
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
9 x M10 inserts
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
394 mm / 15.51 inches
Width:
224 mm / 8.82 inches
Depth:
272 mm / 10.71 inches
Weight:
9 kg / 19.84 lbs
Shipping informations
Package Height:
435 mm / 17.13 inches
Package Width:
315 mm / 12.4 inches
Package Depth:
260 mm / 10.24 inches
Package Weight:
11 kg / 24.25 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13000437
V 6
EAN 8024530013127
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
VISTA 3D / 3D VIEW
224 8.8[ ]
394 15.5[ ]
271.95 10.7[ ]
125 4.9[ ]
50$
ACOUSTIC SPEAKER V6
REV.
A
DATASHEET
DATASHEET

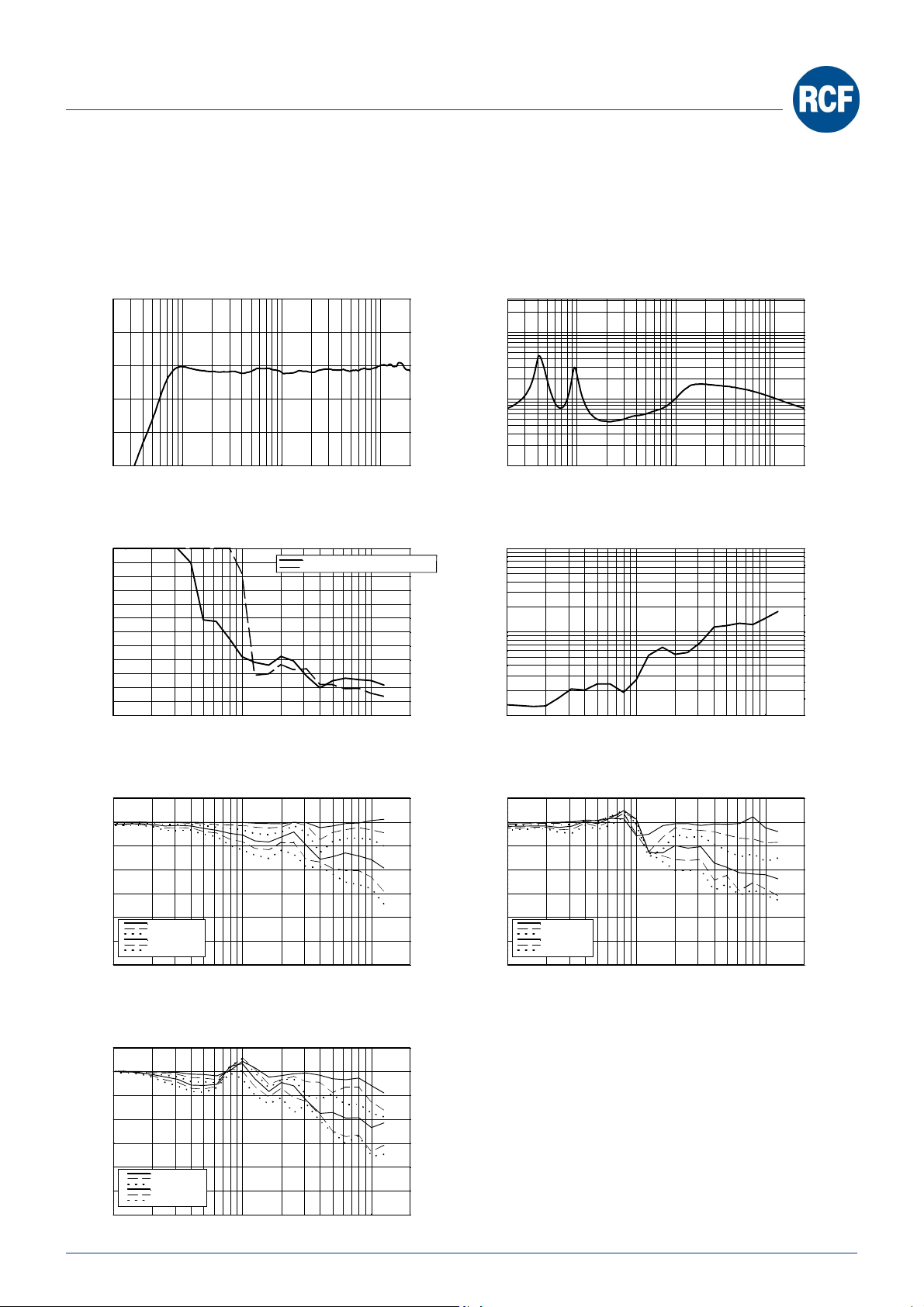

110
Response 1W/1m
100
90
dB SPL
80
70
360
330
300
60
20
100 1000 10000
Frequency (Hz)
Beamwidth vs. Frequency
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
270
240
210
180
150
120
Coverage Angle (Deg.)
90
60
30
0
100 1000 10000
Frequency (Hz)
316
Impedance
100
Ohms
10
1
100
10
Total Q
1
100 1000 10000
100 1000 10000
Frequency (Hz)
Directivity Index and Q
Frequency (Hz)
20
18
16
14
Directivity index Di, dB
12
10
8
6
4
2
0
5
Normalized Horizontal off-axis Response
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
5
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Frequency (Hz)
Normalized Vertical off-axis Response. Below the box
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Vertical -10 degrees
Vertical -20 degrees
Vertical -30 degrees
Vertical -40 degrees
Vertical -50 degrees
Vertical -60 degrees
Frequency (Hz)
5
Normalized Vertical off-axis Response. Above the box
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Vertical +10 degrees
Vertical +20 degrees
Vertical +30 degrees
Vertical +40 degrees
Vertical +50 degrees
Vertical +60 degrees
Frequency (Hz)
V6
DATASHEET

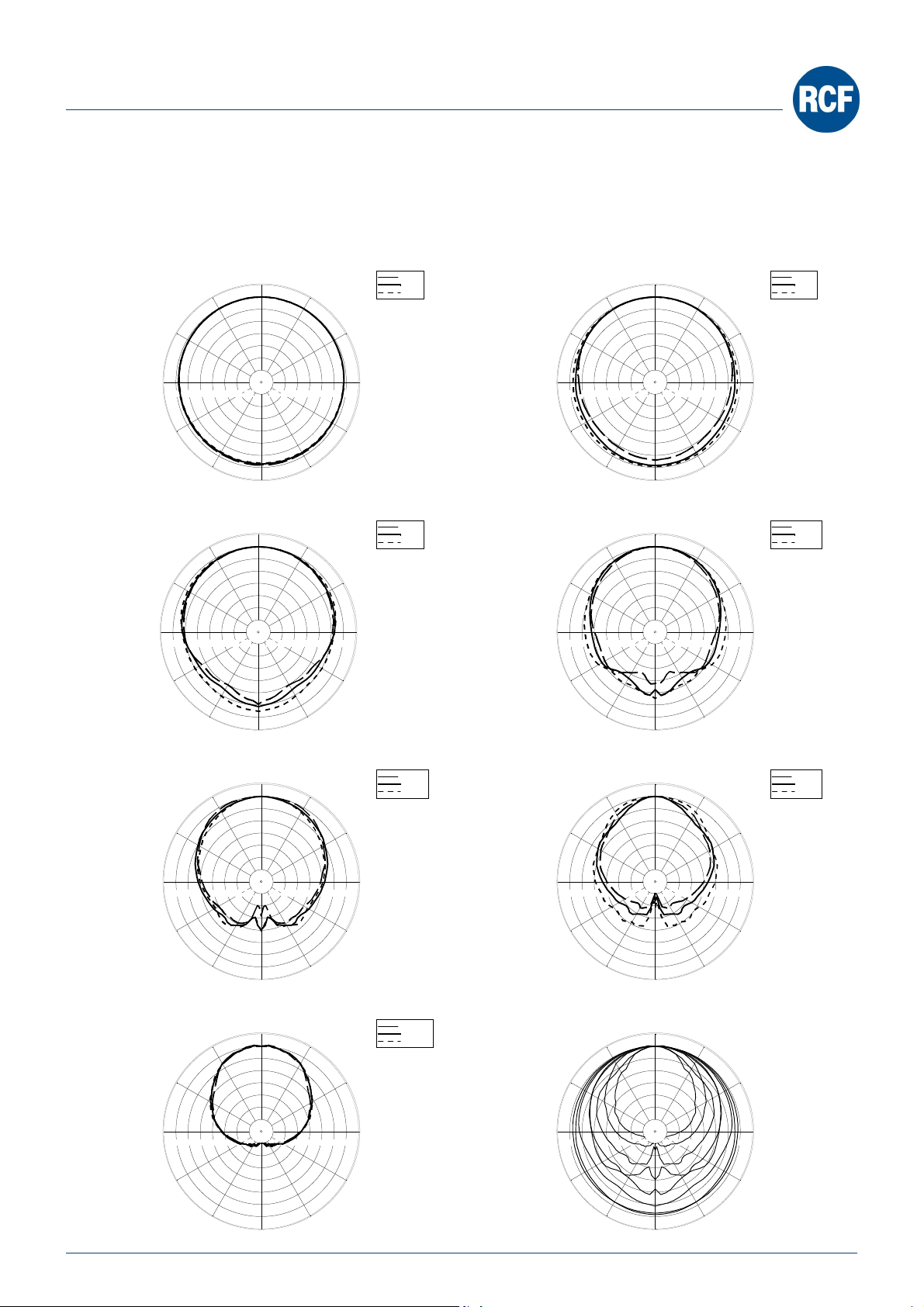

Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
330°
210°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
160
125
100
90°
630
500
400
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
210°
330°
330°
210°
180°
0°
180°
315
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
250
200
90°
1250
1000
800
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
210°
330°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
2500
2000
1600
90°
10000
8000
6300
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
300°
270°
240°
330°
210°
330°
210°
180°
180°
0°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
Horizontal One Octave Polars
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
5000
4000
3150
90°
90°
V6
DATASHEET

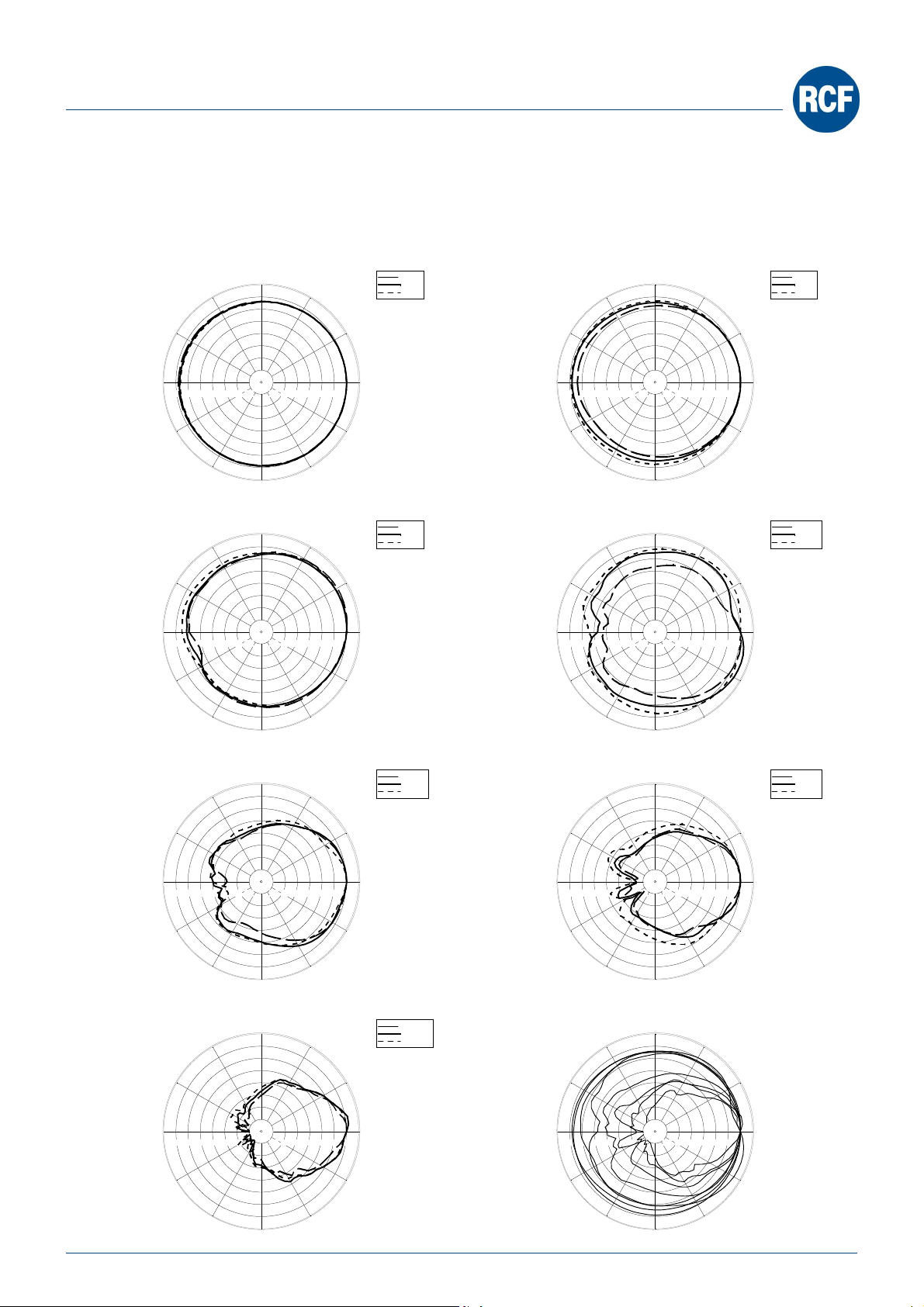

Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
160
125
100
0°
630
500
400
0°
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
240°
120°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
315
250
200
0°
1250
1000
800
0°
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
2500
2000
1600
0°
10000
8000
6300
0°
Vertical 1/3 Octave Polars
150°
180°
210°
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
Vertical One Octave Polars
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
5000
4000
3150
0°
0°
V6
